Created
May 15, 2022 13:17
-
-
Save Hermann-SW/c5151eddcb8a1271fc5a539e57a1f869 to your computer and use it in GitHub Desktop.
Determination of pentagon fold angle for C60 fullerene (truncated icosahedron)
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
%! | |
0 setlinewidth | |
/vertex { 2 copy 5 4 roll dup 4 1 roll | |
newpath 0 360 arc closepath | |
gsave 1.0 setgray fill grestore | |
stroke | |
12 ge { | |
newpath moveto | |
gsave dup false charpath flattenpath pathbbox grestore | |
exch 4 1 roll exch sub -.5 mul 3 1 roll sub -.5 mul exch | |
rmoveto show | |
} { pop pop pop } ifelse | |
} def | |
/txt { | |
newpath moveto | |
gsave dup false charpath flattenpath pathbbox grestore | |
exch 4 1 roll exch sub -.5 mul 3 1 roll sub -.5 mul exch | |
rmoveto show | |
} def | |
/txtdistdeg { | |
newpath moveto | |
gsave dup false charpath flattenpath pathbbox grestore | |
exch 4 1 roll exch sub -.5 mul 3 1 roll sub -.5 mul exch | |
5 3 roll gsave | |
rotate 0 exch rmoveto | |
rmoveto show | |
grestore | |
} def | |
/poly { | |
newpath | |
moveto | |
{ | |
count 0 eq { exit } if | |
lineto | |
} loop | |
} def | |
%% http://computer-programming-forum.com/36-postscript/3d1b79b93a578811.htm | |
/arrow %% angle /arrow -- draws arrowhead | |
{ | |
gsave | |
currentpoint translate 90 sub rotate .5 .5 scale | |
newpath | |
0.1 setlinewidth | |
0 -15 moveto | |
-6 -18 lineto | |
-4 -15 -1 -9 0 0 curveto | |
1 -9 4 -15 6 -18 curveto | |
0 -15 lineto | |
fill | |
grestore | |
} def | |
/arrowto %% x1 y1 arrowto -- draws line with arrowhead | |
{ | |
2 copy % x1 y1 x1 y1 | |
currentpoint % x1 y1 x1 y1 x0 y0 | |
3 -1 roll exch % x1 y1 x1 x0 y1 y0 | |
sub % x1 y1 x1 x0 y1-y0 | |
3 1 roll % x1 y1 y1-y0 x1 x0 | |
sub % x1 y1 y1-y0 x1-x0 | |
atan % x1 y1 theta | |
3 1 roll % theta x1 y1 | |
2 copy lineto % theta x1 y1 | |
2 copy stroke moveto % theta x1 y1 | |
3 -1 roll arrow % x1 y1 | |
moveto | |
} def | |
/rarrowto { %% dx dy rarrowto -- | |
exch currentpoint % dy dx x0 y0 | |
4 1 roll % y0 dy dx x0 | |
add 3 1 roll % x0+dx y0 dy | |
add arrowto | |
} def | |
%% len dist cr cg cb angle x1 y1 | |
/parrow { | |
gsave | |
newpath translate 0 0 moveto | |
rotate | |
setrgbcolor | |
0 exch rmoveto | |
0 rarrowto | |
grestore | |
} def | |
% .75 setgray 300 400 200 400 200 300 275 325 poly fill | |
% (txt) 350 250 txt | |
% () 0.3 390 270 vertex | |
300 400 translate | |
gsave | |
50 -35 0 0 1 -90 0 230 parrow | |
50 35 0 0 1 -90 0 230 parrow | |
50 -35 0 0 1 0 -260 0 parrow | |
50 -105 0 0 1 0 -260 0 parrow | |
50 35 0 0 1 180 260 0 parrow | |
50 105 0 0 1 180 260 0 parrow | |
grestore | |
150 150 scale | |
0.75 setgray | |
newpath -3 0 moveto 3 0 lineto stroke | |
newpath 0 -3 moveto 0 3 lineto stroke | |
0.01 setlinewidth | |
/Times-Roman findfont 0.12 scalefont setfont | |
gsave | |
1 0 0 setrgbcolor | |
newpath 0 0 moveto | |
36 rotate 1 0 rlineto | |
72 rotate 1 0 rlineto | |
72 rotate 1 0 rlineto | |
72 rotate 1 0 rlineto | |
72 rotate 1 0 rlineto | |
stroke | |
grestore | |
gsave | |
0 1 0 setrgbcolor | |
newpath 0 0 moveto | |
-90 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
stroke | |
grestore | |
gsave | |
0 1 0 setrgbcolor | |
newpath 0 0 moveto | |
150 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
60 rotate 1 0 rlineto | |
stroke | |
grestore | |
0 setgray | |
(108) 0.4 1.45 txt | |
(54) -0.1 0.2 txt | |
(cos(a)*cos(54)) 0.37 0.63 txt | |
(sin(30)) -1.31 0.4 txt | |
(120) -0.9 -1.35 txt | |
(30) -0.35 0.1 txt | |
(a = arccos(sin(30) / cos(54))) 0 1.85 txt | |
(fold angle a that makes Y-coordinate of marked vertices match) 0 2 txt | |
(determination of C60 fullerene (truncated icosahedron)) 0 2.20 txt | |
(marked vertex Z-coordinate for angle a is sin(a)*cos(54) ==>) 0 -1.85 txt | |
(angle b between marked vertex and heatbed is arcsin(sin(a)*cos(54))=18 deg) 0 -2 txt | |
gsave | |
newpath 0 0 moveto | |
30 cos -1 mul 0 rmoveto | |
0 30 sin rlineto | |
stroke | |
grestore | |
gsave | |
newpath 0 0 moveto | |
0 36 sin rlineto | |
stroke | |
grestore | |
gsave | |
() 0.03 36 cos -1 mul 36 sin vertex | |
() 0.03 30 cos -1 mul 30 sin vertex | |
grestore | |
showpage |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment

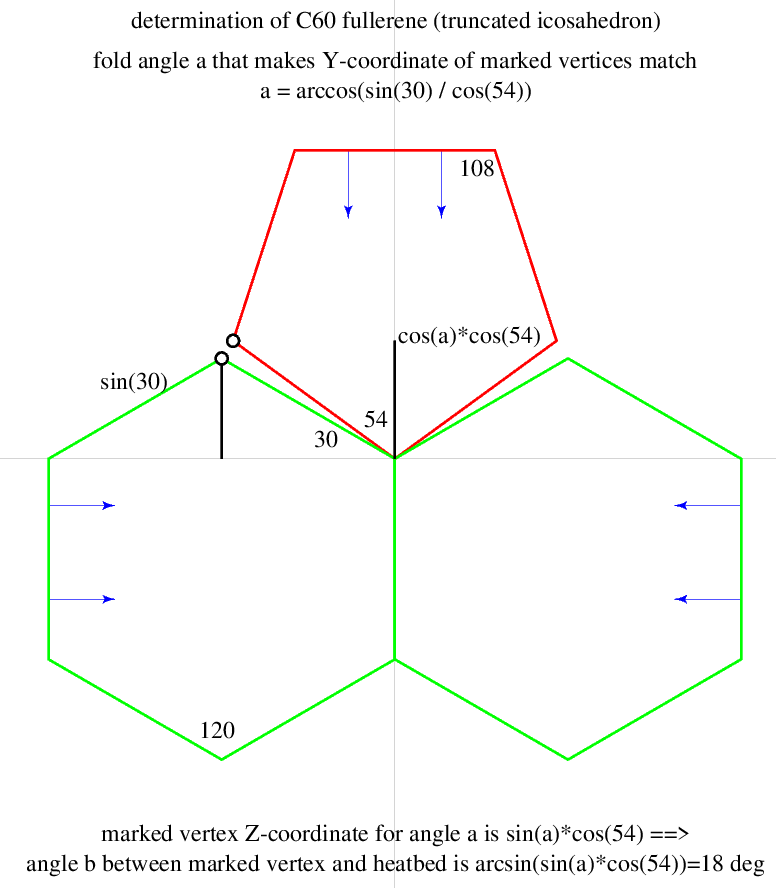

Screenshot taken after command "gv calc60.ps":
