C++ Windows Win32 Simple progress window / windows visual style

simple_progress.hpp

/* ========= Simple Win32 Progress Window =========
 * Language: C/C++ MSVC | ISO C++20 Standard
 * ========= Simple Win32 Progress Window ========= */

#include <Windows.h>
#include <CommCtrl.h>
#include <Uxtheme.h>
#pragma comment(lib, "comctl32.lib")
#pragma comment(linker,"\"/manifestdependency:type='win32' \
name='Microsoft.Windows.Common-Controls' version='6.0.0.0' \
processorArchitecture='*' publicKeyToken='6595b64144ccf1df' language='*'\"")

#include <string>
#include <functional>

using namespace std;

struct ProgressStatus {
	wstring Title;
	wstring Text;

	int Value;
	int Min;
	int Max;

	bool Marquee;

	ProgressStatus(wstring title, wstring text, int value = 0, int min = 0, int max = 100, bool marquee = 0) {
		Title = title;
		Text = text;
		Value = value;
		Min = min;
		Max = Max;
		Marquee = marquee;
	}
};

class ProgressWindow {
private:
	HFONT TitleFont;
	HFONT TextFont;
	HFONT ButtonFont;
	HWND TitleHandle;
	HWND TextHandle;
	HWND ProgressHandle;
	HWND FocusHandle;
	HWND CancelButtonHandle;
	bool CustomTheme = false;
	bool UserClose = false;
public:
	HWND Handle;
	function<bool(ProgressWindow* progress)> OnCancel;
	bool Canceled = false;
	bool Closed = false;
	// [ReadOnly]
	ProgressStatus Status;

	inline ProgressWindow(
		wstring title,
		ProgressStatus status,
		function<bool(ProgressWindow* progress)> onCancel = 0,
		DWORD dwExStyle = 0,
		DWORD dwStyle = WS_CAPTION
	) : Status(status) {
		const int SizeWidth = 360;
		const int SizeHeight = 158;
		const int Padding = 12;
		const int TitleX = Padding;
		const int TitleY = Padding;
		const int TitleWidth = SizeWidth - Padding * 2;
		const int TitleHeight = 22;
		const int TextX = Padding;
		const int TextY = TitleY + TitleHeight + Padding;
		const int TextWidth = SizeWidth - Padding * 2;
		const int TextHeight = 16;
		const int ProgressX = Padding;
		const int ProgressY = TextY + TextHeight + Padding + 6;
		const int ProgressWidth = SizeWidth - Padding * 2;
		const int ProgressHeight = 16;
		const int ButtonWidth = 80;
		const int ButtonHeight = 24;
		const int FocusX = 0;
		const int FocusY = 0;
		const int FocusWidth = SizeWidth;
		const int FocusHeight = SizeHeight - ButtonHeight - Padding * 2;
		OnCancel = onCancel;

		// create class
		WNDCLASSEX wcex{};
		wcex.cbSize = sizeof(WNDCLASSEX);
		wcex.style = CS_HREDRAW | CS_VREDRAW;
		wcex.lpfnWndProc = StaticWndProc;
		wcex.cbClsExtra = 0;
		wcex.cbWndExtra = 0;
		wcex.hInstance = GetModuleHandle(0);
		wcex.hIcon = LoadIcon(wcex.hInstance, MAKEINTRESOURCE(IDI_APPLICATION));
		wcex.hCursor = LoadCursor(NULL, IDC_ARROW);
		wcex.hbrBackground = (HBRUSH)COLOR_WINDOW;
		wcex.lpszMenuName = NULL;
		wcex.lpszClassName = L"ProgressWindow";
		wcex.hIconSm = LoadIcon(wcex.hInstance, MAKEINTRESOURCE(IDI_APPLICATION));
		RegisterClassEx(&wcex);

		// create window
		RECT rect = {
			0, 0,
			rect.left + SizeWidth,
			rect.top + SizeHeight
		};
		AdjustWindowRectEx(&rect, dwStyle, false, 0);

		auto sizeWidth = rect.right - rect.left;
		auto sizeHeight = rect.bottom - rect.top;

		Handle = CreateWindowEx(
			dwExStyle,
			wcex.lpszClassName,
			title.c_str(),
			dwStyle,
			(GetSystemMetrics(SM_CXSCREEN) - sizeWidth) / 2,
			(GetSystemMetrics(SM_CYSCREEN) - sizeHeight) / 2,
			sizeWidth, sizeHeight,
			0, 0, wcex.hInstance, 0
		);
		SetWindowLongPtr(Handle, GWLP_USERDATA, (LONG_PTR)this);

		// focus
		FocusHandle = CreateWindowEx(0,
			L"Static", 0,
			WS_CHILD | WS_VISIBLE,
			FocusX,
			FocusY,
			FocusWidth,
			FocusHeight,
			Handle, 0, 0, 0
		);

		// create title
		TitleHandle = CreateWindowEx(0,
			L"Static",
			status.Title.c_str(),
			WS_CHILD | WS_VISIBLE,
			TitleX, TitleY,
			TitleWidth, TitleHeight,
			Handle, 0, 0, 0
		);
		// create title font
		TitleFont = CreateFont(
			TitleHeight, 0, 0, 0, FW_NORMAL,
			FALSE, FALSE, FALSE,
			DEFAULT_CHARSET,
			OUT_DEFAULT_PRECIS,
			CLIP_DEFAULT_PRECIS,
			DEFAULT_QUALITY,
			DEFAULT_PITCH,
			L"Segoe UI"
		);
		// set title font
		SendMessage(TitleHandle, WM_SETFONT, (WPARAM)TitleFont, TRUE);

		// create text
		TextHandle = CreateWindowEx(0,
			L"Static",
			status.Text.c_str(),
			WS_CHILD | WS_VISIBLE,
			TextX, TextY,
			TextWidth, TextHeight,
			Handle, 0, 0, 0
		);
		// create title font
		TextFont = CreateFont(
			TextHeight, 0, 0, 0, FW_NORMAL,
			FALSE, FALSE, FALSE,
			DEFAULT_CHARSET,
			OUT_DEFAULT_PRECIS,
			CLIP_DEFAULT_PRECIS,
			DEFAULT_QUALITY,
			DEFAULT_PITCH,
			L"Segoe UI"
		);
		// set title font
		SendMessage(TextHandle, WM_SETFONT, (WPARAM)TextFont, TRUE);

		// create progress bar
		ProgressHandle = CreateWindowExA(0,
			PROGRESS_CLASSA, 0, WS_CHILD | WS_VISIBLE,
			ProgressX,
			ProgressY,
			ProgressWidth,
			ProgressHeight,
			Handle, 0, 0, 0
		);

		// create button
		ButtonFont = CreateFont(
			ButtonHeight - 8, 0, 0, 0, FW_NORMAL,
			FALSE, FALSE, FALSE,
			DEFAULT_CHARSET,
			OUT_DEFAULT_PRECIS,
			CLIP_DEFAULT_PRECIS,
			DEFAULT_QUALITY,
			DEFAULT_PITCH,
			L"Segoe UI"
		);
		// create cancel button
		CancelButtonHandle = CreateWindowEx(0,
			L"Button",
			L"Cancel",
			WS_CHILD | BS_PUSHBUTTON | (OnCancel ? WS_VISIBLE : 0),
			SizeWidth - Padding - ButtonWidth,
			SizeHeight - Padding - ButtonHeight,
			ButtonWidth, ButtonHeight,
			Handle, (HMENU)IDCANCEL, 0, 0
		);
		// set button font
		SendMessage(CancelButtonHandle, WM_SETFONT, (WPARAM)ButtonFont, TRUE);

		SetMarquee(status.Marquee);
		SetValue(status.Value, status.Min, status.Max);

		UpdateWindow(Handle);
		ShowWindow(Handle, SW_SHOW);
	}

	inline void SetTitle(wstring value) {
		SendMessageW(TitleHandle, WM_SETTEXT, 0, (LPARAM)value.c_str());
		Status.Title = value;
	}

	inline void SetText(wstring value) {
		SendMessageW(TextHandle, WM_SETTEXT, 0, (LPARAM)value.c_str());
		Status.Text = value;
	}

	inline void SetText(wstring title, wstring text) {
		SetTitle(title);
		SetText(text);
	}

	inline void SetValue(int value) {
		SendMessageA(ProgressHandle, PBM_SETPOS, value, 0);
		Status.Value = value;
	}

	inline void SetProgress(int min, int max) {
		SendMessageA(ProgressHandle, PBM_SETRANGE, 0, MAKELPARAM(min, max));
		Status.Min = min;
		Status.Max = max;
	}

	inline void SetValue(int value, int min, int max) {
		SetProgress(min, max);
		SendMessageA(ProgressHandle, PBM_SETPOS, value, 0);
		Status.Value = value;
	}

	// default speed: 30ms
	inline void SetMarquee(bool value, int speed = 0) {
		auto style = GetWindowLongPtr(ProgressHandle, GWL_STYLE);
		if (value) style |= PBS_MARQUEE;
		else style &= ~PBS_MARQUEE;
		SetWindowLongPtr(ProgressHandle, GWL_STYLE, style);
		SendMessage(ProgressHandle, PBM_SETMARQUEE, value, speed);
		Status.Marquee = value;
	}

	inline void SetBackgroundColor(COLORREF color) {
		SetProgressCustomTheme();
		SendMessage(ProgressHandle, PBM_SETBKCOLOR, 0, color);
	}

	inline void SetBarColor(COLORREF color) {
		SetProgressCustomTheme();
		SendMessage(ProgressHandle, PBM_SETBARCOLOR, 0, color);
	}

	inline void SetStatus(ProgressStatus status) {
		// It will have less overhead to update compared to the old value than to update the graphics buffer.
		if (Status.Title != status.Title)
			SetTitle(status.Title);
		if (Status.Text != status.Text)
			SetText(status.Text);
		if (Status.Marquee != status.Marquee)
			SetMarquee(status.Marquee);
		if (Status.Max != status.Max || Status.Min != status.Min)
			SetProgress(status.Min, status.Max);
		if (Status.Value != status.Value)
			SetValue(status.Value);
		UpdateWindow(Handle);
	}

	inline void Show() {
		ShowWindow(Handle, SW_SHOW);
	}

	inline void Hide() {
		ShowWindow(Handle, SW_HIDE);
	}

	inline void Close() {
		Canceled = false;
		UserClose = true;
		PostMessage(Handle, WM_CLOSE, 0, 0);
	}

	inline void Cancel() {
		Canceled = true;
		UserClose = false;
		PostMessage(Handle, WM_CLOSE, 0, 0);
	}

	inline bool Join() {
		MSG msg{};

		while (!Closed && GetMessageA(&msg, Handle, 0, 0)) {
			TranslateMessage(&msg);
			DispatchMessageA(&msg);
		}

		return !Canceled;
	}

	inline ~ProgressWindow() {
		Closed = true;
		// destroy font
		DeleteObject(TitleFont);
		DeleteObject(TextFont);
		DeleteObject(ButtonFont);
		// destroy window
		DestroyWindow(Handle);
	}

private:
	inline void SetProgressCustomTheme() {
		if (!CustomTheme) {
			SetWindowTheme(ProgressHandle, L"", L"");
			CustomTheme = true;
		}
	}

	LRESULT CALLBACK WndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam) {
		switch (message) {
		case WM_DESTROY:
			// If you are using a global message loop, modify it for your situation.
			//PostQuitMessage(0);
			Closed = true;
			return 0;
		case WM_COMMAND:
			if (LOWORD(wParam) != IDCANCEL)
				break;
			// goto WM_CLOSE:
		case WM_CLOSE:
			if (UserClose || (OnCancel && OnCancel(this))) {
				Canceled = !UserClose;
				Closed = true;
				DestroyWindow(hWnd);
			}
			break;
		case WM_CTLCOLORSTATIC:
			if ((HWND)lParam == TitleHandle) {
				SetBkMode((HDC)wParam, TRANSPARENT);
				SetTextColor((HDC)wParam, RGB(0x1a, 0x48, 0xa3));
				return (LRESULT)GetStockObject(NULL_BRUSH);
			}
			break;
		default:
			return DefWindowProc(hWnd, message, wParam, lParam);
		}
		return 0;
	}

	inline static LRESULT CALLBACK StaticWndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam) {
		ProgressWindow* window = (ProgressWindow*)GetWindowLongPtr(hWnd, GWLP_USERDATA);
		if (window)
			return window->WndProc(hWnd, message, wParam, lParam);
		return DefWindowProc(hWnd, message, wParam, lParam);
	}
};

#include <thread>
#include <format>

int main() {
	// create progress window

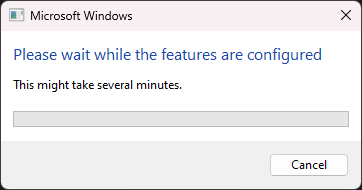

	ProgressWindow progress(
		L"Microsoft Windows",
		ProgressStatus(
			L"Please wait while the features are configured",
			L"This might take several minutes.",
			0, 0, 0, true
		),
		// If this parameter has a function, a window close button and a Cancel button are displayed.
		[=](ProgressWindow* window) {
			return
				MessageBox(window->Handle,
					L"Are you sure you want to cancel this operation?", L"OMG",
					MB_YESNO | MB_ICONWARNING | MB_TOPMOST) == IDYES;
		},
		// You can use WS_EX_TOPMOST in the dxExStyle parameter.
		WS_EX_TOPMOST,
		// If you use WS_SYSMENU for the dxStyle parameter, you can create an exit button on the window.
		// Exit button works the same as Cancel button.
		// Don't forget to put WS_CAPTION when modifying this parameter!!!
		WS_CAPTION | WS_SYSMENU
	);

	thread task = thread([&] {
		Sleep(2000);
		// Do not use the Status object as a reference variable or change its value!!
		ProgressStatus status = progress.Status; // copy
		status.Marquee = false;
		status.Max = 100;
		status.Min = 0;
		status.Value = 0;
		status.Text = L"This might take several minutes.";
		progress.SetStatus(status);

		for (int i = 0; i <= 100; i+=20) {
			progress.SetText(format(L"About {} seconds left.", (100 - i) / 20));
			progress.SetValue(i);
			// or
			// status.Value = i;
			// progress.SetStatus(status);
			Sleep(1000);
		}

		progress.SetText(L"Completing...");
		progress.SetMarquee(true);
		Sleep(5000);
		progress.Close();
	});
	task.detach();

	// Returns true if not canceled.
	auto result = progress.Join();
	MessageBox(0,
		result ?
			L"The task ended successfully." :
			L"The task was canceled.", L"Result",
		MB_OK | (result ? MB_ICONINFORMATION : MB_ICONERROR));

	return 0;
}
