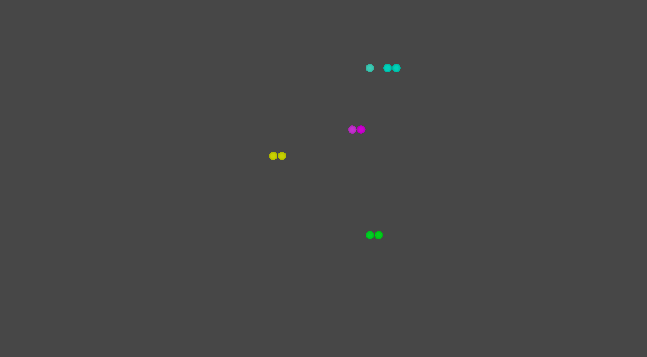

Example of a grid system built with with ISystemStateComponentData
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
// src: https://gist.github.com/andrew-raphael-lukasik/19170443b976582f97404f6da9875b4c | |
using UnityEngine; | |
using Unity.Entities; | |
using Unity.Mathematics; | |
using Unity.Collections; | |
using Unity.Jobs; | |
namespace Sandbox | |
{ | |
public class Planted : MonoBehaviour | |
{ | |
[SerializeField] int _numPlantsOnStart = 5; | |
[SerializeField] int2 _coordMinOnStart = -10, _coordMaxnOnStart = 10; | |
EntityManager _entityManager; | |
EntityQuery _query; | |
void Start () | |
{ | |
var world = World.DefaultGameObjectInjectionWorld; | |
_entityManager = world.EntityManager; | |
_query = _entityManager.CreateEntityQuery( ComponentType.ReadOnly<Coord>() , ComponentType.ReadOnly<Spread>() , ComponentType.ReadOnly<Gene>() ); | |
var prefabs = world.GetOrCreateSystem<PrefabSystem>(); | |
var rnd = new Unity.Mathematics.Random( (uint) System.DateTime.Now.GetHashCode() ); | |
for( int i=0 ; i<_numPlantsOnStart ; i++ ) | |
{ | |
Entity plantInstance = _entityManager.Instantiate( prefabs.Plant ); | |
_entityManager.SetComponentData( plantInstance , new Coord{ | |
Value = rnd.NextInt2( _coordMinOnStart , _coordMaxnOnStart ) | |
} ); | |
_entityManager.SetComponentData( plantInstance , new Age{ | |
Value = rnd.NextFloat( 0f , rnd.NextFloat(Age.limit*0.1f) ) | |
} ); | |
var genes = _entityManager.GetBuffer<Gene>( plantInstance ); | |
Color32 colorBytes = Color.HSVToRGB( rnd.NextFloat(1f) , 1f , 1f ); | |
genes.Add( colorBytes.r ); | |
genes.Add( colorBytes.g ); | |
genes.Add( colorBytes.b ); | |
} | |
} | |
#if UNITY_EDITOR | |
void OnDrawGizmos () | |
{ | |
if( !Application.isPlaying ) return; | |
int len = _query.CalculateEntityCount(); | |
var entities = _query.ToEntityArray(Allocator.Temp).ToArray(); | |
var coords = _query.ToComponentDataArray<Coord>(Allocator.Temp).ToArray(); | |
for( int i=0 ; i<len ; i++ ) | |
{ | |
var genes = _entityManager.GetBuffer<Gene>( entities[i] ); | |
Gizmos.color = new Color32( genes[0] , genes[1] , genes[2] , 255 ); | |
int2 coord = coords[i].Value; | |
Gizmos.DrawSphere( new Vector3( coord.x , coord.y , 0 ) , 0.5f ); | |
} | |
} | |
#endif | |
} | |
public struct Coord : IComponentData | |
{ | |
public int2 Value; | |
} | |
public struct Age : IComponentData | |
{ | |
public float Value; | |
public const float limit = 10f; | |
} | |
public struct Spread : IComponentData | |
{ | |
public float Value; | |
public const float spread_threshold = 2f; | |
} | |
[InternalBufferCapacity(5)] | |
public struct Gene : IBufferElementData | |
{ | |
public byte Value; | |
public static implicit operator byte ( Gene value ) => value.Value; | |
public static implicit operator Gene ( byte value ) => new Gene{ Value=value }; | |
} | |
[UpdateInGroup( typeof(SimulationSystemGroup) )] | |
public partial class SpreadSystem : SystemBase | |
{ | |
EntityCommandBufferSystem _ecbSystem; | |
GridSystem _gridSystem; | |
PrefabSystem _prefabs; | |
protected override void OnCreate () | |
{ | |
base.OnCreate(); | |
_ecbSystem = World.GetOrCreateSystem<EndSimulationEntityCommandBufferSystem>(); | |
_gridSystem = World.GetOrCreateSystem<GridSystem>(); | |
_prefabs = World.GetOrCreateSystem<PrefabSystem>(); | |
} | |
protected override void OnUpdate () | |
{ | |
float deltaTime = Time.DeltaTime; | |
uint rndHash = (uint) Time.ElapsedTime.GetHashCode(); | |
var grid = _gridSystem.Lookup; | |
var plantPrefab = _prefabs.Plant; | |
var geneBuffers = GetBufferFromEntity<Gene>( isReadOnly:false ); | |
var cmd = _ecbSystem.CreateCommandBuffer().AsParallelWriter(); | |
this.Dependency = JobHandle.CombineDependencies( Dependency , _gridSystem.LookupDependency ); | |
Entities | |
.WithReadOnly( grid ) | |
.WithAll<Gene>() | |
.ForEach( ( ref Spread spread , in Coord coord , in Entity e , in int nativeThreadIndex ) => | |
{ | |
spread.Value += deltaTime; | |
if( spread.Value>Spread.spread_threshold ) | |
{ | |
var rnd = new Unity.Mathematics.Random( rndHash + (uint)e.GetHashCode() + (uint)nativeThreadIndex.GetHashCode() ); | |
var myGenes = geneBuffers[e]; | |
int2 spreadAttemptCoord = coord.Value + rnd.NextInt2( -2 , 2 ); | |
if( !grid.ContainsKey(spreadAttemptCoord) )// is this spot free | |
{ | |
var newPlant = cmd.Instantiate( nativeThreadIndex , plantPrefab ); | |
cmd.SetComponent( nativeThreadIndex , newPlant , new Coord{ Value=spreadAttemptCoord } ); | |
cmd.SetComponent( nativeThreadIndex , newPlant , new Spread{ Value=rnd.NextFloat(0f,Spread.spread_threshold*0.5f) } ); | |
cmd.SetComponent( nativeThreadIndex , newPlant , new Age{ Value=rnd.NextFloat(0f,Age.limit*0.1f) } ); | |
// propagate genes with slight mutation: | |
const byte mutation_range_half = 30; | |
cmd.AppendToBuffer<Gene>( nativeThreadIndex , newPlant , (byte)math.clamp( myGenes[0] + rnd.NextInt(-mutation_range_half,mutation_range_half+1) , 0 , 255 ) ); | |
cmd.AppendToBuffer<Gene>( nativeThreadIndex , newPlant , (byte)math.clamp( myGenes[1] + rnd.NextInt(-mutation_range_half,mutation_range_half+1) , 0 , 255 ) ); | |
cmd.AppendToBuffer<Gene>( nativeThreadIndex , newPlant , (byte)math.clamp( myGenes[2] + rnd.NextInt(-mutation_range_half,mutation_range_half+1) , 0 , 255 ) ); | |
} | |
else// it's taken so lets attempt cross-pollination | |
{ | |
foreach( var other in grid.GetValuesForKey(spreadAttemptCoord) ) | |
if( geneBuffers.HasComponent(other) ) | |
{ | |
var otherGenes = geneBuffers[other]; | |
otherGenes[0] = rnd.NextBool() ? otherGenes[0] : myGenes[0]; | |
otherGenes[1] = rnd.NextBool() ? otherGenes[1] : myGenes[1]; | |
otherGenes[2] = rnd.NextBool() ? otherGenes[2] : myGenes[2]; | |
} | |
} | |
spread.Value = 0; | |
} | |
} ) | |
.WithBurst() | |
.Schedule(); | |
_ecbSystem.AddJobHandleForProducer( Dependency ); | |
} | |
} | |
[UpdateInGroup( typeof(SimulationSystemGroup) )] | |
public partial class AgeSystem : SystemBase | |
{ | |
EntityCommandBufferSystem _ecbSystem; | |
protected override void OnCreate () | |
{ | |
base.OnCreate(); | |
_ecbSystem = World.GetOrCreateSystem<EndSimulationEntityCommandBufferSystem>(); | |
} | |
protected override void OnUpdate () | |
{ | |
float deltaTime = Time.DeltaTime; | |
var cmd = _ecbSystem.CreateCommandBuffer().AsParallelWriter(); | |
Entities | |
.ForEach( ( ref Age age , in Entity e , in int nativeThreadIndex ) => | |
{ | |
age.Value += deltaTime; | |
if( age.Value>Age.limit ) | |
cmd.DestroyEntity( nativeThreadIndex , e ); | |
} ) | |
.WithBurst() | |
.ScheduleParallel(); | |
_ecbSystem.AddJobHandleForProducer( Dependency ); | |
} | |
} | |
[UpdateInGroup( typeof(SimulationSystemGroup) , OrderFirst=true )] | |
public partial class GridSystem : SystemBase | |
{ | |
/// <summary> Read-Only </summary> | |
public NativeMultiHashMap<int2,Entity> Lookup { get; private set; } | |
public JobHandle LookupDependency => base.Dependency; | |
EntityCommandBufferSystem _ecbSystem; | |
EntityQuery _queryNew; | |
protected override void OnCreate () | |
{ | |
base.OnCreate(); | |
_ecbSystem = World.GetOrCreateSystem<EndSimulationEntityCommandBufferSystem>(); | |
_queryNew = EntityManager.CreateEntityQuery( new EntityQueryDesc{ | |
None = new ComponentType[]{ ComponentType.ReadOnly<Tracked>() } , | |
All = new ComponentType[]{ ComponentType.ReadOnly<Coord>() } | |
} ); | |
Lookup = new NativeMultiHashMap<int2,Entity>( 1024 , Allocator.Persistent ); | |
} | |
protected override void OnDestroy () | |
{ | |
base.OnDestroy(); | |
Lookup.Dispose(); | |
} | |
protected override void OnUpdate () | |
{ | |
var cmd = _ecbSystem.CreateCommandBuffer().AsParallelWriter(); | |
var lookup = Lookup; | |
var lookupPW = Lookup.AsParallelWriter(); | |
int countNewToLookup = _queryNew.CalculateEntityCount(); | |
if( countNewToLookup!=0 && (lookup.Count()+countNewToLookup)>lookup.Capacity/2 ) | |
{ | |
lookup.Capacity = Mathf.Max( lookup.Count()+countNewToLookup , lookup.Capacity*2 ); | |
Debug.Log($"{nameof(GridSystem)}.{nameof(Lookup)} capacity increased to {lookup.Capacity}"); | |
} | |
Entities | |
.WithName("coord_created_job") | |
.WithNone<Tracked>() | |
.ForEach( ( in Coord coord , in Entity e , in int nativeThreadIndex ) => | |
{ | |
lookupPW.Add( coord.Value , e ); | |
cmd.AddComponent<Tracked>( nativeThreadIndex , e , new Tracked{ Value=coord.Value } ); | |
} ) | |
.WithBurst() | |
.ScheduleParallel(); | |
Entities | |
.WithName("coord_destroyed_job") | |
.WithNone<Coord>() | |
.ForEach( ( in Tracked tracked , in Entity e , in int nativeThreadIndex ) => | |
{ | |
lookup.Remove( tracked.Value , e ); | |
cmd.RemoveComponent<Tracked>( nativeThreadIndex , e ); | |
} ) | |
.WithBurst() | |
.Schedule(); | |
_ecbSystem.AddJobHandleForProducer( Dependency ); | |
} | |
struct Tracked : ISystemStateComponentData { public int2 Value; } | |
} | |
[DisableAutoCreation] | |
[UpdateInGroup( typeof(InitializationSystemGroup) )] | |
public partial class PrefabSystem : SystemBase | |
{ | |
public Entity Plant { get; private set; } | |
protected override void OnCreate () | |
{ | |
base.OnCreate(); | |
this.Enabled = false; | |
Plant = EntityManager.CreateEntity( typeof(Prefab) , typeof(Coord) , typeof(Age) , typeof(Spread) , typeof(Gene) ); | |
} | |
protected override void OnUpdate () {} | |
} | |
} |
