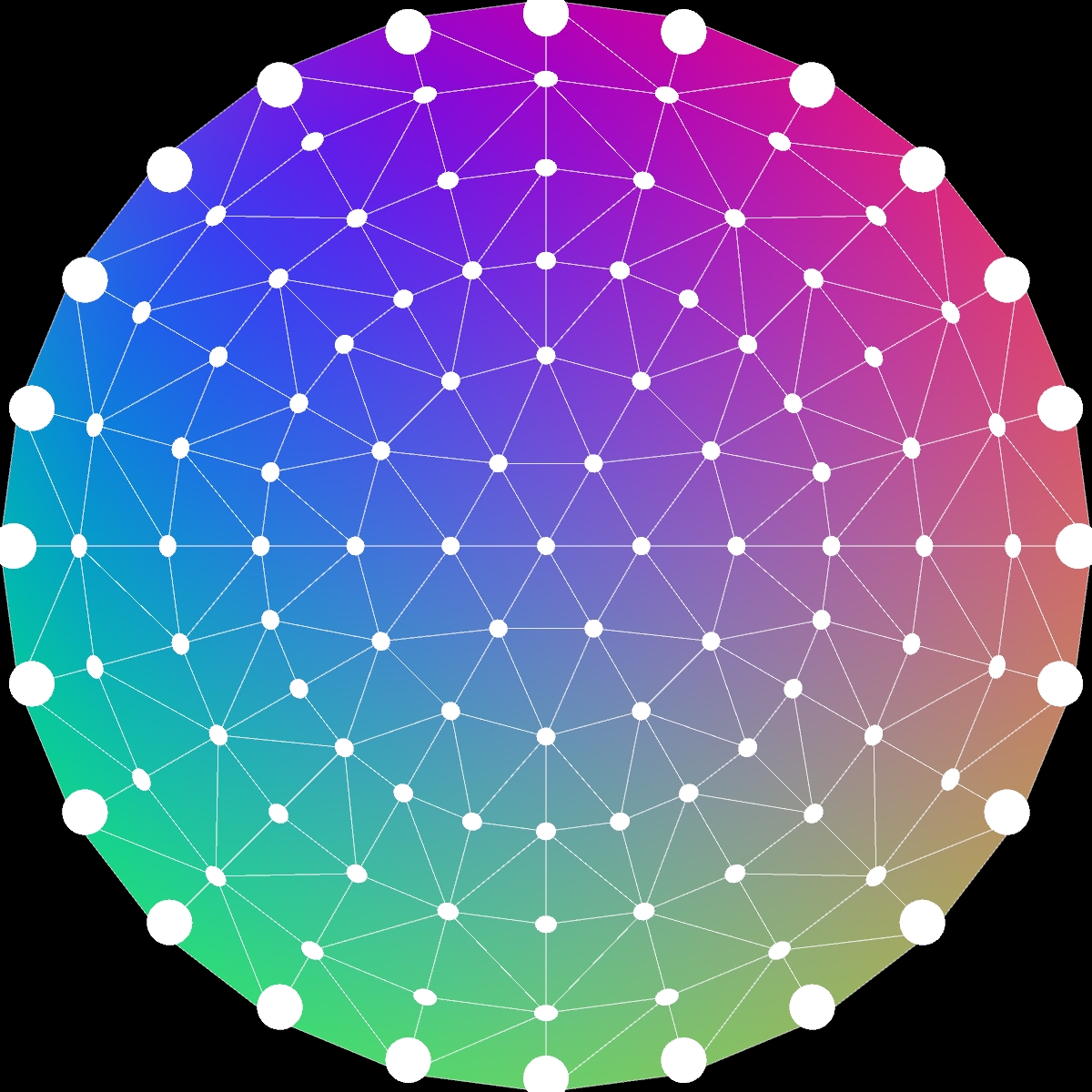

Distributed points on Dome / Sphere

Distributed-points-dome.pde

import org.processing.wiki.triangulate.*;

PShape dome;
float w=1200, h=1200, wd2=w/2, hd2=h/2, wdh=w/h, cx=wd2, cy=hd2, r=hd2, d=h;
float distToCam = 1200; //1040; //fisheye=1900, mirror=1040;
float globeScaler = 1.02;
ArrayList<PVector> points;
ArrayList<Triangle> triangles;

void settings() {
  fullScreen(P3D);
}

void setup() {
  surface.setSize(1200, 1200);
  surface.setLocation(360, 0);
  points = distributePointsOnDome(hd2); //half sphere
  triangles = Triangulate.triangulate(points);
}

void draw() {
  background(0);
  perspective(atan(r/distToCam)*2, 1, distToCam, 10000);
  camera(0, 0, -distToCam, 0, 0, 0, 0, 1, 0);
  scale(-1, 1, 1);
  //scale(globeScaler);

  background(0);

  stroke(255, 150);
  noFill();
  beginShape(TRIANGLES);
  for (Triangle t : triangles) {
    fill(t.p1.copy().normalize().div(2).add(.5, .5, .5).setMag(255));
    vertex(t.p1);
    fill(t.p2.copy().normalize().div(2).add(.5, .5, .5).setMag(255));
    vertex(t.p2);
    fill(t.p3.copy().normalize().div(2).add(.5, .5, .5).setMag(255));
    vertex(t.p3);
  }
  endShape();


  for (PVector v : points) {
    pushMatrix();
    orientateOnSphere(v);
    fill(255);
    noStroke();
    hint(DISABLE_DEPTH_TEST);
    hint(DISABLE_OPTIMIZED_STROKE);
    ellipse(0, 0, 30, 30);
    PVector s = screen();
    popMatrix();
    if (v.z==0) { //make more visible!
      ellipse(lerp(s.x-wd2, 0, .025), lerp(s.y-hd2, 0, .025), 50, 50);
    }
  }
}

ArrayList<PVector> distributePointsOnDome(float radius) {
  ArrayList<PVector> v = new ArrayList();
  int n[] = {1, 6, 12, 24, 24, 24, 24};
  int res = n.length;

  for (int i=0; i<res; i++) {
    float r = sin(float(i)/(res-1)*HALF_PI) * radius;

    for (int j=0; j<n[i]; j++) {
      float a = float(j)/n[i] * TWO_PI;
      float x = cos(a) * r;
      float y = sin(a) * r;
      float z = r>=radius ? 0 : sqrt(radius*radius-(x*x)-(y*y));
      v.add(new PVector(x, y, z));
    }
  }
  return v;
}
