Transform Tool Viewer Extension

TransformTool.js

///////////////////////////////////////////////////////////////////
// Transform Tool viewer extension
// by Philippe Leefsma, August 2015
//
///////////////////////////////////////////////////////////////////
AutodeskNamespace("Autodesk.ADN.Viewing.Extension");

Autodesk.ADN.Viewing.Extension.TransformTool =  function (viewer, options) {

    ///////////////////////////////////////////////////////////////////////////
    //
    //
    ///////////////////////////////////////////////////////////////////////////
    function TransformTool() {

        var _hitPoint = null;

        var _isDragging = false;

        var _transformMesh = null;

        var _modifiedFragIdMap = {};

        var _selectedFragProxyMap = {};

        var _transformControlTx = null;

        ///////////////////////////////////////////////////////////////////////////
        // Creates a dummy mesh to attach control to
        //
        ///////////////////////////////////////////////////////////////////////////
        function createTransformMesh() {

            var material = new THREE.MeshPhongMaterial(
              { color: 0xff0000 });

            viewer.impl.matman().addMaterial(
              guid(),
              material,
              true);

            var sphere = new THREE.Mesh(
              new THREE.SphereGeometry(0.0001, 5),
              material);

            sphere.position.set(0, 0, 0);

            return sphere;
        }

        ///////////////////////////////////////////////////////////////////////////
        // on translation change
        //
        ///////////////////////////////////////////////////////////////////////////
        function onTxChange() {

            for(var fragId in _selectedFragProxyMap) {

                var fragProxy = _selectedFragProxyMap[fragId];

                var position = new THREE.Vector3(
                  _transformMesh.position.x - fragProxy.offset.x,
                  _transformMesh.position.y - fragProxy.offset.y,
                  _transformMesh.position.z - fragProxy.offset.z);

                fragProxy.position = position;

                fragProxy.updateAnimTransform();
            }

            viewer.impl.sceneUpdated(true);
        }

        ///////////////////////////////////////////////////////////////////////////
        // on camera changed
        //
        ///////////////////////////////////////////////////////////////////////////
        function onCameraChanged() {

            _transformControlTx.update();
        }

        ///////////////////////////////////////////////////////////////////////////
        // item selected callback
        //
        ///////////////////////////////////////////////////////////////////////////
        function onItemSelected(event) {

            _selectedFragProxyMap = {};

            //component unselected

            if(!event.fragIdsArray.length) {

                _hitPoint = null;

                _transformControlTx.visible = false;

                _transformControlTx.removeEventListener(
                  'change', onTxChange);

                viewer.removeEventListener(
                  Autodesk.Viewing.CAMERA_CHANGE_EVENT,
                  onCameraChanged);

                return;
            }


            if(_hitPoint) {

                _transformControlTx.visible = true;

                _transformControlTx.setPosition(_hitPoint);

                _transformControlTx.addEventListener(
                  'change', onTxChange);

                viewer.addEventListener(
                  Autodesk.Viewing.CAMERA_CHANGE_EVENT,
                  onCameraChanged);

                event.fragIdsArray.forEach(function (fragId) {

                    var fragProxy = viewer.impl.getFragmentProxy(
                      viewer.model,
                      fragId);

                    fragProxy.getAnimTransform();

                    var offset = {

                        x: _hitPoint.x - fragProxy.position.x,
                        y: _hitPoint.y - fragProxy.position.y,
                        z: _hitPoint.z - fragProxy.position.z
                    };

                    fragProxy.offset = offset;

                    _selectedFragProxyMap[fragId] = fragProxy;

                    _modifiedFragIdMap[fragId] = {};
                });

                _hitPoint = null;
            }
            else {

                _transformControlTx.visible = false;
            }
        }

        ///////////////////////////////////////////////////////////////////////////
        // normalize screen coordinates
        //
        ///////////////////////////////////////////////////////////////////////////
        function normalize(screenPoint) {

            var viewport = viewer.navigation.getScreenViewport();

            var n = {
                x: (screenPoint.x - viewport.left) / viewport.width,
                y: (screenPoint.y - viewport.top) / viewport.height
            };

            return n;
        }

        ///////////////////////////////////////////////////////////////////////////
        // get 3d hit point on mesh
        //
        ///////////////////////////////////////////////////////////////////////////
        function getHitPoint(event) {

            var screenPoint = {
                x: event.clientX,
                y: event.clientY
            };

            var n = normalize(screenPoint);

            var hitPoint = viewer.utilities.getHitPoint(n.x, n.y);

            return hitPoint;
        }

        ///////////////////////////////////////////////////////////////////////////
        // returns all transformed meshes
        //
        ///////////////////////////////////////////////////////////////////////////
        this.getTransformMap = function() {

            var transformMap = {};

            for(var fragId in _modifiedFragIdMap){

                var fragProxy = viewer.impl.getFragmentProxy(
                  viewer.model,
                  fragId);

                fragProxy.getAnimTransform();

                transformMap[fragId] = {
                    position: fragProxy.position
                };

                fragProxy = null;
            }

            return transformMap;
        };

        ///////////////////////////////////////////////////////////////////////////
        //
        //
        ///////////////////////////////////////////////////////////////////////////
        this.getNames = function() {

            return ['Dotty.Viewing.Tool.TransformTool'];
        };

        this.getName = function() {

            return 'Dotty.Viewing.Tool.TransformTool';
        };

        ///////////////////////////////////////////////////////////////////////////
        // activates tool
        //
        ///////////////////////////////////////////////////////////////////////////
        this.activate = function() {

            viewer.select([]);

            var bbox = viewer.model.getBoundingBox();

            viewer.impl.createOverlayScene(
              'Dotty.Viewing.Tool.TransformTool');

            _transformControlTx = new THREE.TransformControls(
              viewer.impl.camera,
              viewer.impl.canvas,
              "translate");

            _transformControlTx.setSize(
              bbox.getBoundingSphere().radius * 5);

            _transformControlTx.visible = false;

            viewer.impl.addOverlay(
              'Dotty.Viewing.Tool.TransformTool',
              _transformControlTx);

            _transformMesh = createTransformMesh();

            _transformControlTx.attach(_transformMesh);

            viewer.addEventListener(
              Autodesk.Viewing.SELECTION_CHANGED_EVENT,
              onItemSelected);
        };

        ///////////////////////////////////////////////////////////////////////////
        // deactivate tool
        //
        ///////////////////////////////////////////////////////////////////////////
        this.deactivate = function() {

            viewer.impl.removeOverlay(
              'Dotty.Viewing.Tool.TransformTool',
              _transformControlTx);

            _transformControlTx.removeEventListener(
              'change',
              onTxChange);

            _transformControlTx = null;

            viewer.impl.removeOverlayScene(
              'Dotty.Viewing.Tool.TransformTool');

            viewer.removeEventListener(
              Autodesk.Viewing.CAMERA_CHANGE_EVENT,
              onCameraChanged);

            viewer.removeEventListener(
              Autodesk.Viewing.SELECTION_CHANGED_EVENT,
              onItemSelected);
        };

        ///////////////////////////////////////////////////////////////////////////
        //
        //
        ///////////////////////////////////////////////////////////////////////////
        this.update = function(t) {

            return false;
        };

        this.handleSingleClick = function(event, button) {


            return false;
        };

        this.handleDoubleClick = function(event, button) {

            return false;
        };


        this.handleSingleTap = function(event) {

            return false;
        };


        this.handleDoubleTap = function(event) {

            return false;
        };

        this.handleKeyDown = function(event, keyCode) {

            return false;
        };

        this.handleKeyUp = function(event, keyCode) {

            return false;
        };

        this.handleWheelInput = function(delta) {

            return false;
        };

        ///////////////////////////////////////////////////////////////////////////
        //
        //
        ///////////////////////////////////////////////////////////////////////////
        this.handleButtonDown = function(event, button) {

            _hitPoint = getHitPoint(event);

            _isDragging = true;

            if (_transformControlTx.onPointerDown(event))
                return true;

            //return _transRotControl.onPointerDown(event);
            return false;
        };

        ///////////////////////////////////////////////////////////////////////////
        //
        //
        ///////////////////////////////////////////////////////////////////////////
        this.handleButtonUp = function(event, button) {

            _isDragging = false;

            if (_transformControlTx.onPointerUp(event))
                return true;

            //return _transRotControl.onPointerUp(event);
            return false;
        };

        ///////////////////////////////////////////////////////////////////////////
        //
        //
        ///////////////////////////////////////////////////////////////////////////
        this.handleMouseMove = function(event) {

            if (_isDragging) {

                if (_transformControlTx.onPointerMove(event) ) {

                    return true;
                }

                return false;
            }

            if (_transformControlTx.onPointerHover(event))
                return true;

            //return _transRotControl.onPointerHover(event);
            return false;
        };

        ///////////////////////////////////////////////////////////////////////////
        //
        //
        ///////////////////////////////////////////////////////////////////////////
        this.handleGesture = function(event) {

            return false;
        };

        this.handleBlur = function(event) {

            return false;
        };

        this.handleResize = function() {

        };
    }

    Autodesk.Viewing.Extension.call(this, viewer, options);

    var _self = this;

    _self.tool = null;


    ///////////////////////////////////////////////////////
    // extension load callback
    //
    ///////////////////////////////////////////////////////
    _self.load = function () {

        _self.tool = new TransformTool();

        viewer.toolController.registerTool(_self.tool);

        viewer.toolController.activateTool(_self.tool.getName());

        console.log('Autodesk.ADN.Viewing.Extension.TransformTool loaded');

        return true;
    };

    ///////////////////////////////////////////////////////
    // extension unload callback
    //
    ///////////////////////////////////////////////////////
    _self.unload = function () {

        viewer.toolController.deactivateTool(_self.tool.getName());

        console.log('Autodesk.ADN.Viewing.Extension.TransformTool unloaded');

        return true;
    };

    ///////////////////////////////////////////////////////
    // new random guid
    //
    ///////////////////////////////////////////////////////
    function guid() {

        var d = new Date().getTime();

        var guid = 'xxxx-xxxx-xxxx-xxxx-xxxx'.replace(
          /[xy]/g,
          function (c) {
              var r = (d + Math.random() * 16) % 16 | 0;
              d = Math.floor(d / 16);
              return (c == 'x' ? r : (r & 0x7 | 0x8)).toString(16);
          });

        return guid;
    };
};

Autodesk.ADN.Viewing.Extension.TransformTool.prototype =
  Object.create(Autodesk.Viewing.Extension.prototype);

Autodesk.ADN.Viewing.Extension.TransformTool.prototype.constructor =
  Autodesk.ADN.Viewing.Extension.TransformTool;

Autodesk.Viewing.theExtensionManager.registerExtension(
  'Autodesk.ADN.Viewing.Extension.TransformTool',
  Autodesk.ADN.Viewing.Extension.TransformTool);

Hello, I am trying to use this extension you wrote, but I have encountered some problems. (The version of Forge Viewer I use is 6.*) My questions are as follows:
error code:
Uncaught TypeError: Cannot read property 'getBoundingBox' of null

Uncaught TypeError: Cannot read property 'onPointerHover' of null

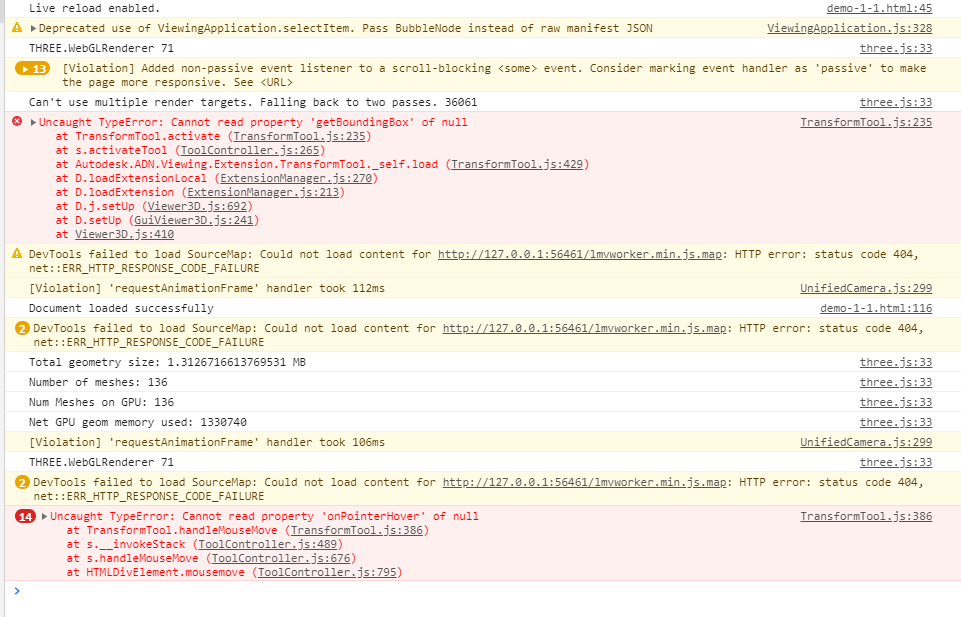

As shown in the picture below

My code:

<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8" />
    <title>Custom Geometry</title>
    <link
      rel="stylesheet"
      href="https://developer.api.autodesk.com/modelderivative/v2/viewers/6.*/style.min.css"
      type="text/css"
    />
    <script src="https://developer.api.autodesk.com/modelderivative/v2/viewers/6.*/viewer3D.min.js"></script>
    <link rel="stylesheet" href="./css/stylesheet.css" type="text/css" />

	<script src="js/TransformTool.js"></script>
  </head>
  <body>

    <div id="ForgeViewerDiv"></div>
  </body>
  <script>
    const divID = "ForgeViewerDiv";
    const documentId =
      "urn:dXJuOmFkc2sub2JqZWN0czpvcy5vYmplY3Q6YWRhbGJpc3MtZm9yZ2UtYXUtMjAxOS9Nb2RlbC1Sb29tLnJ2dA";
    const tokenFetchingUrl =
      "https://k9mfy8k8a0.execute-api.us-east-2.amazonaws.com/prod";

    let extensionArray = ["Autodesk.ADN.Viewing.Extension.TransformTool"];

    let viewerApp = new Autodesk.Viewing.ViewingApplication(divID);
    let viewer = null;

    let options = {
      env: "AutodeskProduction",
      useConsolidation: false,
      getAccessToken: onGetAccessToken => {
        fetch(tokenFetchingUrl)
          .then(response => response.json())
          .then(data => {
            let accessToken = data["access_token"];
            let expireTimeSeconds = data["expires_in"];
            onGetAccessToken(accessToken, expireTimeSeconds);
          });
      }
    };

    let config3d = {
      extensions: extensionArray
    };

    Autodesk.Viewing.Initializer(options, function onInitialized() {
      viewerApp.registerViewer(
        viewerApp.k3D,
        Autodesk.Viewing.Private.GuiViewer3D,
        config3d
      );
      viewerApp.loadDocument(
        documentId,
        onDocumentLoadSuccess,
        onDocumentLoadFailure
      );
    });

    // Init after the viewer is ready
    function onDocumentLoadSuccess() {
      let viewables = viewerApp.bubble.search({
        type: "geometry"
      });
      if (viewables.length === 0) {
        console.error("Document contains no viewables.");
        return;
      }
      // Choose any of the available viewables
      viewerApp.selectItem(
        viewables[0].data,
        onItemLoadSuccess,
        onItemLoadFail
      );
    }

    function onDocumentLoadFailure(viewerErrorCode) {
      console.error("onDocumentLoadFailure() - errorCode:" + viewerErrorCode);
    }

    function onItemLoadSuccess(active_viewer, item) {
      console.log("Document loaded successfully");
      viewer = active_viewer;
    }
    function onItemLoadFail(errorCode) {
      console.error("onItemLoadFail() - errorCode:" + errorCode);
    }
  </script>
</html>

Do you know the reason?
I look forward to receiving your reply, thank you!
