My desktopinfo.ini file

desktopinfo.ini

# Desktop Info by Glenn Delahoy
# See the manual for a full description of all options

[options]
# size and position
top=0
right=0
width=500
nav=0

# font
font-face=Bahnschrift SemiCondensed
font-size=20

# logging
log=desktopinfo.log
log-level=debugonerror

[screen-saver]
font-face=Bahnschrift SemiCondensed
font-size=16
centerv=1
centerh=1

[text]
noresults=<n/a>
error=[error]
null-result=<null>
unknown=Unknown
menu-export=Export
menu-reload=Reload
menu-configuration=Edit Configuration
menu-log=Open Log File
menu-manual=Read Manual
menu-about=About Desktop Info
menu-quit=Quit
nav-previous=Previous Page
nav-home=Home Page
nav-next=Next Page


[items]

# colors
set White   = #ffffff
set Grey    = #909090
set Cyan    = #00ffff
set Magenta = #ff00ff
set Green   = #00ff00
set Orange  = #ffd000
set Yellow  = #ffff00
set Silver  = #d0d0d0
set Blue    = #0000f0
set Red     = #ff0000

DATETIME=text:,font-size:400%,interval:10,display:  %9|       %10

# page 1 - cpu
COMMENT=font-size:50%
CPU=text:CPU,interval:3,background-interval:10,chart:line max:100 series1:1 color1:%Green% series2:2 color2:%Magenta% series3:%3 color3:%Red%, alarms:(%1 ge 80 %Red%)(%2 ge 40 %red%)(%3 ge 20 %orange%),display:%chart%
CPU=text:,font-size:80%,font-face:Iosevka SS08,interval:3,background-interval:10,display:   Tot: %1[2.0f]% Knl: %2[2.0f]% Que: %3[2.2s] Prc: %4[0.5s] Thr: %5[0.7s]
WMI=interval:5,hide-no-result:1,text:Cpu Temp,namespace:root\wmi,query:MSAcpi_ThermalZoneTemperature,display: {{%CurrentTemperature%/10-273.15}}[1.0f]C / {{%CriticalTripPoint%/10-273.15}}[1.0f]C
COMMENT=Top Processes
TOPPROCESSCPU=interval:5,wide:1,font-face:Iosevka SS08,font-size:80%,maxrows:5,display:   %1[0.25s]%2[0.10s]%3[4.1f]%

# page 1 - memory
COMMENT=font-size:50%
PHYSICALRAM=interval:30,text:MEM,alarms:(%3 ge 80 0000FF),display:%1[3.1b]B / %2[3.1b]B
TOPPROCESSMEM=interval:10,wide:1,font-face:Iosevka SS08,font-size:80%,counter:pu,text:Top,maxrows:5,display:   %1[0.25s]%2[0.10s]%3[1.1b]B
PAGEFAULTS=interval:10,font-size:80%,text:Faults,alarms:(%5 le 80 %Yellow%),display:Tot: %1\, Hrd: %2\, Hit: %5%

# page 1 - disks
COMMENT=font-size:50%
LOGICALDRIVES=interval:5,diskio:1,font-size:85%,chart:bar max:100 series1:7 threshold:75,alarms:(%11 ge 10000000 0000f0)(%13 ge 10000000 0060f0),row-text:Drive %1:%3|(%2),display:%6[1.0B]B / %5[1.0B]B|%chart%| r: %11[1.1B]B/s\, w: %13[1.1B]B/s\, q: %17

# page 1 - gpu
COMMENT=font-size:50%
CMD=interval:5,text:GPU,file:nvidia-smi.exe,parameters:--query-gpu=utilization.gpu\,utilization.memory\,temperature.gpu\,pstate --format=csv,read-as-csv:1,display:Usage %1 Mem %2 Temp %3°C Mode %4

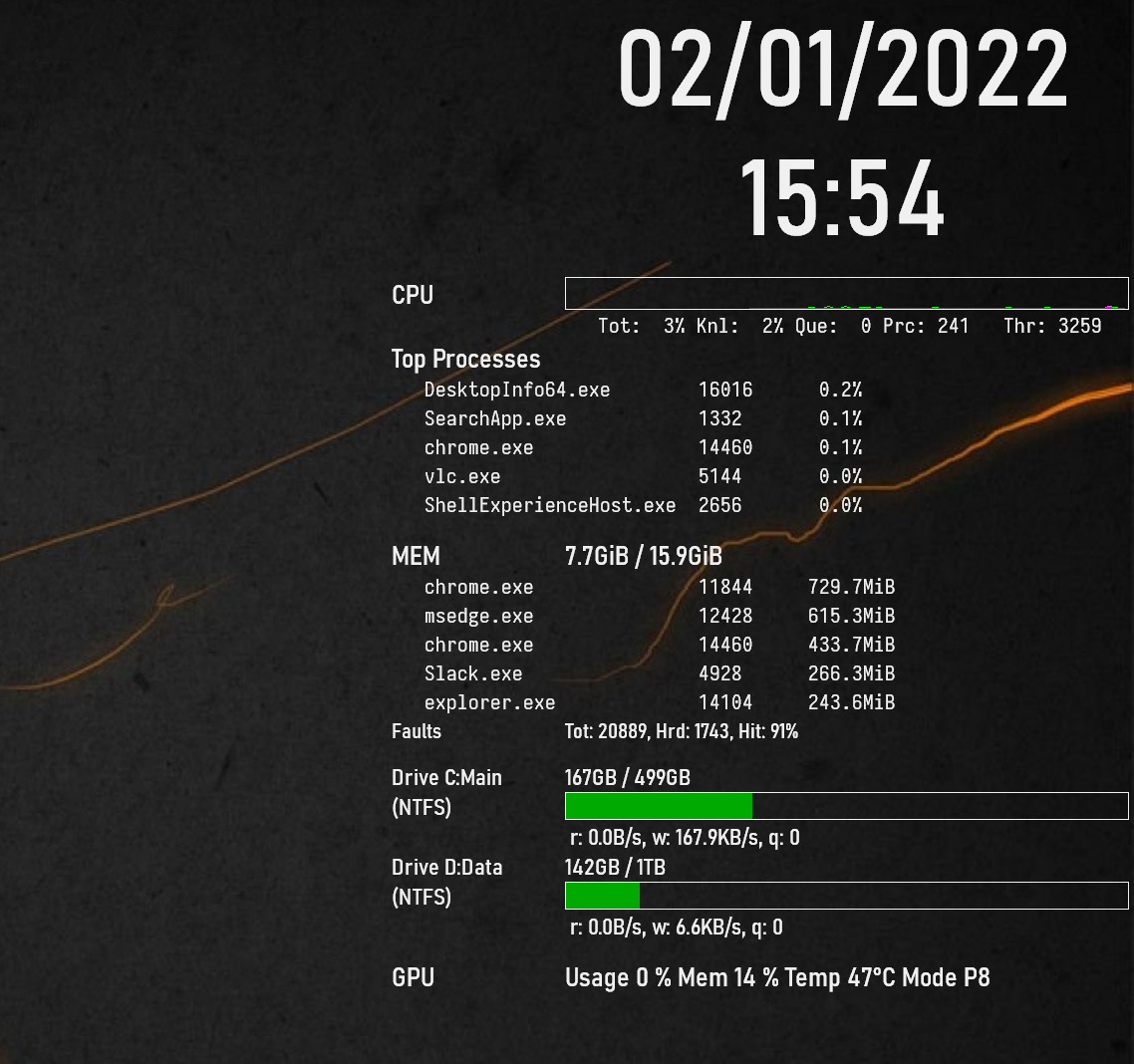

What it looks like
