Regression fit for ENSO
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| Doodson_Set : Doodson_List := | |
| ( | |
| (1, 0, 0, 0.0, 1.0), -- T | |
| (1, 0, 0, 1.0, 1.0), -- D | |
| -- (0, 0, 2, 2.0, 1.0), -- 3Y | |
| (0, 0,-2, 2.0, 1.0), -- 5.7 | |
| -- (0, 0, 0, 2.0, 1.0), -- N/2 | |
| (2, 0, 0, 1.0, 1.0), -- DT | |
| (2, 0, 0, 0.0, 1.0), -- t | |
| (2, 0, 0, 2.0, 1.0), -- d | |
| -- (1, 0,-1, 0.0, 1.0), -- A | |
| -- (2, 0,-2, 0.0, 1.0), -- a | |
| (0, 0, 0, 1.0, 1.0), -- N | |
| (0, 0, 2, 0.0, 1.0), -- p | |
| -- (1, 0, 1, 0.0, 1.0), -- E | |
| (2, 0,-1, 1.0, 1.0), -- AD | |
| (0, 0, 2, 1.0, 1.0), -- 3.56 | |
| -- (1, 0,-1, 1.0, 1.0), -- A+ | |
| -- (1, 0,-1,-1.0, 1.0), -- A- | |
| (0, 0, 1, 1.0, 1.0), -- 6Y | |
| -- (1, 0, 1, 1.0, 1.0), -- 26.985 | |
| -- (0, 0, 1,-1.0, 1.0),-- 16.8y | |
| (0, 0,-1, 0.0, 1.0) -- P | |
| --(1, 0, 1, -1.0, 1.0) -- Fake | |
| -- (3, 0,-1, 1.0, 1.0), -- Mt' | |
| -- (3, 0,-1, 0.0, 1.0), -- Mt | |
| -- (3, 0,-1, 2.0, 1.0) -- Mtd | |
| ); | |
| Doodson_RSet : Doodson_List := | |
| ( | |
| (1, 0, 0, 0.0, 1.0), -- T | |
| (1, 0, 0, 1.0, 1.0), -- D | |
| -- (0, 0, 2, 2.0, 1.0), -- 3Y | |
| -- (0, 0,-2, 2.0, 1.0), -- 5.7 | |
| -- (0, 0, 0, 2.0, 1.0), -- N/2 | |
| (2, 0, 0, 1.0, 1.0), -- DT | |
| (2, 0, 0, 0.0, 1.0), -- t | |
| (2, 0, 0, 2.0, 1.0), -- d | |
| (1, 0,-1, 0.0, 1.0), -- A | |
| (1, 0, 1, 0.0, 1.0), -- evect | |
| -- (0, 0, 0, 1.0, 1.0), -- N | |
| -- (0, 0, 2, 0.0, 1.0), -- p | |
| -- (1, 0, 1, 0.0, 1.0), -- E | |
| (2, 0,-1, 1.0, 1.0) -- AD | |
| -- (0, 0, 2, 1.0, 1.0), -- 3.56 | |
| -- (1, 0,-1, 1.0, 1.0), -- A+ | |
| -- (1, 0,-1,-1.0, 1.0), -- A- | |
| -- (0, 0, 1, 1.0, 1.0), -- 6Y | |
| -- (1, 0, 1, 1.0, 1.0), -- 26.985 | |
| -- (0, 0, 1,-1.0, 1.0),-- 16.8y | |
| -- (0, 0,-1, 0.0, 1.0) -- P | |
| ); | |
| Annual_Set : Doodson_List := | |
| ( | |
| (0, 1, 0, 0.0, 365.242), -- annual | |
| (0, 2, 0, 0.0, 365.242) -- semi | |
| ); | |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| with Text_IO; | |
| with GEM.LTE.Primitives; | |
| function GEM.Mix_Regression (File_Name : in String) return Gem.LTE.Period_Set is | |
| use GEM.LTE, GEM.LTE.Primitives; | |
| D : Data_Pairs := Make_Data(File_Name); | |
| First, Last : Integer; | |
| Singular : Boolean; | |
| Forcing : Data_Pairs := D; | |
| Model : Data_Pairs := D; | |
| P_A1, P_A2, P_A3, P_A4, P_A5 : Gem.LTE.Long_Periods := Gem.LTE.LP_Set; | |
| P_B1 : Gem.LTE.Long_Periods := Gem.LTE.LP_RSet; | |
| P_Annual : Gem.LTE.Long_Periods := Gem.LTE.LP_Annual; | |
| A_A1, A_A2, A_A3, A_A4, A_A5 : Gem.LTE.Long_Periods_Amp_Phase := Gem.LTE.LPAP_Set; | |
| A_B1 : Gem.LTE.Long_Periods_Amp_Phase := Gem.LTE.LPAP_RSet; | |
| A_Annual : Gem.LTE.Long_Periods_Amp_Phase := Gem.LTE.LPAP_Annual; | |
| Level, K0, Trend, Accel : Long_Float := 0.0; | |
| Last_Time : Long_Float; | |
| Freq, Freq2 : Long_Float; | |
| One : constant Long_Float := 1.0; | |
| begin | |
| First := D'First; | |
| Last := D'Last; | |
| Text_IO.Put_Line("records from " & First'Img & " ... " & Last'Img); | |
| Text_IO.Put_Line("factors from " & P_A1'First'Img & " ... " & P_A1'Last'Img); | |
| for I in Forcing'Range loop | |
| Forcing(I).Value := Forcing(I).Date; | |
| Last_Time := Forcing(I).Value; | |
| end loop; | |
| Text_IO.Put("updated forcing "); | |
| Put(Last_Time); | |
| Text_IO.New_Line; | |
| for I in P_A1'Range loop -- to aliased frequency | |
| Freq := GEM.LTE.Year_Length/P_A1(I); | |
| Freq := abs Long_Float'Remainder(Freq,One); | |
| P_A1(I) := Freq; | |
| P_A2(I) := One - Freq; | |
| P_A3(I) := One + Freq; | |
| P_A4(I) := 2.0*One - Freq; | |
| P_A5(I) := 2.0*One + Freq; | |
| end loop; | |
| for I in P_B1'Range loop -- to aliased frequency | |
| Freq := 2.0*GEM.LTE.Year_Length/P_B1(I); | |
| Freq2 := 4.0*GEM.LTE.Year_Length/P_B1(I); | |
| Text_IO.Put_Line("Q=" & Freq2'Image); | |
| --Text_IO.Put_Line("F=" & Freq'Image); | |
| if Integer(Freq) mod 2 = 1 then | |
| Freq := abs Long_Float'Remainder(Freq,One); | |
| else | |
| Freq := One - abs Long_Float'Remainder(Freq,One); | |
| end if; | |
| P_B1(I) := Freq*0.5; | |
| -- P_B2(I) := (One-Freq)*0.5; | |
| -- if Integer(Freq2) mod 2 = 1 then | |
| -- Freq2 := abs Long_Float'Remainder(Freq2,One); | |
| -- else | |
| -- Freq2 := One - abs Long_Float'Remainder(Freq2,One); | |
| -- end if; | |
| -- P_Q1(I) := Freq2*0.25; | |
| end loop; | |
| declare | |
| P : Gem.LTE.Long_Periods := P_A1 & P_A2 & P_A3 & P_A4 & P_A5 & P_B1 | |
| & P_Annual; -- & P_Q1; | |
| A : Gem.LTE.Long_Periods_Amp_Phase := A_A1 & A_A2 & A_A3 & A_A4 & A_A5 & A_B1 | |
| & A_Annual; -- & A_Q1; | |
| begin | |
| Trend := 0.0; | |
| Regression_Factors (Data_Records => D(800..1700), -- Time series | |
| Forcing => Forcing(800..1700), -- Value @ Time | |
| NM => P'Last, -- # modulations | |
| DBLT => P, --D.B.LT, | |
| DALTAP => A, --D.A.LTAP, | |
| DALEVEL => LEVEL, | |
| DAK0 => K0, | |
| Secular_Trend => Trend, | |
| Accel => Accel, | |
| Singular => Singular | |
| ); | |
| Text_IO.Put_Line("Singular? " & Singular'Img); | |
| for I in P'Range loop | |
| Put(P(I)); Text_IO.Put(" "); | |
| -- INTEGRATE dLOD -- DBLTAP(I).Amplitude := DBLTAP(I).Amplitude * 26.736 / DBLT(I); | |
| Put(A(I).Amplitude); Text_IO.Put(" "); | |
| -- INTEGRATE dLOD -- DBLTAP(I).Phase := DBLTAP(I).Phase + Ada.Numerics.Pi/2.0; | |
| Put(A(I).Phase); Text_IO.Put(" "); | |
| Text_IO.New_Line; | |
| end loop; | |
| Model := Gem.LTE.Primitives.LTE(Forcing => Forcing, | |
| Wave_Numbers => P, | |
| Amp_Phase => A, | |
| Offset => Level, | |
| K0 => K0, | |
| Trend => 0.0, | |
| NonLin => 1.0); | |
| Put(CC(D,Model), "=CC " ); | |
| Put(Year_Length, "=Yr", True); | |
| GEM.LTE.Primitives.Save(Model, D, Forcing); | |
| declare | |
| PS : constant Gem.LTE.Period_Set := (N => P'Length, | |
| LP => P, | |
| AP => A); | |
| begin | |
| return PS; | |
| end; | |
| --return A; | |
| end; | |
| end; |
Author
Author
BREST SLH
YEAR 0.01
F9 not set, use default
DECAY not set, use default
FMULT 1.008
FSTART 0.01
LOCKF not set, use default
R2M not set, use default
SYM not set, use default
YTRIM not set, use default
NONLIN not set, use default
records from 1 ... 1684
factors from 1 ... 13
updated forcing 2020.25000000000
Fit from 1 .. 506 and 1011 .. 1684
Fit from 1 .. 506 and 1011 .. 1684
Singular? FALSE
0.36859574510 11.73877635236 -3.07159014768
0.42236089010 1.10702539306 -2.76924348118
0.11844980964 3.76984739788 -0.21046014408
0.20904336480 7.12085522070 2.83660511197
0.26280850979 8.10659930882 -2.20878157209
0.15527821980 23.23055578440 -2.64825095018
0.05376514499 8.12716671157 -2.32864367353
0.22598009963 4.23620792691 0.11981119184
0.32203341461 10.28126937251 -0.64284681822
0.27974524463 7.91759692697 -0.80657870045
0.16675519481 23.45730621306 1.85789127157
0.11299004982 7.35987114232 0.13387113365
0.03682841016 4.29622854846 0.82768816432
0.63140425490 8.14270182837 0.21649610582
0.57763910990 2.63114806880 -2.11204082839
0.88155019036 1.41575491977 1.95430038009
0.79095663520 1.93169340885 -1.10298494672
0.73719149021 3.32680570571 -1.38597056418
0.84472178020 1.97123523367 -0.34318343741
0.94623485501 0.28159889165 -3.09785850275
0.77401990037 0.44727513701 2.45674049433
0.67796658539 3.93589335189 -1.54109332186
0.72025475537 2.42718092522 -2.82420126082
0.83324480519 3.72911770621 0.28641808490
0.88700995018 1.55775937725 -2.36667604884
0.96317158984 0.25953635252 2.17432890574
1.36859574510 1.75981088387 0.49534068485
1.42236089010 0.56001571502 2.91330049033
1.11844980964 0.27431739674 -1.80506950504
1.20904336480 1.39584806252 -2.51337050703
1.26280850979 1.55797678673 -3.11300778527
1.15527821980 0.73278828617 -0.05342358539
1.05376514499 0.34497818800 1.32827210623
1.22598009963 1.15691926017 -2.09055433911
1.32203341461 2.27194311911 2.73720086429
1.27974524463 0.35903092490 -0.84060470173
1.16675519481 0.65873807857 -0.45121148913
1.11299004982 0.23245864194 2.14512569692
1.03682841016 0.32644872997 -2.56970511857
1.63140425490 1.97661402149 -2.75237405864
1.57763910990 1.16618092148 0.09005067370
1.88155019036 0.26821227543 -0.26874391757
1.79095663520 2.99359972743 -2.93683518036
1.73719149021 0.85669581322 -1.29555239433
1.84472178020 0.68958804981 1.89154934761
1.94623485501 0.73365831087 -2.94949923519
1.77401990037 0.41008716973 -0.55810491203
1.67796658539 3.04872526166 2.04385083184
1.72025475537 2.56084962673 -2.49905324234
1.83324480519 1.61705434774 -2.41072339636
1.88700995018 0.85858625447 3.08489832472
1.96317158984 0.07586535865 0.11388023830
2.36859574510 0.34721233848 1.12282620144
2.42236089010 0.61266619329 2.73657660714
2.11844980964 0.18143835399 2.77245702142
2.20904336480 0.18467495655 0.45726185773
2.26280850979 0.09181568258 3.07996528720
2.15527821980 0.07411276530 -1.66620053081
2.05376514499 0.22303934852 -1.96673733860
2.22598009963 0.07548739451 3.02496155935
2.32203341461 0.55263640515 1.33119308355
2.27974524463 0.27049378536 -1.49303494674
2.16675519481 0.02479926167 3.09440314786
2.11299004982 0.14944984148 -1.17028949029
2.03682841016 0.06302675721 -0.64439418972
2.63140425490 0.91201953663 -0.04977717794
2.57763910990 0.39419449416 2.78921018299
2.88155019036 0.25654549002 -0.75785337114
2.79095663520 1.02784493186 0.23553383081
2.73719149021 1.73188475798 1.35463514622
2.84472178020 1.22649530833 -0.99248793987
2.94623485501 0.12088116038 -2.09341182565
2.77401990037 1.14285246456 2.72421840866
2.67796658539 0.48354096778 -3.06250201439
2.72025475537 0.72792239773 0.57368327689
2.83324480519 0.29653070770 0.64618915774
2.88700995018 0.28405232381 -0.49480075668
2.96317158984 0.14222343092 -1.24470095830
0.13140425490 5.41041104135 -2.82646767903
0.07763910990 7.07765385548 -0.59487651762
0.29095663520 6.50051230613 1.52539818402
0.23719149021 7.82502524849 -0.10329531929
0.34472178020 4.63937603994 1.70632223213
0.24439430471 17.71111726030 -0.14475588569
0.01841420508 3.60531687826 0.37868842522
0.17796658539 24.86860857770 2.74331140406
0.17236089010 11.45878329944 1.78871394658
0.09472178020 14.08355949855 0.29148261373
0.04095663520 3.06762457810 -2.14946254186
0.07203341461 12.73901049566 -2.65017542336
0.99997194158 0.28865543950 -2.15787650145
1.99994388317 0.21205882336 1.74658787936
2.99991582475 0.04737262702 1.48430494607
0.62158516064=CC Fit from 1 .. 506 and 1011 .. 1684
Fit from 1 .. 506 and 1011 .. 1684
0.76807395419=CC(training) Exclude Fit from 506 .. 1011
Exclude Fit from 506 .. 1011
0.42031535379=CC(validate) 365.25224840000=Yr
1922.08333300000=start 1964.16666700000=finish
NINO4
NINO34
NINO3
NINO12
EMI
Darwin
IOD West
better fitting more to the non-trending interval?
IOD East
AMO
NAO
TNA
TSA
Honolulu SLH
Denison SLH
filtered
raw
Victoria SLH
PDO
M4
added 13.77 (Anom^2) and 27.09 (Evection)
NINO34
BREST SLH
Author
QBO30
No biennial impulse
YEAR 0.01
F9 not set, use default
DECAY not set, use default
FMULT 1.008
FSTART 0.01
LOCKF not set, use default
R2M not set, use default
SYM not set, use default
YTRIM not set, use default
NONLIN not set, use default
records from 1 ... 856
factors from 1 ... 15
updated forcing 2024.25000000000
Fit from 1 .. 258 and 514 .. 856
Fit from 1 .. 258 and 514 .. 856
Singular? FALSE
0.36859574510 0.09176074234 0.59460567384
0.42236089010 0.32688457329 -2.35230583931
0.11844980964 0.04146858432 -0.79565833396
0.20904336480 0.08765088043 1.07586424669
0.26280850979 0.09061042109 -0.84763216129
0.15527821980 0.03000278697 1.08641949236
0.48878860942 0.16136965430 2.54309781449
0.05376514499 0.00348794471 -0.40172527475
0.22598009963 0.09207088321 -2.80249182601
0.48158579492 0.03736068208 2.96113138962
0.32203341461 0.15972268766 -1.45987905213
0.27974524463 0.11725149760 1.16570379376
0.16675519481 0.05644752208 1.82696555405
0.11299004982 0.05337525575 1.82122542732
0.03682841016 0.02894589673 0.52946601823
0.63140425490 0.01363139922 -1.55907366928
0.57763910990 0.04370722457 1.15689473836
0.88155019036 0.01705535440 -2.13231138399
0.79095663520 0.01849567088 0.39927058578
0.73719149021 0.02919636448 -2.94765275019
0.84472178020 0.00863529718 -2.61180085440
0.51121139058 0.10191570270 2.40240040688
0.94623485501 0.02158731072 -1.58464801698
0.77401990037 0.02335346780 0.88461412244
0.51841420508 0.12434780154 2.91470958046
0.67796658539 0.07068836025 -0.79230747428
0.72025475537 0.01543273284 -1.37304516848
0.83324480519 0.02309086967 -0.86750995678
0.88700995018 0.02211781964 2.30615161610
0.96317158984 0.06046584490 -0.76933823746
1.36859574510 0.01748735885 3.07118226465
1.42236089010 0.03568645917 2.63079489203
1.11844980964 0.05037841260 0.07481691527
1.20904336480 0.03197060778 0.45660069537
1.26280850979 0.03922421733 -0.50303774794
1.15527821980 0.02602688112 -3.13237305912
1.48878860942 0.04163727986 -0.18642358879
1.05376514499 0.04363486400 -0.78658794094
1.22598009963 0.01191088670 1.55623471059
1.48158579492 0.02816128580 -1.12242566585
1.32203341461 0.00587704250 -1.51400449582
1.27974524463 0.02059617864 2.52221789575
1.16675519481 0.01676918483 1.95591770443
1.11299004982 0.05476522123 2.33624184808
1.03682841016 0.06126020758 2.48835585705
1.63140425490 0.01583669221 1.68633302280
1.57763910990 0.00696831673 -2.22978299116
1.88155019036 0.00115465531 3.04959628475
1.79095663520 0.01581801038 0.61267629123
1.73719149021 0.00421107741 2.85577521474
1.84472178020 0.01997713202 1.10052198164
1.51121139058 0.03152768717 -2.80545097340
1.94623485501 0.00980297825 -2.37195910271
1.77401990037 0.02380405486 -1.03647150618
1.51841420508 0.02107816206 -0.89125657713
1.67796658539 0.01049575892 2.31007820272
1.72025475537 0.01186077613 1.78524387871
1.83324480519 0.00863747263 2.86627526444
1.88700995018 0.01106126067 -1.71305895022
1.96317158984 0.02151625297 -0.26675814845
2.36859574510 0.00088650127 2.09573936987
2.42236089010 0.03195288755 -0.16488820558
2.11844980964 0.00889059986 -2.67334580406
2.20904336480 0.01211196789 -2.61203648015
2.26280850979 0.00697962904 2.45314040851
2.15527821980 0.00630024838 -0.07544005133
2.48878860942 0.00766615024 -0.72265449035
2.05376514499 0.01726645072 -0.10405328436
2.22598009963 0.00513756351 -1.33466723729
2.48158579492 0.01425318869 -1.42498651973
2.32203341461 0.00616410171 0.27701111322
2.27974524463 0.00660483303 -2.73513012879
2.16675519481 0.00252149463 1.37171315637
2.11299004982 0.01096546620 -2.17412998162
2.03682841016 0.00671920614 0.61837585542
2.63140425490 0.00496943659 1.23934645015
2.57763910990 0.00163968616 0.57067576195
2.88155019036 0.00683582745 1.57581296289
2.79095663520 0.00625823573 -2.72804977197
2.73719149021 0.00525229732 -0.72799499066
2.84472178020 0.01031803268 2.95282533173
2.51121139058 0.01987970332 -3.05157466083
2.94623485501 0.00557032909 2.14995076037
2.77401990037 0.00607393623 1.41971621276
2.51841420508 0.01738981250 -1.81264901414
2.67796658539 0.00544440923 -0.57197002469
2.72025475537 0.00794737072 -1.96805326245
2.83324480519 0.00130390661 2.89642092636
2.88700995018 0.00541852940 -2.21936888869
2.96317158984 0.00514681211 -1.72465462714
0.99997194158 0.09654709024 1.10223953481
1.99994388317 0.02951583341 0.80607667310
2.99991582475 0.00496906360 1.35152142200
0.63741991609=CC Fit from 1 .. 258 and 514 .. 856
Fit from 1 .. 258 and 514 .. 856
0.75348350761=CC(training) Exclude Fit from 258 .. 514
Exclude Fit from 258 .. 514
0.43307680115=CC(validate) 365.25224840000=Yr
1974.41666700000=start 1995.75000000000=finish
Chandler Wobble
TREND FALSE
YEAR 0.01
F9 not set, use default
DECAY not set, use default
FMULT 1.008
FSTART 0.01
LOCKF not set, use default
R2M not set, use default
SYM not set, use default
YTRIM not set, use default
NONLIN not set, use default
records from 1 ... 2381
factors from 1 ... 15
updated forcing 2019.05215400000
Fit from 1310 .. 2143
Fit from 1310 .. 2143
Singular? FALSE
0.36859574510 0.00175027426 1.06715843180
0.42236089010 0.00147009444 -3.09471412452
0.11844980964 0.00486478974 0.57638151116
0.20904336480 0.00119706206 2.81616730234
0.26280850979 0.00142428472 0.22266109211
0.15527821980 0.00349385901 2.78446176124
0.48878860942 0.03145036924 -0.62589361457
0.05376514499 0.00207444041 0.90425171576
0.22598009963 0.00118499213 -2.80222468337
0.48158579492 0.02350906281 -1.62505991966
0.32203341461 0.00198616497 -2.59119567908
0.27974524463 0.00384067096 2.80689614773
0.16675519481 0.00386819570 0.53417725024
0.11299004982 0.00495668886 2.81839232184
0.03682841016 0.00172148097 1.85771547072
0.63140425490 0.00347730698 -2.69663369455
0.57763910990 0.00332495708 -2.46657468023
0.88155019036 0.12966453438 0.16576789433
0.79095663520 0.03899642747 0.66674012944
0.73719149021 0.02768103991 -2.95894554589
0.84472178020 0.29868971727 0.64613987502
0.51121139058 0.03775740486 -0.88711757472
0.94623485501 0.04490002007 -0.14242253545
0.77401990037 0.02617756791 1.33795581380
0.51841420508 0.02667320891 0.23858593110
0.67796658539 0.01369371245 -0.29861973891
0.72025475537 0.00531333220 -1.44123625761
0.83324480519 0.08043550317 0.28033287656
0.88700995018 0.11353150155 -2.06865441425
0.96317158984 0.02876998843 -0.88408909477
1.36859574510 0.00349364883 0.76649906955
1.42236089010 0.00107945770 -1.35234681047
1.11844980964 0.03056776685 -0.04236044476
1.20904336480 0.01234032479 -1.18574905092
1.26280850979 0.00973360197 0.33583680655
1.15527821980 0.01667438357 2.51519243834
1.48878860942 0.01080009324 -0.51079561641
1.05376514499 0.01115291086 -2.07685695636
1.22598009963 0.00673950480 -1.23615296943
1.48158579492 0.00982021023 -1.23727093636
1.32203341461 0.00705405370 -0.88742165655
1.27974524463 0.00793632234 -1.31115752369
1.16675519481 0.00714876232 0.29556924410
1.11299004982 0.03969265870 2.17845509333
1.03682841016 0.02055401761 1.02208692612
1.63140425490 0.00275013652 -2.51756059612
1.57763910990 0.00695336982 2.96798616953
1.88155019036 0.02004064133 -0.38372031857
1.79095663520 0.00560903404 -0.67907479229
1.73719149021 0.00132146546 -0.23696216302
1.84472178020 0.00716077223 2.77057233615
1.51121139058 0.01457158437 -0.59038199002
1.94623485501 0.00826734890 -0.02467973222
1.77401990037 0.00136431845 1.10974891820
1.51841420508 0.01207870238 0.78153426439
1.67796658539 0.00468276562 2.17772843797
1.72025475537 0.00328462937 -0.51953309082
1.83324480519 0.00920347421 -1.19925661614
1.88700995018 0.01918836146 -2.75647966947
1.96317158984 0.01188217734 -1.80568024055
2.36859574510 0.00658165103 0.60909315415
2.42236089010 0.00232530045 -0.73618111129
2.11844980964 0.00280586245 1.56887417930
2.20904336480 0.00489998501 1.92663145412
2.26280850979 0.00229949669 -0.69830917026
2.15527821980 0.00262898059 -1.55211931770
2.48878860942 0.01782331727 -1.32417466206
2.05376514499 0.00546392469 2.66962915942
2.22598009963 0.00220322659 -0.55200462188
2.48158579492 0.01870346951 -2.22742382425
2.32203341461 0.00235342899 -2.24325964525
2.27974524463 0.00380091533 -2.18003636026
2.16675519481 0.00502471435 3.11551371097
2.11299004982 0.00554022874 -2.54307028084
2.03682841016 0.00215508333 2.96813055258
2.63140425490 0.00208338125 -2.48195804102
2.57763910990 0.00382491360 -0.03957754903
2.88155019036 0.00609622153 2.27713942410
2.79095663520 0.00247816802 -0.81376430436
2.73719149021 0.00396635044 0.25070056311
2.84472178020 0.00338553344 -0.60452818664
2.51121139058 0.00944359998 -1.44016207336
2.94623485501 0.00514316260 -2.07064165373
2.77401990037 0.00209431434 0.85152414697
2.51841420508 0.00940320680 -0.12669477545
2.67796658539 0.00273940914 2.36163806369
2.72025475537 0.00463260228 1.64345973327
2.83324480519 0.00459224921 2.63180898860
2.88700995018 0.00456473895 -0.62609797339
2.96317158984 0.00373732414 -3.00058993330
0.99997194158 0.19365254533 0.57989743045
1.99994388317 0.00752372114 -2.07322775336
2.99991582475 0.00977458794 -2.22059278872
0.40922556321=CC Fit from 1310 .. 2143
Fit from 1310 .. 2143
0.98677625230=CC(training) Exclude fit from 1 .. 1310 and 2143 .. 2381
Exclude fit from 1 .. 1310 and 2143 .. 2381
0.18896813059=CC(validate) 365.25224840000=Yr
1965.50215400000=start 2007.15215400000=finish
Author

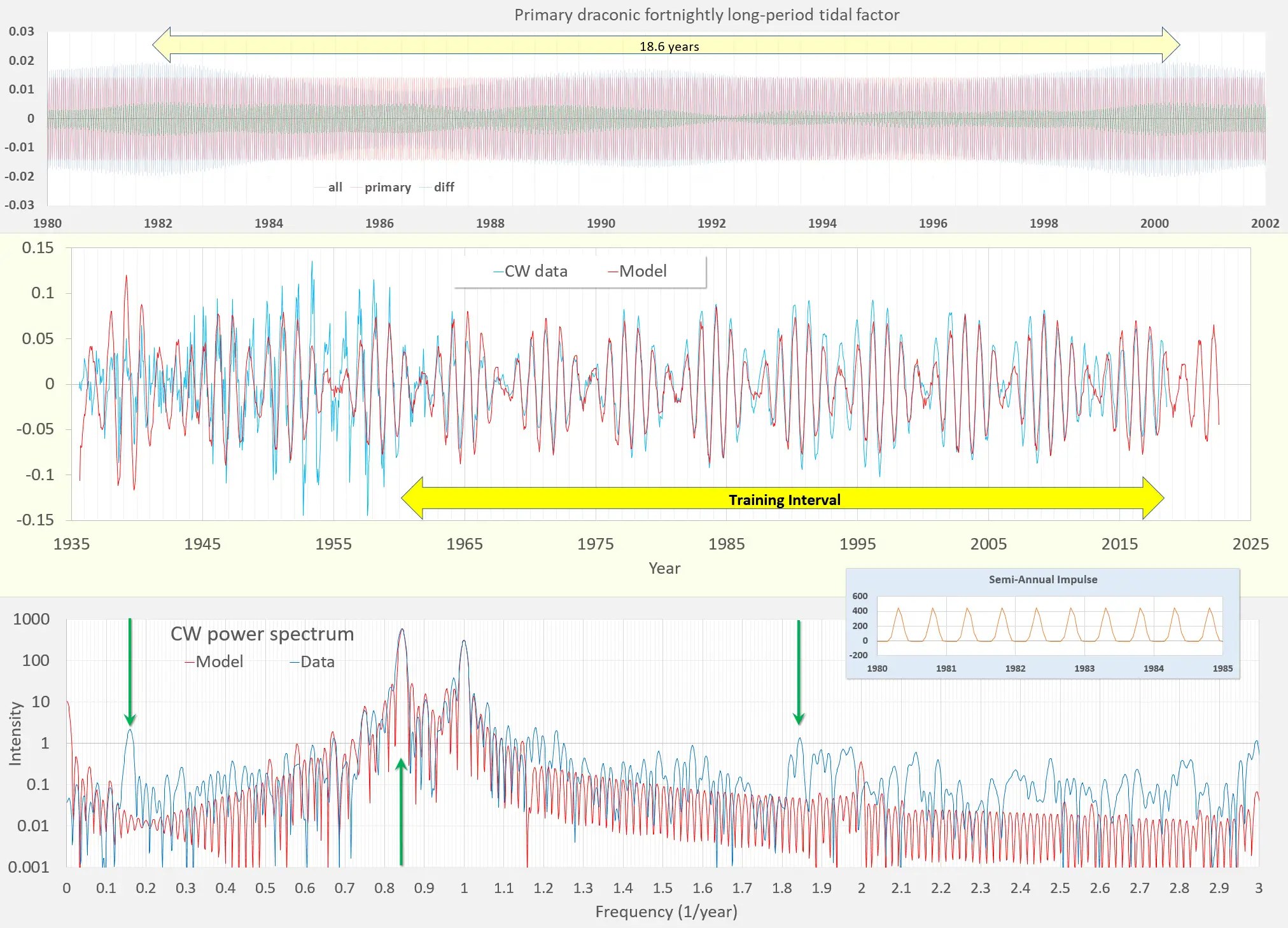

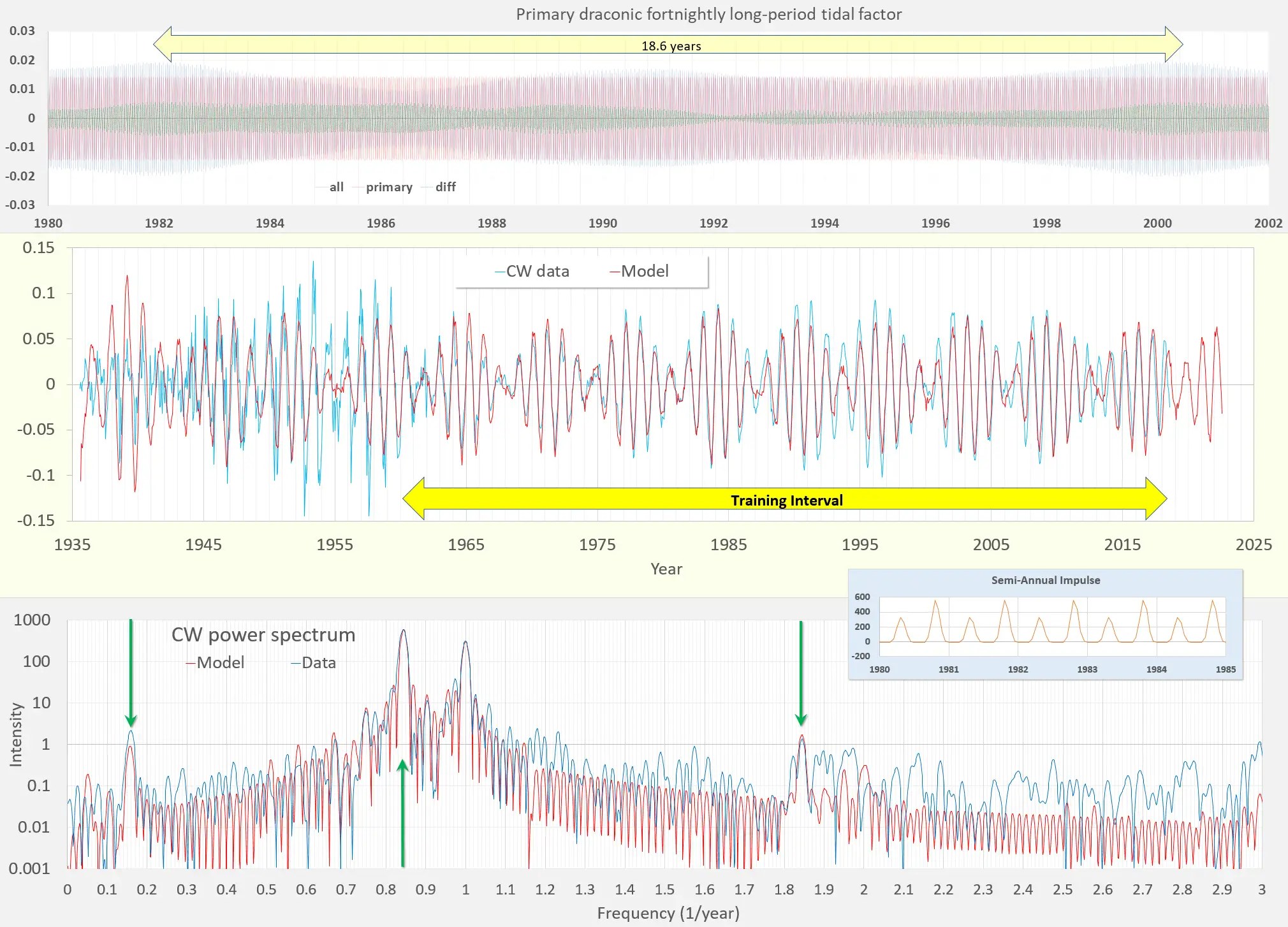

CW fingerprint. Note how the draconic CW frequency at 0.845 is replicated at 1.845 -- modulation of an annual impulse train.
Note the minor peaks at 0.5, 1.5, 2.5 -- that's a biennial modulation of the annual carrier
Also minor peaks at 1.678, 2.678 -- related to the 1/D+1/A beat of the 1/D-1/A 6 year frequency.
Re-evaluation of the experiment described here https://geoenergymath.com/2021/01/07/chandler-wobble-forcing/
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
NINO4
1 day of work
