@IBDesignable | |
class CurveIndentedView: UIView { | |
@IBInspectable | |
var radius: CGFloat = 50 { didSet { updatePath() } } | |
private var shapeLayer: CAShapeLayer = { | |
let shapeLayer = CAShapeLayer() | |
shapeLayer.fillColor = UIColor.red.cgColor | |
return shapeLayer | |
}() | |
override init(frame: CGRect) { | |
super.init(frame: frame) | |
configure() | |
} | |
required init?(coder aDecoder: NSCoder) { | |
super.init(coder: aDecoder) | |
configure() | |
} | |
override func layoutSubviews() { | |
super.layoutSubviews() | |
updatePath() | |
} | |
} | |
private extension CurveIndentedView { | |
func configure() { | |
layer.addSublayer(shapeLayer) | |
} | |
func updatePath() { | |
let angle: CGFloat = .pi / 6 // adjust this to whatever you want, between 0 and `.pi / 2`; /6 or /8 are close | |
let controlPointOffset = radius / cos(angle) | |
let endPointOffset = controlPointOffset + sin(angle) * radius | |
let path = UIBezierPath() | |
path.move(to: CGPoint(x: bounds.midX - endPointOffset, y: bounds.minY)) | |
path.addLine(to: CGPoint(x: bounds.minX, y: bounds.minY)) | |
path.addLine(to: CGPoint(x: bounds.minX, y: bounds.maxY)) | |
path.addLine(to: CGPoint(x: bounds.maxX, y: bounds.maxY)) | |
path.addLine(to: CGPoint(x: bounds.maxX, y: bounds.minY)) | |
path.addLine(to: CGPoint(x: bounds.midX + endPointOffset, y: bounds.minY)) | |
var endPoint = CGPoint(x: bounds.midX + cos(angle) * radius, y: bounds.minY + sin(angle) * radius) | |
var controlPoint = CGPoint(x: bounds.midX + controlPointOffset, y: bounds.minY) | |
path.addQuadCurve(to: endPoint, controlPoint: controlPoint) | |
path.addArc(withCenter: CGPoint(x: bounds.midX, y: bounds.minY), radius: radius, startAngle: angle, endAngle: .pi - angle, clockwise: true) | |
endPoint = CGPoint(x: bounds.midX - endPointOffset, y: bounds.minY) | |
controlPoint = CGPoint(x: bounds.midX - controlPointOffset, y: bounds.minY) | |
path.addQuadCurve(to: endPoint, controlPoint: controlPoint) | |
path.close() | |
shapeLayer.path = path.cgPath | |
} | |
} |
You can then marry that with a rounded corner button:
@IBDesignable
class RoundedCornerButton: UIButton {
override func layoutSubviews() {
super.layoutSubviews()
layer.cornerRadius = min(bounds.width, bounds.height) / 2
clipsToBounds = true
}
}
If you then size and position that appropriately, that yields:
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment

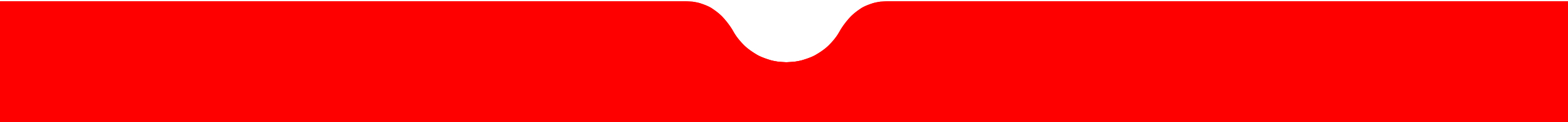

That yields:
