Eigendecomposition times and errors
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
//#include <stan/math.hpp> | |
#include <stan/math/prim/mat/fun/symmetric_eigensolver.hpp> | |
#include <chrono> | |
#include <cstdio> | |
using namespace std; | |
using namespace Eigen; | |
using namespace stan::math; | |
using Scalar = double; | |
void eigendecomposition_test(const vector<int>& sizes, int repeats = 1) { | |
for (int size : sizes) { | |
int multi_run = std::max(1, static_cast<int>(std::pow(500./size,3))); | |
for (int i = 0; i < repeats; i++) { | |
Matrix<Scalar,Dynamic,Dynamic> a = Matrix<Scalar,Dynamic,Dynamic>::Random(size, size); | |
Matrix<Scalar,Dynamic,Dynamic> packed(size,size); | |
Matrix<Scalar,Dynamic,Dynamic> rnd = Matrix<Scalar,Dynamic,Dynamic>::Random(size, size); | |
Matrix<Scalar,Dynamic,Dynamic> vecs(size,size); | |
Matrix<Scalar,Dynamic,1> vals(size); | |
a += a.transpose().eval(); | |
auto start = std::chrono::steady_clock::now(); | |
Tridiagonalization<Matrix<Scalar, Dynamic, Dynamic>> tri; | |
for(int j=0;j<multi_run;j++) { | |
tri.compute(a); | |
packed = tri.packedMatrix(); | |
} | |
int eigen_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
start = std::chrono::steady_clock::now(); | |
for(int j=0;j<multi_run;j++) { | |
stan::math::internal::block_householder_tridiag(a, packed); | |
} | |
int cpu_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
Eigen::Matrix<Scalar,Dynamic,1> diagonal = packed.diagonal(); | |
Eigen::Matrix<Scalar,Dynamic,1> subdiagonal = packed.diagonal(1); | |
start = std::chrono::steady_clock::now(); | |
for(int j=0;j<multi_run;j++) { | |
stan::math::internal::tridiagonal_eigensolver(diagonal, subdiagonal, vals, vecs); | |
} | |
int tri_solve_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
start = std::chrono::steady_clock::now(); | |
for(int j=0;j<multi_run;j++) { | |
Eigen::internal::computeFromTridiagonal_impl(diagonal, subdiagonal, 30, true, vecs); | |
} | |
int eigen_tri_solve_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
start = std::chrono::steady_clock::now(); | |
for(int j=0;j<multi_run;j++) { | |
rnd = tri.matrixQ() /* * rnd*/; | |
} | |
int eigen_apply_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
start = std::chrono::steady_clock::now(); | |
for(int j=0;j<multi_run;j++) { | |
stan::math::internal::block_apply_packed_Q(packed, rnd); | |
} | |
int cpu_apply_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
double multi_run_dbl = multi_run; | |
printf("%d, %lf, %lf, %lf, %lf, %lf, %lf\n", size, | |
eigen_time / multi_run_dbl, | |
cpu_time / multi_run_dbl, | |
eigen_apply_time / multi_run_dbl, | |
cpu_apply_time / multi_run_dbl, | |
eigen_tri_solve_time / multi_run_dbl, | |
tri_solve_time / multi_run_dbl); | |
} | |
} | |
} | |
int main() { | |
printf("size, Eigen tri time[ms], My tri time[ms], Eigen apply time[ms], My apply time[ms], Eigen tri solve time[ms], My tri solve time[ms]\n"); | |
eigendecomposition_test({100,200,500,1000,2000,3000,4000},10); | |
// eigendecomposition_test({100,200,500,1000},3); | |
// eigendecomposition_test({4000},5); | |
} |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
//#include <stan/math.hpp> | |
#include <stan/math/prim/mat/fun/symmetric_eigensolver.hpp> | |
#include <chrono> | |
#include <cstdio> | |
using namespace std; | |
using namespace Eigen; | |
using namespace stan::math; | |
using Scalar = double; | |
double residual(const Matrix<Scalar,Dynamic,Dynamic>& a, const Matrix<Scalar,Dynamic,1>& eigenvals, const Matrix<Scalar,Dynamic,Dynamic>& eigenvecs) { | |
return (a * eigenvecs - eigenvecs * eigenvals.asDiagonal()).array().abs().colwise().sum().maxCoeff(); | |
} | |
double ortho_loss(const Matrix<Scalar,Dynamic,Dynamic>& eigenvecs) { | |
return (eigenvecs.transpose() * eigenvecs - Matrix<Scalar,Dynamic,Dynamic>::Identity(eigenvecs.rows(), eigenvecs.rows())).array().abs().maxCoeff(); | |
} | |
void eigendecomposition_test(const vector<int>& sizes, int repeats = 1) { | |
for (int size : sizes) { | |
for (int i = 0; i < repeats; i++) { | |
Matrix<Scalar,Dynamic,Dynamic> a = Matrix<Scalar,Dynamic,Dynamic>::Random(size, size); | |
Matrix<Scalar,Dynamic,Dynamic> vecs(size,size); | |
Matrix<Scalar,Dynamic,1> vals(size); | |
a += a.transpose().eval(); | |
auto start = std::chrono::steady_clock::now(); | |
SelfAdjointEigenSolver <Matrix<Scalar,Dynamic,Dynamic>> slv(a); | |
vals = slv.eigenvalues(); | |
vecs = slv.eigenvectors(); | |
int eigen_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
double eigen_residual = residual(a, vals, vecs); | |
double eigen_ortho_loss = ortho_loss(vecs); | |
start = std::chrono::steady_clock::now(); | |
selfadjoint_eigensolver(a, vals, vecs); | |
int cpu_time = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::steady_clock::now() - start).count(); | |
double cpu_residual = residual(a, vals, vecs); | |
double cpu_ortho_loss = ortho_loss(vecs); | |
printf("%d, %d, %d, %e, %e, %e, %e\n", size, eigen_time, cpu_time, eigen_residual, cpu_residual, eigen_ortho_loss, cpu_ortho_loss); | |
} | |
} | |
} | |
int main() { | |
printf("tri, tri_eig, size, Eigen time[ms], My time[ms], Eigen max residual, My max residual, Eigen orthogonality loss, My orthogonality loss\n"); | |
eigendecomposition_test({100,200,500,1000,2000,3000,4000},10); | |
// eigendecomposition_test({4000},5); | |
} |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
size | Eigen time[ms] | My time[ms] | Eigen max residual | My max residual | Eigen orthogonality loss | My orthogonality loss | |
---|---|---|---|---|---|---|---|
100 | 2 | 5 | 6.818920e-013 | 5.314460e-012 | 6.661338e-015 | 7.602619e-013 | |
100 | 2 | 5 | 9.252044e-013 | 8.690389e-012 | 7.105427e-015 | 1.789992e-013 | |
100 | 2 | 5 | 5.749197e-013 | 1.908592e-011 | 3.774758e-015 | 5.314508e-013 | |
100 | 2 | 5 | 4.990088e-013 | 1.813637e-011 | 3.774758e-015 | 6.852158e-013 | |
100 | 2 | 5 | 6.881162e-013 | 2.791475e-012 | 6.328271e-015 | 5.323606e-014 | |
100 | 2 | 5 | 8.834582e-013 | 4.462677e-012 | 7.549517e-015 | 5.007288e-013 | |
100 | 2 | 5 | 6.290177e-013 | 7.048008e-013 | 4.884981e-015 | 4.222785e-013 | |
100 | 2 | 5 | 9.213463e-013 | 1.710815e-012 | 6.217249e-015 | 5.847258e-013 | |
100 | 2 | 5 | 1.672204e-012 | 3.455406e-012 | 9.769963e-015 | 6.822678e-014 | |
100 | 2 | 5 | 1.233669e-012 | 6.547726e-012 | 9.547918e-015 | 3.969091e-013 | |
200 | 14 | 21 | 7.005105e-012 | 1.341316e-011 | 2.908784e-014 | 5.664414e-013 | |
200 | 14 | 22 | 2.602214e-012 | 2.896245e-011 | 1.176836e-014 | 6.532922e-012 | |
200 | 15 | 21 | 3.358643e-012 | 1.824219e-011 | 1.620926e-014 | 1.133957e-012 | |
200 | 15 | 22 | 7.906068e-012 | 1.251340e-011 | 2.886580e-014 | 2.067986e-012 | |
200 | 15 | 22 | 3.151943e-012 | 7.617449e-010 | 1.310063e-014 | 7.936718e-011 | |
200 | 15 | 22 | 2.607647e-012 | 1.415042e-010 | 8.881784e-015 | 1.740262e-012 | |
200 | 15 | 22 | 3.583077e-012 | 2.839045e-010 | 1.398881e-014 | 2.043626e-011 | |
200 | 15 | 21 | 3.186494e-012 | 3.099325e-012 | 8.659740e-015 | 3.017276e-013 | |
200 | 14 | 21 | 6.357683e-012 | 2.392043e-011 | 2.220446e-014 | 2.014488e-012 | |
200 | 14 | 21 | 2.964734e-012 | 1.807434e-010 | 9.769963e-015 | 1.213874e-012 | |
500 | 195 | 162 | 4.429976e-011 | 3.952968e-010 | 5.573320e-014 | 4.153715e-012 | |
500 | 233 | 180 | 2.024522e-011 | 4.472665e-009 | 2.842171e-014 | 9.664480e-011 | |
500 | 206 | 165 | 2.453048e-011 | 1.727767e-010 | 3.330669e-014 | 2.481896e-012 | |
500 | 211 | 161 | 3.358919e-011 | 5.344915e-010 | 4.840572e-014 | 3.020749e-011 | |
500 | 194 | 162 | 3.650308e-011 | 2.101175e-010 | 5.195844e-014 | 8.425208e-012 | |
500 | 199 | 166 | 3.749973e-011 | 2.921300e-010 | 5.662137e-014 | 6.015352e-012 | |
500 | 196 | 161 | 3.812880e-011 | 1.416366e-010 | 5.617729e-014 | 1.950664e-012 | |
500 | 196 | 159 | 2.893308e-011 | 1.811599e-010 | 4.884981e-014 | 9.040180e-012 | |
500 | 194 | 163 | 4.258553e-011 | 2.516204e-009 | 6.417089e-014 | 7.136103e-011 | |
500 | 201 | 167 | 3.920186e-011 | 9.936800e-011 | 6.172840e-014 | 9.327369e-012 | |
1000 | 1920 | 868 | 1.530625e-010 | 8.056848e-010 | 1.172396e-013 | 8.472943e-011 | |
1000 | 1775 | 851 | 1.659103e-010 | 5.290762e-009 | 1.192380e-013 | 1.465878e-009 | |
1000 | 1722 | 852 | 1.414689e-010 | 1.973531e-009 | 1.181277e-013 | 3.472638e-011 | |
1000 | 1763 | 868 | 1.984829e-010 | 4.290217e-010 | 1.465494e-013 | 6.282030e-012 | |
1000 | 1721 | 817 | 1.666918e-010 | 3.637880e-010 | 1.274536e-013 | 1.138598e-011 | |
1000 | 1705 | 847 | 1.727811e-010 | 2.028511e-009 | 1.396661e-013 | 1.299403e-010 | |
1000 | 1731 | 846 | 1.494562e-010 | 2.793763e-009 | 1.265654e-013 | 3.056329e-010 | |
1000 | 1752 | 864 | 1.889119e-010 | 2.004108e-009 | 1.469935e-013 | 1.039889e-011 | |
1000 | 1786 | 891 | 1.358708e-010 | 1.240218e-009 | 1.061373e-013 | 2.627206e-011 | |
1000 | 1823 | 892 | 1.305466e-010 | 1.134354e-009 | 1.008083e-013 | 1.534053e-011 | |
2000 | 16610 | 5664 | 5.543490e-010 | 3.198120e-009 | 2.069456e-013 | 5.420929e-011 | |
2000 | 16241 | 5403 | 5.704461e-010 | 2.451249e-008 | 2.313705e-013 | 2.511754e-010 | |
2000 | 16257 | 5425 | 8.126035e-010 | 2.046374e-008 | 3.248513e-013 | 6.732271e-010 | |
2000 | 16165 | 5399 | 6.384453e-010 | 2.956349e-009 | 2.366995e-013 | 1.166049e-010 | |
2000 | 15893 | 5432 | 5.140466e-010 | 3.178848e-007 | 1.987299e-013 | 4.620708e-008 | |
2000 | 15935 | 5403 | 6.906517e-010 | 6.545977e-009 | 2.453593e-013 | 4.990502e-011 | |
2000 | 15870 | 5626 | 4.847227e-010 | 1.267172e-008 | 1.905143e-013 | 1.282693e-010 | |
2000 | 16038 | 5479 | 6.982244e-010 | 1.812587e-008 | 2.671197e-013 | 4.005840e-010 | |
2000 | 15947 | 5531 | 6.491102e-010 | 3.503245e-009 | 2.517986e-013 | 2.359668e-010 | |
2000 | 15851 | 5389 | 6.039694e-010 | 4.595018e-008 | 2.229328e-013 | 1.100552e-009 | |
3000 | 53302 | 16579 | 1.845291e-009 | 1.077648e-007 | 4.711787e-013 | 1.764384e-008 | |
3000 | 53181 | 16375 | 1.245045e-009 | 6.040126e-009 | 3.093081e-013 | 1.209129e-010 | |
3000 | 53074 | 16558 | 1.484284e-009 | 8.109250e-008 | 3.781420e-013 | 8.387357e-009 | |
3000 | 53155 | 16354 | 1.251405e-009 | 2.176914e-008 | 3.193001e-013 | 1.011060e-010 | |
3000 | 53051 | 16679 | 1.629610e-009 | 5.590204e-009 | 4.363176e-013 | 2.802948e-010 | |
3000 | 53211 | 17361 | 1.280464e-009 | 3.149178e-008 | 3.310685e-013 | 3.183082e-010 | |
3000 | 53541 | 16436 | 1.703448e-009 | 2.698896e-008 | 4.476419e-013 | 1.959992e-009 | |
3000 | 55947 | 16991 | 1.268775e-009 | 9.390530e-008 | 3.326228e-013 | 1.054301e-009 | |
3000 | 53928 | 16510 | 1.229023e-009 | 4.918773e-008 | 3.026468e-013 | 4.830789e-010 | |
3000 | 53999 | 16606 | 1.468178e-009 | 2.778927e-008 | 3.730349e-013 | 4.828028e-010 | |
4000 | 126141 | 36679 | 2.579591e-009 | 4.464430e-008 | 5.184742e-013 | 3.519300e-009 | |
4000 | 124552 | 36959 | 2.044163e-009 | 9.993964e-007 | 4.205525e-013 | 6.857670e-009 | |
4000 | 124456 | 36592 | 2.095581e-009 | 7.111562e-009 | 4.227729e-013 | 2.413619e-010 | |
4000 | 124461 | 36998 | 2.073411e-009 | 1.900777e-008 | 4.034550e-013 | 7.907005e-010 | |
4000 | 124774 | 36514 | 2.644201e-009 | 2.657160e-007 | 5.186962e-013 | 1.876844e-009 | |
4000 | 124400 | 36594 | 2.597082e-009 | 3.350777e-008 | 5.075940e-013 | 3.099531e-009 | |
4000 | 124605 | 36459 | 2.711672e-009 | 1.167237e-007 | 5.262457e-013 | 1.638998e-009 | |
4000 | 124862 | 36540 | 2.032853e-009 | 4.088616e-007 | 4.176659e-013 | 1.483002e-008 | |
4000 | 124247 | 36983 | 2.245084e-009 | 1.644776e-007 | 4.520828e-013 | 9.657949e-010 | |
4000 | 124419 | 36427 | 2.406090e-009 | 8.196682e-008 | 4.778400e-013 | 1.305511e-009 |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
size | Eigen tri time[ms] | My tri time[ms] | Eigen apply time[ms] | My apply time[ms] | Eigen tri solve time[ms] | My tri solve time[ms] | |
---|---|---|---|---|---|---|---|
100 | 0.296000 | 0.552000 | 0.392000 | 0.520000 | 0.016000 | 2.320000 | |
100 | 0.304000 | 0.536000 | 0.376000 | 0.488000 | 0.016000 | 2.272000 | |
100 | 0.296000 | 0.520000 | 0.368000 | 0.480000 | 0.016000 | 2.288000 | |
100 | 0.296000 | 0.480000 | 0.360000 | 0.464000 | 0.016000 | 2.272000 | |
100 | 0.296000 | 0.488000 | 0.360000 | 0.464000 | 0.016000 | 2.256000 | |
100 | 0.296000 | 0.488000 | 0.360000 | 0.464000 | 0.016000 | 2.296000 | |
100 | 0.320000 | 0.480000 | 0.360000 | 0.456000 | 0.016000 | 2.304000 | |
100 | 0.296000 | 0.472000 | 0.368000 | 0.464000 | 0.016000 | 2.304000 | |
100 | 0.304000 | 0.472000 | 0.360000 | 0.472000 | 0.016000 | 2.272000 | |
100 | 0.296000 | 0.472000 | 0.352000 | 0.464000 | 0.016000 | 2.304000 | |
200 | 2.066667 | 2.400000 | 1.666667 | 2.533333 | 0.666667 | 8.333333 | |
200 | 2.066667 | 2.533333 | 1.733333 | 2.466667 | 0.666667 | 8.266667 | |
200 | 2.000000 | 2.466667 | 1.666667 | 2.533333 | 0.666667 | 8.533333 | |
200 | 2.200000 | 2.466667 | 1.666667 | 2.466667 | 0.666667 | 8.333333 | |
200 | 2.200000 | 2.466667 | 1.666667 | 2.466667 | 0.666667 | 8.133333 | |
200 | 2.133333 | 2.400000 | 1.666667 | 2.466667 | 0.666667 | 8.133333 | |
200 | 2.133333 | 2.466667 | 1.666667 | 2.466667 | 0.666667 | 8.266667 | |
200 | 2.000000 | 2.400000 | 1.666667 | 2.533333 | 0.666667 | 8.066667 | |
200 | 2.000000 | 2.400000 | 1.666667 | 2.466667 | 0.666667 | 8.000000 | |
200 | 2.066667 | 2.333333 | 1.666667 | 2.466667 | 0.666667 | 8.266667 | |
500 | 30.000000 | 28.000000 | 18.000000 | 27.000000 | 125.000000 | 48.000000 | |
500 | 31.000000 | 28.000000 | 18.000000 | 27.000000 | 129.000000 | 50.000000 | |
500 | 30.000000 | 29.000000 | 18.000000 | 27.000000 | 126.000000 | 49.000000 | |
500 | 30.000000 | 28.000000 | 18.000000 | 27.000000 | 127.000000 | 50.000000 | |
500 | 31.000000 | 28.000000 | 18.000000 | 27.000000 | 128.000000 | 48.000000 | |
500 | 30.000000 | 28.000000 | 18.000000 | 27.000000 | 126.000000 | 49.000000 | |
500 | 32.000000 | 31.000000 | 19.000000 | 27.000000 | 128.000000 | 50.000000 | |
500 | 30.000000 | 28.000000 | 19.000000 | 27.000000 | 127.000000 | 50.000000 | |
500 | 33.000000 | 28.000000 | 18.000000 | 27.000000 | 126.000000 | 49.000000 | |
500 | 30.000000 | 28.000000 | 19.000000 | 27.000000 | 127.000000 | 50.000000 | |
1000 | 237.000000 | 220.000000 | 132.000000 | 193.000000 | 1094.000000 | 194.000000 | |
1000 | 242.000000 | 220.000000 | 133.000000 | 194.000000 | 1075.000000 | 193.000000 | |
1000 | 247.000000 | 221.000000 | 131.000000 | 193.000000 | 1073.000000 | 196.000000 | |
1000 | 246.000000 | 219.000000 | 132.000000 | 192.000000 | 1066.000000 | 191.000000 | |
1000 | 243.000000 | 223.000000 | 138.000000 | 200.000000 | 1083.000000 | 195.000000 | |
1000 | 260.000000 | 236.000000 | 137.000000 | 199.000000 | 1172.000000 | 196.000000 | |
1000 | 271.000000 | 235.000000 | 133.000000 | 190.000000 | 1074.000000 | 198.000000 | |
1000 | 241.000000 | 221.000000 | 131.000000 | 191.000000 | 1071.000000 | 190.000000 | |
1000 | 247.000000 | 221.000000 | 140.000000 | 191.000000 | 1071.000000 | 193.000000 | |
1000 | 248.000000 | 219.000000 | 131.000000 | 190.000000 | 1074.000000 | 190.000000 | |
2000 | 2605.000000 | 1973.000000 | 996.000000 | 1437.000000 | 9318.000000 | 775.000000 | |
2000 | 2633.000000 | 1935.000000 | 999.000000 | 1438.000000 | 9371.000000 | 768.000000 | |
2000 | 2589.000000 | 1947.000000 | 993.000000 | 1434.000000 | 9308.000000 | 775.000000 | |
2000 | 2575.000000 | 1943.000000 | 996.000000 | 1434.000000 | 9353.000000 | 765.000000 | |
2000 | 2596.000000 | 1948.000000 | 1000.000000 | 1445.000000 | 9258.000000 | 768.000000 | |
2000 | 2585.000000 | 1943.000000 | 998.000000 | 1444.000000 | 9260.000000 | 775.000000 | |
2000 | 2571.000000 | 1946.000000 | 998.000000 | 1432.000000 | 9268.000000 | 771.000000 | |
2000 | 2587.000000 | 1947.000000 | 997.000000 | 1440.000000 | 9275.000000 | 766.000000 | |
2000 | 2561.000000 | 1942.000000 | 999.000000 | 1439.000000 | 9219.000000 | 773.000000 | |
2000 | 2591.000000 | 1955.000000 | 993.000000 | 1435.000000 | 9282.000000 | 775.000000 | |
3000 | 8740.000000 | 6438.000000 | 3336.000000 | 4782.000000 | 31750.000000 | 1741.000000 | |
3000 | 8780.000000 | 6416.000000 | 3318.000000 | 4764.000000 | 32048.000000 | 1750.000000 | |
3000 | 9070.000000 | 6450.000000 | 3325.000000 | 4786.000000 | 31546.000000 | 1755.000000 | |
3000 | 8738.000000 | 6450.000000 | 3307.000000 | 4767.000000 | 31773.000000 | 1753.000000 | |
3000 | 8686.000000 | 6471.000000 | 3308.000000 | 4760.000000 | 31159.000000 | 1744.000000 | |
3000 | 8685.000000 | 6455.000000 | 3312.000000 | 4764.000000 | 30943.000000 | 1741.000000 | |
3000 | 8731.000000 | 6450.000000 | 3486.000000 | 4764.000000 | 31379.000000 | 1752.000000 | |
3000 | 8791.000000 | 6448.000000 | 3311.000000 | 4755.000000 | 31368.000000 | 1753.000000 | |
3000 | 8780.000000 | 6537.000000 | 3296.000000 | 4762.000000 | 31469.000000 | 1744.000000 | |
3000 | 8751.000000 | 6462.000000 | 3324.000000 | 4773.000000 | 31317.000000 | 1742.000000 | |
4000 | 20377.000000 | 15156.000000 | 7892.000000 | 11401.000000 | 74726.000000 | 3108.000000 | |
4000 | 20483.000000 | 15262.000000 | 7977.000000 | 11231.000000 | 77612.000000 | 3109.000000 | |
4000 | 20502.000000 | 15212.000000 | 7884.000000 | 11213.000000 | 74467.000000 | 3121.000000 | |
4000 | 20449.000000 | 15923.000000 | 7895.000000 | 11192.000000 | 75900.000000 | 3145.000000 | |
4000 | 20603.000000 | 15225.000000 | 7920.000000 | 11219.000000 | 73681.000000 | 3124.000000 | |
4000 | 20456.000000 | 15182.000000 | 7889.000000 | 11263.000000 | 75245.000000 | 3135.000000 | |
4000 | 20365.000000 | 15302.000000 | 7932.000000 | 11196.000000 | 74509.000000 | 3206.000000 | |
4000 | 20400.000000 | 15182.000000 | 7893.000000 | 11188.000000 | 74528.000000 | 3131.000000 | |
4000 | 20407.000000 | 15212.000000 | 7830.000000 | 11120.000000 | 73189.000000 | 3147.000000 | |
4000 | 20725.000000 | 15193.000000 | 7911.000000 | 11183.000000 | 74153.000000 | 3142.000000 |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
import pandas, numpy | |
import matplotlib.pyplot as plt | |
data = pandas.read_csv("parts_times.csv",sep = ", ") | |
size = numpy.array(data["size"]) | |
data2 = pandas.read_csv("eigendecomposition_speed_precision.csv",sep = ", ") | |
size2 = data2["size"] | |

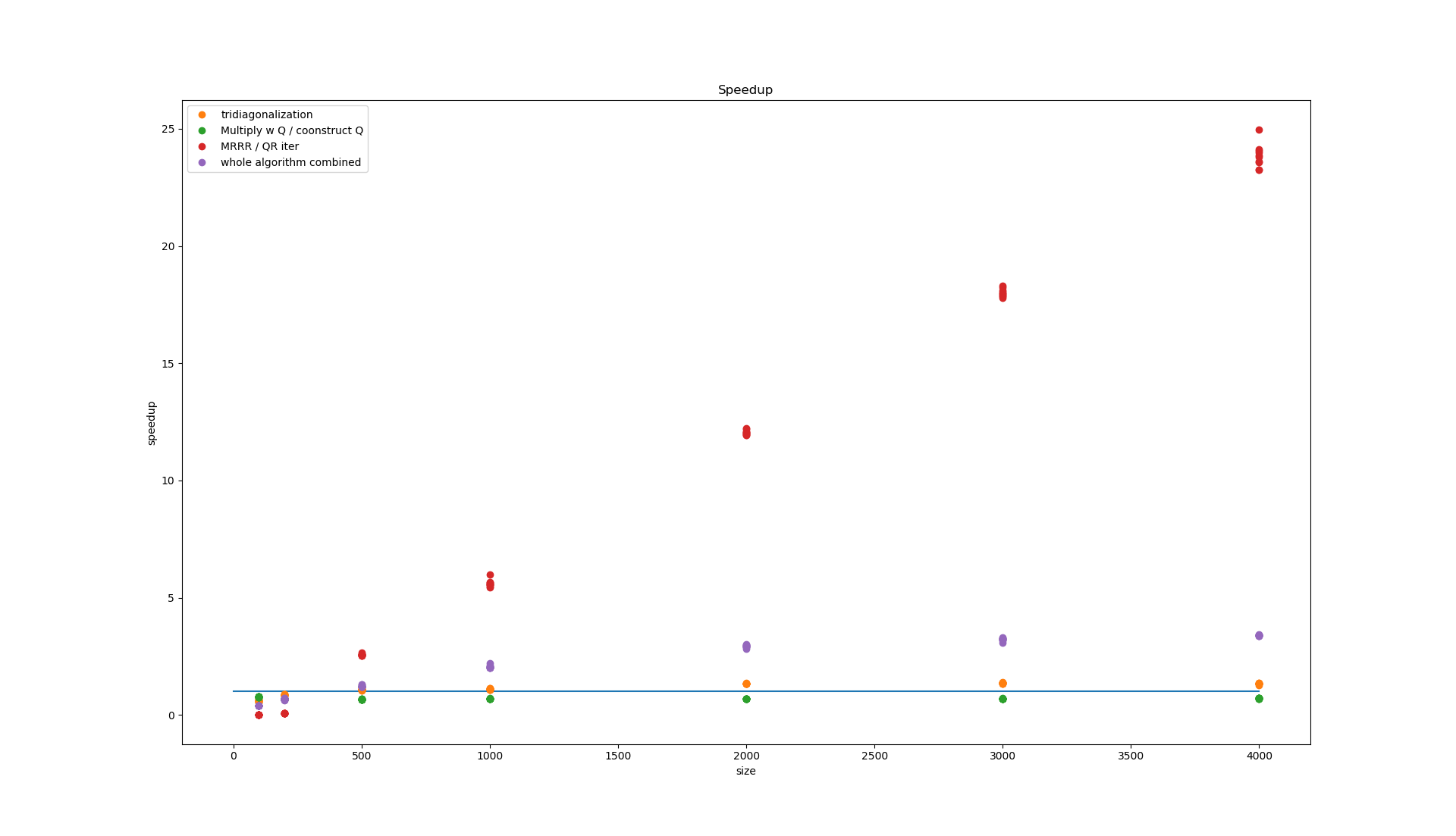

plt.plot([0, size[-1]], [1,1]) | |
plt.plot(size, data["Eigen tri time[ms]"] / data["My tri time[ms]"], "o", label="tridiagonalization") | |
plt.plot(size, data["Eigen apply time[ms]"] / data["My apply time[ms]"], "o", label="Multiply w Q / coonstruct Q") | |
plt.plot(size, data["Eigen tri solve time[ms]"] / data["My tri solve time[ms]"], "o", label="MRRR / QR iter") | |
plt.plot(size2, data2["Eigen time[ms]"] / data2["My time[ms]"], "o", label="whole algorithm combined") | |
plt.xlabel("size") | |
plt.ylabel("speedup") | |
plt.title("Speedup") | |
plt.legend() | |
plt.show() | |
for col in ("Eigen max residual", "My max residual", "Eigen orthogonality loss", "My orthogonality loss"): | |
plt.plot(size2, data2[col], "o", label=col) | |
plt.xlabel("size") | |
plt.ylabel("error") | |
plt.title("Errors") | |
plt.semilogy() | |
plt.legend() | |
plt.show() |
Author
t4c1
commented
Nov 13, 2019
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
