TaskAttemptNumWithFailure.scala

// scalastyle:off line.size.limit
@ExpressionDescription(
  usage = """_FUNC_(stageId) - Get task attemptNumber, and will throw FetchFailedException in the `stageId` Stage and make it retry.""",
  examples = "",
  since = "3.3.0",
  group = "misc_funcs")
// scalastyle:on line.size.limit
case class TaskAttemptNumWithFailure(stage: Expression)
  extends UnaryExpression with CodegenFallback {
  override def foldable: Boolean = false
  override def dataType: DataType = IntegerType
  override def eval(input: InternalRow): Any = {
    val id = stage.eval(input).asInstanceOf[Int]
    val tc = TaskContext.get()
    if (tc.stageAttemptNumber() == 0 &&
        tc.stageId() == id &&
        tc.attemptNumber() == 0 &&
        tc.partitionId() == 0) {
      val blockManagerId = SparkEnv.get.blockManager.shuffleServerId
      val e = SparkCoreErrors.fetchFailedError(
        blockManagerId, 0, 0L, 0, 0, "don't worry to see this")
      throw e
    } else {
      TaskContext.get().attemptNumber()
    }
  }

  override def prettyName: String = "task_num"

  override def nullable: Boolean = false

  override def child: Expression = stage

  override protected def withNewChildInternal(newChild: Expression): Expression = {
    copy(stage = newChild)
  }
}

select * from
     (select v from (values (1), (2), (3) t(v))) t1
     join
     (select task_num(3) from (select v from values (1), (2), (3) t(v) group by v)) t2;

Without Map Stage Failure

With the simple query above, we replaced the stageId in task_num to something like task_num(300), then the query gave us the final results w/o any failures in the middle.

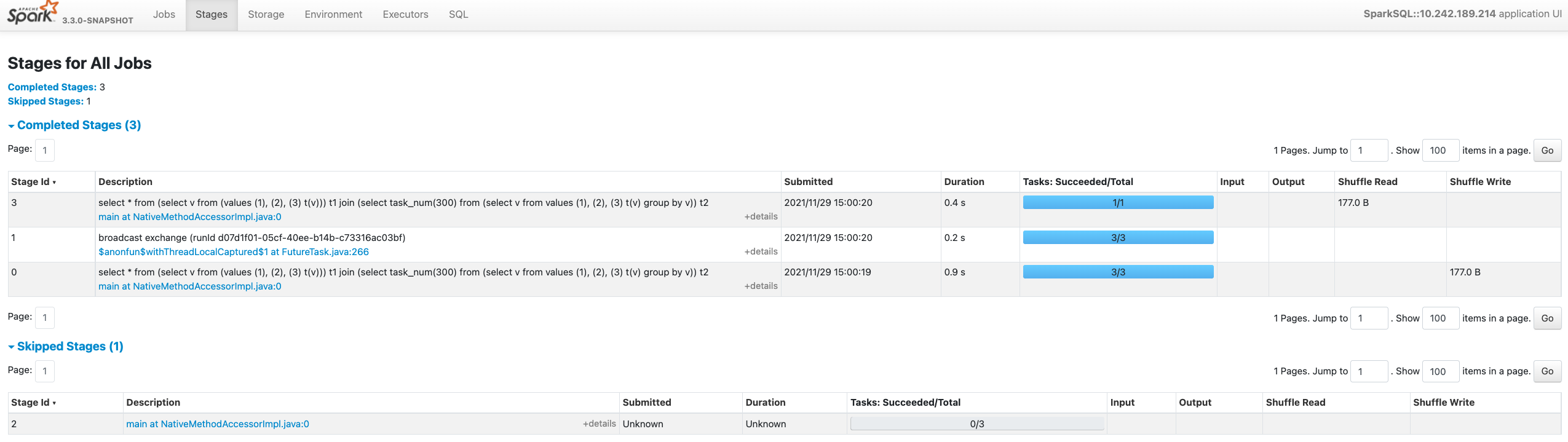

Its stage tab looks like below,

1. stage 2 is skipped as it produces the same map output with stage 0

The DAG of Job 2 also shows that stage 2 is skipped.

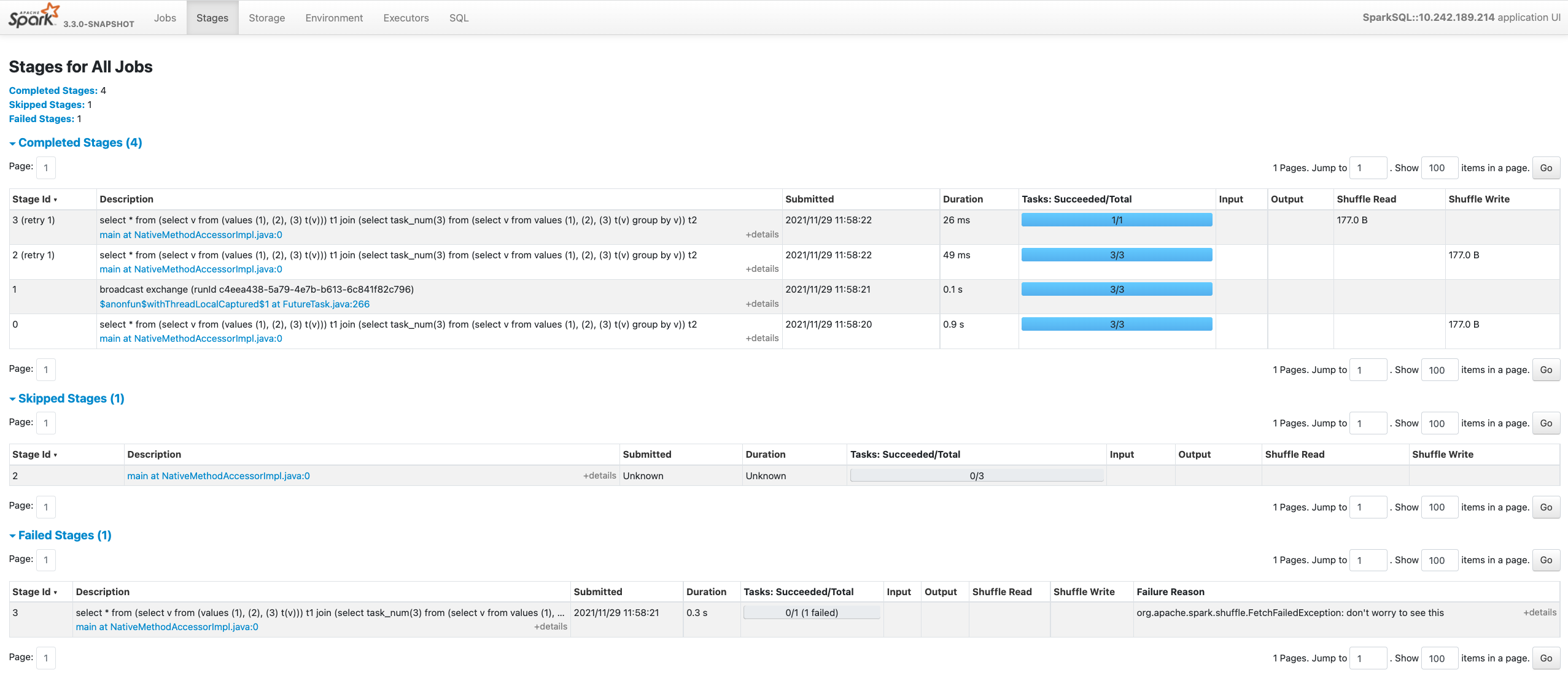

With FetchFailedException and Map Stage Retries

When rerunning spark-sql shell with the original SQL in https://gist.github.com/yaooqinn/6acb7b74b343a6a6dffe8401f6b7b45c#gistcomment-3977315

1. stage 3 threw FetchFailedException and caused itself and its parent stage(stage 2) to retry
2. stage 2 was skipped before but its attemptId was still 0, so when its retry happened it got removed from Skipped Stages

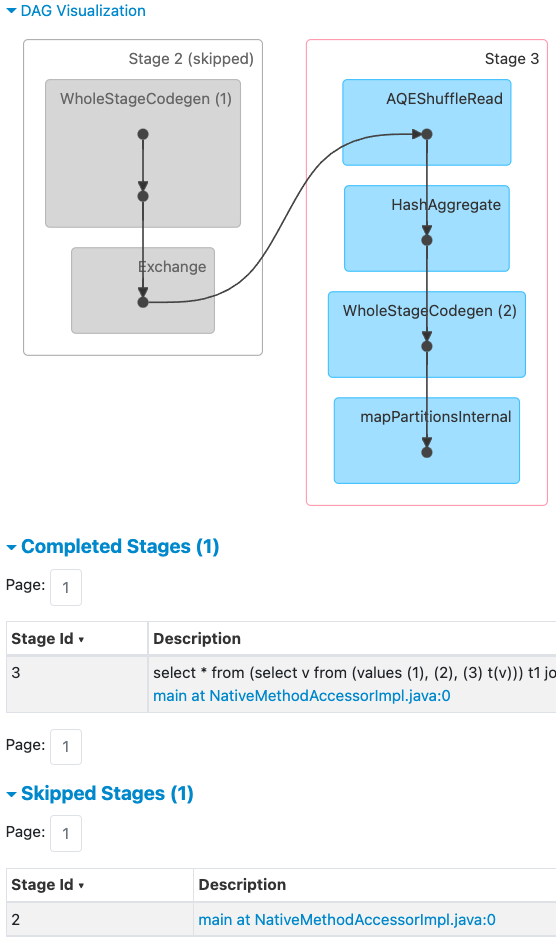

The DAG of Job 2 doesn't show that stage 2 is skipped anymore.

Besides, a retried stage usually has a subset of tasks from the original stage. If we mark it as an original one, the metrics might lead us into pitfalls.

After fix
