Plot the GitHub punch card of d3/d3 repository using d3.js
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
{ | |
"cells": [ | |
{ | |
"cell_type": "code", | |
"execution_count": 1, | |
"metadata": { | |
"ExecuteTime": { | |
"end_time": "2018-06-12T13:58:11.249726Z", | |
"start_time": "2018-06-12T13:58:10.950752Z" | |
} | |
}, | |
"outputs": [], | |
"source": [ | |
"import pandas as pd\n", | |
"from IPython.display import IFrame, HTML" | |
] | |
}, | |
{ | |
"cell_type": "markdown", | |
"metadata": {}, | |
"source": [ | |
"## Fetch and preprocess json" | |
] | |
}, | |
{ | |
"cell_type": "code", | |
"execution_count": 2, | |
"metadata": { | |
"ExecuteTime": { | |
"end_time": "2018-06-12T13:58:11.956593Z", | |
"start_time": "2018-06-12T13:58:11.251083Z" | |
} | |
}, | |
"outputs": [ | |
{ | |
"data": { | |
"text/html": [ | |
"<div>\n", | |
"<style>\n", | |
" .dataframe thead tr:only-child th {\n", | |
" text-align: right;\n", | |
" }\n", | |
"\n", | |
" .dataframe thead th {\n", | |
" text-align: left;\n", | |
" }\n", | |
"\n", | |
" .dataframe tbody tr th {\n", | |
" vertical-align: top;\n", | |
" }\n", | |
"</style>\n", | |
"<table border=\"1\" class=\"dataframe\">\n", | |
" <thead>\n", | |
" <tr style=\"text-align: right;\">\n", | |
" <th></th>\n", | |
" <th>dow</th>\n", | |
" <th>hour</th>\n", | |
" <th>contributions</th>\n", | |
" </tr>\n", | |
" </thead>\n", | |
" <tbody>\n", | |
" <tr>\n", | |
" <th>0</th>\n", | |
" <td>0</td>\n", | |
" <td>0</td>\n", | |
" <td>7</td>\n", | |
" </tr>\n", | |
" <tr>\n", | |
" <th>1</th>\n", | |
" <td>0</td>\n", | |
" <td>1</td>\n", | |
" <td>0</td>\n", | |
" </tr>\n", | |
" <tr>\n", | |
" <th>2</th>\n", | |
" <td>0</td>\n", | |
" <td>2</td>\n", | |
" <td>1</td>\n", | |
" </tr>\n", | |
" <tr>\n", | |
" <th>3</th>\n", | |
" <td>0</td>\n", | |
" <td>3</td>\n", | |
" <td>0</td>\n", | |
" </tr>\n", | |
" <tr>\n", | |
" <th>4</th>\n", | |
" <td>0</td>\n", | |
" <td>4</td>\n", | |
" <td>0</td>\n", | |
" </tr>\n", | |
" </tbody>\n", | |
"</table>\n", | |
"</div>" | |
], | |
"text/plain": [ | |
" dow hour contributions\n", | |
"0 0 0 7\n", | |
"1 0 1 0\n", | |
"2 0 2 1\n", | |
"3 0 3 0\n", | |
"4 0 4 0" | |
] | |
}, | |
"execution_count": 2, | |
"metadata": {}, | |
"output_type": "execute_result" | |
} | |
], | |
"source": [ | |
"user, repository = 'd3', 'd3'\n", | |
"\n", | |
"data = pd.read_json(f'https://api.github.com/repos/{user}/{repository}/stats/punch_card')\n", | |
"data.columns = ['dow', 'hour', 'contributions']\n", | |
"data.head()" | |
] | |
}, | |
{ | |
"cell_type": "markdown", | |
"metadata": {}, | |
"source": [ | |
"## Save to local" | |
] | |
}, | |
{ | |
"cell_type": "code", | |
"execution_count": 3, | |
"metadata": { | |
"ExecuteTime": { | |
"end_time": "2018-06-12T13:58:11.961669Z", | |
"start_time": "2018-06-12T13:58:11.958479Z" | |
} | |
}, | |
"outputs": [], | |
"source": [ | |
"data.to_json('contributions.json', orient='records')" | |
] | |
}, | |
{ | |
"cell_type": "markdown", | |
"metadata": {}, | |
"source": [ | |
"## Plot using d3.js" | |
] | |
}, | |
{ | |
"cell_type": "code", | |
"execution_count": 4, | |
"metadata": { | |
"ExecuteTime": { | |
"end_time": "2018-06-12T13:58:12.077996Z", | |
"start_time": "2018-06-12T13:58:11.964149Z" | |
} | |
}, | |
"outputs": [ | |
{ | |
"name": "stdout", | |
"output_type": "stream", | |
"text": [ | |
"<!DOCTYPE html>\r\n", | |
"<meta charset=\"utf-8\">\r\n", | |
"<body>\r\n", | |
"<style>\r\n", | |
" div.tooltip {\r\n", | |
" position: absolute;\r\n", | |
" text-align: center;\r\n", | |
" width: 60px;\r\n", | |
" height: 28px;\r\n", | |
" padding: 2px;\r\n", | |
" font: 12px sans-serif;\r\n", | |
" background: rgb(255, 255, 255);\r\n", | |
" border: 0px;\r\n", | |
" border-radius: 8px;\r\n", | |
" pointer-events: none;\r\n", | |
" }\r\n", | |
"</style>\r\n", | |
"<script src=\"https://d3js.org/d3.v5.min.js\"></script>\r\n", | |
"<script>\r\n", | |
" const margin = {top: 20, right: 20, bottom: 50, left: 50};\r\n", | |
" const width = 600 - margin.left - margin.right;\r\n", | |
" const height = 200 - margin.top - margin.bottom;\r\n", | |
"\r\n", | |
" const xScale = d3.scaleLinear().range([0, width]);\r\n", | |
" const yScale = d3.scaleLinear().rangeRound([0, height]);\r\n", | |
" const rScale = d3.scaleSqrt().range([0, 10]);\r\n", | |
"\r\n", | |
" const dayOfWeek = [\"Sun\", \"Mon\", \"Tue\", \"Wed\", \"Thr\", \"Fri\", \"Sat\"];\r\n", | |
"\r\n", | |
" const svg = d3.select(\"body\")\r\n", | |
" .append(\"svg\")\r\n", | |
" .attr(\"width\", width + margin.left + margin.right)\r\n", | |
" .attr(\"height\", height + margin.top + margin.bottom)\r\n", | |
" .append(\"g\")\r\n", | |
" .attr(\"transform\", `translate(${margin.left}, ${margin.top})`);\r\n", | |
"\r\n", | |
" d3.json(\"/files/contributions.json\").then(data => {\r\n", | |
" xScale.domain([-0.5, 23.5]);\r\n", | |
" yScale.domain([-0.5, 6.5]);\r\n", | |
" rScale.domain([0, d3.max(data, d => d.contributions)]);\r\n", | |
"\r\n", | |
" const div = d3.select(\"body\").append(\"div\")\r\n", | |
" .attr(\"class\", \"tooltip\")\r\n", | |
" .style(\"opacity\", 0);\r\n", | |
"\r\n", | |
" svg.selectAll(\"dot\")\r\n", | |
" .data(data)\r\n", | |
" .enter().append(\"circle\")\r\n", | |
" .attr(\"r\", d => rScale(d.contributions))\r\n", | |
" .attr(\"cx\", d => xScale(d.hour))\r\n", | |
" .attr(\"cy\", d => yScale(d.dow))\r\n", | |
" .on('mouseover', d => {\r\n", | |
" div.transition()\r\n", | |
" .duration(200)\r\n", | |
" .style(\"opacity\", .9);\r\n", | |
" div.html(`${dayOfWeek[d.dow]}, ${d.hour}<br />${d.contributions}`)\r\n", | |
" .style(\"left\", (d3.event.pageX) + \"px\")\r\n", | |
" .style(\"top\", (d3.event.pageY - 28) + \"px\");\r\n", | |
" })\r\n", | |
" .on(\"mouseout\", d => {\r\n", | |
" div.transition()\r\n", | |
" .duration(500)\r\n", | |
" .style(\"opacity\", 0);\r\n", | |
" });\r\n", | |
"\r\n", | |
" svg.append(\"g\")\r\n", | |
" .attr(\"transform\", `translate(0, ${height})`)\r\n", | |
" .call(d3.axisBottom(xScale).ticks(24));\r\n", | |
"\r\n", | |
" svg.append(\"g\")\r\n", | |
" .call(\r\n", | |
" d3.axisLeft(yScale)\r\n", | |
" .ticks(7)\r\n", | |
" .tickFormat((d, i) => dayOfWeek[d])\r\n", | |
" );\r\n", | |
"\r\n", | |
" svg.append(\"text\")\r\n", | |
" .attr(\"transform\", `translate(${width / 2}, ${(height + margin.top + 15)})`)\r\n", | |
" .style(\"text-anchor\", \"middle\")\r\n", | |
" .style(\"font-size\", \"12px\")\r\n", | |
" .text(\"hour\");\r\n", | |
"\r\n", | |
" svg.append(\"text\")\r\n", | |
" .attr(\"transform\", \"rotate(-90)\")\r\n", | |
" .attr(\"y\", 0 - margin.left)\r\n", | |
" .attr(\"x\", 0 - (height / 2))\r\n", | |
" .attr(\"dy\", \"1em\")\r\n", | |
" .style(\"text-anchor\", \"middle\")\r\n", | |
" .style(\"font-size\", \"12px\")\r\n", | |
" .text(\"day of week\"); \r\n", | |
" });\r\n", | |
"</script>\r\n", | |
"</body>\r\n" | |
] | |
} | |
], | |
"source": [ | |
"!cat punchcard.html" | |
] | |
}, | |
{ | |
"cell_type": "code", | |
"execution_count": 5, | |
"metadata": { | |
"ExecuteTime": { | |
"end_time": "2018-06-12T13:58:12.082965Z", | |
"start_time": "2018-06-12T13:58:12.079402Z" | |
} | |
}, | |
"outputs": [ | |
{ | |
"data": { | |
"text/html": [ | |
"\n", | |
" <iframe\n", | |
" width=\"650\"\n", | |
" height=\"250\"\n", | |
" src=\"punchcard.html\"\n", | |
" frameborder=\"0\"\n", | |
" allowfullscreen\n", | |
" ></iframe>\n", | |
" " | |
], | |
"text/plain": [ | |
"<IPython.lib.display.IFrame at 0x7f932f8d1198>" | |
] | |
}, | |
"execution_count": 5, | |
"metadata": {}, | |
"output_type": "execute_result" | |
} | |
], | |

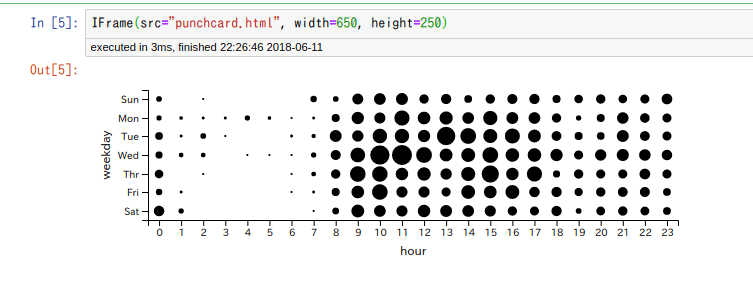

"source": [ | |
"IFrame(src=\"punchcard.html\", width=650, height=250)" | |
] | |
}, | |
{ | |
"cell_type": "code", | |
"execution_count": null, | |
"metadata": {}, | |
"outputs": [], | |
"source": [] | |
} | |
], | |
"metadata": { | |
"kernelspec": { | |
"display_name": "Python 3", | |
"language": "python", | |
"name": "python3" | |
}, | |
"language_info": { | |
"codemirror_mode": { | |
"name": "ipython", | |
"version": 3 | |
}, | |
"file_extension": ".py", | |
"mimetype": "text/x-python", | |
"name": "python", | |
"nbconvert_exporter": "python", | |
"pygments_lexer": "ipython3", | |
"version": "3.6.3" | |
}, | |
"toc": { | |
"nav_menu": {}, | |
"number_sections": true, | |
"sideBar": true, | |
"skip_h1_title": false, | |
"toc_cell": false, | |
"toc_position": {}, | |
"toc_section_display": "block", | |
"toc_window_display": false | |
} | |
}, | |
"nbformat": 4, | |
"nbformat_minor": 2 | |
} |
Author
oshikiri
commented
Jun 12, 2018
