Examples from the Shoot Em Up project
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
using System.Collections; | |
using System.Collections.Generic; | |
using System.Runtime.Serialization; | |
using UnityEngine; | |
//a turret object class that will contain all information about turrets attached to the entity using | |
//a turret system | |
//main turret system uses a list of TurretObjects, each with their own values | |
[System.Serializable] | |
public class TurretObjects | |
{ | |
//objects called "turret" with no additional functionality are attached to the entity | |
//and then referenced in this class | |
public GameObject turretObj; | |
//bullet types | |
public enum BulletType | |
{ | |
none, EnemyBullet, PlayerBullet | |
} | |
//used bullet type by the turret | |
public BulletType usedBulletType; | |
//a set bullet speed, the script handles it so it also adds the entity speed to the calculation | |
public float bulletSpeed; | |
[SerializeField] | |
//if the turret should track the player ship entity | |
public bool tracker; | |
//if the turret should rotate | |
public bool rotator; | |
//directions | |
public enum rotationDirection | |
{ | |
None = 0, Left = -1, Right = 1 | |
} | |
//what direction should the turret turn towards | |
public rotationDirection rotDir; | |
//using what rotation speed | |
public float rotationSpeed; | |
public enum shootingType | |
{ | |
None, Repeater, Burst | |
} | |
//how the turret will shoot out bullets | |
public shootingType turretType; | |
//interval at which the shooting sequence will start | |
public float shotInterval = 0f; | |
//interval at which the burst sequence will start | |
public float burstInterval = 0f; | |
//interval used to delay between bursts | |
public float burstDelay = 0f; | |
[HideInInspector] | |
//if the next shot is available, for bullet shooting | |
public float nextShot = 0.0f; | |
[HideInInspector] | |
//if the next burst sequence is available | |
public float nextBurst = 0.0f; | |
//amount of bullets in a burst | |
//this is calculated in such a way that bullets will be fired at an interval determined by code | |
//in order to fire a certain amount or bullets in a certain amount of time | |
//e.g. will fire 5 bullets in 1 second every 0.2 | |
//or | |
//10 bullets in 1 sec every 0.1 | |
public float burstSize = 0f; | |
} | |
public class TurretSystem : MonoBehaviour { | |
//a list of all the turretobjects that each contain their own variables that create a unique turret | |
[SerializeField] | |
public List<TurretObjects> turretList; | |
//separate lists each containing extra functionality for turrets of different types | |
List<TurretObjects> trackerList=new List<TurretObjects>(); | |
List<TurretObjects> rotatorList = new List<TurretObjects>(); | |
//the target | |
public Transform playerShip; | |
//the speed of the entity this script is attached to | |
public float shipSpeed; | |
public bool test=false; | |
void Start() | |
{ | |
//playerShip = GameArea.sharedInstance.GetPlayerShipTransform(); | |
//setup special turret types | |
SetupTrackers(); | |
SetupRotators(); | |
//setup shooting values for each turret to be safe | |
foreach(TurretObjects turret in turretList) | |
{ | |
turret.nextBurst = 0.0f; | |
turret.nextShot = 0.0f; | |
if(turret.turretType==TurretObjects.shootingType.Burst) | |
{ | |
turret.nextBurst = Time.time + turret.burstInterval + turret.burstDelay; | |
} | |
} | |
} | |
private void Update() | |
{ | |
//the only method called each frame only if there are rotating turrets | |
if(rotatorList.Count>0) | |
{ | |
UpdateRotation(); | |
} | |
} | |
//turret targetting for tracking turrets | |
void UpdateTurretTarget() | |
{ | |
Vector2 targetPoint; | |
float angle; | |
Quaternion rotation; | |
//the turretObj, inside TurretObjects class, itself is rotated towards the target in order | |
//to fire the bullet towards the direction of the target | |
foreach (TurretObjects turret in trackerList) | |
{ | |
//calculate the distance between the turret and the player | |
targetPoint = playerShip.position - turret.turretObj.transform.position; | |
//get the angle in degrees(rad2deg) between the X axis and a 2D vector starting at 0 | |
//and terminating at (x,y) | |
// ^ | |
// | | |
// | | |
// | | |
//-----0,0------>this axis | |
// | \ | |
// | \ | |
// | x,y and this point | |
// | | |
//https://docs.unity3d.com/ScriptReference/Mathf.Atan2.html | |
angle = Mathf.Atan2(targetPoint.y, targetPoint.x) * Mathf.Rad2Deg; | |
//creates a rotation which rotates angle degrees around axis | |
//in this case the angle above and the forward vector, which counts as the forwards vector for all | |
//entities in a shmup | |
rotation = Quaternion.AngleAxis(angle, Vector3.forward); | |
//apply rotation | |
turret.turretObj.transform.rotation = rotation; | |
//Debug.Log(playerShip.transform.position); | |
//Vector2 direction = new Vector2(playerShip.transform.position.x - turret.turretObj.transform.position.x, playerShip.transform.position.y - turret.turretObj.transform.position.y); | |
//turret.turretObj.transform.up = direction; | |
} | |
} | |

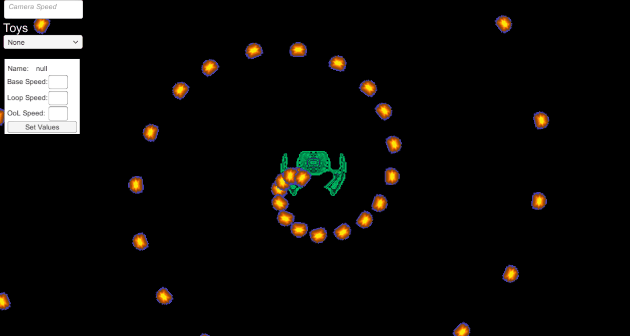

void UpdateRotation() | |
{ | |
foreach(TurretObjects turret in rotatorList) | |
{ | |
//change the Z over time | |
turret.turretObj.transform.Rotate(0, 0, turret.rotationSpeed * Time.deltaTime*(float)turret.rotDir); | |
} | |
} | |
void SetupTrackers() | |
{ | |
//setting up the list of turrets that would track the enemy position when firing bullets | |
foreach (TurretObjects turret in turretList) | |
{ | |
if (turret.tracker) | |
{ | |
trackerList.Add(turret); | |
} | |
} | |
} | |
void SetupRotators() | |
{ | |
//setup the list of turrets that would rotate | |
foreach(TurretObjects turret in turretList) | |
{ | |
if(turret.rotator) | |
{ | |
rotatorList.Add(turret); | |
} | |
} | |
} | |
//should be called in the entity that has a turretsystem attached | |
public void ShootingRoutine() | |
{ | |
//only update the trackin turrets position/targets when firing | |
if (trackerList.Count > 0) | |
{ | |
UpdateTurretTarget(); | |
} | |
//all turrets will fire | |
foreach (TurretObjects turret in turretList) | |
{ | |
ShootCaller(turret); | |
} | |
} | |
//called when firing a bullet | |
public void GetBullet(TurretObjects turret) | |
{ | |
//get a bullet from the pool, search by tag set in the unity inspector, on the prefab | |
GameObject bullet = ObjectPooler.sharedInstance.GetPooledObject(turret.usedBulletType.ToString()); | |
//just to be sure we aren't firing blanks | |
if (bullet != null) | |
{ | |
//set the bullet's start position at the location of the bullet spawn point | |
bullet.transform.position = turret.turretObj.transform.position; | |
//will go in the direction the gatling gun is pointing towards | |
bullet.transform.rotation = turret.turretObj.transform.rotation; | |
//get the bullet's rigidbody2d component, setting it in the controller variable>(); | |
//and set its velocity | |
bullet.SetActive(true); | |
bullet.GetComponent<Rigidbody2D>().velocity = bullet.transform.right * (turret.bulletSpeed+shipSpeed); | |
} | |
} | |
//repeater type | |
public void Repeater(TurretObjects turret) | |
{ | |
//when enough time has passed | |
if (Time.time > turret.nextShot) | |
{ | |
//the new nextshot is the current time + the time it takes to fire | |
turret.nextShot = Time.time + turret.shotInterval; | |
//fire a bullet | |
GetBullet(turret); | |
} | |
} | |
//burst type | |
public void Burst(TurretObjects turret) | |
{ | |
//when enough time has passed | |
if (Time.time > turret.nextBurst) | |
{ | |
//the next burst is the current time+ the time it takes to fire a burst + it's delay | |
turret.nextBurst = Time.time + turret.burstInterval + turret.burstDelay; | |
//a couroutine that fires the burst is started | |
StartCoroutine(BurstShots(turret)); | |
} | |
} | |
public IEnumerator BurstShots(TurretObjects turret) | |
{ | |
int i = 0; | |
//shot interval is determined based on burst interval and the amount of bullets to be fired in said | |
//interval | |
turret.shotInterval = turret.burstInterval / turret.burstSize; | |
//count the bullets | |
while (i < turret.burstSize) | |
{ | |
i++; | |
//wait for the calculated shotinterval | |
yield return new WaitForSeconds(turret.shotInterval); | |
//then fire a single bullet | |
GetBullet(turret); | |
} | |
} | |
public void ShootCaller(TurretObjects turret) | |
{ | |
//fires the specific method depending on turret type | |
switch(turret.turretType) | |
{ | |
case TurretObjects.shootingType.None: | |
break; | |
case TurretObjects.shootingType.Burst: | |
Burst(turret); | |
break; | |
case TurretObjects.shootingType.Repeater: | |
Repeater(turret); | |
break; | |
} | |
} | |
//get the entity speed that uses this system | |
public void GetShipSpeed(float speed) | |
{ | |
shipSpeed = speed; | |
} | |
public void SetShotInterval(float interval) | |
{ | |
foreach(TurretObjects turret in turretList) | |
{ | |
turret.shotInterval = interval; | |
} | |
} | |
} |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
using UnityEngine; | |
using UnityEngine.UI; | |
using UnityEngine.EventSystems; | |
using System.Collections; | |
using System.Collections.Generic; | |
//script is attached directly to the joystick | |
//IDragHandler, IpointerDownHandle, IPointerUpHandler are used in the EventSystem for Unity UI, check https://docs.unity3d.com/ScriptReference/EventSystems.EventTrigger.html | |
public class VirtualJoystick : MonoBehaviour, IDragHandler, IPointerDownHandler, IPointerUpHandler | |
{ | |
//joystick images | |
public bool deadzoneActive = false; | |
public float deadzoneMagnitude = 0.4f; | |
public static VirtualJoystick sharedInstance; | |
private Image bgImg; | |
private Image joyImg; | |
//a vector3 that is the direction the joystick is pointing towards | |
public Vector3 inputDirection { set; get; } | |
private void Start() | |
{ | |
//get image component of the parent object, the background image | |
bgImg = GetComponent<Image>(); | |
//get image of the child object of the background image, the joystick image | |
joyImg = transform.GetChild(0).GetComponentInChildren<Image>(); | |
//zero just to be sure | |
inputDirection = Vector3.zero; | |
sharedInstance = this; | |
} | |
//when the joystick is moving | |
public virtual void OnDrag(PointerEventData ped) | |
{ | |
//have a position vector | |
Vector2 pos = Vector2.zero; | |
//calculate the position of the player finger | |
if(RectTransformUtility.ScreenPointToLocalPointInRectangle(bgImg.rectTransform,ped.position, ped.pressEventCamera, out pos) && (Time.timeScale==1.0f)) | |
{ | |
//compare against the background image | |
pos.x = pos.x / bgImg.rectTransform.sizeDelta.x; | |
pos.y = pos.y / bgImg.rectTransform.sizeDelta.y; | |
//then compare the calculated position against the position | |
//in order to find the direction of the point against the pivot, the center of the bgImg | |
float x = (bgImg.rectTransform.pivot.x == 1) ? pos.x * 2 + 1 : pos.x * 2 - 1; | |
float y = (bgImg.rectTransform.pivot.y == 1) ? pos.y * 2 + 1 : pos.y * 2 - 1; | |
//set the direction, this is a 2d game | |
inputDirection = new Vector3(x, y, 0); | |
//if the input direction magnitude is hire than 1, normalize it, else don't change it, if a value bigger than 1 is passed the ship may move in wonky directions | |
inputDirection = (inputDirection.magnitude > 1) ? inputDirection.normalized : inputDirection; | |
//also move the joystick image to match the finger location against the background image | |
//while also staying inside the bgImg | |
joyImg.rectTransform.anchoredPosition = new Vector3(inputDirection.x * (bgImg.rectTransform.sizeDelta.x / 3), inputDirection.y * (bgImg.rectTransform.sizeDelta.y / 3)); | |
//attempt | |
if (deadzoneActive) | |
{ | |
if(inputDirection.magnitude<deadzoneMagnitude) | |
{ | |
inputDirection = Vector2.zero; | |
} | |
} | |
} | |
} | |
//function called in the unity inspector, set in the object itself | |
//this is when the thumbstick is currently pushed, or used aka when the player puts his finger on the thumbstick | |
//event handle activates when the UI element, in this case the joystick image, is pressed | |
public virtual void OnPointerDown(PointerEventData ped) | |
{ | |
//Debug.Log("OnPointerDown"); | |
//update the direction | |
OnDrag(ped); | |
} | |
//function called in the unity inspector, set in the object itself | |
//called when the thumbstick is released | |
//event handle activates when the UI element, in this case the joystick image, is release, aka removing the finger from it | |
public virtual void OnPointerUp(PointerEventData ped) | |
{ | |
//Debug.Log("OnPointerUp"); | |
//reset the direction | |
inputDirection = Vector3.zero; | |
//putt he joystick image back in the middle | |
joyImg.rectTransform.anchoredPosition = Vector3.zero; | |
} | |
} |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
