PostScript file with /vertex and /poly definitions useful for drawing graphs, with demo
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
%! | |
0 setlinewidth | |
/Times-Roman findfont 12 scalefont setfont | |
newpath 8 99 moveto 601 99 lineto 601 692 lineto 8 692 lineto closepath stroke | |
/vertex { 2 copy 5 4 roll dup 4 1 roll | |
newpath 0 360 arc closepath | |
gsave 1.0 setgray fill grestore | |
stroke | |
12 ge { | |
newpath moveto | |
gsave dup false charpath flattenpath pathbbox grestore | |
exch 4 1 roll exch sub -.5 mul 3 1 roll sub -.5 mul exch | |
rmoveto show | |
} { pop pop pop } ifelse | |
} def | |
/txt { | |
newpath moveto | |
gsave dup false charpath flattenpath pathbbox grestore | |
exch 4 1 roll exch sub -.5 mul 3 1 roll sub -.5 mul exch | |
rmoveto show | |
} def | |
/txtdistdeg { | |
newpath moveto | |
gsave dup false charpath flattenpath pathbbox grestore | |
exch 4 1 roll exch sub -.5 mul 3 1 roll sub -.5 mul exch | |
5 3 roll gsave | |
rotate 0 exch rmoveto | |
rmoveto show | |
grestore | |
} def | |
/poly { | |
newpath | |
moveto | |
{ | |
count 0 eq { exit } if | |
lineto | |
} loop | |
} def | |
%% http://computer-programming-forum.com/36-postscript/3d1b79b93a578811.htm | |
/arrow %% angle /arrow -- draws arrowhead | |
{ | |
gsave | |
currentpoint translate 90 sub rotate .5 .5 scale | |
newpath | |
0.1 setlinewidth | |
0 -15 moveto | |
-6 -18 lineto | |
-4 -15 -1 -9 0 0 curveto | |
1 -9 4 -15 6 -18 curveto | |
0 -15 lineto | |
fill | |
grestore | |
} def | |
/arrowto %% x1 y1 arrowto -- draws line with arrowhead | |
{ | |
2 copy % x1 y1 x1 y1 | |
currentpoint % x1 y1 x1 y1 x0 y0 | |
3 -1 roll exch % x1 y1 x1 x0 y1 y0 | |
sub % x1 y1 x1 x0 y1-y0 | |
3 1 roll % x1 y1 y1-y0 x1 x0 | |
sub % x1 y1 y1-y0 x1-x0 | |
atan % x1 y1 theta | |
3 1 roll % theta x1 y1 | |
2 copy lineto % theta x1 y1 | |
2 copy stroke moveto % theta x1 y1 | |
3 -1 roll arrow % x1 y1 | |
moveto | |
} def | |
/rarrowto { %% dx dy rarrowto -- | |
exch currentpoint % dy dx x0 y0 | |
4 1 roll % y0 dy dx x0 | |
add 3 1 roll % x0+dx y0 dy | |
add arrowto | |
} def | |
%% len dist cr cg cb angle x1 y1 | |
/parrow { | |
gsave | |
newpath translate 0 0 moveto | |
rotate | |
setrgbcolor | |
0 exch rmoveto | |
0 rarrowto | |
grestore | |
} def | |

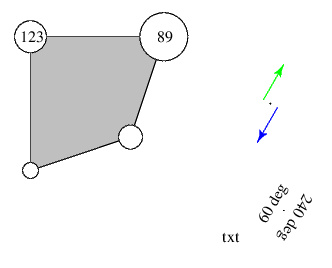

.75 setgray 300 400 200 400 200 300 275 325 poly fill | |
0 setgray 300 400 200 400 200 300 275 325 poly closepath stroke | |
(89) 18 300 400 vertex | |
(123) 12 200 400 vertex | |
(3) 6 200 300 vertex | |
(55) 9 275 325 vertex | |
(txt) 350 250 txt | |
() 0.3 390 270 vertex | |
12 60 (60 deg) 390 270 txtdistdeg | |
12 240 (240 deg) 390 270 txtdistdeg | |
() 0.3 380 350 vertex | |
30 6 0 1 0 60 380 350 parrow | |
30 6 0 0 1 240 380 350 parrow | |
showpage |
Not part of ps_done.ps anymore, but nice automatic "arrow at vertex" can be generated from code by NodeJS "vertex_indicator()" function
https://github.com/Hermann-SW/planar_graph_playground/blob/main/ps.js#L250-L289
to visualize "traversing a face":
https://forums.raspberrypi.com/viewtopic.php?t=333342&start=25#p2010496
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Added color arrow vectors (parallel to undirected graph edge), based on 2000 public domain arrow code (bottom):
http://computer-programming-forum.com/36-postscript/3d1b79b93a578811.htm
