Debugging spectral tracking
float3 direct_light(const Ray& ray, const float3& p) {
// return lighting at this point...
}
float3 spectral_tracking(const Ray& ray, const Material& material, float3& transmittance) {
const float d = ray.max_t - ray.min_t;
float3 w(1.f);
float t = 0.f;
const float mt = math::max_component(material.max_extinction());
while (true) {
const float r = rng_.random_float();
t = t -std::log(1.f - r) / mt;
if (t > d) {
transmittance = w;
return float3(0.f);
}
const float3 p = ray.point(ray.min_t + t);
const float3 sigma_a = material.absorption(p);
const float3 sigma_s = material.scattering(p);
const float3 sigma_t = sigma_a + sigma_s;
const float3 sigma_n = float3(mt) - sigma_t;
const float msa = math::max_component(sigma_a);
const float mss = math::max_component(sigma_s);
const float msn = math::max_component(sigma_n);
const float c = 1.f / (msa + mss + msn);
const float pa = msa * c;
const float ps = mss * c;
const float pn = msn * c;
const float3 wa = (sigma_a / (mt * pa));
const float3 ws = (sigma_s / (mt * ps));
const float3 wn = (sigma_n / (mt * pn));
const float r2 = rng_.random_float();
if (r2 < pa) {
transmittance = float3(0.f);
return float3(0.f);
} else if (r2 < 1.f - pn) {
transmittance = float3(0.f);
return w * ws * direct_light(ray, p, worker);
} else {
w *= wn;
}
}
}
@Opioid
Copy link
Author

Opioid commented Mar 16, 2018

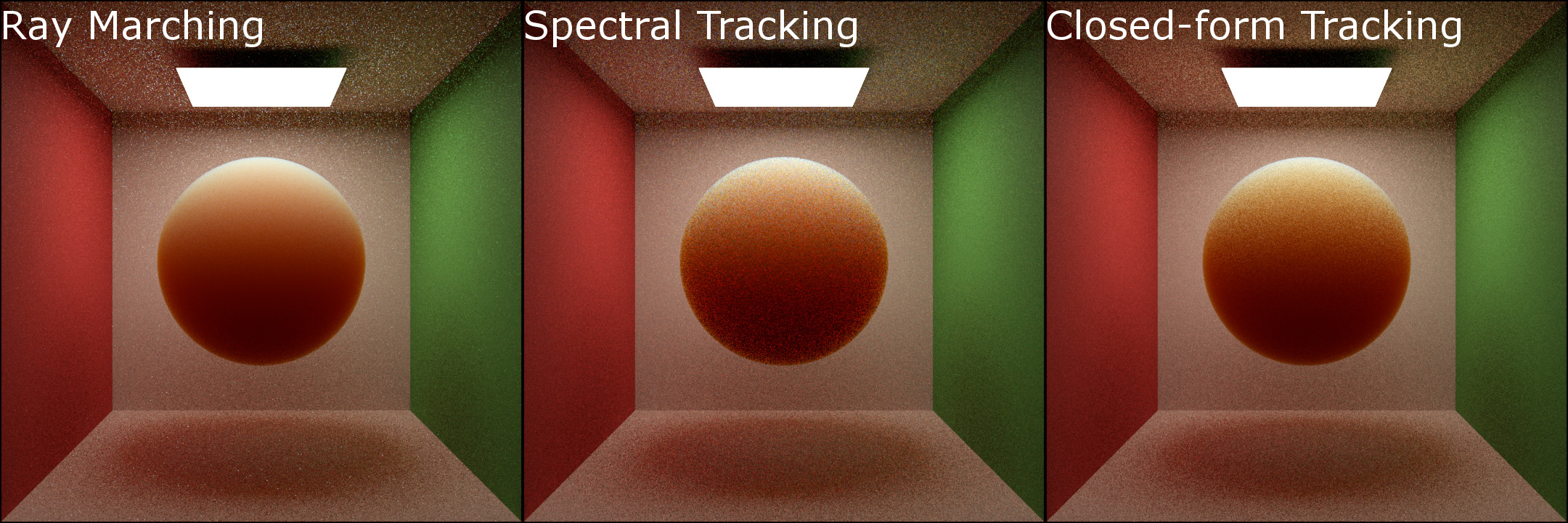

spectral_tracking

spectrally_refined_no_scattering

spectrally_refined
