Pagination example with Ts.ED

integration.spec.ts

import {Controller, Get, PlatformTest, QueryParams, PlatformTest} from "@tsed/common";

import {
  getSpec,
  Returns,
  SpecTypes
} from "@tsed/schema";
import {expect} from "chai";
import * as qs from "querystring";
import * as SuperTest from "supertest";
import {PlatformExpress} from "@tsed/platform-express";
import {Server} from "./app/Server";
import {Pagination} from "./app/models/Pagination";
import {Product} from "./app/models/Product";
import {PaginationFilter} from "./app/filters/PaginationFilter";

@Controller("/pageable")
class TestPageableCtrl {
  @Get("/")
  @Returns(206, Pagination).Of(Product).Title("PaginatedProduct")
  @Returns(200, Pagination).Of(Product).Title("PaginatedProduct")
  async get(@QueryParams() pageableOptions: Pageable, @QueryParams("all") all: boolean) {
    return new Pagination<Product>({
      data: [new Product({
        id: "100",
        title: "CANON D3000"
      })],
      totalCount: all ? 1 : 100, // just for test,
      pageable: pageableOptions
    });
  }
}

describe("Pageable", () => {
  let request: SuperTest.SuperTest<SuperTest.Test>;

  before(
    PlatformTest.bootstrap(Server, {
      mount: {
        "/rest": [TestPageableCtrl]
      },
      responseFilters: [
        PaginationFilter
      ]
    })
  );
  after(utils.reset);

  before(() => {
    request = SuperTest(PlatformTest.callback());
  });

  it("should generate spec", () => {
    const spec = getSpec(TestPageableCtrl, {specType: SpecTypes.OPENAPI});

    expect(spec).to.deep.eq({
      "paths": {
        "/pageable": {
          "get": {
            "operationId": "testPageableCtrlGet",
            "parameters": [{
              "in": "query",
              "required": false,
              "name": "page",
              "schema": {"type": "integer", "description": "Page number.", "default": 0, "minimum": 0, "multipleOf": 1}
            }, {
              "in": "query",
              "required": false,
              "name": "size",
              "schema": {
                "type": "integer",
                "description": "Number of objects per page.",
                "default": 20,
                "minimum": 1,
                "multipleOf": 1
              }
            }, {
              "in": "query",
              "required": false,
              "name": "sort",
              "schema": {
                "type": "array",
                "description": "Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported.",
                "maxItems": 2,
                "items": {"type": "string"}
              }
            }, {"in": "query", "name": "all", "required": false, "schema": {"type": "boolean"}}],
            "responses": {
              "200": {
                "content": {"application/json": {"schema": {"$ref": "#/components/schemas/PaginatedProduct"}}},
                "description": "Success"
              },
              "206": {
                "content": {"application/json": {"schema": {"$ref": "#/components/schemas/PaginatedProduct"}}},
                "description": "Partial Content"
              }
            },
            "tags": ["TestPageableCtrl"]
          }
        }
      },
      "tags": [{"name": "TestPageableCtrl"}],
      "components": {
        "schemas": {
          "Product": {
            "type": "object",
            "properties": {"id": {"type": "string"}, "title": {"type": "string"}}
          },
          "PaginatedProduct": {
            "type": "object",
            "properties": {
              "page": {
                "type": "integer",
                "description": "Page number.",
                "default": 0,
                "minimum": 0,
                "multipleOf": 1
              },
              "size": {
                "type": "integer",
                "description": "Number of objects per page.",
                "default": 20,
                "minimum": 1,
                "multipleOf": 1
              },
              "sort": {
                "type": "array",
                "description": "Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported.",
                "maxItems": 2,
                "items": {"type": "string"}
              },
              "data": {"type": "array", "items": {"$ref": "#/components/schemas/Product"}},
              "totalCount": {"type": "integer", "minLength": 0, "multipleOf": 1}
            }
          }
        }
      }
    });
  });


  it("should get paginated products with a status 206 Partial Content", async () => {
    const options = {
      page: 1,
      size: 10,
      sort: ["field", "asc"]
    };

    const {body} = await request.get("/rest/pageable?" + qs.stringify(options)).expect(206);

    expect(body).to.deep.eq({
      "data": [
        {
          "id": "100",
          "title": "CANON D3000"
        }
      ],
      "page": 1,
      "size": 10,
      "sort": [
        "asc",
        "field"
      ],
      "totalCount": 100
    });
  });

  it("should get all products with a status 216", async () => {
    const options = {
      all: true
    };

    const {body} = await request.get("/rest/pageable?" + qs.stringify(options)).expect(200);

    expect(body).to.deep.eq({
      data: [ { id: '100', title: 'CANON D3000' } ],
      totalCount: 1,
      page: 0,
      size: 20
    });
  });

  it("should not return a bad request when sort is not given", async () => {
    const options = {
      page: 1,
      size: 10
    };

    const {body} = await request.get("/rest/pageable?" + qs.stringify(options)).expect(216);

    expect(body).to.deep.eq({
      "data": [
        {
          "id": "100",
          "title": "CANON D3000"
        }
      ],
      "page": 1,
      "size": 10,
      "totalCount": 100
    });
  });

  it("should apply default pagination parameters", async () => {
    const options = {};

    const {body} = await request.get("/rest/pageable?" + qs.stringify(options)).expect(216);

    expect(body).to.deep.eq({
      data: [{id: "100", title: "CANON D3000"}],
      totalCount: 100,
      page: 0,
      size: 20
    });
  });

  it("should throw bad request when options isn\'t correct", async () => {
    const options = {
      page: -1
    };

    const {body} = await request.get("/rest/pageable?" + qs.stringify(options)).expect(400);

    expect(body).to.deep.eq({
      "errors": [
        {
          "data": -1,
          "dataPath": ".page",
          "keyword": "minimum",
          "message": "should be >= 0",
          "modelName": "Pageable",
          "params": {
            "comparison": ">=",
            "exclusive": false,
            "limit": 0
          },
          "schemaPath": "#/properties/page/minimum"
        }
      ],
      "message": "Bad request on parameter \"request.query\".\nPageable.page should be >= 0. Given value: -1",
      "name": "AJV_VALIDATION_ERROR",
      "status": 400
    });
  });
});

Pageable.ts

import {
  CollectionOf,
  Default,
  Description,
  Integer,
  MaxItems,
  Min,
  MinLength,
  Property,
  Required,
  For,
  SpecTypes,
  oneOf,
  string,
  array
} from "@tsed/schema";
import {OnDeserialize} from "@tsed/json-mapper";
import {isArray} from "@tsed/core";

class Pageable {
  @Integer()
  @Min(0)
  @Default(0)
  @Description("Page number.")
  page: number = 0;

  @Integer()
  @Min(1)
  @Default(20)
  @Description("Number of objects per page.")
  size: number = 20;

  @For(SpecTypes.JSON, oneOf(string(), array().items(string()).maxItems(2))) // v6.11.0
  @For(SpecTypes.OPENAPI, array().items(string()).maxItems(2))
  @For(SpecTypes.SWAGGER, array().items(string()).maxItems(2))
  @OnDeserialize((value: string | string[]) => isString(value) ? value.split(",") : value)
  @Description("Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported.")
  sort: string | string[];

  constructor(options: Partial<Pageable>) {
    options.page && (this.page = options.page);
    options.size && (this.size = options.size);
    options.sort && (this.sort = options.sort);
  }

  get offset() {
    return this.page ? this.page * this.limit : 0;
  }

  get limit() {
    return this.size;
  }
}

Pagination.ts

import {
  CollectionOf,
  Default,
  Generics,
  Integer,
  MaxItems,
  Min,
  MinLength,
  Property,
  Required
} from "@tsed/schema";
import { Pageable } from "./Pageable";

@Generics("T")
class Pagination<T> extends Pageable {
  @CollectionOf("T")
  data: T[];

  @Integer()
  @MinLength(0)
  @Default(0)
  totalCount: number = 0;

  constructor({data, totalCount, pageable}: Partial<Pagination<T>> & { pageable: Pageable }) {
    super(pageable);
    data && (this.data = data);
    totalCount && (this.totalCount = totalCount);
  }
}

PaginationFilter.ts

import { ResponseFilter, ResponseFilterMethods, PlatformContext } from "@tsed/common";

@ResponseFilter("application/json")
class PaginationFilter implements ResponseFilterMethods {
  transform(data: unknown, ctx: PlatformContext): any {
    if (ctx.data instanceof Pagination) {// get the unserialized data
      if (ctx.data.isPaginated) {
        ctx.response.status(206);
      }
    }

    return data;
  }
}

Product.ts

import { Property } from "@tsed/schema";

class Product {
  @Property()
  id: string;

  @Property()
  title: string;

  constructor({id, title}: Partial<Product> = {}) {
    id && (this.id = id);
    title && (this.title = title);
  }
}

thx for your help. is it expected UI on swagger page?

and i can't type into new object. Am miss something from your example. Sorry.

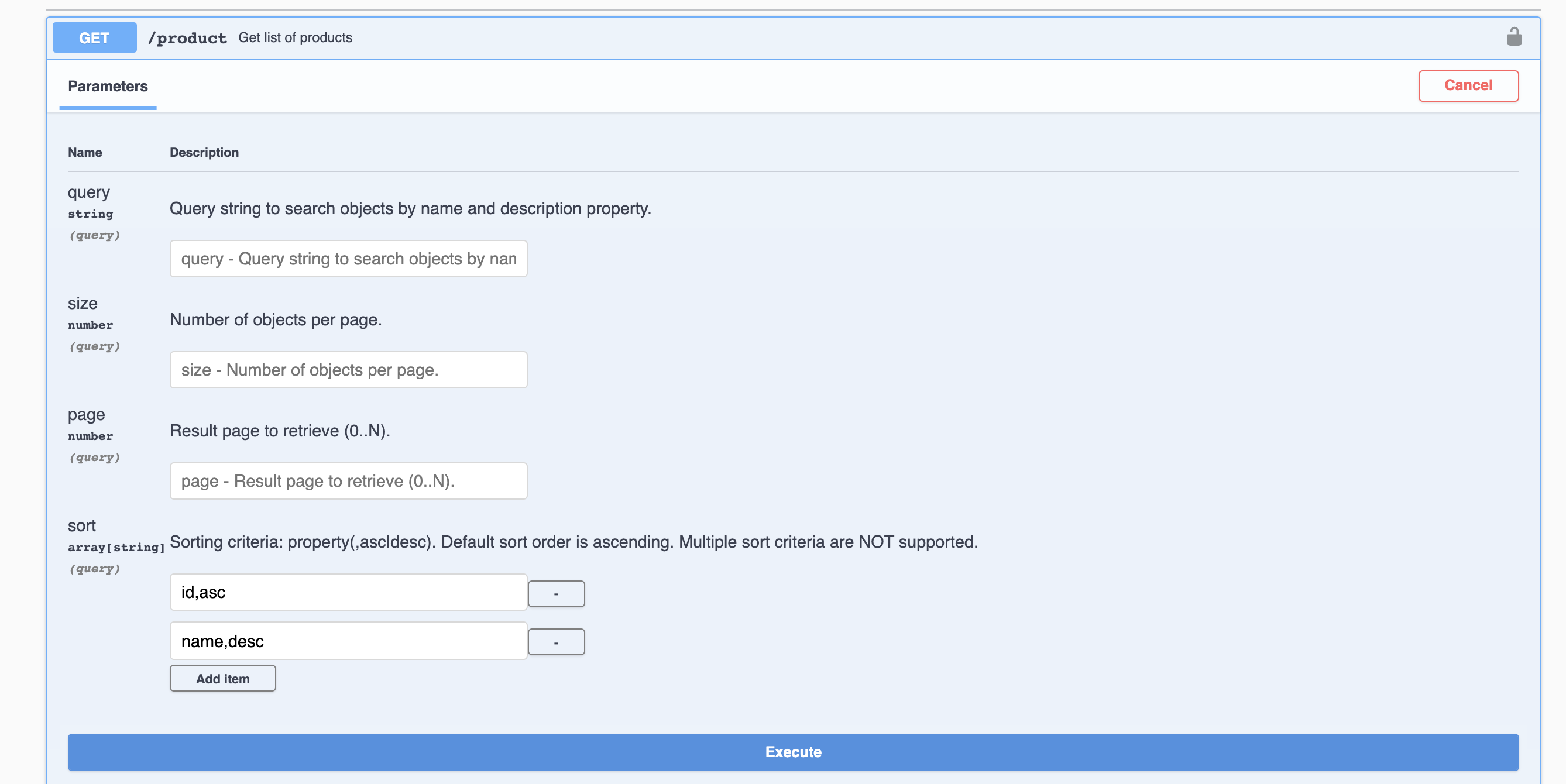

i want to follow default ui from swagger ui client, here is my example

gonna apply your logic to parse sort fields in my class.

Seems like now i am happy, maybe if you interested, attached what i did. To fix issue with parse array, i've added simple middleware. Works like a charm. Thx

import {EndpointInfo, IMiddleware, Middleware, Req} from "@tsed/common";
import {isArray} from "@tsed/core";

@Middleware()
export class ParseSortMiddleware implements IMiddleware {
    use(@Req() req: Req, @EndpointInfo() endpoint: EndpointInfo) {
        let sort = req.query.sort;
        if (sort && !isArray<string>(sort)) {
            req.query.sort = new Array(`${sort}`)
        }
    }
}

import {Sort} from "./Sort";

export class Pageable {

    page: number = 0;

    size: number = 20;

    _sort: string[];

    constructor(options: Partial<Pageable>) {
        options.page && (this.page = options.page);
        options.size && (this.size = options.size);
        options._sort && (this._sort = options._sort);
    }

    get offset() {
        return this.page ? this.page * this.limit : 0;
    }

    get sort(): any {
        return new Sort(this._sort);
    }

    get limit() {
        return this.size;
    }
}

import {Injectable} from "@tsed/di";
import {IPipe, ParamMetadata, Req} from "@tsed/common";
import {Pageable} from "../pagination/Pageable";

@Injectable()
export class PageablePipe implements IPipe<Req, Pageable> {
    transform(req: Req, metadata: ParamMetadata): Pageable {
        const page = req.query?.page ? parseInt(req.query?.page.toString()) : 0;
        const size = req.query?.size ? parseInt(req.query?.size.toString()) : 20;
        const _sort = <string[]>req.query?.sort;

        return new Pageable({page, size, _sort});
    }
}

export class Sort {
    [key: string]: string

    constructor(options: string[]) {
        options.forEach((sort) => {
            const [key, direction] = sort.split(',')
            this[key] = direction?.toUpperCase();
        });
    }
}

    @Get("/")
    @Summary("Get list of products")
    @Returns(200, Page).Of(Product).Description("Returns list of Product objects by query and pagination")
    @Returns(500)
    @UseBefore(ParseSortMiddleware)
    async list(
        @Res() res: Res,
        @Description("Query string to search objects by name and description property.")
        @QueryParams('query') query: string = "",
        @Description("Number of objects per page.")
        @QueryParams('size') size: number = 20,
        @Description("Result page to retrieve (0..N).")
        @QueryParams('page') page: number = 0,
        @Description("Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are NOT supported.")
        @QueryParams('sort', String) sort: Sort[],
        @PageableParam() pageable: Pageable,
    ): Promise<Page<Product> | null> {
        return await this.productService.findAllWithPagination(query, pageable);
    }

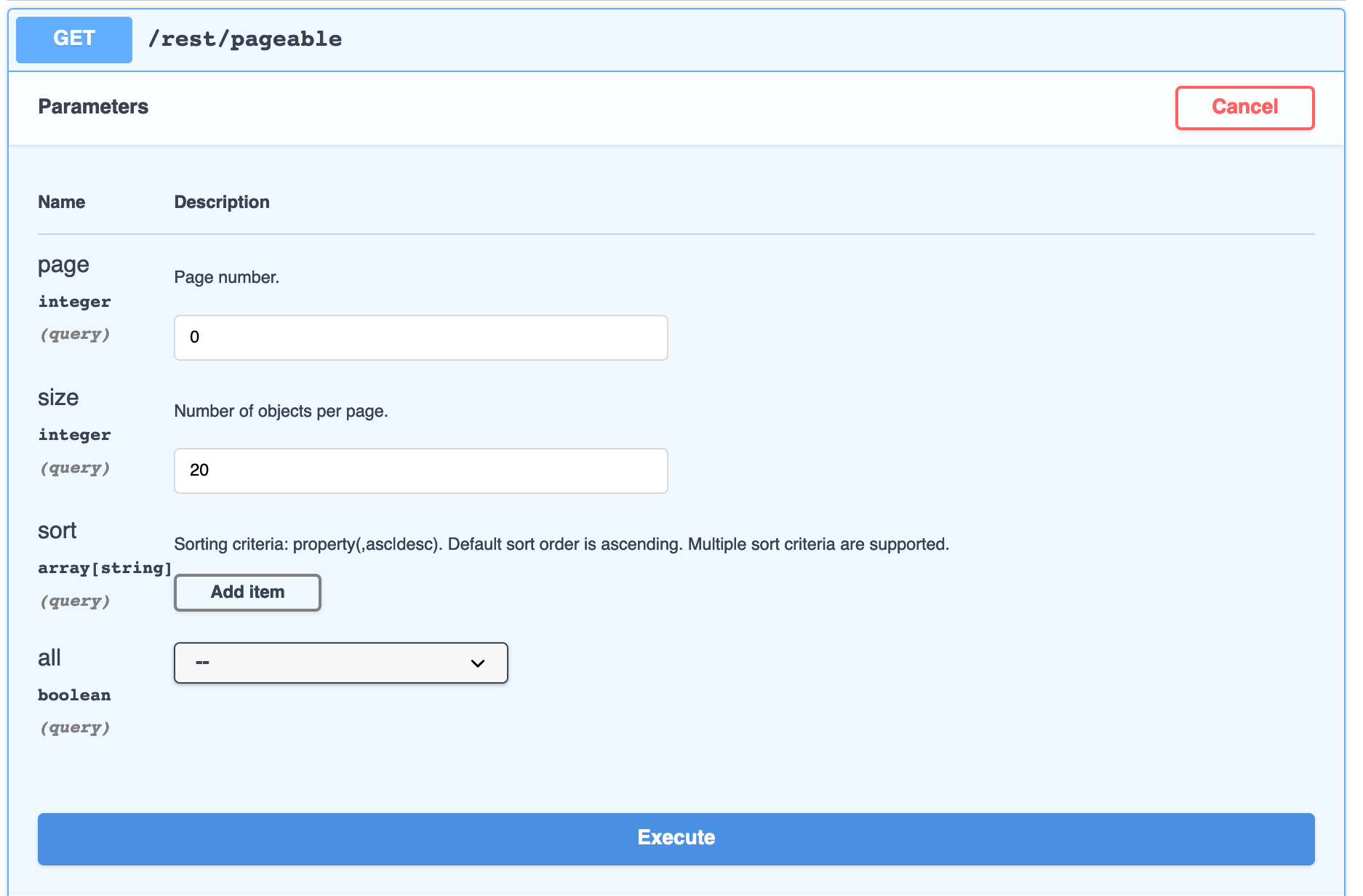

Hello the given example need a fix for OS3 to have the same UI in swagger. Sorry. I'll fix it :) Use middleware works but isn't the elegante way. After the fix the example will work as expected.

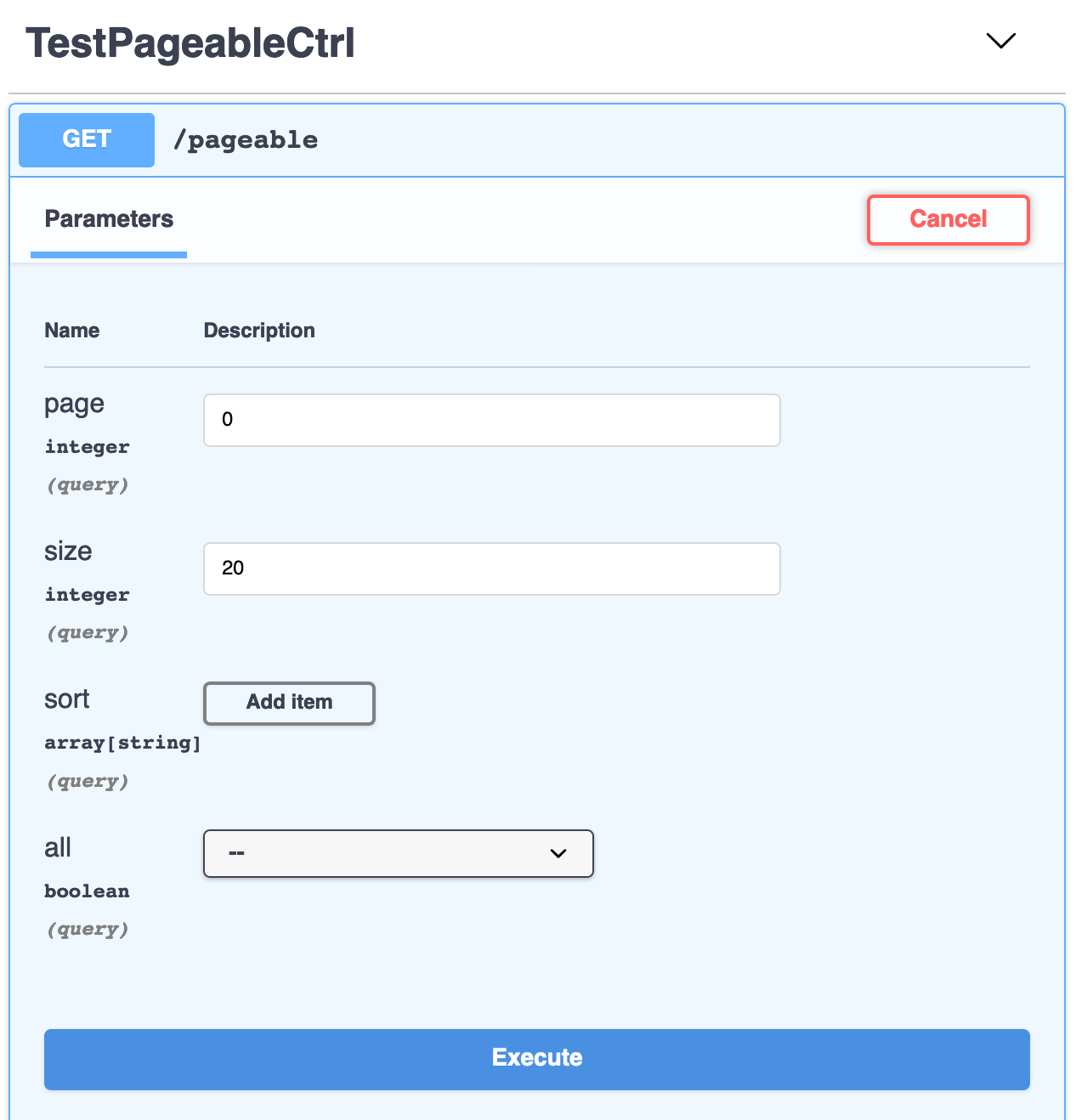

With OS2 the ui is correctly generated :)

Issue fixed

PR: tsedio/tsed#1097
Release: v6.10.1

nice, many thx. Updating and testing

Yep, i know that was not best solution, but it is :)

;) Yes your solution works perfectly. But If I can give you a working solution only based on the Model, it's better ^^.

By using a model, the swagger description is automatically generated, and you can use inheritance to create many Pageable declination (change default size value, etc...). And you have only one model to describe all props for the QueryParams.

So thanks for your feedback, it help me to find and fix a bug ;)

👍

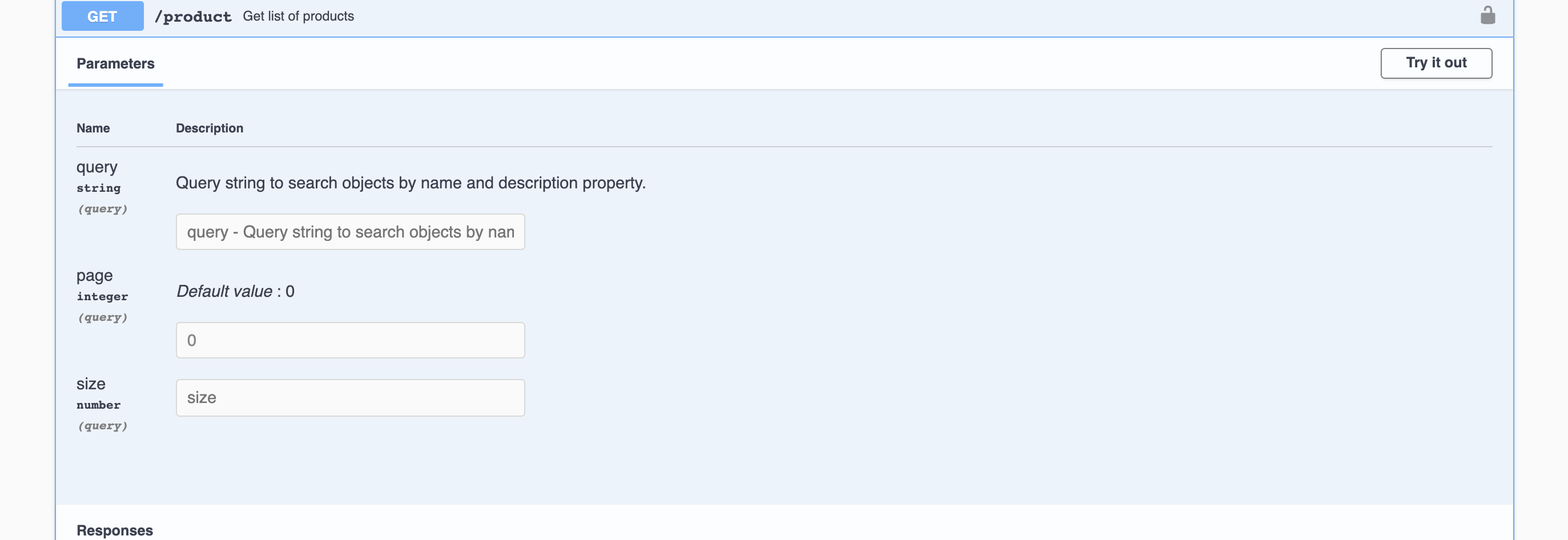

sorry still fighting with sorting, and it doesn't work for me when i send one parameter, see what i did

@Get("/")
    @Summary("Get list of products")
    @Returns(200, Page).Of(Product).Description("Returns list of Product objects by query and pagination")
    @Returns(500)
    // @UseBefore(ParseSortMiddleware)
    async list(
        @Res() res: Res,
        @Description("Query string to search objects by name and description property.")
        @QueryParams('query') query: string = "",
        // @Description("Number of objects per page.")
        // @QueryParams('size') size: number = 20,
        // @Description("Result page to retrieve (0..N).")
        // @QueryParams('page') page: number = 0,
        // @Description("Sorting criteria: property(,asc | desc). Default sort order is ascending. Multiple sort criteria are supported.")
        // @QueryParams('sort', String) sort: Sort[],
        // @QueryParams('sort') sort: Sort[],
        // @PageableParam() pageable: Pageable,
        @QueryParams() pageable: Pageable
    ): Promise<Page<Product> | null> {
        return await this.productService.findAllWithPagination(query, pageable);
    }

import {Sort} from "./Sort";
import {CollectionOf, Description, Property} from "@tsed/schema";
import {QueryParams} from "@tsed/common";

export class Pageable {

    @Property()
    page: number = 0;

    @Property()
    size: number = 20;

    @CollectionOf(String, Array)
    @Description("Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported.")
    sort: string[];

    // private _sort: any;

    constructor(options: Partial<Pageable>) {
        // options.page && (this.page = options.page);
        // options.size && (this.size = options.size);
        // options._sort && (this._sort = options._sort);
    }

    get offset() {
        return this.page ? this.page * this.limit : 0;
    }

    // @CollectionOf(String, Array)
    // @Description("Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported.")
    // get sort(): any {
    //     return new Sort(this._sort);
        // return this.sort
    // }


    // set sort(value: any) {
    //     this.sort = value;
    // }

    get limit() {
        return this.size;
    }
}

and error is the same

  "name": "AJV_VALIDATION_ERROR",
  "message": "Bad request on parameter \"request.query\".\nAt Pageable.sort, value 'id,asc' should be array",
  "status": 400,
  "errors": [
    {
      "keyword": "type",
      "dataPath": ".sort",
      "schemaPath": "#/properties/sort/type",
      "params": {
        "type": "array"
      },
      "message": "should be array",
      "schema": "array",
      "parentSchema": {
        "type": "array",
        "items": {
          "type": "string"
        },
        "description": "Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported."
      },
      "data": "id,asc",
      "modelName": "Pageable"
    }
  ],
  "stack": "PARAM_VALIDATION_ERROR: Bad request on parameter \"request.query\".\nAt Pageable.sort, value 'id,asc' should be array\n    at Function.from (/Users/artur/projects_ub/ubicoin/packages/backend/node_modules/@tsed/common/src/platform/errors/ParamValidationError.ts:19:21)\n    at handleError (/Users/artur/projects_ub/ubicoin/packages/backend/node_modules/@tsed/common/src/platform/services/PlatformHandler.ts:336:36)\n    at /Users/artur/projects_ub/ubicoin/packages/backend/node_modules/@tsed/common/src/platform/services/PlatformHandler.ts:343:14\n    at processTicksAndRejections (internal/process/task_queues.js:97:5)\n    at /Users/artur/projects_ub/ubicoin/packages/backend/node_modules/@tsed/common/src/platform/services/PlatformHandler.ts:341:15"
}

maybe i miss something. Just to want inform you. Still used my tricky fix for that.

BTW, can you please tell why description doesn't work in my Pageable model

    @Min(0)
    @Default(0)
    @Description("Result page to retrieve (0..N).")
    page: number = 0;

    @Description("Number of objects per page.")
    size: number = 20;```

Why have you removed the getter / setter /constructor? I really important to keep it. Without, the serialization/deserialization won't work as expected.

See the integration test here:
https://github.com/TypedProject/tsed/blob/production/packages/platform-express/test/pageable.spec.ts

The spec is correctly generated (with description) and the validation doesn't fail. I tested your scenario :) But if you change the class implementation, the result change also! (works as expected with v6.10.3)

I see you don't won't the sort class. Let me change the example.

Ajv complaining because you don't send an array of string, it's normal. We have to tell Ajv about the possibility to receive a string and string[].

v6.11.0 will introduce the jsonschema functional declaration (like Joi) and the @For decorator.

import {
  CollectionOf,
  Default,
  Description,
  Integer,
  MaxItems,
  Min,
  MinLength,
  Property,
  Required,
  For,
  SpecTypes,
  oneOf,
  string,
  array
} from "@tsed/schema";
import {OnDeserialize} from "@tsed/json-mapper";
import {isArray} from "@tsed/core";

class Pageable {
  @Integer()
  @Min(0)
  @Default(0)
  @Description("Page number.")
  page: number = 0;

  @Integer()
  @Min(1)
  @Default(20)
  @Description("Number of objects per page.")
  size: number = 20;

  @For(SpecTypes.JSON, oneOf(string(), array().items(string()).maxItems(2)))
  @For(SpecTypes.OPENAPI, array().items(string()).maxItems(2))
  @For(SpecTypes.SWAGGER, array().items(string()).maxItems(2))
  @OnDeserialize((value: string | string[]) => isString(value) ? value.split(",") : value)
  @Description("Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported.")
  sort: string | string[];

  constructor(options: Partial<Pageable>) {
    options.page && (this.page = options.page);
    options.size && (this.size = options.size);
    options.sort && (this.sort = options.sort);
  }

  get offset() {
    return this.page ? this.page * this.limit : 0;
  }

  get limit() {
    return this.size;
  }
}

By using @For decorator when can instrument correctly the Ajv validation and Swagger :)

Release coming soon
Romain

tsedio/tsed#1108

cool, thx. Here is my Sort class. I've specific constructor, because _sort has string[] but in DAO good choice and easy to use obejct with key/value, and don't need to do additional logic there. My method in service here

    async findAllWithPagination(query: string, pageable: Pageable): Promise<Page<Product> | null> {
        let options: FindManyOptions = {};
        options.where = [
            {
                "name": Like("%" + query + "%")
            },
            {
                "description": Like("%" + query + "%")
            }
        ];
        const totalCount = await this.productRepo.count(options);
        options.take = pageable.limit;
        options.skip = pageable.offset;
        options.order = pageable.sort;

        const data = await this.productRepo.find(options);
        return new Page<Product>({data, totalCount, pageable});
    }

export class Sort {
    [key: string]: string

    constructor(options: string[]) {
        options.forEach((sort) => {
            const [key, direction] = sort.split(',')
            this[key] = direction?.toUpperCase();
        });
    }
}

Thx, for clarification.

The PR is merged and released.

👍

Ok understand, isn't easy to have good solution for that :)

yep, agree :)

gonna use your suggestion with @OnDeserialize, in this case i can remove my:

@Middleware()
export class ParseSortMiddleware implements IMiddleware {
    use(@Req() req: Req, @EndpointInfo() endpoint: EndpointInfo) {
        let sort = req.query.sort;
        if (sort && !isArray<string>(sort)) {
            req.query.sort = new Array(`${sort}`)
        }
    }
}

keep you posted :)

can you help why i don't see description on UI? It's block me to use Pageable as a model, like you did in your example, and then i don't need it to declare page, size and sort in each controller.

Is strange, I have the description in the swagger. Your are on os2 or os3?

so :)

NO pipes! NO middlewares

    @Get("/")
    @Summary("Get list of products")
    @Returns(200, Page).Of(Product).Description("Returns list of Product objects by query and pagination")
    @Returns(500)
    async list(
        @Res() res: Res,
        @Description("Query string to search objects by name and description property.")
        @QueryParams('query') query: string = "",
        @QueryParams() pageable: Pageable
    ): Promise<Page<Product> | null> {
        return await this.productService.findAllWithPagination(query, pageable);
    }

import {Sort} from "./Sort";
import {array, Default, Description, For, Integer, Min, oneOf, SpecTypes, string} from "@tsed/schema";
import {OnDeserialize} from "@tsed/json-mapper";
import {isString} from "@tsed/core";

export class Pageable {

    @Integer()
    @Min(0)
    @Default(0)
    @Description("Result page to retrieve (0..N).")
    page: number = 0;

    @Integer()
    @Min(1)
    @Default(20)
    @Description("Number of objects per page.")
    size: number = 20;

    @For(SpecTypes.JSON, oneOf(string(), array().items(string()).maxItems(2)))
    @For(SpecTypes.OPENAPI, array().items(string()).maxItems(2))
    @For(SpecTypes.SWAGGER, array().items(string()).maxItems(2))
    @OnDeserialize((value: string | string[]) => isString(value) ? [value] : value)
    @Description("Sorting criteria: property(,asc|desc). Default sort order is ascending. Multiple sort criteria are supported.")
    sort: string | string[];

    constructor(options: Partial<Pageable>) {
        options.page && (this.page = options.page);
        options.size && (this.size = options.size);
        options.sort && (this.sort = options.sort);
    }

    get offset() {
        return this.page ? this.page * this.limit : 0;
    }

    get order(): any {
        return new Sort(this.sort);
    }

    get limit() {
        return this.size;
    }
}

import {CollectionOf, Generics, Property} from "@tsed/schema";
import {Pageable} from "./Pageable";

@Generics("T")
export class Page<T> extends Pageable {

    @CollectionOf("T")
    data: T[];

    @Property()
    totalCount: number = 0;

    @Property()
    totalPages: number;

    constructor({data, totalCount = 0, pageable}: Partial<Page<T>> & { pageable: Pageable }) {
        super(pageable);
        data && (this.data = data);
        totalCount && (this.totalCount = totalCount);
        this.totalPages = totalCount == 0 ? 0 : Math.ceil(totalCount / pageable.limit);
    }
}

export class Sort {
    [key: string]: string

    constructor(options: any) {
        options.forEach((sort: string) => {
            const [key, direction] = sort.split(',')
            this[key] = direction?.toUpperCase();
        });
    }
}

async findAllWithPagination(query: string, pageable: Pageable): Promise<Page<Product> | null> {
    let options: FindManyOptions = {};
    options.where = [
        {
            "name": Like("%" + query + "%")
        },
        {
            "description": Like("%" + query + "%")
        }
    ];
    const totalCount = await this.productRepo.count(options);
    options.take = pageable.limit;
    options.skip = pageable.offset;
    options.order = pageable.order;

    const data = await this.productRepo.find(options);
    return new Page<Product>({data, totalCount, pageable});
}

DONE :)

My swagger

    swagger: [
        {
            path: "/swagger",
            specVersion: "3.0.1",
            specPath: `${rootDir}/swagger.json`,
            options: {
                oauth2RedirectUrl: "",
                oauth: {
                    clientId: "",
                    clientSecret: "",
                    scopes: []
                }
            }
        }
    ],

am i miss something?

Ok the description doesn’t appear on the right level. I’ll fix it tommorrow ;). My bad...

yep, saw the same. Many thx

AWESOME, thx. I am done with pagination/sorting now. I hope :)

Great :)
