Animated heart jetpack compose, with gaps

HeartShape.kt

// infinite with gap of 1
@Composable
fun AnimatedHeartShapeRaw(
    brush: Brush = Brush.verticalGradient(colors = listOf(Color.Magenta, Color.Magenta)), // Default gradient from Magenta to Blue
) {
    val animationPercentage = remember { Animatable(0f) } // Animation state from 0 to 1

    LaunchedEffect(Unit) {
        animationPercentage.animateTo(
            targetValue = 1f,
            animationSpec = infiniteRepeatable(
                animation = tween(durationMillis = 3000, easing = LinearEasing),
                repeatMode = RepeatMode.Restart // The animation will go from 0 to 1 and then from 1 to 0
            )
        )
    }

    Canvas(modifier = Modifier.fillMaxSize()) {
        val width = size.width
        val height = size.height
        val path = getHeartPath(width, height)
        val pathMeasure = PathMeasure(path.asAndroidPath(), false)
        val totalLength = pathMeasure.length

        val gapSize = totalLength * 0.05f // 5% of total path length for the gap

        // Adjusting visible length of the path
        val visibleLength = totalLength - gapSize

        // Creating a PathEffect to animate a gap moving through the heart
        val pathEffect = PathEffect.dashPathEffect(
            floatArrayOf(
                visibleLength,
                gapSize
            ), // The first float is the visible segment, the second is the invisible segment (the gap)
            phase = totalLength - totalLength * animationPercentage.value // The phase moves back and forth with the animation
        )

        drawPath(
            path = path,
           brush = brush, // Using a single color for the entire path
            style = Stroke(width = 5f, pathEffect = pathEffect)
        )
    }
}

@Composable
fun AnimatedHeartShapeWithGaps(
    numGaps: Int = 3, // Number of gaps
    gapSizeFraction: Float = 0.02f, // Fraction of total path length to be used as the gap size
    brush: Brush = Brush.verticalGradient(colors = listOf(Color.Magenta, Color.Magenta)), // Default gradient from Magenta to Blue
    strokeWidth: Float = 5f,
    animationDurationMillis: Int = 2000
) {
    val animationPercentage = remember(numGaps){ Animatable(0f) }

    LaunchedEffect(numGaps) {
        animationPercentage.animateTo(
            targetValue = 1f,
            animationSpec = infiniteRepeatable(
                animation = tween(durationMillis = animationDurationMillis,
                    easing = LinearEasing
                ),
                repeatMode = RepeatMode.Restart
            )
        )
    }

    Canvas(modifier = Modifier.fillMaxSize()) {
        val width = size.width
        val height = size.height
        val path = getHeartPath(width, height)
        val pathMeasure = PathMeasure(path.asAndroidPath(), false)
        val totalLength = pathMeasure.length

        // Calculate the gap size and segment length
        val gapSize = totalLength * gapSizeFraction
        val segmentLength =
            (totalLength - numGaps * gapSize) / (numGaps) // Calculating the visible segments

        val pathEffect = PathEffect.dashPathEffect(
            floatArrayOf(segmentLength, gapSize), // Visible segment and gap size
            phase = -(totalLength - segmentLength - gapSize * numGaps) * animationPercentage.value // Adjusting phase for reverse movement
        )

        drawPath(
            path = path,
            brush = brush, // Use the gradient brush for drawing
            style = Stroke(width = strokeWidth, pathEffect = pathEffect)
        )
    }
}

@Composable
fun HeartShapeAnimated(
    brush: Brush = Brush.verticalGradient(colors = listOf(Color.Magenta, Color.Magenta)), // Default gradient from Magenta to Blue
    animationDurationMillis: Int = 2000
) {
    val animationPercentage = remember { Animatable(0f) } // Animation state from 0 to 1

    // Start the animation when the composable enters the composition
    LaunchedEffect(Unit) {
        animationPercentage.animateTo(
            targetValue = 1f,
            animationSpec = tween(animationDurationMillis)
        )
    }

    Canvas(modifier = Modifier.fillMaxSize()) {
        val width = size.width
        val height = size.height
        val path = getHeartPath(width, height)
        val pathLength = PathMeasure(path.asAndroidPath(), false).length

        val pathEffect = PathEffect.dashPathEffect(
            floatArrayOf(pathLength, pathLength),
            phase = pathLength * (1 - animationPercentage.value)
        )

        drawPath(
            path = path,
            brush = brush,
            style = Stroke(
                width = 5f,
                pathEffect = pathEffect
            ) // Ensure the stroke width matches your design
        )
    }
}


fun getHeartPath(width: Float, height: Float): Path {
    return Path().apply {
        reset()

        // Starting slightly more to the right
        moveTo(0.02f * width, 0.3418f * height)

        // Adjusting control points to ensure symmetry
        cubicTo(
            0.02f * width,
            0.56075f * height,
            0.19432f * width,
            0.77611f * height,
            0.46971f * width,
            0.96114f * height
        )
        cubicTo(
            0.47996f * width,
            0.96783f * height,
            0.49461f * width,
            0.97502f * height,
            0.50486f * width,
            0.97502f * height
        )
        cubicTo(
            0.51512f * width,
            0.97502f * height,
            0.52977f * width,
            0.96783f * height,
            0.54051f * width,
            0.96114f * height
        )
        cubicTo(
            0.81541f * width,
            0.77611f * height,
            0.98973f * width,
            0.56075f * height,
            0.98973f * width,
            0.3418f * height
        )
        cubicTo(
            0.98973f * width,
            0.15985f * height,
            0.87108f * width,
            0.03135f * height,
            0.71287f * width,
            0.03135f * height
        )
        cubicTo(
            0.62254f * width,
            0.03135f * height,
            0.5493f * width,
            0.07658f * height,
            0.50486f * width,
            0.14597f * height
        )
        cubicTo(
            0.46141f * width,
            0.0771f * height,
            0.38719f * width,
            0.03135f * height,
            0.29686f * width,
            0.03135f * height
        )
        cubicTo(
            0.13865f * width,
            0.03135f * height,
            0.02f * width,
            0.15985f * height,
            0.02f * width,
            0.3418f * height
        )
        close()
    }
}



// Screen code and color pallete
class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        enableEdgeToEdge()
        setContent {
            ComposeChallengeTheme {
                var numOfGaps by remember {
                    mutableIntStateOf(3)
                }

                var brush by remember {
                    mutableStateOf(Brush.linearGradient(listOf(Color.Magenta, Color.Magenta)))
                }
                Scaffold(modifier = Modifier.fillMaxSize()) { innerPadding ->
                    Column(
                        modifier = Modifier
                            .padding(innerPadding)
                            .fillMaxSize(),
                        horizontalAlignment = Alignment.CenterHorizontally,
                        verticalArrangement = Arrangement.Center
                    ) {
                        Row(
                            modifier = Modifier.fillMaxWidth(),
                            horizontalArrangement = Arrangement.SpaceAround
                        ) {
                            Column(
                                verticalArrangement = Arrangement.spacedBy(8.dp)
                            ) {
                                Text(text = "Once", textAlign = TextAlign.Center)
                                Box(
                                    modifier = Modifier.size(110.dp)
                                ) {
                                    HeartShapeAnimated(brush = brush)
                                }
                            }

                            Column(
                                verticalArrangement = Arrangement.spacedBy(8.dp)
                            ) {
                                Text(text = "Animated", textAlign = TextAlign.Center)
                                Box(
                                    modifier = Modifier.size(110.dp)
                                ) {
                                    AnimatedHeartShapeRaw(brush = brush)
                                }
                            }

                            Column(
                                verticalArrangement = Arrangement.spacedBy(8.dp)
                            ) {
                                Text(text = "With Gaps", textAlign = TextAlign.Center)
                                Box(
                                    modifier = Modifier.size(110.dp)
                                ) {
                                    AnimatedHeartShapeWithGaps(
                                        numGaps = numOfGaps,
                                        brush = brush
                                    )
                                }

                                Row(
                                    verticalAlignment = Alignment.CenterVertically,
                                    horizontalArrangement = Arrangement.spacedBy(8.dp)
                                ) {
                                    Button(onClick = { numOfGaps++ }) {
                                        Text(text = "+")
                                    }
                                    Text(
                                        text = "$numOfGaps", style = TextStyle(
                                            fontStyle = FontStyle.Italic,
                                            fontWeight = FontWeight.Bold
                                        )
                                    )
                                    Button(onClick = {
                                        if (numOfGaps != 2)
                                            numOfGaps--
                                    }) {
                                        Text(text = "-")
                                    }
                                }
                            }
                        }

                        ColorPalette { selectedBrush ->
                            brush = selectedBrush
                        }
                    }
                }
            }
        }
    }
}
@Composable
fun ColorPalette(
    onColorSelected: (Brush) -> Unit
) {
    val colors = listOf(
        Color.Red,
        Color.Green,
        Color.Blue,
        Color.Yellow,
        Color.Magenta,
        Color.Cyan
    )

    val gradients = listOf(
        Brush.horizontalGradient(listOf(Color.Red, Color.Yellow)),
        Brush.verticalGradient( listOf(Color.Green, Color.Blue)),
        Brush.radialGradient( listOf(Color.Magenta, Color.Cyan))
    )

    Row(
        horizontalArrangement = Arrangement.SpaceAround,
        modifier = Modifier
            .fillMaxWidth()
            .horizontalScroll(rememberScrollState())
    ) {
        // Displaying solid colors
        colors.forEach { color ->
            Box(
                modifier = Modifier
                    .size(50.dp)
                    .background(
                        Brush.linearGradient(
                            listOf(
                                color,
                                color
                            )
                        )
                    ) // Ensuring two colors are present even if they are the same.
                    .clickable { onColorSelected(Brush.linearGradient(listOf(color, color))) }
            )
        }

        // Displaying gradient brushes
        gradients.forEach { gradient ->
            Box(
                modifier = Modifier
                    .size(50.dp)
                    .background(gradient)
                    .clickable { onColorSelected(gradient) }
            )
        }
    }
}

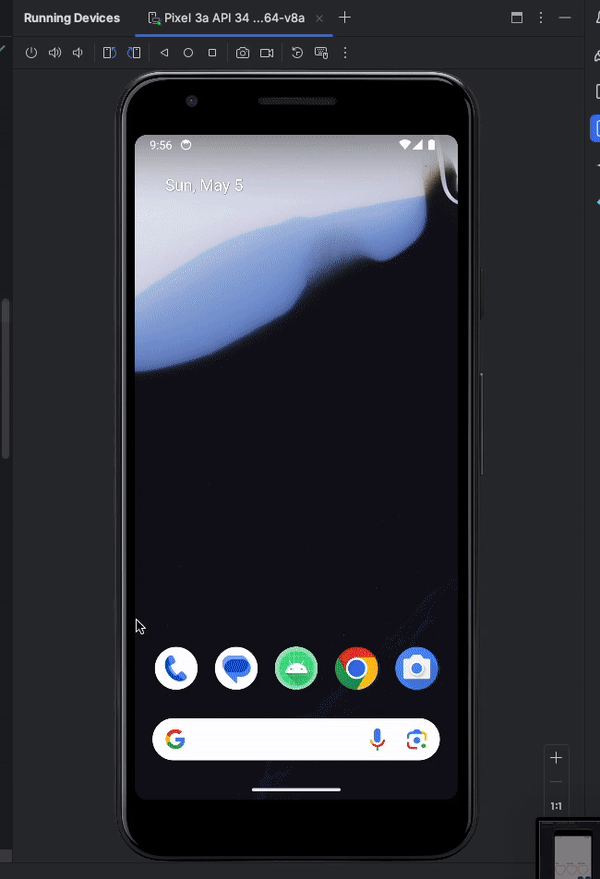

Screenshot

// inspired by
https://twitter.com/amos_gyamfi/status/1786636566967795974
