 "cells": [
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "# Gluon-NLP"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "1. Pre-trained word embeddings\n",
    "2. Pre-trained language models\n",
    "3. Fine-tuning BERT \n",
    "\n",
    "http://gluon-nlp.mxnet.io/"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [
    "## Pre-trained word embeddings"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "notes"
    }
   },
   "source": [
    "Here we introduce how to use pre-trained word embeddings, where each word is represened by a vector. Two popular word embeddings are GloVe and fastText. The used GloVe and fastText pre-trained word embeddings here are from the following sources:\n",
    "\n",
    "* GloVe project website：https://nlp.stanford.edu/projects/glove/\n",
    "* fastText project website：https://fasttext.cc/\n",
    "\n",
    "Let us first import the following packages used in this example."
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "![](https://cdn-images-1.medium.com/max/1600/1*2r1yj0zPAuaSGZeQfG6Wtw.png)"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 1,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:37.022037Z",
     "start_time": "2018-06-06T21:56:35.507701Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [],
   "source": [
    "import mxnet as mx\n",
    "from mxnet import gluon, nd\n",
    "import gluonnlp as nlp\n",
    "import re"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "We pick a specific pre-trained embedding"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 2,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:42.177372Z",
     "start_time": "2018-06-06T21:56:39.926375Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [],
   "source": [
    "embedding = nlp.embedding.create('glove', source='glove.6B.50d')"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 3,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:43.752190Z",
     "start_time": "2018-06-06T21:56:42.180013Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [],
   "source": [
    "vocab = nlp.Vocab(nlp.data.Counter(embedding.idx_to_token))\n",
    "vocab.set_embedding(embedding)"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "notes"
    }
   },
   "source": [
    "Below shows the size of `vocab` including a special unknown token."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 4,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:43.761479Z",
     "start_time": "2018-06-06T21:56:43.754645Z"
    },
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "400004"
      ]
     },
     "execution_count": 4,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "len(vocab.idx_to_token)"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "notes"
    }
   },
   "source": [
    "We can access attributes of `vocab`."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 5,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:43.772797Z",
     "start_time": "2018-06-06T21:56:43.764792Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "name": "stdout",
     "output_type": "stream",
     "text": [
      "71424\n",
      "beautiful\n"
     ]
    }
   ],
   "source": [
    "print(vocab['beautiful'])\n",
    "print(vocab.idx_to_token[71424])"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "![](support/cosinesimilarity.png)"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 6,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:43.791341Z",
     "start_time": "2018-06-06T21:56:43.776953Z"
    },
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "outputs": [],
   "source": [
    "def cos_sim(x, y):\n",
    "    return nd.dot(x, y) / (nd.norm(x) * nd.norm(y))"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [
    "### Word Similarity"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "notes"
    }
   },
   "source": [
    "Given an input word, we can find the nearest $k$ words from the vocabulary (400,000 words excluding the unknown token) by similarity. The similarity between any pair of words can be represented by the cosine similarity of their vectors."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 7,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:44.041379Z",
     "start_time": "2018-06-06T21:56:44.016299Z"
    },
    "slideshow": {
     "slide_type": "notes"
    }
   },
   "outputs": [],
   "source": [
    "def norm_vecs_by_row(x):\n",
    "    return x / nd.sqrt(nd.sum(x * x, axis=1)).reshape((-1,1))\n",
    "\n",
    "def get_knn(vocab, k, word):\n",
    "    word_vec = vocab.embedding[word].reshape((-1, 1))\n",
    "    vocab_vecs = norm_vecs_by_row(vocab.embedding.idx_to_vec)\n",
    "    dot_prod = nd.dot(vocab_vecs[4:], word_vec)\n",
    "    indices = nd.topk(dot_prod.squeeze(), k=k+1, ret_typ='indices')\n",
    "    indices = [int(i.asscalar())+4 for i in indices]\n",
    "    # Remove unknown and input tokens.\n",
    "    return vocab.to_tokens(indices[1:])"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "notes"
    }
   },
   "source": [
    "Let us find the 5 most similar words of 'baby' from the vocabulary (size: 400,000 words)."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 8,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:44.508966Z",
     "start_time": "2018-06-06T21:56:44.044708Z"
    },
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['babies', 'boy', 'girl', 'newborn', 'pregnant']"
      ]
     },
     "execution_count": 8,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_knn(vocab, 5, 'baby')"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "source": [
    "We can verify the cosine similarity of vectors of 'baby' and 'babies'."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 9,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:44.520428Z",
     "start_time": "2018-06-06T21:56:44.511361Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "\n",
       "[0.83871305]\n",
       "<NDArray 1 @cpu(0)>"
      ]
     },
     "execution_count": 9,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "cos_sim(vocab.embedding['baby'], vocab.embedding['babies'])"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [
    "Let us find the 5 most similar words of 'run' from the vocabulary."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 10,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:45.464662Z",
     "start_time": "2018-06-06T21:56:44.957783Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['study', 'institute', 'studies', 'scientific', 'science']"
      ]
     },
     "execution_count": 10,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_knn(vocab, 5, 'research')"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [
    "Let us find the 5 most similar words of 'beautiful' from the vocabulary."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 11,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:46.093124Z",
     "start_time": "2018-06-06T21:56:45.468022Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['computers', 'software', 'technology', 'electronic', 'internet']"
      ]
     },
     "execution_count": 11,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_knn(vocab, 5, 'computer')"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "**Challenge**\n",
    "\n",
    "Try out the `get_knn` function with a word of your own"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": null,
   "metadata": {},
   "outputs": [],
   "source": []
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [
    "### Word Analogy"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "notes"
    }
   },
   "source": [
    "We can also apply pre-trained word embeddings to the word analogy problem. For instance, \"man : woman :: son : daughter\" is an analogy. The word analogy completion problem is defined as: for analogy 'a : b :: c : d', given teh first three words 'a', 'b', 'c', find 'd'. The idea is to find the most similar word vector for vec('c') + (vec('b')-vec('a')).\n",
    "\n",
    "In this example, we will find words by analogy from the 400,000 indexed words in `vocab`."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 12,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:46.158875Z",
     "start_time": "2018-06-06T21:56:46.103712Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [],
   "source": [
    "def get_top_k_by_analogy(vocab, k, word1, word2, word3):\n",
    "    word_vecs = vocab.embedding[word1, word2, word3]\n",
    "    \n",
    "    word_diff = (word_vecs[1] - word_vecs[0] + word_vecs[2])\n",
    "    \n",
    "    vocab_vecs = norm_vecs_by_row(vocab.embedding.idx_to_vec)\n",
    "    dot_prod = nd.dot(vocab_vecs[4:], word_diff.squeeze()).squeeze()\n",
    "    \n",
    "    indices = dot_prod.topk(k=k+1, ret_typ='indices')\n",
    "    indices = [int(i.asscalar())+4 for i in indices]\n",
    "    words = [w for w in vocab.to_tokens(indices) if w != word3]\n",
    "    return words[:k]"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [

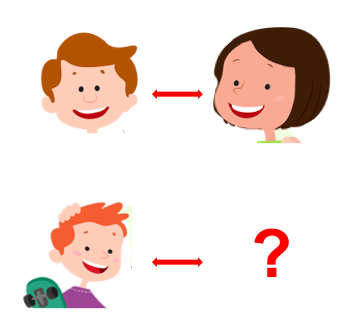

    "### Semantic Analogy\n",
    "\n",
    "![analogy](https://user-images.githubusercontent.com/3716307/53924875-a1497880-4032-11e9-847c-2d826d0ee0ee.png)\n"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 13,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:46.626485Z",
     "start_time": "2018-06-06T21:56:46.161792Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['daughter']"
      ]
     },
     "execution_count": 13,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_top_k_by_analogy(vocab, 1, 'man', 'woman', 'son')"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "source": [
    "Let us verify the cosine similarity between vec('son')+vec('woman')-vec('man') and vec('daughter')"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 14,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:46.644371Z",
     "start_time": "2018-06-06T21:56:46.629075Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "\n",
       "[0.9658341]\n",
       "<NDArray 1 @cpu(0)>"
      ]
     },
     "execution_count": 14,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "def cos_sim_word_analogy(vocab, word1, word2, word3, word4):\n",
    "    words = [word1, word2, word3, word4]\n",
    "    vecs = vocab.embedding[words]\n",
    "    return cos_sim(vecs[1] - vecs[0] + vecs[2], vecs[3])\n",
    "\n",
    "cos_sim_word_analogy(vocab, 'man', 'woman', 'son', 'daughter')"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 15,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:47.104740Z",
     "start_time": "2018-06-06T21:56:46.647576Z"
    },
    "scrolled": true,
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['nfl']"
      ]
     },
     "execution_count": 15,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_top_k_by_analogy(vocab, 1, 'celtics', 'nba', 'patriots')"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 16,
   "metadata": {
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['cricket']"
      ]
     },
     "execution_count": 16,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_top_k_by_analogy(vocab, 1, 'france', 'football', 'india')"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 17,
   "metadata": {
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['blue']"
      ]
     },
     "execution_count": 17,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_top_k_by_analogy(vocab, 1, 'wine', 'red', 'sky')"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 18,
   "metadata": {},
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['paris']"
      ]
     },
     "execution_count": 18,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_top_k_by_analogy(vocab, 1, 'russia', 'moscow', 'france')"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [
    "### Syntactic Analogy"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 19,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:47.502780Z",
     "start_time": "2018-06-06T21:56:47.107420Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['biggest']"
      ]
     },
     "execution_count": 19,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_top_k_by_analogy(vocab, 1, 'bad', 'worst', 'big')"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 20,
   "metadata": {
    "ExecuteTime": {
     "end_time": "2018-06-06T21:56:47.898396Z",
     "start_time": "2018-06-06T21:56:47.505389Z"
    },
    "slideshow": {
     "slide_type": "fragment"
    }
   },
   "outputs": [
    {
     "data": {
      "text/plain": [
       "['went']"
      ]
     },
     "execution_count": 20,
     "metadata": {},
     "output_type": "execute_result"
    }
   ],
   "source": [
    "get_top_k_by_analogy(vocab, 1, 'do', 'did', 'go')"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "**Challenge**\n",
    "\n",
    "write one semantic and one syntactic analogy using `get_top_k_by_analogy`"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": null,
   "metadata": {},
   "outputs": [],
   "source": []
  },
  {
   "cell_type": "code",
   "execution_count": null,
   "metadata": {},
   "outputs": [],
   "source": []
  },
  {
   "cell_type": "markdown",
   "metadata": {
    "slideshow": {
     "slide_type": "slide"
    }
   },
   "source": [
    "### Application\n",
    "\n",
    "- Language Modelling\n",
    "- Neural Machine Translation\n",
    "- Text classification"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "# Language Modelling\n",
    "Generating text with a pre-trained language model"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 21,
   "metadata": {},
   "outputs": [],
   "source": [
    "ctx = mx.gpu() if mx.context.num_gpus() > 0 else mx.cpu()"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "![language_modelling](https://user-images.githubusercontent.com/3716307/53928083-b4157a80-403d-11e9-950c-670299db4d5f.png)\n"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 22,
   "metadata": {},
   "outputs": [],
   "source": [
    "lm_model, vocab = nlp.model.get_model(name='big_rnn_lm_2048_512',\n",
    "                                      dataset_name='gbw',\n",
    "                                      pretrained=True,\n",
    "                                      ctx=ctx)"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "We need a decoder function that can be called recursively by our sampler"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 23,
   "metadata": {},
   "outputs": [],
   "source": [
    "class Decoder:\n",
    "    def __init__(self, model):\n",
    "        self.model = model\n",
    "    \n",
    "    def __call__(self, inputs, states):\n",
    "        outputs, states = self.model(mx.nd.expand_dims(inputs, axis=0), states)\n",
    "        return outputs[0], states\n",
    "\n",
    "decoder = Decoder(lm_model)"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "Instead of taking the most probable value for the next token, we sample from the distribution"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 24,
   "metadata": {},
   "outputs": [],
   "source": [
    "sampler = nlp.model.SequenceSampler(beam_size=1,\n",
    "                                    decoder=decoder,\n",
    "                                    eos_id=vocab['<eos>'],\n",
    "                                    max_length=20,\n",
    "                                    temperature=0.30)"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "Setting up the prompt for our language model"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 64,
   "metadata": {},
   "outputs": [],
   "source": [
    "prompt = \"The engineers have devised a new\"\n",
    "prompt_tokenized = prompt.split(' ')\n",
    "bos_ids = [vocab[ele] for ele in prompt_tokenized]"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "Getting the initial states of the model"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 65,
   "metadata": {},
   "outputs": [],
   "source": [
    "init_states = lm_model.begin_state(batch_size=1, ctx=ctx)\n",
    "_, sampling_states = lm_model(mx.nd.expand_dims(mx.nd.array(bos_ids[:-1], ctx=ctx), axis=1), init_states)\n",
    "\n",
    "inputs = mx.nd.full(shape=(1,), ctx=ctx, val=bos_ids[-1])"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 73,
   "metadata": {},
   "outputs": [
    {
     "name": "stdout",
     "output_type": "stream",
     "text": [
      "The engineers have devised a new way to make the world 's most efficient cars . <eos>\n"
     ]
    }
   ],
   "source": [
    "samples, _, valid_lengths = sampler(inputs, sampling_states)\n",
    "for sample, valid_length in zip(samples[0].asnumpy(), valid_lengths[0].asnumpy()):\n",
    "    sentence = prompt_tokenized[:-1] +[vocab.idx_to_token[ele] for ele in sample[:valid_length]]\n",
    "    print(' '.join(sentence))"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "**Challenge**\n",
    "\n",
    "- Modify the prompt to generate sentences of your own.\n",
    "\n",
    "- Modify the temperature parameter to evaluate its impact on token sampling"
   ]
  }
 ],
 "metadata": {
  "celltoolbar": "Slideshow",
  "kernelspec": {
   "display_name": "Python 3",
   "language": "python",
   "name": "python3"
  },
  "language_info": {
   "codemirror_mode": {
    "name": "ipython",
    "version": 3
   },
   "file_extension": ".py",
   "mimetype": "text/x-python",
   "name": "python",
   "nbconvert_exporter": "python",
   "pygments_lexer": "ipython3",
   "version": "3.6.5"
  }
 },
 "nbformat": 4,
 "nbformat_minor": 2
}
