    OpenShift v4.x - ImagePrunerDegraded: Job has reached the specified backoff limit

본 이슈는 내부 레지스트리인 image-registry의 Operator 상태가 Degraded로 발생하는 이슈이다.
해당 버그 리포트를 살펴보면 OCP v4.4 버전에서도 발생했던 사항으로,

이슈가 발생하는 시점은 image-registry operator의 managementState를 Removed 상태에서 pruner job이 생성이 될때까지 기다리면 발생한다.
(현재 OCP v4.6은 managementState는 Removed가 기본)
1. 이슈

[root@bastion ~]# oc describe clusteroperators image-registry | grep 'ImagePrunerDegraded'
    Message:               ImagePrunerDegraded: Job has reached the specified backoff limit


2. 원인

image-registry에 사용할 수 있는 스토리지가 없을때 발생한다.

즉, managementState가 Removed 상태인 경우에는 operator가 image-registry pod를 생성하지 않아도,

Image Pruner가 cronjob을 생성하고 이를 수행하는 부분에서 발생하는 것으로 이해 한다.
3. 해결

3.1. Image Pruner 상태 변경

suspend를 false에서 true로 변경 해준다.
[root@bastion ~]# oc edit imagepruner.imageregistry/cluster
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: imageregistry.operator.openshift.io/v1
kind: ImagePruner
metadata:
  creationTimestamp: "2021-03-12T06:53:03Z"
  generation: 2
  name: cluster
  resourceVersion: "117054"
  selfLink: /apis/imageregistry.operator.openshift.io/v1/imagepruners/cluster
  uid: 83526cbc-642b-4140-9146-921486bf24c6
spec:
  failedJobsHistoryLimit: 3
  ignoreInvalidImageReferences: true
  keepTagRevisions: 3
  logLevel: Normal
  schedule: ""
  successfulJobsHistoryLimit: 3
  suspend: true

3.2. cronjob 삭제

기존에 생성 된 image-pruner의 cronjob을 삭제한다.
[root@bastion ~]# oc delete jobs --all -n openshift-image-registry

4. 확인

[root@bastion ~]# oc get clusteroperators | image-registry
NAME               VERSION   AVAILABLE   PROGRESSING   DEGRADED   SINCE
image-registry     4.6.21    True        False         False      40h

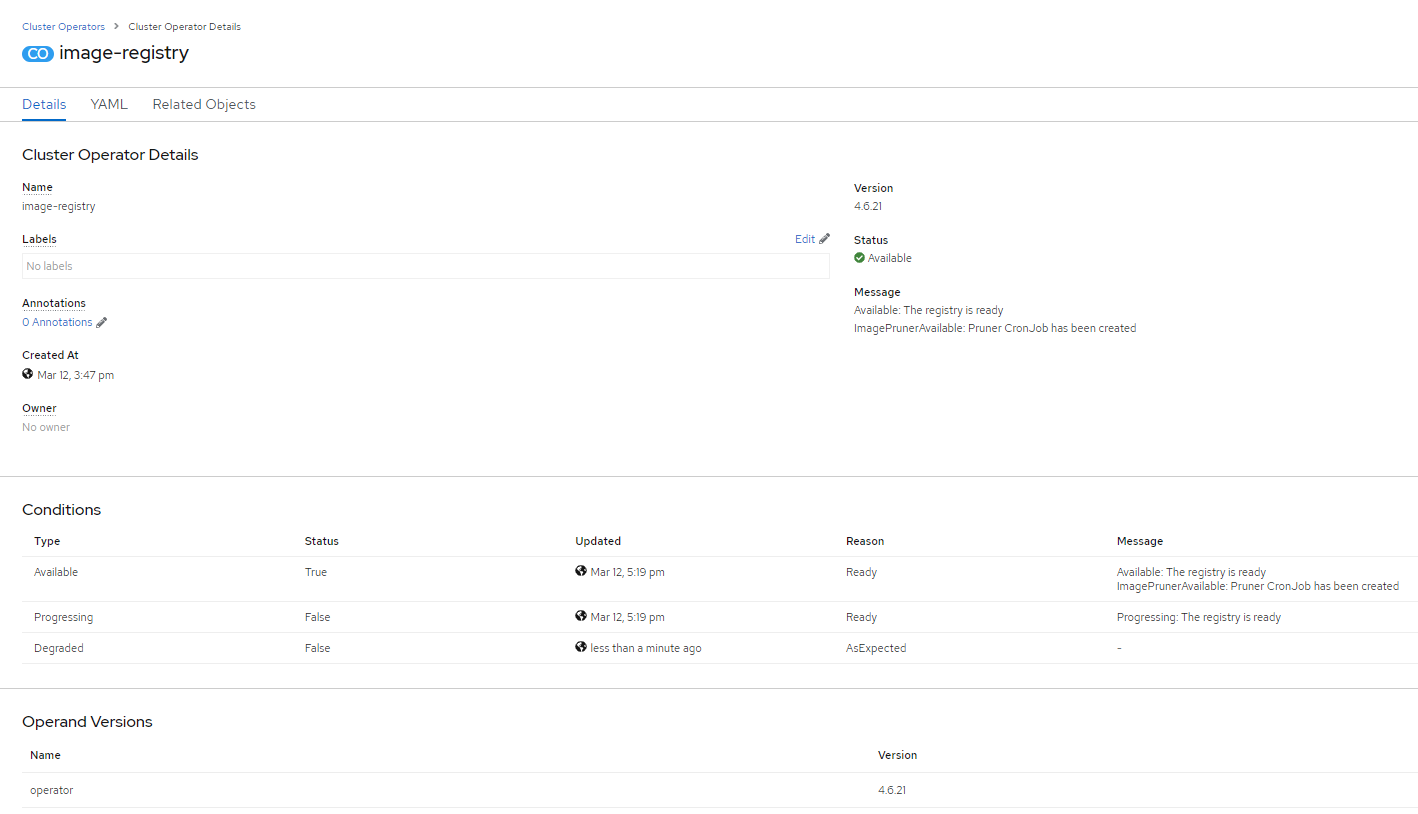

[root@bastion ~]# oc describe clusteroperators image-registry  | grep Message
    Message:               Available: The registry is ready
    Message:               Progressing: The registry is ready


5. RefURL

[1]: RedHat Knowledge base - ImagePrunerDegraded error stalling upgrade

[2]: RedHat Knowledge base - Pruner degrades image registry operator if the registry is removed

[3]: RedHat Knowledge base - The image-registry operator is in degraded state (no managed image found).

[4]: Bugzilla - Pruner degrades image registry operator if the latter is removed

[5]: Bugzilla - Imagepruner met error "Job has reached the specified backoff limit" which causes image registry degraded
