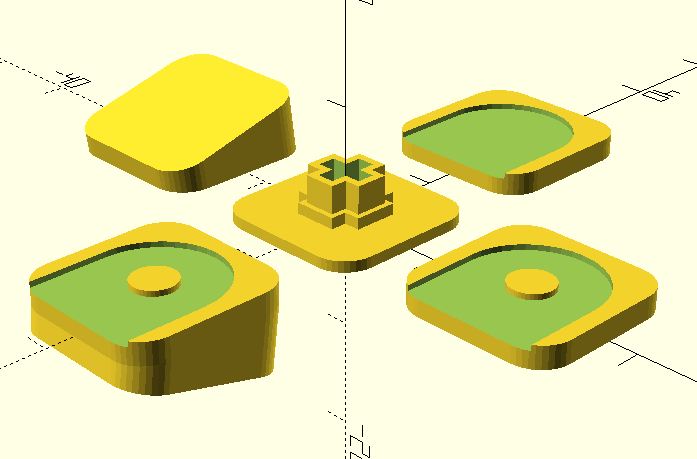

Keycap and tilting unit
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
include <BOSL2/std.scad> | |
module CrossPole(s, l, h) { | |
translate([0, 0, h / 2]) | |
union() { | |
cube([s, l, h], center = true); | |
cube([l, s, h], center = true); | |
} | |
} | |
module KeyTop(kw, kr, kh) { | |
linear_extrude(kh) | |
rect([kw, kw], rounding = kr, $fn = 40); | |
} | |
module Dimple(kw, kr, kh, dd, dh, fs, fc) { | |
difference() { | |
KeyTop(kw, kr, kh); | |
translate([0, 0, kh - dh]) cylinder(h = kh, d = dd, $fn = 40); | |
if (fs) { | |
translate([-dd / 2, -dd, kh - dh]) cube([dd, dd, kh]); | |
} | |
} | |
if (fc) cylinder(h = kh, r = 2, $fn = 40); | |
} | |
module KeyCapBase(kw, kr, kh) { | |
axH = 3.5; | |
exS = 3; | |
exL = 6; | |
inS = exS - 2 * 0.7; // >= 1.3 | |
inL = exL - 2 * 0.7; // >= 4.1 | |
difference() { | |
union() { | |
CrossPole(exS, exL, axH + kh); | |
CrossPole(exS + 1, exL + 1, kh + 1); | |
KeyTop(kw, kr, kh); | |
} | |
translate([0, 0, kh]) CrossPole(inS, inL, axH + 1); | |
} | |
} | |
module Tilting(kw, kr, a) { | |
translate([0, -kw]) | |
rotate([90, 0, 90]) | |
rotate_extrude(angle = a) | |
translate([kw, 0]) | |
rect([kw, kw], rounding = kr, $fn = 40); | |
} | |
module DimpleTilted(kw, kr, kh, dd, dh, fs, fc, a) { | |
Dimple(kw, kr, kh, dd, dh, fs, fc); | |
rotate([0, 180, 0]) Tilting(kw, kr, a); | |
} | |
KeyCapBase(15, 3, 1); | |
translate([0, 20, 0]) Dimple(15, 3, 2, 12, 0.5, true, false); | |
translate([20, 0, 0]) Dimple(15, 3, 2, 12, 0.5 | |
, true, true); | |
translate([-20, 0, 0]) Tilting(15, 3, 15); | |
translate([0, -20, 0]) DimpleTilted(15, 3, 2, 12, 0.5, true, true, 15); |
