A friendlier matplotlib subplots implementation for multiple rows and/or columns
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
import math | |
import matplotlib.pyplot as plt | |
import scipy.signal.windows as windows | |
import inspect | |
from itertools import zip_longest | |
def better_subplots( | |
nrows=1, | |
ncols=1, | |
*, | |
sharex=False, | |
sharey=False, | |
squeeze=True, | |
subplot_kw=None, | |
gridspec_kw=None, | |
naxes=None, | |
axsize=None, | |
**fig_kw, | |
): | |
if naxes is not None: | |
if nrows == -1: | |
nrows = int(math.ceil(naxes / ncols)) | |
elif ncols == -1: | |
ncols = int(math.ceil(naxes / nrows)) | |
if axsize is not None: | |
(ax_width, ax_height) = axsize | |
fig_kw["figsize"] = ( | |
ncols * ax_width, | |
nrows * ax_height | |
) | |
return plt.subplots( | |
nrows=nrows, | |
ncols=ncols, | |
sharex=sharex, | |
sharey=sharey, | |
squeeze=squeeze, | |
subplot_kw=subplot_kw, | |
gridspec_kw=gridspec_kw, | |
**fig_kw, | |
) | |
# Get the list of window functions whose only required parameter is named "M" | |
window_funcs = [ | |
func | |
for func in dir(windows) | |
if callable(getattr(windows, func)) | |
and not any( | |
(name, param) | |
for (name, param) | |
in inspect.signature(getattr(windows, func)).parameters.items() | |
if name != "M" and param.default == inspect._empty | |
) | |
] | |

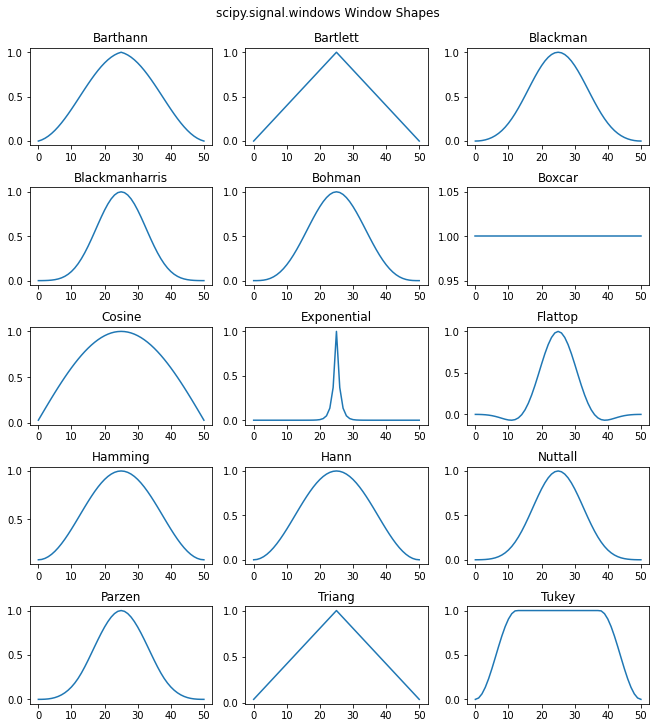

fig, axes = better_subplots(nrows=-1, ncols=3, naxes=len(window_funcs), axsize=(3, 2), constrained_layout=True) | |
for func, ax in zip_longest(window_funcs, axes.flat): | |
if func is None: | |
ax.set_visible(False) | |
else: | |
ax.plot(getattr(windows, func)(51)) | |
ax.set_title(func.title()) | |
fig.suptitle("scipy.signal.windows Window Shapes") |
