docker_phpstorm_xdebug.md

Using XDebug with Docker for Mac and IntelliJ or PHPStorm

1. Add the following into your Dockerfile

   RUN yes "" | pecl install xdebug                                                             && \
   	echo "zend_extension="$(find / -name xdebug.so) > /etc/php5/fpm/conf.d/xdebug.ini && \
   	echo "xdebug.remote_enable = on" >> /etc/php5/fpm/conf.d/xdebug.ini                      && \
       echo "xdebug.remote_host = 10.254.254.254" >> /etc/php5/fpm/conf.d/xdebug.ini            && \
       echo "xdebug.remote_port = 9000" >> /etc/php5/fpm/conf.d/xdebug.ini                      && \
   	echo 'xdebug.idekey = "INTELLIJ"' >> /etc/php5/fpm/conf.d/xdebug.ini                     && \
       echo 'xdebug.remote_log = /var/log/xdebug_remote.log' >> /etc/php5/fpm/conf.d/xdebug.ini && \
   	touch /var/log/xdebug_remote.log && chown www-data:www-data /var/log/xdebug_remote.log


2. Setup an alias for localhost on your Mac

   • In terminal.app run the following command: sudo ifconfig lo0 alias 10.254.254.254

3. Configure PHPStorm / IntelliJ Preferences

   • Press ⌘, (Command - comma) to open the Preferences pane

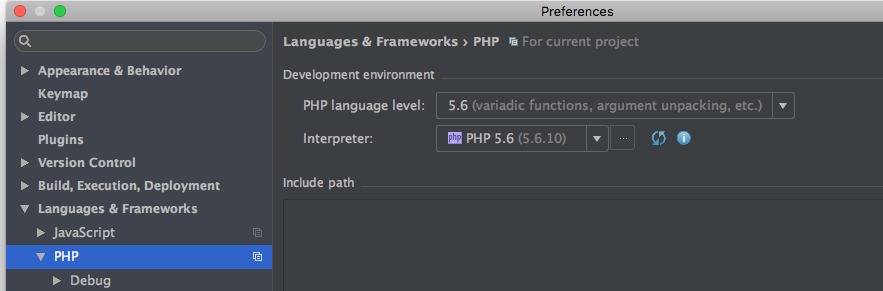

   • Navigate to Languages & Frameworks -> PHP

   • Make sure a PHP interpreter is set

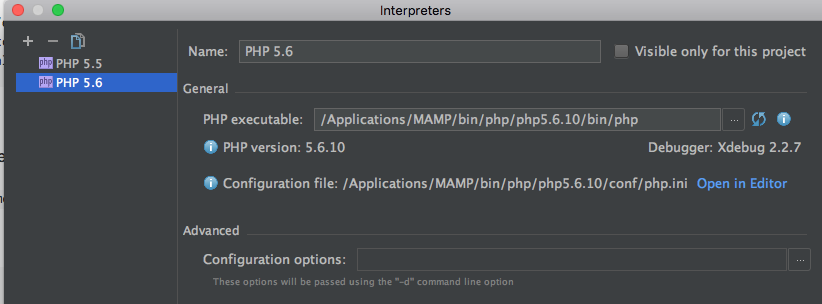

   • If not, press the ... button and setup an interpreter based on the PHP installation on your Mac

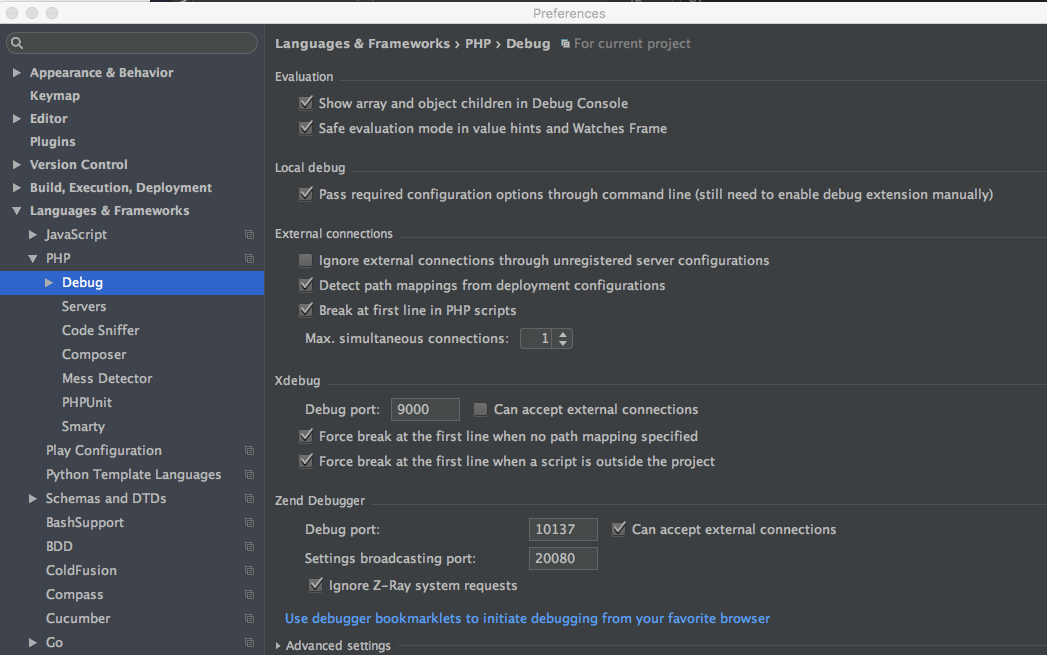

   • Navigate to Languages & Frameworks -> PHP -> Debug

   • Make sure these settings are checked. Note: that Break at first line in PHP scripts is optional

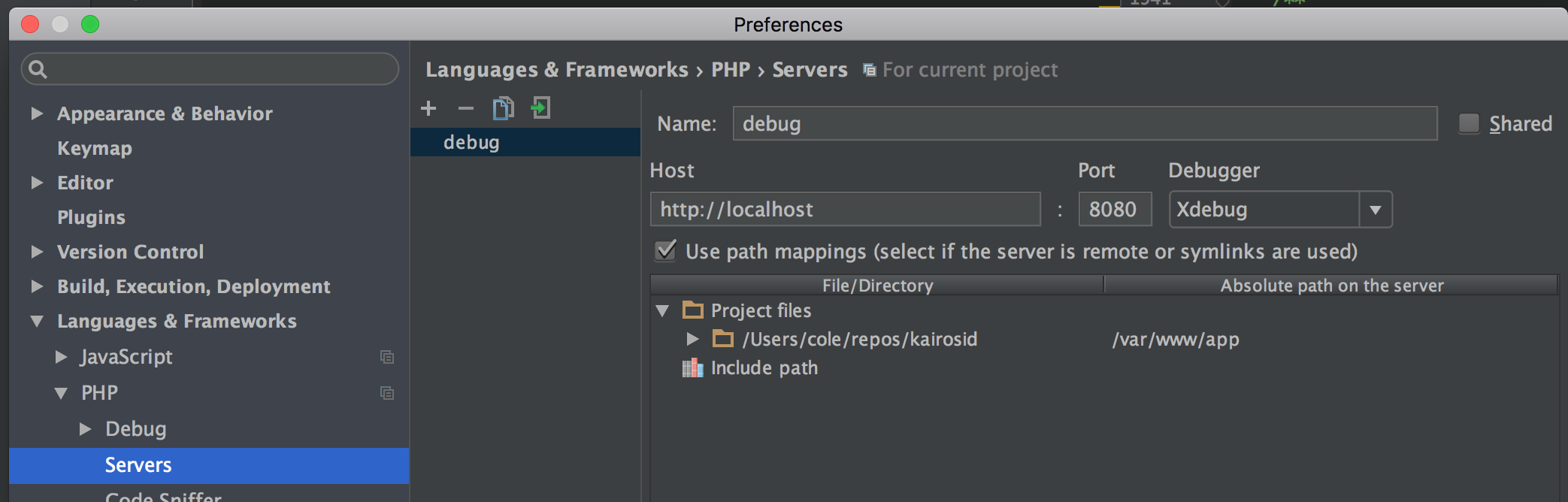

   • Navigate to Languages & Frameworks -> PHP -> Servers

   • Setup new server as shown in the screenshot below taking note to add in the mapping between your local project and the directory from the container.

4. Configure PHPStorm / IntelliJ Project Debug Settings

   • Click the Run/Debug Configuration dropdown button to setup a new debug config, or choose "Edit Configurations..." from the "Run" menu


   • Click the + button to create a new config

   • Choose "PHP Remote Debug" from the dropdown menu

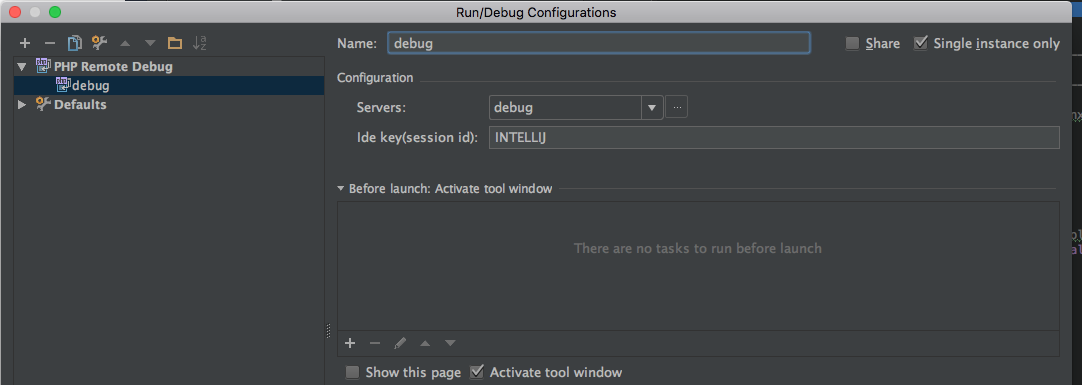

   • Setup the config according to the screenshot below:


   • Make sure that the Server is set to the server you created in step 3

   • Make sure that the "Ide key" is set to INTELLIJ (or whatever you have xdebug.idekey set to in your Dockerfile)

5. Make sure your Docker container is running with docker run or docker-compose up -d

6. Start the debugger by pressing the green debug toolbar button or press CTRL-D


7. Submit your request, or browse to a page on localhost:8080
