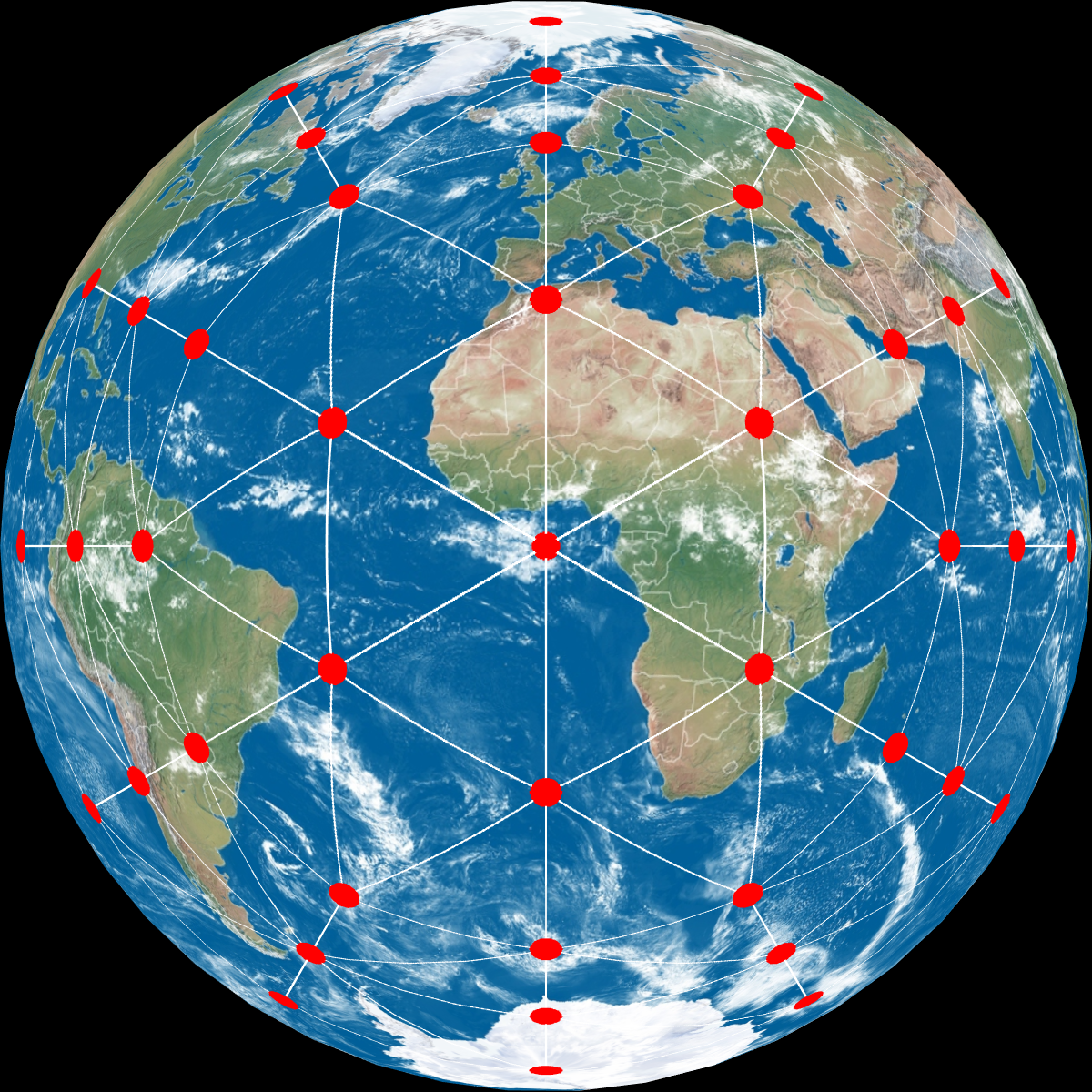

Distributed Points in Dome

0.Distributed Points in Dome.pde

import org.processing.wiki.triangulate.*;

PShape globe, sphere;

void settings() {
  fullScreen(P3D);
}

void setup() {
  surface.setSize(1200, 1200);
  surface.setLocation(360, 0);
  initCubeMap();
  //colorMode(HSB);
  //noStroke();

  sphereDetail(128);
  globe = createShape(SPHERE, height/2);
  globe.setStroke(false);
  globe.setTexture(loadImage("earth.jpg"));
  sphereDetail(10);

  ArrayList<PVector> points = new ArrayList();
  float R[] = { 1, .93, .8, .5, 0 };
  float A[] = { 12, 12, 12, 6, 1 };
  for (int i=0; i<R.length; i++) {
    float r = R[i];
    for (int j=0; j<A[i]; j++) {
      float a = j/A[i] * TWO_PI;
      PVector p = toSphere(sin(a)*r, cos(a)*r);
      p.mult(height/2);
      println(p);
      points.add(p);
    }
  }

  ArrayList<Triangle> triangles = Triangulate.triangulate(points);

  sphere = createShape();
  sphere.setStrokeWeight(3);
  sphere.setFill(false);
  sphere.setStroke(color(255));
  sphere.beginShape(TRIANGLES);
  for (Triangle t : triangles) {
    sphere.vertex(t.p1.x, t.p1.y, t.p1.z);
    sphere.vertex(t.p2.x, t.p2.y, t.p2.z);
    sphere.vertex(t.p3.x, t.p3.y, t.p3.z);
  }
  sphere.endShape();
}

void draw() {
  background(0);
  drawCubeMap();
}

void drawScene(int face) {
  background(face/6.*255, 255, 255);
  translate(width/2, height/2);
  //rotateX(-mouseY/100.);

  pushMatrix();
  scale(-1, 1);
  rotateY(-HALF_PI);
  shape(globe);
  popMatrix();

  scale(-1, -1, -1);
  shape(sphere);

  for (int i = 0; i < sphere.getVertexCount(); i++) {
    PVector v = sphere.getVertex(i);
    pushMatrix();
    translate(v.x, v.y, v.z);
    fill(255, 0, 0);
    noStroke();
    sphere(20);
    popMatrix();
  }
}

PVector toSphere(float x, float y) {  //-0.5 ... +0.5
  PVector v = new PVector(x, y);
  if (v.mag()>1.0f) v.normalize();
  else v.z = sqrt(1.0 - v.mag());
  return v;
}

PVector toSphere(float x, float y, float radius) {  //-radius..+radius
  PVector v = new PVector(x, y);
  v.z = sqrt(radius - v.mag());
  return v;
}

1. CubeMapUtils.pde

import java.nio.IntBuffer;
IntBuffer fbo;
IntBuffer rbo;
IntBuffer envMapTextureID;
PShader cubemapShader;
PShape domeSphere;
int envMapSize = 1000;

void initCubeMap() {
  sphereDetail(50);
  domeSphere = createShape(SPHERE, height/2);
  domeSphere.rotateX(HALF_PI);
  domeSphere.setStroke(false);

  PGL pgl = beginPGL();

  envMapTextureID = IntBuffer.allocate(1);
  pgl.genTextures(1, envMapTextureID);
  pgl.bindTexture(PGL.TEXTURE_CUBE_MAP, envMapTextureID.get(0));
  pgl.texParameteri(PGL.TEXTURE_CUBE_MAP, PGL.TEXTURE_WRAP_S, PGL.CLAMP_TO_EDGE);
  pgl.texParameteri(PGL.TEXTURE_CUBE_MAP, PGL.TEXTURE_WRAP_T, PGL.CLAMP_TO_EDGE);
  pgl.texParameteri(PGL.TEXTURE_CUBE_MAP, PGL.TEXTURE_WRAP_R, PGL.CLAMP_TO_EDGE);
  pgl.texParameteri(PGL.TEXTURE_CUBE_MAP, PGL.TEXTURE_MIN_FILTER, PGL.NEAREST);
  pgl.texParameteri(PGL.TEXTURE_CUBE_MAP, PGL.TEXTURE_MAG_FILTER, PGL.NEAREST);
  for (int i = PGL.TEXTURE_CUBE_MAP_POSITIVE_X; i < PGL.TEXTURE_CUBE_MAP_POSITIVE_X + 6; i++) {
    pgl.texImage2D(i, 0, PGL.RGBA8, envMapSize, envMapSize, 0, PGL.RGBA, PGL.UNSIGNED_BYTE, null);
  }

  // Init fbo, rbo
  fbo = IntBuffer.allocate(1);
  rbo = IntBuffer.allocate(1);
  pgl.genFramebuffers(1, fbo);
  pgl.bindFramebuffer(PGL.FRAMEBUFFER, fbo.get(0));
  pgl.framebufferTexture2D(PGL.FRAMEBUFFER, PGL.COLOR_ATTACHMENT0, PGL.TEXTURE_CUBE_MAP_POSITIVE_X, envMapTextureID.get(0), 0);

  pgl.genRenderbuffers(1, rbo);
  pgl.bindRenderbuffer(PGL.RENDERBUFFER, rbo.get(0));
  pgl.renderbufferStorage(PGL.RENDERBUFFER, PGL.DEPTH_COMPONENT24, envMapSize, envMapSize);

  // Attach depth buffer to FBO
  pgl.framebufferRenderbuffer(PGL.FRAMEBUFFER, PGL.DEPTH_ATTACHMENT, PGL.RENDERBUFFER, rbo.get(0));

  endPGL();

  // Load cubemap shader.
  cubemapShader = loadShader("cubemapfrag.glsl", "cubemapvert.glsl");
  cubemapShader.set("cubemap", 1);
}

void drawCubeMap() {
  PGL pgl = beginPGL();
  pgl.activeTexture(PGL.TEXTURE1);
  pgl.enable(PGL.TEXTURE_CUBE_MAP);
  pgl.bindTexture(PGL.TEXTURE_CUBE_MAP, envMapTextureID.get(0));
  regenerateEnvMap(pgl);
  endPGL();

  drawDomeMaster();

  pgl.bindTexture(PGL.TEXTURE_CUBE_MAP, 0);
}

void drawDomeMaster() {
  camera();
  ortho();
  resetMatrix();
  shader(cubemapShader);
  shape(domeSphere);
  resetShader();
}

// Called to regenerate the envmap
void regenerateEnvMap(PGL pgl) {
  // bind fbo
  pgl.bindFramebuffer(PGL.FRAMEBUFFER, fbo.get(0));

  int i=0;

  // generate 6 views from origin(0, 0, 0)
  pgl.viewport(0, 0, envMapSize, envMapSize);
  perspective(90.0f * DEG_TO_RAD, 1.0f, 1.0f, 1025.0f);
  for (int face = PGL.TEXTURE_CUBE_MAP_POSITIVE_X; face <
    PGL.TEXTURE_CUBE_MAP_NEGATIVE_Z; face++) {
    resetMatrix();

    if (face == PGL.TEXTURE_CUBE_MAP_POSITIVE_X) {
      camera(0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, -1.0f, 0.0f);
    } else if (face == PGL.TEXTURE_CUBE_MAP_NEGATIVE_X) {
      camera(0.0f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f, 0.0f, -1.0f, 0.0f);
    } else if (face == PGL.TEXTURE_CUBE_MAP_POSITIVE_Y) {
      camera(0.0f, 0.0f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f, 0.0f, -1.0f);
    } else if (face == PGL.TEXTURE_CUBE_MAP_NEGATIVE_Y) {
      camera(0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f);
    } else if (face == PGL.TEXTURE_CUBE_MAP_POSITIVE_Z) {
      camera(0.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, -1.0f, 0.0f);
    }


    scale(-1, 1, -1);
    translate(-width/2, -height/2, -168); //was -192?
    //println(-mouseX);

    pgl.framebufferTexture2D(PGL.FRAMEBUFFER, PGL.COLOR_ATTACHMENT0, face, envMapTextureID.get(0), 0);

    drawScene(i++); // Draw objects in the scene
    flush(); // Make sure that the geometry in the scene is pushed to the GPU
    noLights();  // Disabling lights to avoid adding many times
    pgl.framebufferTexture2D(PGL.FRAMEBUFFER, PGL.COLOR_ATTACHMENT0, face, 0, 0);
  }
}

let op: de vertices zijn dubbel omdat bij iedere nieuwe triangle 3x vertex() wordt aangeroepen

http://n.clavaud.free.fr/processing/triangulate/triangulate-20100628.zip
