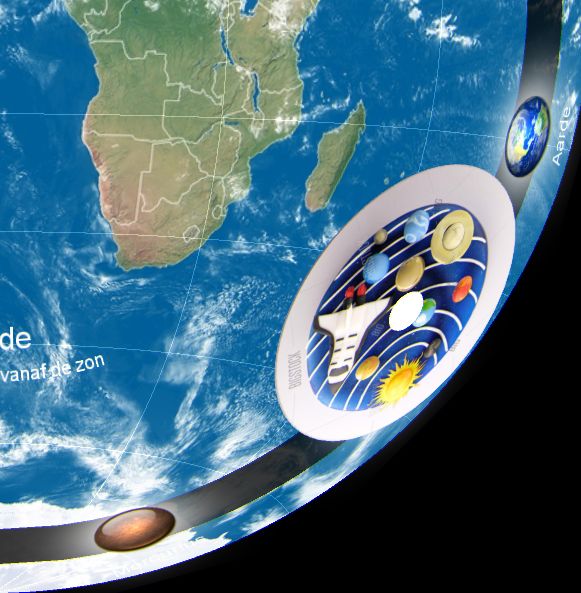

imageOnSphere (prev known as 'sphereCap' - warps image onto a sphere)
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
PShape imageOnSphere(PImage img, float sphereRadius) { | |
//textureMode(NORMAL); | |
PShape sh = createShape(GROUP); | |
sh.setStroke(false); | |
float cx = img.width/2; | |
float cy = img.height/2; | |
float radius = img.width/2; | |
int rres = 30; | |
float rStep = radius/rres; | |
float aStep = TWO_PI/40; | |
//fan | |
PShape fan = createShape(); | |
fan.setStroke(false); | |
fan.beginShape(TRIANGLE_FAN); | |
fan.texture(img); | |
fan.vertex(0, 0, sphereRadius, cx, cy); //center | |
for (float a=-aStep; a<=TWO_PI; a+=aStep) { | |
float x = cos(a)*rStep; | |
float y = sin(a)*rStep; | |
float z = sqrt(sphereRadius*sphereRadius-(x*x)-(y*y)); | |
fan.vertex(x, y, z, x+cx, y+cy); | |
} | |
fan.endShape(); | |
sh.addChild(fan); | |
//strips | |
for (int i=0; i<rres; i++) { | |
float r=i*rStep; | |
PShape strip = createShape(); | |
strip.setStroke(false); | |
strip.beginShape(TRIANGLE_STRIP); | |
strip.texture(img); | |
//strip.stroke(255, 255, 0); | |
//sh.noStroke(); | |
for (float a=-aStep * (i%2==0 ? 1 : .5); a<=TWO_PI; a+=aStep) { | |
float x = cos(a)*(r+rStep); | |
float y = sin(a)*(r+rStep); | |
float z = sqrt(sphereRadius*sphereRadius-(x*x)-(y*y)); | |
strip.vertex(x, y, z, x+cx, y+cy); | |
x = cos(a+aStep/2)*r; | |
y = sin(a+aStep/2)*r; | |
z = sqrt(sphereRadius*sphereRadius-(x*x)-(y*y)); | |
strip.vertex(x, y, z, x+cx, y+cy); | |
} | |
strip.endShape(); | |
sh.addChild(strip); | |
} | |
sh.translate(-sh.width/2,-sh.height/2,-sphereRadius); //center and put in dome so move image back into depth | |
return sh; | |
} |
