Protools

protools.md

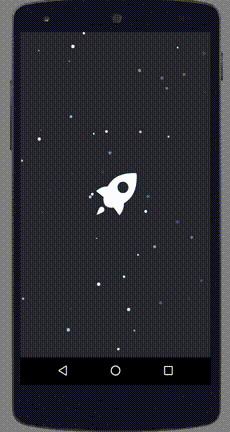

Protools splash animation

StarsView.kt

import android.content.Context
import android.graphics.Canvas
import android.graphics.Color
import android.graphics.Paint
import android.util.AttributeSet

class StarsView(context: Context, attrs: AttributeSet) : TickView(context, attrs) {

    data class Star(val x: Float,
                    val y: Float,
                    val radius: Float,
                    val paint: Paint,
                    val alpha: Int,
                    val shiftFunc: (alpha: Int, shift: Int) -> Int)

    val density = 50
    val alphaRange = 50..222
    val radiusRange = 3.0..10.0
    val alphaShift = 90

    var paint = Paint().apply { color = Color.WHITE }

    val stars: List<Star> by lazy { generateStars() }

    override fun tick(canvas: Canvas) {

        val currentMillis = System.currentTimeMillis()

        val time = (currentMillis - (currentMillis / 100000 * 100000)).toDouble() / 10000 * 20
        val sinus = Math.sin(time)
        val s = (alphaShift * sinus).toInt()

        stars.forEach { star ->
            canvas.drawCircle(
                    star.x,
                    star.y,
                    star.radius,
                    paint.apply { alpha = star.shiftFunc(star.alpha, s).byteAbs() })
        }
    }

    private fun Int.byteAbs(): Int {
        return when {
            this < 0 -> 0
            this > 255 -> 255
            else -> this
        }
    }

    private fun generateStars(): List<Star> =
            (0..density).map {
                val a = rnd.nextInt(alphaRange.first, alphaRange.last)
                Star(
                        x = rnd.nextInt(0, measuredWidth).toFloat(),
                        y = rnd.nextInt(0, measuredHeight).toFloat(),
                        radius = rnd.nextDouble(radiusRange.start, radiusRange.endInclusive).toFloat(),
                        alpha = a,
                        paint = Paint(paint).apply { alpha = a },
                        shiftFunc = when (rnd.nextBoolean()) {
                            true -> { alpha, shift -> alpha + shift }
                            false -> { alpha, shift -> alpha - shift }
                        })
            }
}

TickView.kt

import android.content.Context
import android.graphics.Canvas
import android.util.AttributeSet
import android.view.View
import java.util.concurrent.ThreadLocalRandom

abstract class TickView(context: Context, attrs: AttributeSet) : View(context, attrs) {

    protected val rnd = ThreadLocalRandom.current()

    protected var fps = 12

    val tick: Runnable
        get() = Runnable {
            invalidate()
            postDelayed(tick, 1000L / fps)
        }

    override fun onAttachedToWindow() {
        super.onAttachedToWindow()
        post(tick)
    }

    override fun onDetachedFromWindow() {
        super.onDetachedFromWindow()
        removeCallbacks(tick)
    }

    override fun onDraw(canvas: Canvas) {
        super.onDraw(canvas)
        tick(canvas)
    }

    abstract fun tick(canvas: Canvas)
}

TracesView.kt

import android.content.Context
import android.graphics.*
import android.util.AttributeSet
import java.util.concurrent.ThreadLocalRandom

class TracesView(context: Context, attrs: AttributeSet) : TickView(context, attrs) {

    val density = 5
    val speed = 100
    val spawnChance = 0.10
    val lengthRange = 170..230
    val alphaRange = 200..230

    init {
        fps = 60
    }

    val paint = Paint().apply {
        color = Color.WHITE
        isAntiAlias = true
        shader = LinearGradient(0f, 0f, 0f, 0f, Color.WHITE, Color.DKGRAY, Shader.TileMode.MIRROR)
    }

    val traces by lazy { generateTraces() }

    val spawnZone: Rect by lazy { Rect(measuredWidth, -measuredWidth, 2 * measuredWidth, measuredWidth) }

    val visibleZone: Rect by lazy { Rect(0, 0, measuredWidth, measuredHeight) }

    override fun tick(canvas: Canvas) {

        val deadTraces = traces.filter { it.isDead(visibleZone) }
        val aliveTraces = traces.filter { !it.isDead(visibleZone) }

        traces.forEach {
            if (!it.isDead(visibleZone)) {
                canvas.drawLine(
                        it.x.toFloat(),
                        it.y.toFloat(),
                        it.tailX.toFloat(),
                        it.tailY.toFloat(),
                        paint.apply { alpha = it.alpha })
                it.move(speed)
            }
        }

        if (aliveTraces.size < 2 && deadTraces.size > 0 && rnd.nextFloat() <= spawnChance) {
            deadTraces.random().respawn(spawnZone, rnd, lengthRange, alphaRange)
        }
    }

    private fun generateTraces(): List<Trace> = (0..density).map { Trace() }

    private fun <T> List<T>.random(): T = get(rnd.nextInt(size))

    data class Trace(var x: Int = 0, var y: Int = 0, var tailX: Int = 0, var tailY: Int = 0, var alpha: Int = 0) {

        fun respawn(zone: Rect, rnd: ThreadLocalRandom, lengthRange: IntRange, alphaRange: IntRange) {
            val point = zone.randomPoint(rnd)

            val length = rnd.nextInt(lengthRange.first, lengthRange.last)

            alpha = rnd.nextInt(alphaRange.first, alphaRange.last)

            x = point.x
            y = point.y
            tailX = (point.x + length)
            tailY = (point.y - length)
        }

        fun move(speed: Int) {
            x -= speed
            y += speed
            tailX -= speed
            tailY += speed
        }

        fun isDead(visibleZone: Rect): Boolean = tailX < visibleZone.left || tailY > visibleZone.bottom

        fun Rect.randomPoint(rnd: ThreadLocalRandom): Point = Point(
                rnd.nextInt(this.left, this.right),
                rnd.nextInt(this.top, this.bottom))
    }
}
