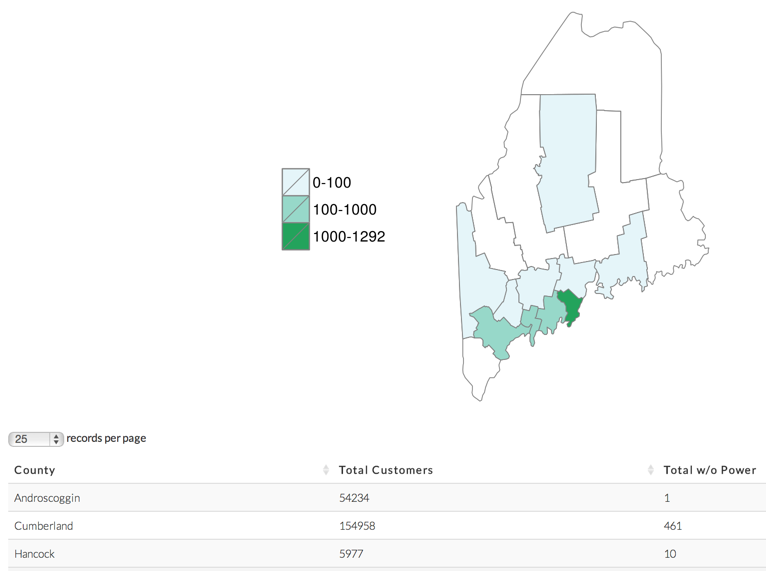

Graphing Maine Power Outages With R/Shiny : Preview: http://162.243.111.4:3838/outages/

  • Download Gist
server.R
R
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92
library(shiny)
library(maps)
library(maptools)
library(ggplot2)
library(plyr)
library(XML)

# Define server logic required to plot various variables against mpg
shinyServer(function(input, output, session) {
autoInvalidate <- reactiveTimer(60*1000, session)
output$cmpPlot <- renderPlot({
autoInvalidate()
cmp.url <- "http://www3.cmpco.com/OutageReports/CMP.html"
# get outage table (first one on the cmp.url page)
cmp.node <- getNodeSet(htmlParse(cmp.url),"//table")[[1]]
cmp.tab <<- readHTMLTable(cmp.node,
header=c("subregion","total.customers","without.power"),
skip.rows=c(1,2,3),
trim=TRUE, stringsAsFactors=FALSE)

if (!is.null(cmp.tab)) {
OUTAGES <<- 1
# clean up the table to it's easier to work with
cmp.tab <<- cmp.tab[-nrow(cmp.tab),] # get rid of last row
cmp.tab$subregion <<- tolower(cmp.tab$subregion)
cmp.tab$total.customers <<- as.numeric(gsub(",","",cmp.tab$total.customers))
cmp.tab$without.power <<- as.numeric(gsub(",","",cmp.tab$without.power))
cmp.tab$zones <<- cut(cmp.tab$without.power, breaks=c(0,100,500,1000,max(cmp.tab$without.power)))
} else {
OUTAGES <<- 0
}

# get maine map with counties
county.df <- map_data('county')
me <- subset(county.df, region=="maine")

# get a copy with just the affected counties
out <- subset(me, subregion %in% cmp.tab$subregion)

if (!is.null(cmp.tab)) {
# add outage into to it
out <- join(out, cmp.tab)
}

# plot the map
gg <- ggplot(me, aes(long, lat, group=group))
gg <- gg + geom_polygon(fill=NA, colour='gray50', size=0.25)
if (!is.null(cmp.tab)) {
gg <- gg + geom_polygon(data=out, aes(long, lat, group=group, fill=zones),
colour='gray50', size=0.25)
}
if (!is.null(cmp.tab)) {
gg <- gg + scale_fill_brewer(type="seq", palette="BuGn", labels=c("0-100", "100-1000", sprintf("1000-%s",max(cmp.tab$without.power))))
}
gg <- gg + coord_map()
gg <- gg + theme_bw()
gg <- gg + labs(x="", y="", title="")
gg <- gg + theme(plot.background = element_rect(fill = "transparent",colour = NA),
panel.border = element_blank(),
panel.background =element_rect(fill = "transparent",colour = NA),
panel.grid = element_blank(),
axis.text = element_blank(),
axis.ticks = element_blank(),
legend.position="left",
legend.title=element_blank())
print(gg)

}, res=150, height=700, width=700, bg="transparent")
output$ts <- renderText({
autoInvalidate()
sprintf("<h3>%s</h3>",format(Sys.time(), "%a %b %d %X %Y %Z"))
})

if (OUTAGES == 1) {
output$details <- renderDataTable({
autoInvalidate()
# capitalize the county name (works with multiple word names)
cmp.tab$subregion <<- gsub("(^|[[:space:]])([[:alpha:]])", "\\1\\U\\2", cmp.tab$subregion, perl=TRUE)
# make the column titles look nice
colnames(cmp.tab) <- c("County", "Total Customers", "Total w/o Power")
# don't need the binned column
cmp.tab[,c(1,2,3)]
})
} else {
output$details <- renderText("No Outages")
}
})
ui.R
R
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
library(shiny)

# Define UI for miles per gallon application
shinyUI(bootstrapPage(

tags$head(
tags$title('Central Maine Power Live Outage Map')
),
tags$head(
tags$link(href='http://fonts.googleapis.com/css?family=Lato:300,400', rel = 'stylesheet', type = 'text/css')
),

tags$head(tags$style(type="text/css",
"html, body, div, p { font-family: 'Lato', Helvetica, sans-serif; font-weight: 300; }",
"h2, h2 { font-family: 'Lato', Helvetica, sans-serif; font-weight: 400; }",
"body { margin:20px; }",
"h2 { text-align:center; }",
"h3 { text-align:center; }",
"div { text-align:center; }"
)),

h2("Central Maine Power Live Outage Map"),
htmlOutput('ts'),
plotOutput(outputId = "cmpPlot", height="650px"),
dataTableOutput('details'),
HTML("<hr noshade size=1><center>Made by <a href='http://twitter.com/hrbrmstr'>@hrbrmstr</a>; Source at: <a href='https://gist.github.com/hrbrmstr/7681842'>github</a></center>")

))
