Mounting an Elastic File System using TLS on two EC2 instances - Hands-on

Project Status: Concept – Minimal or no implementation has been done yet, or the repository is only intended to be a limited example, demo, or proof-of-concept.

I'm currently preparing AWS Certified Solution Architect - Associate certificate.
The following gist is intended to AWS users to learn more about Amazon Elastic Compute Cloud.
I performed this setup on my Ubuntu 18.04.2 LTS.
To check your OS version, execute $ lsb_release -a in your Terminal.

Installations

None. Just log into your AWS management console, https://console.aws.amazon.com.
You'll need to perform several tasks in your CLI regarding SSH keygen, so make sure you check the following prerequisites.

Prerequisites

First, make sure Oracle jdk is installed. I recommend java 1.8.0
To uninstall effectively your current jdk, perform this:
$ sudo apt-get remove openjdk*
$ sudo apt-get remove --auto-remove openjdk*
$ sudo apt-get purge openjdk*
$ sudo apt-get purge --auto-remove openjdk*

To install java 1.8.0, open Terminal Ctrl+Alt+T and run the command:
$ sudo add-apt-repository ppa:webupd8team/java // adds PPA repository
$ sudo apt-get update // updates package list
$ sudo apt-get install openjdk-8-jdk // installs openjdk

$ javac -version // shows your new java version

Author

  • Isaac Arnault - AWS Cloud series - Related tags: #EC2 #TLS #AWSCLI #Linux

With this tutorial we'll try to make two EC2 instances share the same EFS to launch a simple web server.

We can skip Part 1 if we have a User and Group already provisioned via IAM.

Part 1 : create a User and a Group using IAM

  • We log into our AWS management console using $ https://console.aws.amazon.com.

I'm using MFA to secure my root account access coupled with Google Authenticator on my Android smartphone.

We can bypass this step and login normally to AWS Management Console.

πŸ”΄ See output


We go to Services > IAM > Users > Add user

  • User name : user-1

  • Access type : Programmatic access

  • πŸ”΄ See output


    Next : Permissions > Create group

  • Group name : Developers

  • Administrator Access > Create group

    πŸ”΄ See output


    Next : Tags

  • Key: dev-1 | Value: name of the developer

  • Create user

    πŸ”΄ See output


    Download .csv (you're going to use these credentials later on in this tutorial)

    • We write down our Access key ID and Secret access key > close the window
    πŸ”΄ See output


    • Now in Groups we should have one group named Developers which should list user-1.
    πŸ”΄ See output



    Part 2 : create an Elastic File System (EFS)

    Sercices > Storage > EFS

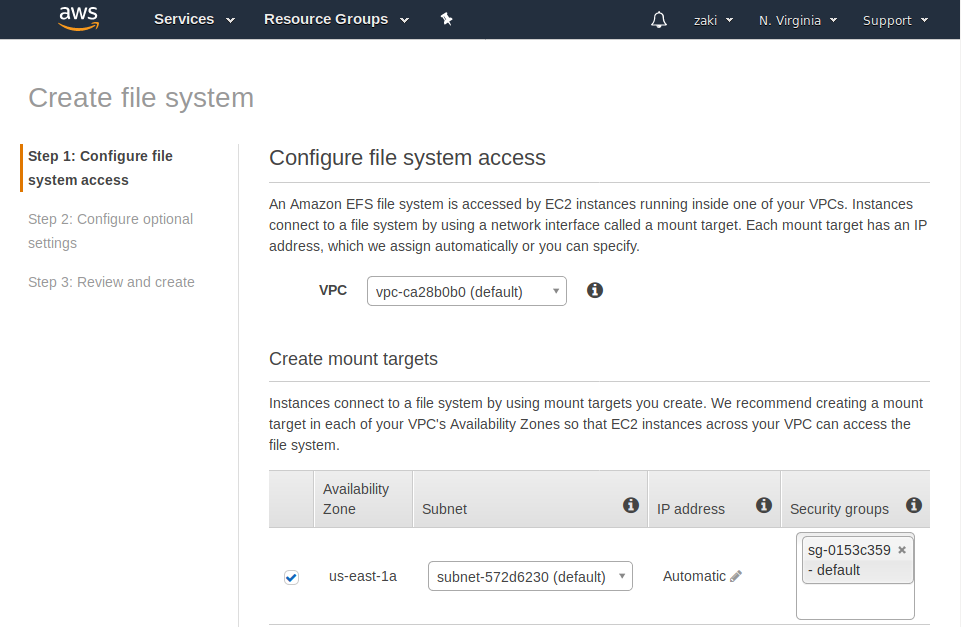

    Configure file system access

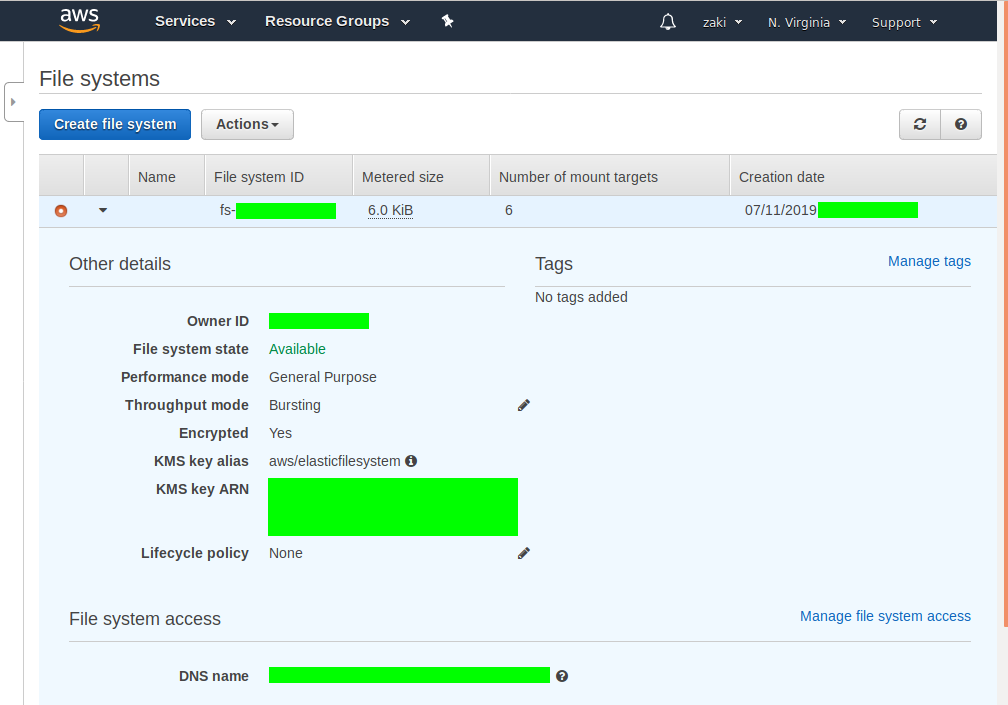

    πŸ”΄ See output


    Configure optional settings

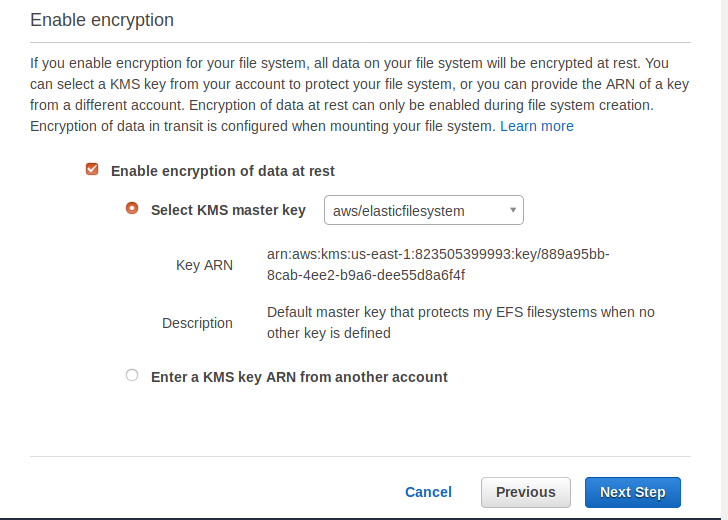

    Optional - We enable encryption of data at rest.

    πŸ”΄ See output


    Review and create

    πŸ”΄ See output



    Part 3 : deploy 2 EC2 instances using a custom script

    Services > EC2

    • In "Create Instance" section click on "Launch Instance"

    We're going to choose 2 instances

    • We welect Amazon Linux 2 AMI (HVM), SSD Volume Type

    • Instance type: choose t2.micro (Free tier eligible). Instance comes with 1vCPU and 1 GiB (memory).

    Next: Configure instance details

    We choose to deploy 2 instances and we provision the Advanced details section with the following script:

    πŸ”΅ See script

    #!/bin/bash
    yum update -y
    yum install httpd -y
    service httpd start
    chkconfig httpd on
    yum install amazon-efs-utils -y

    • We leave all fields as they're by default, we just Enable termination protection.
    πŸ”΄ See output


    Next : Add Storage

    • We leave all fields as they're by default.

    Next : Configure Security Group

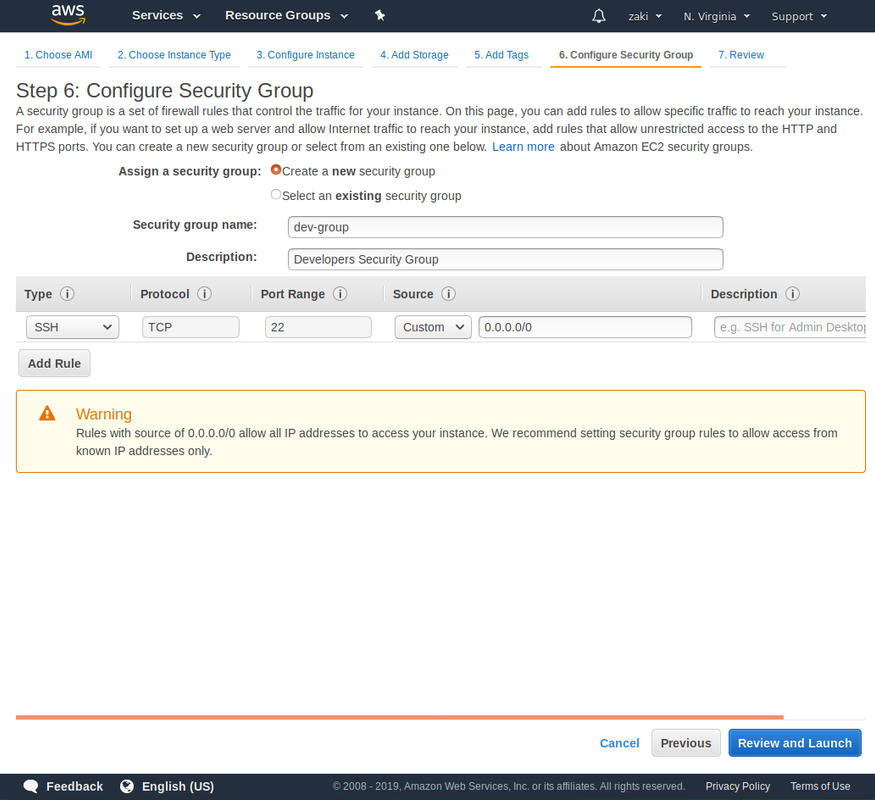

    • We create a new security group > Security group name: dev-group > Description : Developers Security Group > Review and launch > Launch > Create New Key Pair > Key Pair Name : EC2KP > Download Key Pair.
    πŸ”΄ See output


    Launch Instances > View Instances

    • We rename both instances respectively to "EC2 - EFS - Instance 1" and "EC2 - EFS - Instance 2".

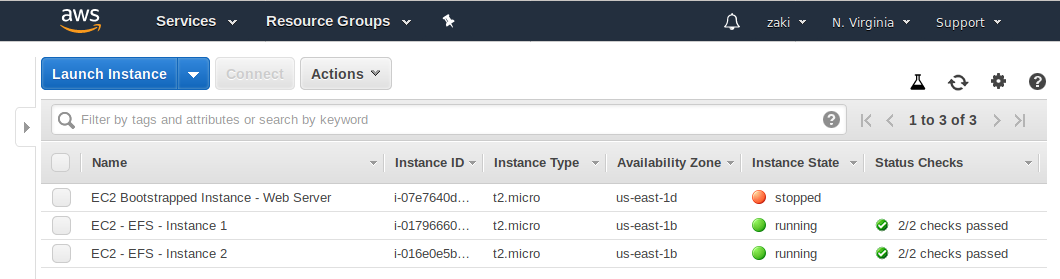

    πŸ”΄ See output


    • At this point of the tutorial, we should have one Elastic File System (EFS), two running EC2 instances, a User and a Group created via IAM.

    Part 4 : use the Command Line Interface to connect to both EC2 instances

    We should remember that we've downloaded an EC2KP.pem file earlier. We will now move this file to a newly created directory.

    Ctrl + Alt + T to open a new CLI window

    $ cd Desktop > $ mkdir SSH - Creates an SSH directory to store our Key Pair (credentials).

    $ cd Downloads > $ sudo mv /home/zaki/Downloads/EC2KP.pem /home/zaki/Desktop>SSH

    • Go to your SSH directory and check that the file persists there : $ cd Desktop/SSH > ls

    • We change the permissions to .pem file, ie: $ chmod 400 EC2KP.pem.

    πŸ”΄ See output


    • We will now connect to both EC2 instances using our CLI : we open two seperate windows

    • Use : $ ssh ec2-user@your-ipv4-public-address -i EC2KP.pem.

    • Type "yes" when prompted by the CLI

    πŸ”΄ See output


    • Go in root mode : $ sudo su and use $ aws s3 ls. The last command should return "Unable to locate credentials. We can configure credentials by running "aws configure".

    To use your provided credentials use : $ aws configure

    Remember that we wrote down our Access Key ID and Secret access key when creating our EC2 Instances. We use the provided credentials.

    • We connect to both EC2 instances using the following command:

    $ ssh ec2-user@your-ipv4-address -i EC2KP.pem

    • We provide Access Key ID > AWS Secret Access Key > Default region name (use the Availability Zone of our EC2 instance, ie : us-east-1) > default output format : we can use "text" or "json". In this tutorial we use "json".
    πŸ”΄ See output



    Important
    If buckets do not show up, we can go to Users > Security credentials > Create a new access key. Or we can create a new EC2 instance and restart the procedure in our `AWS` CLI.

    When you Create access key, you'll have to download a file "access.Keys.csv".

    Part 5 : Mount the EFS on both EC2 instances

    On EC2 - EFS - Instance 1 SSH, use :

    $ ssh ec2-user@your-ipv4-address -i EC2KP.pem

    $ sudo su

    $ cd /var/www/html

    $ mount -t efs -o tls fs-ID:/ /var/www/html

    We're going to create a single web page in order to check later on if it appears on the other EC2 instance SSH.

    $ cd html

    echo "<html><h1>Hello World</h1></html>" > index.html

    To verify that the web page was correctly created, we can perform a simple $ ls or we can connect to our EC2 - EFS - Instance 1 IPv4 Public IP in our browser.

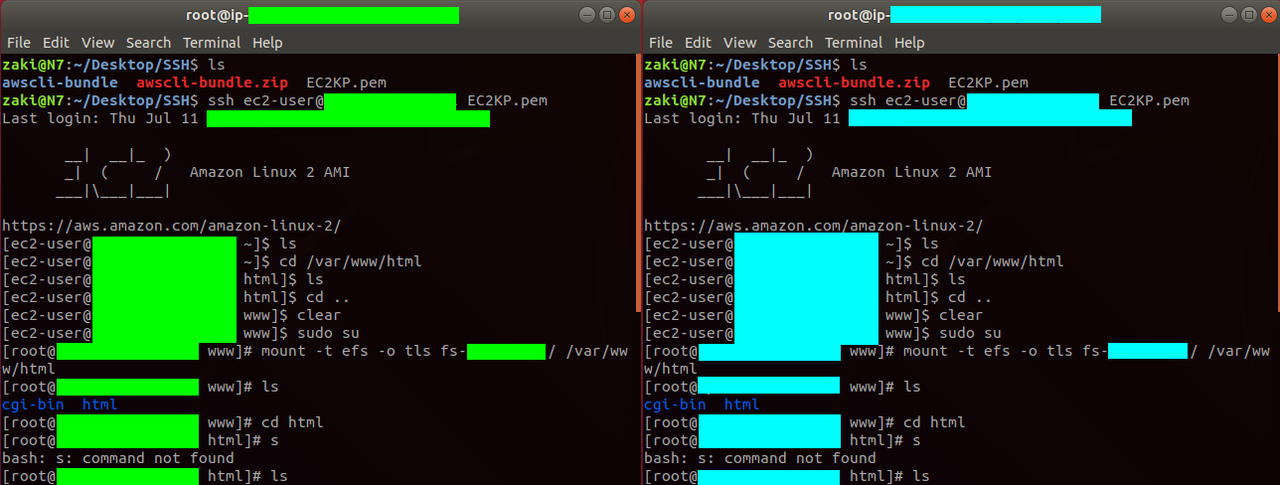

    πŸ”΄ See output


    To check if EC2 - EFS - Instance 2 is sharing the same EFS as EC2 - EFS - Instance 1, we perform the following commands in our EC2 - EFS - Instance 2 SSH:

    $ ssh ec2-user@your-ipv4-address -i EC2KP.pem

    $ sudo su

    $ cd /var/www/html

    $ mount -t efs -o tls fs-ID:/ /var/www/html

    Note that we did not create an index.html file. Perform a simple ls and check if the index.html created in EC2 - EFS - Instance 1 appears.

    If the file appears, it means that both EC2 instances share the same EFS. To make sure everything went fine, we can perform in our EC2 - EFS - Instance 2 SSH:

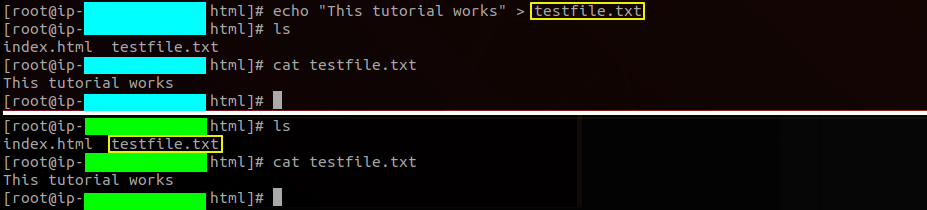

    $ echo "This tutorial works" > testfile.txt

    πŸ”΄ See output

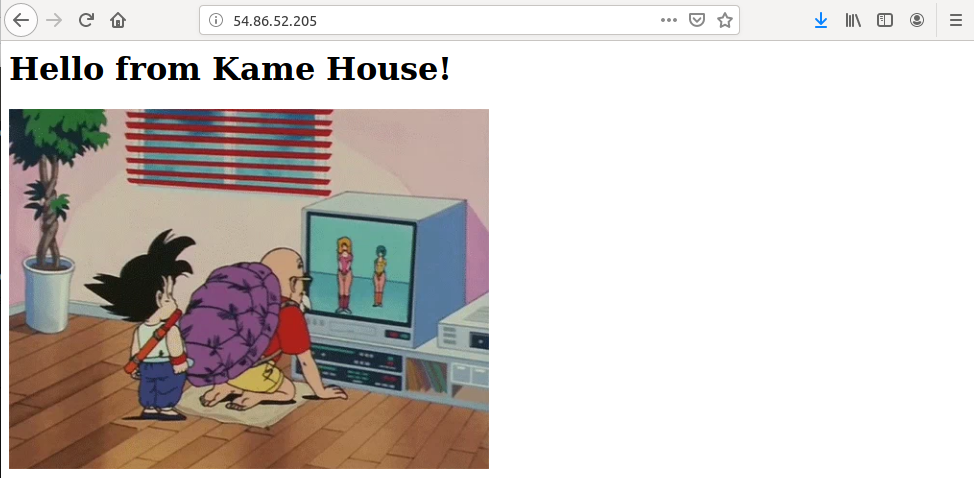

    You can also use EC2 - EFS - Instance 1 and EC2 - EFS - Instance 2 IPv4 Public IP in your web browser. Both queries should append a unique index.html file and retrieve the same web page.

    πŸ”΄ See output
