Using RxJS instead of Flux with React to organize data flow

Reposted from Qiita

For almost a year now, I've been using this "flux" architecture to organize my React applications and to work on other people's projects, and its popularity has grown quite a lot, to the point where it shows up on job listings for React and a lot of people get confused about what it is.

Why I'm tired of using and teaching flux

There are a billion explainations on the internet, so I'll skip explaining the parts. Instead, let's cut to the chase -- the main parts I hate about flux are the Dispatcher and the Store's own updating mechanism.

If you use a setup similar to the examples in facebook/flux, and you use flux.Dispatcher, you probably have this kind of flow:

  1. You have a method on an Action object that you call, which then does Dispatcher.prototype.dispatch(payload), where payload is actionType: String, {...}
  2. flux.Dispatcher dispatches only that single payload, and doesn't let anything else happen. It goes through registered callbacks, calling each one with this payload.
  3. All of your registered callbacks fire off, in your Store objects' closures. The values in your Stores' closures get set and then you call Store.emitChange.
  4. Store.emitChange then uses EventEmitter.prototype.emit to call callbacks you registered with EventEmitter.prototype.addListener for whatever key you used, like 'change' or something.
  5. Your callback was probably defined in your component, in which case it would then call this.setState but also have to call Store.getState to retrieve your application's state.

No wonder there are tons of questions about flux, because seriously, what the flux is this? And if you think this is just extra information nobody cares about, guess what you have to think and worry about when you need to have all of the separate store states come together to make up your whole application state? When you have one store update that then triggers another action to update another store? Or you could also just add an event listener to that Store's emitChange so that you can update your dependent store and emit a change event too.

And so at the end of the day, all the store does is use its callbacks on the Dispatcher to receive actions, act on them, emit its own events to consume itself, and then call callbacks which call methods on the Store to update your components.

I haven't seen any flux library implement anything that doesn't look like this. It may not use flux.Dispatcher (though most do) or EventEmitter (though, a lot of them do also), but they almost always come down to this same system, and the only benefit they provide is that you don't have to provide your own Dispatcher or Store implementation (in which you consume theirs, which almost always works in the same way).

Did I mention I also hate how you're supposed to load up your application state? Most of the time, you don't want to render without having your Store's state, so you have to use getInitialState to do it. What ends up happening, inevitably, is that you end up with a method called getAppState which does return Store.getAppState() and you use that in getInitialState and your onChange handler which probably is this.setState(getAppState()) and will get called back like so in your Store. Ugh.

Using RxJS instead

So instead of all that crap we get in our flux setup, let's just use RxJS. A few things you'll want to know:

  1. Rx.Observable -- these are the observable "streams" that you can subscribe to, where the value coming down is either what is provided by the source, or transformed by something.
  2. Rx.Observable.prototype.subscribe -- this is what you use to register an observer in the end to the values coming out of your stream.
  3. Rx.Subject -- these are Observables that provide some other features also, but I'm mostly concerned with onNext, which lets me publish the newest value of my stream.

A note about using ReplaySubject

Instead of doing the awkward thing of figuring out how to load up our application state and then observe our stream, I think we should just use the ReplaySubject with a buffer of 1, i.e., when we subscribe to this, we want the latest value sent to us to use it as if we are getting fresh data from the stream.

Actually building our application

For our simple example, I'm just going to build a clicking application.

Setting up Keys

For a variety of reasons, we want to use keys to identify Intents to our Model so it can handle data changes appropriately.

var keyMirror = require('keymirror');

module.exports = keyMirror({
  INCREMENT_COUNTER: null
});

Seting up our Intents

Instead of using a dispatcher, we're just going to provide a stream of user Intents and let our Model handle them as necessary. I'm just going to use a ReplaySubject since it's easy enough to use, though we will likely never need a replay.

var Rx = require('rx');
var Keys = require('./keys');
var intentSubject = new Rx.ReplaySubject(1);

module.exports = {
  subject: intentSubject,

  incrementCounter: function () {
    intentSubject.onNext({
      key: Keys.INCREMENT_COUNTER
    });
  }
};

And so you can see that when Intent.incrementCounter() is called, our subject will publish a payload.

Setting up our Model

Now comes the interesting part, where we need to subscribe to our Intents so we can handle them appropriately. This is so easy, it's boring.

var Rx = require('rx');
var update = require('react/lib/update');
var Keys = require('./keys');
var Intent = require('./intent');

var subject = new Rx.ReplaySubject(1);

var state = {
  counter: 0
};

function incrementCounter() {
  state = update(state, {
    $merge: {
      counter: state.counter + 1
    }
  });
  subject.onNext(state);
}

Intent.subject.subscribe(function (payload) {
  switch(payload.key) {
    case Keys.INCREMENT_COUNTER:
      incrementCounter();
      break;
    default:
      console.warn(`${payload.key} not recognized in model.`);
  }
});

subject.onNext(state);

module.exports = {
  subject: subject
};

And so we can see that the Model has its own ReplaySubject(1), and handled intents will make our subject publish our new application state.

Setting up our root component

So our Store was dead easy to set up. Surely, there's going to be a lot of work to set up our root component, right? Well, I really hate having to mess with component state, so I decided to just shove it all into props instead.

var React = require('react');
var Rx = require('rx');
var Model = require('./model');
var Root = require('./views/root');

Model.subject.subscribe((appState) => {
  React.render(
    <Root {...appState}/>,
    document.getElementById('app')
  );
});

Model.subject is a Rx.Observable, and by using Rx.Observable.prototype.subscribe, we are able to subscribe an observer which renders our application using the appState data published to it. And because we used a ReplaySubject(1), the initializing subject.onNext(state) in our model plays back, rendering our application. This part is pretty boring too, since we didn't write much code at all.

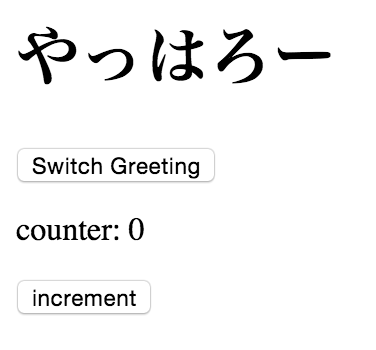

In the end, it looks like this (after clicking the button some):


Let's look at some other demos since this was so short and boring.

Dealing with multiple Models

What if we have multiple Models that we need to subscribe to in order to get our application state? Well, in that case, we do need another Model and its stream.

var Rx = require('rx');
var update = require('react/lib/update');

var YahharoKeys = require('../keys/yahharo-keys');
var YahharoIntent = require('../intents/yahharo-intent');

var subject = new Rx.ReplaySubject(1);

var yahharo = 'やっはろー';
var haroharo = 'はろはろー';

var state = {
  greeting: yahharo
};

function switchGreeting() {
  state = update(state, {
    $merge: {
      greeting: state.greeting === yahharo ? haroharo : yahharo
    }
  });
  subject.onNext(state);
}

YahharoIntent.subject.subscribe(function (payload) {
  switch(payload.key) {
    case YahharoKeys.SWITCH_GREETING:
      switchGreeting();
      break;
    default:
      console.warn(`${payload.key} not recognized in model.`);
  }
});

subject.onNext(state);

module.exports = {
  subject: subject
};

But how do we handle the logic for combining the two streams? Well, time to call Rx.Observable.combineLatest:

var React = require('react');
var Rx = require('rx');

var CounterModel = require('./models/counter-model');
var YahharoModel = require('./models/yahharo-model');
var Root = require('./views/root');

var AppObservable = Rx.Observable.combineLatest(
  CounterModel.subject,
  YahharoModel.subject,
  function (
    CounterState,
    YahharoState
  ) {
    return {
      CounterState: CounterState,
      YahharoState: YahharoState
    };
  }
);

AppObservable.subscribe((appState) => {
  React.render(
    <Root {...appState}/>,
    document.getElementById('app')
  );
});

As we can see, we can just use RxJS to take the latest data from all three and combine them into a new Observable to feed into our Root component:


Let's do another since this one was pretty short too.

Dependent events

This one is pretty annoying for me currently, setting up a store that only does logical operations, and then having its emitChange trigger another store that does calculations based on it.

Let's consider this:

var state = {
  counter: 0,
  list: [],
  filterEvens: true
};

function incrementCounter() {
  state = update(state, {
    $merge: {
      counter: state.counter + 1,
      list: state.list.concat(state.counter)
    }
  });
  subject.onNext(state);
}

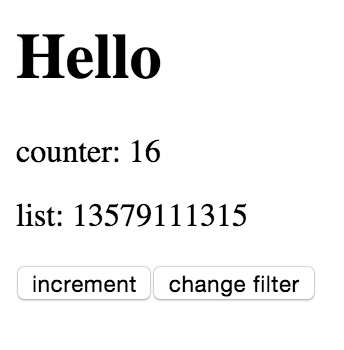

That filterEvens will get switched between true and false, for filtering out even values (of course, in the real world, I have a list of predicates that will go through a big list to figure out what gets rendered and gets unmounted).

Turns out, this is one of the most common operations in Rx. To write a transform that applies to each published event, we end up using Rx.Observable.prototype.map:

var React = require('react');
var Rx = require('rx');
var update = require('react/lib/update');

var Model = require('./model');
var Root = require('./views/root');

var FilteredObservable = Model.subject.map(function (appState) {
  var filteredList = appState.list.filter(function (item) {
    var isEven = item % 2 === 0
    return appState.filterEvens ? !isEven : isEven;
  });
  return update(appState, {
    $merge: {
      filteredList: filteredList
    }
  });
});

FilteredObservable.subscribe((appState) => {
  React.render(
    <Root {...appState}/>,
    document.getElementById('app')
  );
});

Again, we get a new Observable that we then subscribe to in order to render our application with the filtered data:


In Closing

I know I probably turned some people off talking about how much I hate flux when it's honestly done a lot to change how people think about data flow in their applications. For that, flux remains quite significant to me and I think it's done quite a lot of good, but I am no longer content to use it to manage data flows in my applications. If you think otherwise, I hope you might consider taking the time to write to me on why you think I should change my practices when using flux to make it a more enjoyable and productive experience.

Otherwise, if you were intrigued by the use of RxJS and want to see the source code for this article, see the repo here: https://github.com/justinwoo/react-rxjs-flow

If you made it this far, thanks for reading!

Update - Apr 26

Do you have thoughts about using a Rx.Subject for each intent rather than using the intent keys system? I did the keys-based system for this demonstration, but I'm still on the fence about whether or not I'm going to use keys to identify payloads or use separate subjects. Let me know on twitter what you think!

Update - Apr 28

I pushed another branch that gets rid of the Keys-based single subject with multiple subjects that can be subscribed to here: https://github.com/justinwoo/react-rxjs-flow/tree/each-intent-subject. Seems pretty nice, thanks to @saneyuki_s for the suggestion.

Update - Sep 27

A lot of this is very early rough drafts of how you might use Rx for your data modeling. A lot of the time, if you need a stream with a initial value that you use but then gets updated (like window size, etc.), you might/will probably be better off using the .startWith or .just operators instead of Subjects. Regardless, I hope you find this a little bit useful to thinking about new ways to do things ;)

External links

emmenko commented May 9, 2015

Hi, interesting article. I've read about RxJS before but never got the time to use them (so my knowledge is a bit limited).

I have a couple of questions at this time:

  • with the Dispatcher you can easily track what is flowing through your application because everything goes through the Dispatcher. How does it work with Rx?
  • afaics Intents are like Actions and Models are like Stores and you basically subscribe directly the action into the store. So if multiple stores want to listen to the same action, can you subscribe it multiple times?
  • in your example with multiple models, you aggregated them at the root level and pass them down the components via props, so when something changes the entire app re-renders. If I just want one component to subscribe to changes, I guess I just have to do it like in Flux and call setState, right?
    one app store
  • I really would like to see an example that does some data fetching (which is at the end what you are going to do in your application)
  • how about testing? Is it going to be easy or painful? And if so do you have any experience or tipps to share?

Thanks :)

PS: I will definitely give it a try! 👍

Owner

justinwoo commented May 11, 2015

I didn't see this comment until just now, so I made and issue and commented on it here: justinwoo/react-rxjs-flow#4

I haven't even finished reading through this in it's entirety yet, but I am with you on every single point so far. I recently joined the RefluxJS project, and I'm currently reworking the next major version of reflux-core to be built behind the scenes using RxJS. The pain points you expressed with the Flux model are exactly why I chose to do this.

One question though so far, on the following part

Instead of doing the awkward thing of figuring out how to load up our application state and then observe our stream, I think we should just use the ReplaySubject with a buffer of 1, i.e., when we subscribe to this, we want the latest value sent to us to use it as if we are getting fresh data from the stream.

Did you mean BehaviorSubject instead of ReplaySubject?

From the docs on subjects:

ReplaySubject stores all the values that it has published. Therefore, when you subscribe to it, you automatically receive an entire history of values that it has published, even though your subscription might have come in after certain values have been pushed out. BehaviourSubject is similar to ReplaySubject, except that it only stored the last value it published.

Edit: I finished reading through. You did a great job of of succinctly and clearly hitting on all the points of the architecture needed to create a simple reactive based back-end. 👍

nusson commented Jan 12, 2016

Hi,

I'm not a react programmer (I'm used to backbone and RactiveJs)
and as I was looking to maybe making a switch to react (I don't get why, but nobody use or event know ractive) I just was flooded by all flux alternatives.
But I was tired of Backbone and so, you grantly helped me for that flow.

If you're interested, I've replicated one of your test (just the incremental button) using Ractive. Quite easy because I basicaly just changed the view
https://github.com/nusson/ractive-rx

Hey,

thanks for writing this up. How would this be different compared to something like https://github.com/mobxjs/mobx? The same thing re: using observables. Setting up multiple models and dependent events is also a lot easier.

capaj commented Mar 18, 2016

@jeffling RxJS is different observable paradigm than MobX. Thanks for mentioning this-I wanted to link it myself, because I think MobX is the king of luxury when it comes to storing state in react apps. I like RxJS approach a bit better than Flux, but MobX proves, we can do even better.

philpl commented May 2, 2016

@justinwoo I've actually come up with Fluorine which tries to reconcile a Redux-like approach with RxJS patterns. It very much adheres to the idea of the Dispatcher and Actions, which makes it very close to Flux and what FLux users expect, but on the other hand it introduces new ideas.

It doesn't need artificially add on to the normal concept of objects, like MobX, that tries to make reactiveness easier to understand, but just uses a central dispatcher that is treated as the source of truth. Stores are then produced by "reducing" the dispatcher using a reducer function. So it's similar to Redux, but it gives you the choice between "mono-stores" and "multi-stores". Then it just comes down to injecting the observable (your store) into your component as a prop.

For side effects it introduces "agendas", which are basically just observables emitting actions.

Some companies are using it in several apps, and I'm using it for several side projects and found it pretty scalable and easy to approach :) Would love to get some feedback from you, since you're working on a similar solution. Cheers

In the days where everyone is talking about/advertising Flux/Redux is kinda difficult to argue and say that you find it cumbersome. I totally agree with the article. I found much more easier and clean to use Subject as the source of truth. I wrote a simple decorator store using RxJS's subject and works pretty well for me. You can have a look here https://github.com/AvraamMavridis/dugong.
