Loading nyc taxi data to Solr using spark-solr

Loading NYC taxi data to Solr using spark-solr

Setup

Database setup

  • NYC taxi data downloaded from the Git repo and uploaded to an Amazon RDS instance of Postgres

  • I have downloaded green trip data from 2013 (4 months), 2014, 2015 (https://github.com/toddwschneider/nyc-taxi-data/blob/master/raw_data_urls.txt)

  • The downloaded data is loaded to an RDS instance in AWS. RDS instance details:

    Engine: PostgreSQL 9.4.7
    Instance Class: db.r3.2xlarge
    Storage: 100 GB SSD
    No backups

  • The data is uploaded from local to the RDS database (took from 1-2 hours)

  • Total number of rows: 91748362

EC2 Setup

  • 3 EC2 nodes of r3.2xlarge instances

  • 3 api services, 3 Solr instances, 3 Spark workers, 1 Spark Master, 1 Fusion UI, 1 Connector

  • Collection nyc-taxi created with 6 shards, 1 replication

  • Fab commands used

      fab new_ec2_instances:fcloud,n=3,instance_type=r3.2xlarge
      fab new_solrcloud:fcloud,zkn=3,solrJavaMemOpts='-Xms12g -Xmx12g',placement_group=sstk,purpose='scale testing for Fusion 2.3'
      fab fusion_start:fcloud,ui=1
      fab setup_spark_jdbc_jar:fcloud,~/Downloads/postgresql-9.4.1208.jar
      fab setup_spark_conf:fcloud,worker_mem=32g,executor_mem=16g
      fab restart_spark:fcloud


Index data from Postgres to Spark using spark-shell script

  • Started spark-shell in Fusion bin with ./bin/spark-shell -m 28g -c 4 -t 12
  • Indexing via DIH showed 20K docs per sec
  • Script used to run the job (Notice the number of partitions and batch_size)
//JDBC script:

// get the max ID from the db to use for partitioning
val getMaxId = sqlContext.jdbc("jdbc:postgresql://taxi-data-20160420.cikmdrscwqru.us-east-1.rds.amazonaws.com:5432/nyc-taxi-data?user=taxidatalogin&password=***", "(select max(id) as maxId from trips) tmp")

// note: lower & upper bounds are not filters
val dbOpts = Map(
"url" -> "jdbc:postgresql://taxi-data-20160420.cikmdrscwqru.us-east-1.rds.amazonaws.com:5432/nyc-taxi-data?user=taxidatalogin&password=***",
"dbtable" -> "trips",
"partitionColumn" -> "id",
"numPartitions" -> "200",
"lowerBound" -> "0",
"upperBound" -> getMaxId.select("maxId").collect()(0)(0).toString,
"fetchSize" -> "5000"
)
var jdbcDF = sqlContext.read.format("jdbc").options(dbOpts).load

// sample for testing
//jdbcDF = jdbcDF.sample(false, 0.01, 5150)

// deal with some data quality issues in the lat/lon cols
jdbcDF = jdbcDF.filter("pickup_latitude >= -90 AND pickup_latitude <= 90 AND pickup_longitude >= -180 AND pickup_longitude <= 180")
jdbcDF = jdbcDF.filter("dropoff_latitude >= -90 AND dropoff_latitude <= 90 AND dropoff_longitude >= -180 AND dropoff_longitude <= 180")

// concat the lat/lon cols into a single value expected by solr location fields
jdbcDF = jdbcDF.withColumn("pickup", concat_ws(",", col("pickup_latitude"),col("pickup_longitude"))).drop("pickup_latitude").drop("pickup_longitude")
jdbcDF = jdbcDF.withColumn("dropoff", concat_ws(",", col("dropoff_latitude"),col("dropoff_longitude"))).drop("dropoff_latitude").drop("dropoff_longitude")
// jdbcDF.printSchema()

jdbcDF.write.format("solr").options(Map("zkhost" -> "ec2-52-90-111-58.compute-1.amazonaws.com:2181,ec2-54-165-229-209.compute-1.amazonaws.com:2181,ec2-54-173-135-227.compute-1.amazonaws.com:2181/fcloud", "collection" -> "nyc_taxi", "batch_size" -> "50000")).mode(org.apache.spark.sql.SaveMode.Overwrite).save

Indexing Stats

  • Total rows 91492956 imported in 49 minutes. I have seen the indexing range from (38-48 minutes) before.
  • Docs per second - 91492956/(2760) = 31120.6.
  • Driver UI after finishing all the tasks

Querying stats

  • Streaming expressions:
    • Script:

      val options = Map(
        "zkhost" -> "ec2-52-90-111-58.compute-1.amazonaws.com:2181,ec2-54-165-229-209.compute-1.amazonaws.com:2181,ec2-54-173-135-227.compute-1.amazonaws.com:2181/fcloud",
        "collection" -> "nyc_taxi",
        "use_export_handler" -> "true",
        "fields" -> "total_amount,tip_amount,trip_distance,passenger_count,vendor_id",
        "solr.params" -> "sort=vendor_id desc"
      )
      val qDF = sqlContext.read.format("solr").options(options).load
      qDF.registerTempTable("trips")
      val newDF = sqlContext.sql("SELECT avg(total_amount), avg(tip_amount), avg(trip_distance) from trips")

scala> newDF.show() 2016-04-20 22:46:19,326 [main] INFO SolrRelation - Constructed SolrQuery: q=:&rows=1000&fl=total_amount,tip_amount,trip_distance&sort=vendor_id+desc&collection=nyc_taxi +------------------+------------------+-----------------+
| _c0| _c1| _c2| +------------------+------------------+-----------------+ |14.609968263846103|1.1106824575641403|2.935562167650442| +------------------+------------------+-----------------+ ``` * Time taken: * 2.3 minutes (On a fresh index. I ran the streaming first and then the cursorMarks next) * Docs per sec: * 91492956/140 => 653521.11 docs per sec (across 6 tasks) => 108.9k docs per sec (each individual tasks)

  • Cursor Marks:
    • Script:

      val options = Map("zkhost" -> "ec2-52-90-111-58.compute-1.amazonaws.com:2181,ec2-54-165-229-209.compute-1.amazonaws.com:2181,ec2-54-173-135-227.compute-1.amazonaws.com:2181/fcloud", "collection" -> "nyc_taxi", "splits" -> "true", "rows" -> "10000")
      val qDF = sqlContext.read.format("solr").options(options).load
      qDF.registerTempTable("trips")
      val newDF = sqlContext.sql("SELECT avg(total_amount), avg(tip_amount), avg(trip_distance), avg(passenger_count) from trips")
      newDF.show()
      +------------------+------------------+------------------+------------------+
      |               _c0|               _c1|               _c2|               _c3|
      +------------------+------------------+------------------+------------------+
      |14.609968263150824|1.1106824575651437|2.9355621676493673|1.4178521021880635|
      +------------------+------------------+------------------+------------------+

    • Time taken:

      • 20 minutes across 120 tasks with a max of 12 tasks in parallel. Since only 12 cores are available to Spark, only a max of 12 tasks can run in parallel (reloaded the collection to get rid of any caches if present)
    • Docs per sec:

      • 91492956/1200 => 76.2K docs per second (across 12 tasks) => 76200/12 => 6350 docs/sec (on avg for each task).

Screenshots:

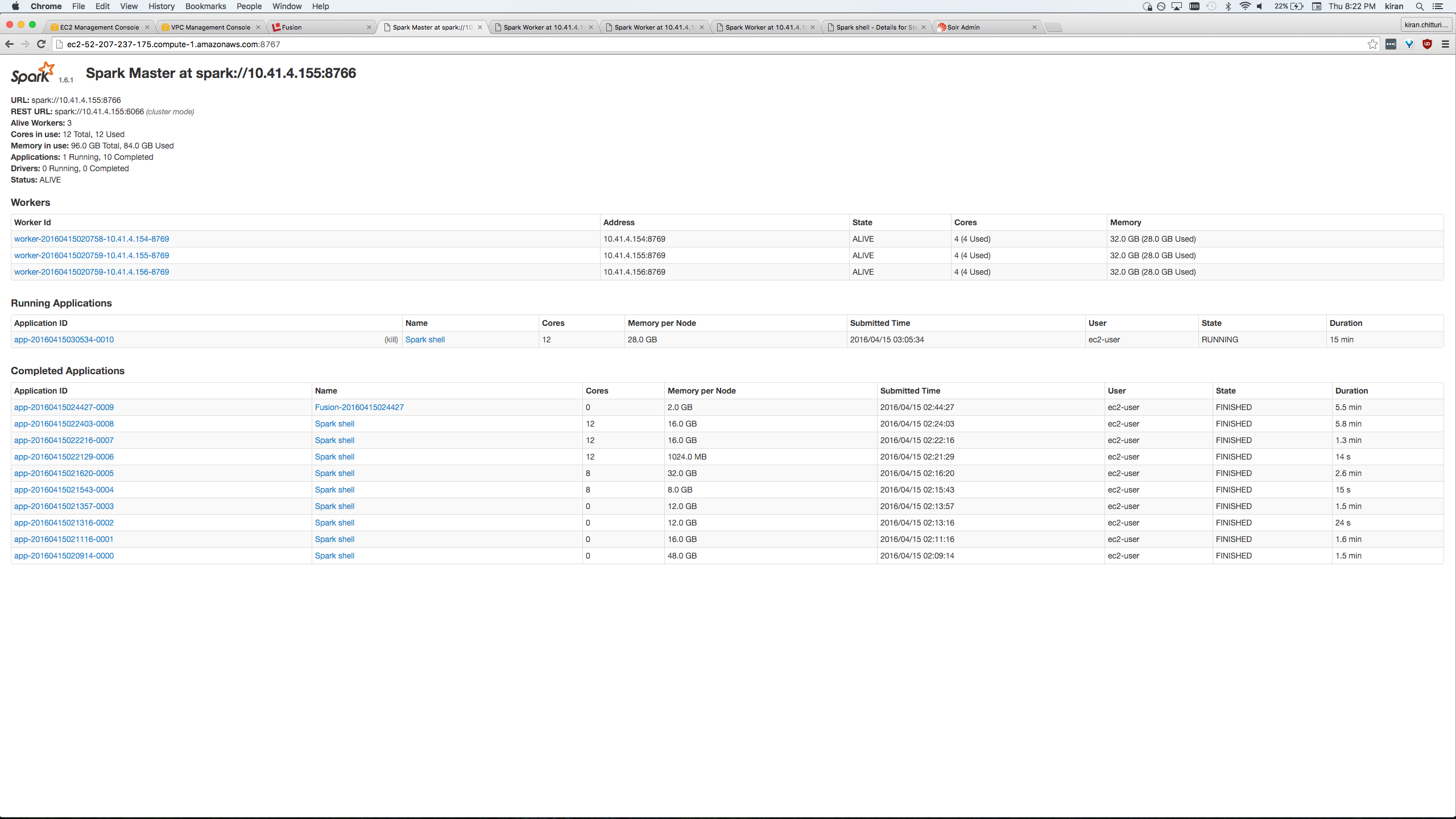

  • Spark UI after indexing job started Spark UI after job start
  • Driver UI after indexing job finished Driver UI after finishing all the tasks
