File formats comparison: CSV, JSON, Parquet, ORC

Key results

Whenever you need to store your data on S3 / Data Lake / External table choose file format wisely:

• Parquet / ORC are the best options due to efficient data layout, compression, indexing capabilities
• Columnar formats allow for column projection and partition pruning (reading only relevant data!)
• Binary formats enable schema evolution which is very applicable for constantly changing business environment

Inputs

• I used Clickhouse + S3 table engine to compare different file formats
• Single node Clickhouse database was used – s2.small preset: 4 vCPU, 100% vCPU rate, 16 GB RAM
• Source data: TPCH synthetic dataset for 1 year – 18.2M rows, 2GB raw CSV size
• A single query is run at a time to ensure 100% dedicated resources

To perform it yourself you might need Yandex.Cloud account, set up Clickhouse database, generate S3 keys. Source data is available via public S3 link: https://storage.yandexcloud.net/otus-dwh/dbgen/lineorder.tbl.

Comparison measures

1. Time to serialize / deserialize

What time does it take to write data on disk in a particular format?

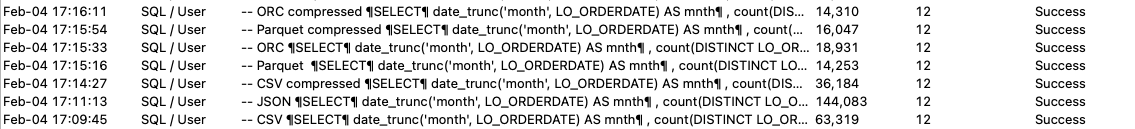

Let's have a look at Execution Log:

• Compressed columnar formats ORC, Parquet take leadership here
• It takes x6 times longer to write JSON data on disk compared with columnar formats on average (120 sec. vs 20 sec.)
• The less data you write on disk the less time it takes - no surprise

2. Storage size

What amount of disk space is used to store data?

aws --endpoint-url=https://storage.yandexcloud.net \
	--profile yc \
	--human-readable \
	--summarize \
	--recursive \
	s3 ls s3://otus-dwh/file_formats/

• Obviously best results show zstd compressed ORC and Parquet formats
• Worst result is uncompressed JSON which is almost 3 times larger than source CSV data (you have to copy schema for every row!)
• Great results for zstd compressed CSV data which is 632MB vs 2GB of uncompressed data

3. Query latency (response time)

How fast can one get query results for a simple analytical query?

1. OLAP query including whole dataset (12 / 12 months)

SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_csv
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;

• Columnar formats outperform text formats because they allow to access only specific columns and there's no excessive IO
• Compression accounts for lower IO operations thus lower latency

2. OLAP query including subset of rows (1 / 12 months)

SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_csv
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;

• Results for this query are pretty much the same as for the previous one without WHERE condition
• Although columnar formats allow for partition pruning and reading only relevant rows (according to WHERE condition), it is not pushed down
• Clickhouse EXPLAIN command revealed that filter is applied only after the whole result set is returned from S3 😕

file_formats.sql

-- 1. Get the data

CREATE TABLE src_lineorder
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/dbgen/lineorder.tbl', 'CSV')
;

select * from src_lineorder limit 200 ;

-- 2. Clickhouse internal storage

CREATE TABLE lineorder_internal
	engine = MergeTree()
	ORDER BY
		(
			LO_ORDERDATE
			, LO_ORDERKEY
		)
	PARTITION BY (toYear(LO_ORDERDATE))
AS SELECT * FROM src_lineorder
;

select count(*) from lineorder_internal ;
select * from lineorder_internal limit 200 ;

-- 3. Checkout storage size

SELECT table,
    formatReadableSize(sum(bytes)) as size,
    min(min_date) as min_date,
    max(max_date) as max_date
    FROM system.parts
WHERE active
	AND ("table" ilike '%lineorder%')
GROUP BY "table"
ORDER BY sum(bytes) DESC
;

-- 4. Clickhouse 1-year data

CREATE TABLE lineorder_clickhouse
	engine = MergeTree()
	ORDER BY
		(
			LO_ORDERDATE
			, LO_ORDERKEY
		)
AS SELECT * FROM lineorder_internal
WHERE LO_ORDERDATE BETWEEN '1992-01-01' AND '1992-12-31'
;

select count(*) from lineorder_clickhouse ;

-- 5. Unload to JSON

DROP TABLE lineorder_json ;
CREATE TABLE lineorder_json
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/file_formats/json/',
	'aws_access_key_id',
	'aws_secret_access_key',
	'JSONEachRow'
)
;

INSERT INTO lineorder_json
SELECT * FROM lineorder_clickhouse ;

SELECT * FROM lineorder_json LIMIT 200 ;

-- 6. Unload to CSV
DROP TABLE lineorder_csv ;
CREATE TABLE lineorder_csv
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/file_formats/csv/',
	'aws_access_key_id',
	'aws_secret_access_key',
	'CSV'
)
;

INSERT INTO lineorder_csv
SELECT * FROM lineorder_clickhouse ;

-- 7. Add compression

DROP TABLE lineorder_csv_compressed ;
CREATE TABLE lineorder_csv_compressed
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/file_formats/csv_compressed/',
	'aws_access_key_id',
	'aws_secret_access_key',
	'CSV',
	'zstd'
)
;

INSERT INTO lineorder_csv_compressed
SELECT * FROM lineorder_clickhouse ;

select count(*) from lineorder_csv_compressed ;

-- 8. Unload to Parquet

DROP TABLE lineorder_parquet ;
CREATE TABLE lineorder_parquet
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/file_formats/parquet/',
	'aws_access_key_id',
	'aws_secret_access_key',
	'Parquet'
)
;

INSERT INTO lineorder_parquet
SELECT * FROM lineorder_clickhouse ;

-- 9. Parquet compressed

DROP TABLE lineorder_parquet_compressed ;
CREATE TABLE lineorder_parquet_compressed
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/file_formats/parquet_compressed/',
	'aws_access_key_id',
	'aws_secret_access_key',
	'Parquet',
	'zstd'
)
;

INSERT INTO lineorder_parquet_compressed
SELECT * FROM lineorder_clickhouse ;

-- 10. Unload to ORC

DROP TABLE lineorder_orc ;
CREATE TABLE lineorder_orc
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/file_formats/orc/',
	'aws_access_key_id',
	'aws_secret_access_key',
	'ORC'
)
;

INSERT INTO lineorder_orc
SELECT * FROM lineorder_clickhouse ;

-- 11. Unload to ORC compressed

DROP TABLE lineorder_orc_compressed ;
CREATE TABLE lineorder_orc_compressed
(
    LO_ORDERKEY             UInt32,
    LO_LINENUMBER           UInt8,
    LO_CUSTKEY              UInt32,
    LO_PARTKEY              UInt32,
    LO_SUPPKEY              UInt32,
    LO_ORDERDATE            Date,
    LO_ORDERPRIORITY        LowCardinality(String),
    LO_SHIPPRIORITY         UInt8,
    LO_QUANTITY             UInt8,
    LO_EXTENDEDPRICE        UInt32,
    LO_ORDTOTALPRICE        UInt32,
    LO_DISCOUNT             UInt8,
    LO_REVENUE              UInt32,
    LO_SUPPLYCOST           UInt32,
    LO_TAX                  UInt8,
    LO_COMMITDATE           Date,
    LO_SHIPMODE             LowCardinality(String)
)
ENGINE = S3('https://storage.yandexcloud.net/otus-dwh/file_formats/orc_compressed/',
	'aws_access_key_id',
	'aws_secret_access_key',
	'ORC',
	'zstd'
)
;

INSERT INTO lineorder_orc_compressed
SELECT * FROM lineorder_clickhouse ;

-- 12. Benchmark query latency

-- CSV
SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_csv
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;

-- JSON
SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_json
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;

-- CSV compressed
SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_csv_compressed
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;

-- Parquet
SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_parquet
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;


-- ORC
EXPLAIN
SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_orc
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;

-- Parquet compressed
SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_parquet_compressed
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;

-- ORC compressed
SELECT
	date_trunc('month', LO_ORDERDATE) AS mnth
	, count(DISTINCT LO_ORDERKEY) AS num_orders
	, count(DISTINCT LO_CUSTKEY) AS num_customer
	, sum(LO_REVENUE) AS revenue
FROM
	lineorder_orc_compressed
WHERE LO_ORDERDATE BETWEEN '1992-12-01' AND '1992-12-31'
GROUP BY
	date_trunc('month', LO_ORDERDATE)
ORDER BY date_trunc('month', LO_ORDERDATE)
;
