Heat Transfer mini program
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
import numpy as np | |
import matplotlib.pyplot as plt | |
s = [10, 10] | |
grid = np.zeros(s) | |
esp = 1e-3 | |
def init(): | |
grid[:, :] = 650/4 | |
def setBound(): | |
grid[0, :] = 50 | |
grid[:, -1] = 100 | |
grid[-1, :] = 200 | |
grid[:, 0] = 300 | |
# main | |
init() | |
setBound() | |
it = 0 | |
while True: | |
it += 1 | |
print(it) | |
oldgrid = grid.copy() | |
grid = np.mean([ | |
np.roll(grid, 1, axis=0), | |
np.roll(grid, 1, axis=1), | |
np.roll(grid, -1, axis=0), | |
np.roll(grid, -1, axis=1)], axis=0) | |
setBound() | |
# print(grid) | |
if not (np.abs(grid - oldgrid) > esp).any(): | |
break | |

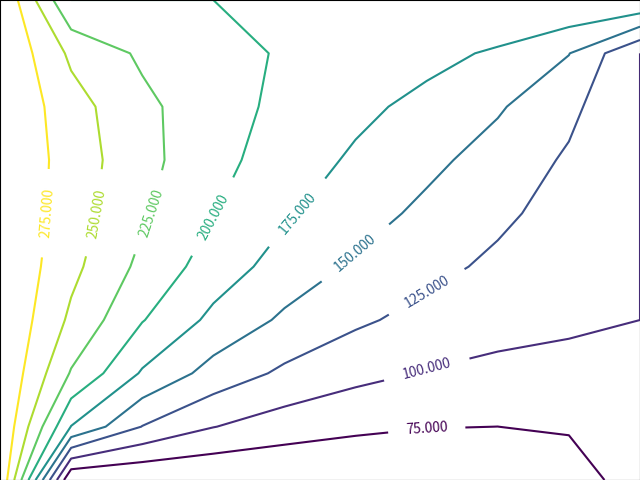

X, Y = np.meshgrid(np.arange(s[0]), np.arange(s[1])) | |
# plt.contourf(X, Y, grid, 10) | |
cont = plt.contour(X, Y, grid, 10) | |
plt.clabel(cont) | |
plt.xticks([]) | |
plt.yticks([]) | |
plt.subplots_adjust(top=1, bottom=0, right=1, left=0, | |
hspace=0, wspace=0) | |
plt.show() |
