A simple color picker window for Unity. Requires Odin.

A simple color picker editor window for Unity.

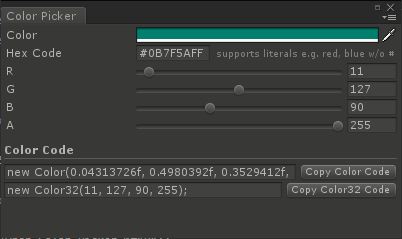

Screenshot

using Sirenix.OdinInspector;
using Sirenix.OdinInspector.Editor;
using UnityEditor;
using UnityEngine;
public class ColorPicker : OdinEditorWindow
{
#region Windows Stuff
private static ColorPicker _instance;
[MenuItem("Tools/Open Color Picker %#&P")]
public static void OpenWindow()
{
_instance = GetWindow<ColorPicker>();
_instance.minSize = new Vector2(400, 200);
_instance.maxSize = new Vector2(800, 400);
_instance.Show();
}
protected override void Initialize()
{
base.Initialize();
_instance = this;
}
#endregion
#region On Value Changes
[OnValueChanged("OnColorChanged")] public Color color = Color.white;
// [OnValueChanged("OnColor32Changed")]
private Color32 color32 = new Color32(0xFF, 0xFF, 0xFF, 0xFF);
[OnValueChanged("OnHexCodeChanged")] [SuffixLabel("supports literals e.g. red, blue w/o #")]
public string hexCode = "#FFFFFFFF";
public void OnColorChanged(Color newColor)
{
color32 = newColor;
hexCode = $"#{ColorUtility.ToHtmlStringRGBA(newColor)}";
r = color32.r;
g = color32.g;
b = color32.b;
a = color32.a;
_instance.RemoveNotification();
}
public void OnColor32Changed(Color32 newColor32)
{
color = newColor32;
hexCode = ColorUtility.ToHtmlStringRGBA(color);
OnColorChanged(color);
}
public void OnHexCodeChanged(string newHexCode)
{
var successful = ColorUtility.TryParseHtmlString(newHexCode, out var newColor);
if (newHexCode.StartsWith("#") == false && successful == false)
{
successful = ColorUtility.TryParseHtmlString($"#{newHexCode}", out newColor);
}
if (successful == false)
{
_instance.ShowNotification(
new GUIContent(
$"Problem parsing hex code: \n#{newHexCode}.\n" +
$"Also supports literals \ne.g. yellow, red."));
return;
}
color = newColor;
color32 = color;
OnColorChanged(color);
}
#endregion
#region Sliders
[Range(0, 255)] [OnValueChanged("OnRGBSliderChange")]
public float r = 255;
[Range(0, 255)] [OnValueChanged("OnRGBSliderChange")]
public float g = 255;
[Range(0, 255)] [OnValueChanged("OnRGBSliderChange")]
public float b = 255;
[Range(0, 255)] [OnValueChanged("OnRGBSliderChange")]
public float a = 255;
public void OnRGBSliderChange()
{
color.r = r / 255;
color.g = g / 255;
color.b = b / 255;
color.a = a / 255;
OnColorChanged(color);
}
#endregion
#region Color Codes
[Title("Color Code")]
[ShowInInspector, HideLabel, InlineButton("CopyColor", "Copy Color Code")]
public string ColorCode
{
get => $"new Color({color.r}f, {color.g}f, {color.b}f, {color.a}f);";
set => _ = value;
}
[ShowInInspector, HideLabel, InlineButton("CopyColor32", "Copy Color32 Code")]
public string Color32Code
{
get => $"new Color32({color32.r}, {color32.g}, {color32.b}, {color32.a});";
set => _ = value;
}
public void CopyColor32() => EditorGUIUtility.systemCopyBuffer = Color32Code;
public void CopyColor() => EditorGUIUtility.systemCopyBuffer = ColorCode;
#endregion
}
using UnityEditor;
using UnityEngine;
// Similar to above but not made with odin so not as cool. :/
public class ColorPickerWindow : EditorWindow
{
private Color _color = Color.white;
private Color32 _color32 = new Color32(255, 255, 255, 255);
private string _hexCode = "FFFFFF";
[MenuItem("Tools/Color Picker")]
public static void OpenWindow()
{
var window = GetWindow<ColorPickerWindow>("Color Picker");
window.Show();
}
protected virtual void OnGUI()
{
_color = EditorGUILayout.ColorField("Color", _color);
if (GUI.changed)
{
_color32 = _color;
_hexCode = ColorUtility.ToHtmlStringRGB(_color);
}
_hexCode = EditorGUILayout.TextField("Hex Code", _hexCode);
if (GUI.changed)
{
ColorUtility.TryParseHtmlString(_hexCode, out _color);
}
_color32.r = (byte) EditorGUILayout.IntSlider("Red", _color32.r, 0, 255);
_color32.g = (byte) EditorGUILayout.IntSlider("Green", _color32.g, 0, 255);
_color32.b = (byte) EditorGUILayout.IntSlider("Blue", _color32.b, 0, 255);
_color32.a = (byte) EditorGUILayout.IntSlider("Alpha", _color32.a, 0, 255);
if (GUI.changed)
{
_color = _color32;
_hexCode = ColorUtility.ToHtmlStringRGB(_color);
}
EditorGUILayout.TextField(
"Color Code",
$"new Color ({_color.r}f, {_color.g}f, {_color.b}f, {_color.a}f)");
EditorGUILayout.TextField(
"Color32 Code",
$"new Color32 ({_color32.r}, {_color32.g}, {_color32.b}, {_color32.a})");
}
}
