onvif v3

onvif.py

"""
Support for ONVIF Cameras with FFmpeg as decoder.

For more details about this platform, please refer to the documentation at
https://home-assistant.io/components/camera.onvif/
"""
import asyncio
import logging

import voluptuous as vol

from homeassistant.const import (
    CONF_NAME, CONF_HOST, CONF_USERNAME, CONF_PASSWORD, CONF_PORT)
from homeassistant.components.camera import Camera, PLATFORM_SCHEMA
from homeassistant.components.ffmpeg import (
    DATA_FFMPEG)
import homeassistant.helpers.config_validation as cv
from homeassistant.helpers.aiohttp_client import (
    async_aiohttp_proxy_stream)

_LOGGER = logging.getLogger(__name__)

REQUIREMENTS = ['onvif-py3==0.1.3',
                'suds-py3==1.3.3.0',
                'http://github.com/tgaugry/suds-passworddigest-py3'
                '/archive/86fc50e39b4d2b8997481967d6a7fe1c57118999.zip'
                '#suds-passworddigest-py3==0.1.2a']
DEPENDENCIES = ['ffmpeg']
DEFAULT_NAME = 'ONVIF Camera'
DEFAULT_PORT = 5000
DEFAULT_USERNAME = 'admin'
DEFAULT_PASSWORD = '888888'

PLATFORM_SCHEMA = PLATFORM_SCHEMA.extend({
    vol.Required(CONF_HOST): cv.string,
    vol.Optional(CONF_NAME, default=DEFAULT_NAME): cv.string,
    vol.Optional(CONF_PASSWORD, default=DEFAULT_PASSWORD): cv.string,
    vol.Optional(CONF_USERNAME, default=DEFAULT_USERNAME): cv.string,
    vol.Optional(CONF_PORT, default=DEFAULT_PORT): cv.port,
})


@asyncio.coroutine
def async_setup_platform(hass, config, async_add_devices, discovery_info=None):
    """Set up a ONVIF camera."""
    if not hass.data[DATA_FFMPEG].async_run_test(config.get(CONF_HOST)):
        return
    async_add_devices([ONVIFCameraHASS(hass, config)])


class ONVIFCameraHASS(Camera):
    """An implementation of an ONVIF camera."""

    def __init__(self, hass, config):
        """Initialize a ONVIF camera."""
        from onvif import ONVIFCamera
        super().__init__()

        self._name = config.get(CONF_NAME)
        self._ffmpeg_arguments = '-q:v 2'
        self._input = None
        try:
            _LOGGER.debug("Connecting with ONVIF Camera: %s on port %s",
                          config.get(CONF_HOST), config.get(CONF_PORT))
            media_service = ONVIFCamera(
                config.get(CONF_HOST), config.get(CONF_PORT),
                config.get(CONF_USERNAME), config.get(CONF_PASSWORD)
            ).create_media_service()
            stream_uri = media_service.GetStreamUri(
                {'StreamSetup': {'Stream': 'RTP-Unicast', 'Transport': 'RTSP'}}
                )
            self._input = stream_uri.Uri.replace(
                'rtsp://', 'rtsp://{}:{}@'.format(
                    config.get(CONF_USERNAME),
                    config.get(CONF_PASSWORD)), 1)
            _LOGGER.debug(
                "ONVIF Camera Using the following URL for %s: %s",
                self._name, self._input)
        except Exception as err:
            _LOGGER.error("Unable to communicate with ONVIF Camera: %s", err)
            raise

    @asyncio.coroutine
    def async_camera_image(self):
        """Return a still image response from the camera."""
        from haffmpeg import ImageFrame, IMAGE_JPEG
        ffmpeg = ImageFrame(
            self.hass.data[DATA_FFMPEG].binary, loop=self.hass.loop)

        image = yield from asyncio.shield(ffmpeg.get_image(
            self._input, output_format=IMAGE_JPEG,
            extra_cmd=self._ffmpeg_arguments), loop=self.hass.loop)
        return image

    @asyncio.coroutine
    def handle_async_mjpeg_stream(self, request):
        """Generate an HTTP MJPEG stream from the camera."""
        from haffmpeg import CameraMjpeg

        stream = CameraMjpeg(self.hass.data[DATA_FFMPEG].binary,
                             loop=self.hass.loop)
        yield from stream.open_camera(
            self._input, extra_cmd=self._ffmpeg_arguments)

        yield from async_aiohttp_proxy_stream(
            self.hass, request, stream,
            'multipart/x-mixed-replace;boundary=ffserver')
        yield from stream.close()

    @property
    def name(self):
        """Return the name of this camera."""
        return self._name

Add custom_components folder to config folder
under the custom_components folder create a camera folder
under the camera folder you need to save the onvif.py file

Remember to add debug logging for custom_components.camera.onvif

logger:
  logs:
    custom_components.camera.onvif: debug

Tested on Sricam port 5000, Android IP CAM port 8080

Hi!
Great job! Have you tried to create a PR to HA github?

Hi!
Am a bit new to both Home Assistant and Linux, so I do not really understand what you mean by config folder. Are you referring to /home/homeassistant/.homeassistant?
I have taken the assumption that it was it. I have created /custom_component/camera, copied onvif.py in this folder, added the logger: into configuration.yaml. Check config says config is valid. Restart service but still I cannot get the picture of my camera with ONVIF platform.

Any help?
Thanks

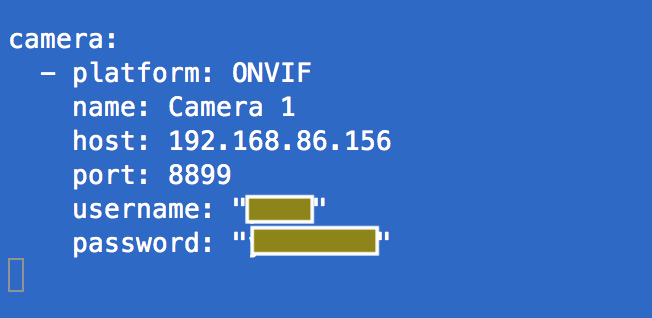

My camera configuration is like this:
