Inky pHAT weather example

About

Inky pHAT is an electronic paper (ePaper / eInk / EPD) display for Raspberry Pi.

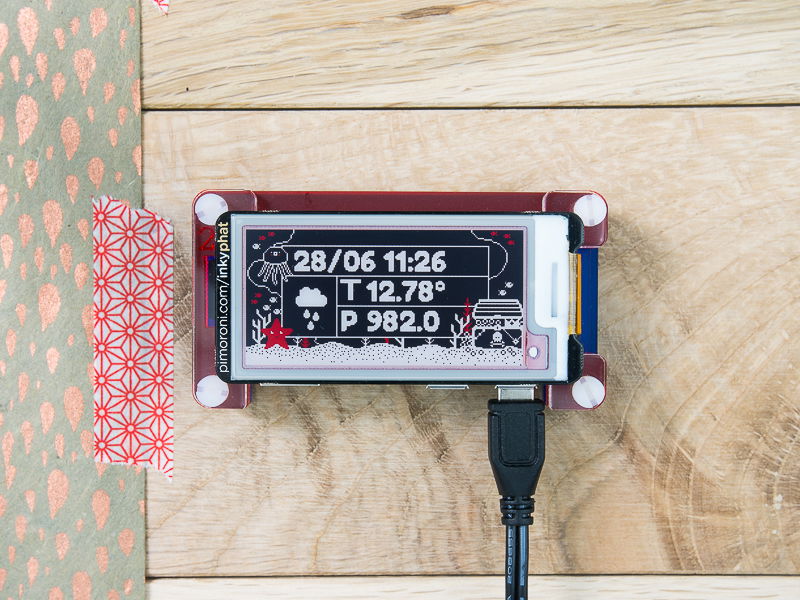

Let's do something similar to Pimoroni's Inky pHAT weather example in Elixir. Here is Pimoroni's Python code.

Underjord's Youtube video Raspberry Pi, eInk and Nerves with Livebook introduces you to the basics of Inky on Nerves firmware.

Dependencies

Add these Elixir packages to your list of dependencies in mix.exs:

• https://hex.pm/packages/inky
• https://hex.pm/packages/chisel

def deps do
  [
    {:inky, "~> 1.0"},
    {:chisel, "~> 0.2"}
  ]
end

Start Inky server

display_type = IO.gets("Display type") |> String.trim() |> String.to_existing_atom()
accent = IO.gets("Accent") |> String.trim() |> String.to_existing_atom()

# Start an Inky server
{:ok, inky_pid} = Inky.start_link(display_type, accent)

Load BDF fonts

• https://github.com/luisgabrielroldan/chisel
• https://github.com/olikraus/u8g2/tree/master/tools/font/bdf

font_name = IO.gets("Font") |> String.trim()
fonts_dir = "/data/fonts" |> tap(&File.mkdir_p/1)
font_path = Path.join([fonts_dir, "#{font_name}.bdf"])

font_url =
  "https://raw.githubusercontent.com/olikraus/u8g2/master/tools/font/bdf/#{font_name}.bdf"

if File.exists?(font_path) do
  IO.puts("Already exists #{font_path}")
else
  {:ok, {{_, 200, _}, _headers, body}} = :httpc.request(font_url)
  IO.puts("Downloaded font #{font_name}")
  File.write(font_path, List.to_string(body))
end

IO.puts("Loading font #{font_path}")
{:ok, chisel_font} = Chisel.Font.load(font_path)

Get weather info

weather_url = "https://wttr.in/?format=j1"
{:ok, {{_, 200, _}, _headers, body}} = :httpc.request(weather_url)
parsed_body = body |> List.to_string() |> Jason.decode!()
weather_info = hd(parsed_body["current_condition"])

Print pixels on Inky

clear_display_fun = fn ->
  Inky.set_pixels(inky_pid, fn _x, _y, _w, _h, _pixels -> :white end, push: :skip)
end

print_text_fun = fn text, {x, y}, color, opts ->
  put_pixel_fun = fn x, y -> Inky.set_pixels(inky_pid, %{{x, y} => color}, push: :skip) end
  Chisel.Renderer.draw_text(text, x, y, chisel_font, put_pixel_fun, opts)
end

clear_display_fun.()

"""
#{weather_info["localObsDateTime"]}
#{hd(weather_info["weatherDesc"]) |> Map.fetch!("value")}
Feels like #{weather_info["FeelsLikeF"]}°
"""
|> IO.inspect()
|> print_text_fun.({10, 10}, :black, size_x: 2, size_y: 2)

# Push the pixels in bulk
Inky.set_pixels(inky_pid, %{}, push: :await)
