IR codes for Xbox Media Center Remote
Raw
Xbox IR Remote Codes.md

Media Remote Control for XBOX One - Series X/S

IR Remote Codes Sent from Remote

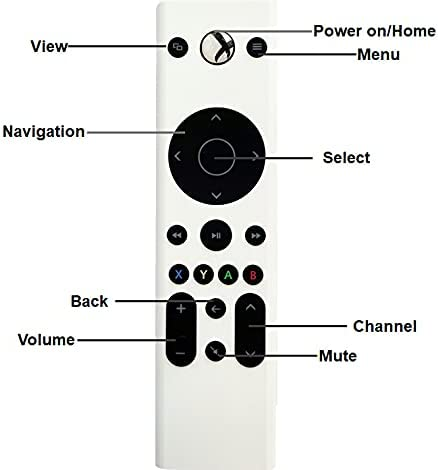

Xbox remote like this

Top Row
  • Xbox Logo/Power On/Home - 18556633
  • View - 18577033
  • Menu - 18609673
Navigation Pad
  • Select/Center - 18564283
  • Up - 18577543
  • Down - 18610183
  • Left - 18547963
  • Right - 18580603
Play/Pause/Seek
  • Play/Pause - 18550513
  • Rewind - 18589783
  • Fast-Forward - 18557143
Controller Buttons
  • X - 18552553
  • Y - 18605593
  • A - 18572953
  • B - 18589273
Volume/Channel Back/Mute
  • Vol Up - 18548983
  • Vol Down - 18581623
  • Chan Up - 18565303
  • Chan Down - 18597943
  • Back - 18596923
  • Mute/Unmute - 18575503
