An api, otherwise know as Application Programming Interface, is an easy way to share content between two parties. It is language agnostic which means that people can use any language they want and get the same results.
- Facebook Login -- many applications that are not operated by facebook can have a single login for their application
- Google Maps
- Youtube
So what does have a RESTFUL API actually mean?
RESTFUL is a word typically used to describe API's, in plain terms it means that you abide by some standards that are defined below. It is a bit hard to describe REST (represenatational state transfer) as the web is built using RESTFUL principles so many things we take for granted are actually defined by the REST standard. Here's a brief overview:
A RESTFUL API will have the following properties:
- Base URI which in this case is http://api.seanssmith.me/
- Uses an internet media type in this case JSON
- Uses standard HTTP methods (I'll talk about these later)
- Stateless
- Server takes care of the hard stuff like memory management
HTTP has a few verbs that are standardized. Many languages and different platforms can communicate with the server using these codes combined with a URI.
| Verb | Meaning |
|---|---|
| GET | This is what your browser is doing when you request google.com, it simply means get information at this resource. The URI should indicate what you're retreiving. For example GET http://api.seanssmith.me/time should return the current time. |
| HEAD | This is the exact same as the GET request except it doesn't return the body of the request. It only returns the header information which includes status codes and content type. |
| POST | Tells the server to accept some information that is given in the message body. |
| PUT | Update some information that is already there. |
| DELETE | Deletes some information that exists. |
Http status codes are integer codes that tell you the status of some of your request. They are easy to check before you actually check the contents of your request so it's easy
| Status Code | Meaning |
|---|---|
| 200 | All Good :) |
| 302 | We found the resource but at a different URI. Let me direct you there. |
| 400 | Bad request -- a client problem. For example calling GET http://api.seanssmith.me/tiem |
| 403 | Forbidden -- You do not have access to this resource. |
| 404 | Not Found, this is when you request some info that doesn't exist |
| 500 | Internal server error -- as the name says usually not your issue |
You have probably seen a url that looks like this: http://www.reddit.com/r/Bitcoin/search?q=hi+reddit
The structure of a url is as follows:
<scheme>://<username>:<password>@<host>:<port>/<path>;<parameters>?<query>#<fragment>
Most of that isn't actually used in a api request. Typically you request some scheme usually http or https with some host for example seanssmith.me. In this case I'm using a subdomain api.seanssmith.me as my personal site is running on http://seanssmith.me. You specify some path, which in the case of a RESTFUL API is a resource, and you specify some parameters.
The arguments of a URL are where it becomes interesting. You can include key value pair arguments in a uri.
http://www.reddit.com/r/Bitcoin/search?q=hi+reddit&type=json
The above url has the key q and the url encoded value hi+reddit. It encodes the value query "hi reddit" as hi+reddit because spaces cannot be part of URL's so it encodes the space as +.
To include arguments after the url include a ? directly after the path. Then include a key value pair key=value, subseqent key value pairs are seperated by & like so: http://www.reddit.com/r/Bitcoin/search?q=hi+reddit&type=json. They can also be seperated by ;.
In general arguments in the url will specify a condition about the resource that you are trying to use. In this case I was searching reddit with the arguments "hi reddit".
Many people don't know a lot about absolute versus relative URL's, they act a lot like a unix file path. An absolute url has a scheme whereas a relative url does not. The more nitty gritty details are below.
1)
base: http://www.blah.com/yadda1/yadda2/yadda3?param1=foo#bar
relative: rel1
final absolute: http://www.blah.com/yadda1/yadda2/rel1
2)
base: http://www.blah.com/yadda1/yadda2/yadda3?param1=foo#bar
relative: /rel1
final absolute: http://www.blah.com/rel1
3)
base: http://www.blah.com/yadda1/yadda2/yadda3?param1=foo#bar
relative: ../rel1
final absolute: http://www.blah.com/yadda1/rel1
4)
base: http://www.blah.com/yadda1/yadda2/yadda3?param1=foo#bar
relative: ./rel1?param2=baz#bar2
final absolute: http://www.blah.com/yadda1/yadda2/rel1?param2=baz#bar2
5)
base: http://www.blah.com/yadda1/yadda2/yadda3?param1=foo#bar
relative: ..
final absolute: http://www.blah.com/yadda1/
So when you send a http request to a certain uri what are you actually sending? You send some structured text to a certain url.
GET requests have no request body. To send information to a request you can use arguments encoded into the URL. For example when you send a get request to google.com you are actually sending the request to that URL with some headers as defined below:
GET https://www.google.com/?q=cats%20and%20stuff
POST requests have a request body that looks largely like the arguments of a url.
Request
Remote Address: 128.197.10.20:80
Request URL: http://cs-people.bu.edu/swsmith/email2.php
Request Method: POST
Status Code: 200 OK
Request Headers
Accept:*/*
Accept-Encoding:gzip, deflate
Accept-Language:en-US,en;q=0.8
Connection:keep-alive
Content-Length:52
Content-Type:application/x-www-form-urlencoded; charset=UTF-8
Host:cs-people.bu.edu
Origin:http://seanssmith.me
Referer:http://seanssmith.me/contact.html
User-Agent:Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10_2) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/40.0.2214.115 Safari/537.36
Form Dataview parsed
Request Body
name=Sean Smith&email=swsmith@bu.edu&message=Hi Sean

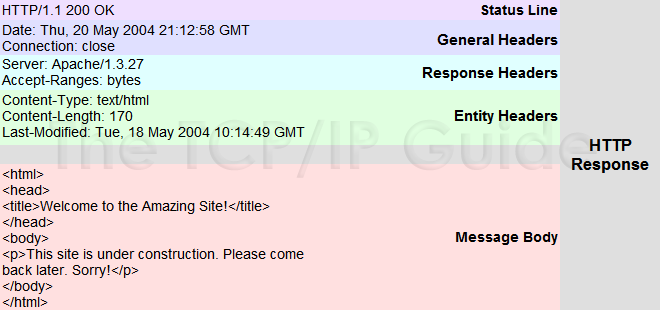

Response Headers
HTTP/1.1 200 OK
Date: Tue, 03 Mar 2015 07:22:52 GMT
Server: Apache/2.2.15 (Scientific Linux)
X-Powered-By: PHP/5.3.3
Access-Control-Allow-Origin: *
Content-Length: 144
Connection: close
Content-Type: text/html; charset=UTF-8
Response Body
name=Sean Smith&email=swsmith@bu.edu&message=Hi Sean
Response Headersview parsed
Better documentation is here: http://api-workshop.readme.io/v1.0/docs
login: swsmith@bu.edu
password: nP?U6U7k}u
The absolute url is http://api.seanssmith.me/
The API has the following relative endpoints:
GET /-- returns version info and links to documentationGET /reddit-- returns some random JSONPOST /reddit-- returns some random JSON given a reddit link and countGET /time-- returns current EST time in JSON formatPOST /addevent-- adds a calendar event of the following format
The /add_event adds an event with the following format:
data = {
"name": name,
"start": start, #start time
"end": end, #end time
"location": location,
"description": description,
}GET /event-- gets the json of an event when you give it an id as a parameterDELETE /deleteevent-- deletes an event of the id passed as an argument
