Soddy hexlet and Villarceau circles in R with rgl
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
# circumsphere #### | |
circumsphere <- function(p1, p2, p3, p4) { | |
x1 <- p1[1]; y1 <- p1[2]; z1 <- p1[3] | |
x2 <- p2[1]; y2 <- p2[2]; z2 <- p2[3] | |
x3 <- p3[1]; y3 <- p3[2]; z3 <- p3[3] | |
x4 <- p4[1]; y4 <- p4[2]; z4 <- p4[3] | |
a <- det(cbind(rbind(p1, p2, p3, p4), 1)) | |
q1 <- c(crossprod(p1)) | |
q2 <- c(crossprod(p2)) | |
q3 <- c(crossprod(p3)) | |
q4 <- c(crossprod(p4)) | |
q <- c(q1, q2, q3, q4) | |
x <- c(x1, x2, x3, x4) | |
y <- c(y1, y2, y3, y4) | |
z <- c(z1, z2, z3, z4) | |
Dx <- det(cbind(q, y, z, 1)) | |
Dy <- -det(cbind(q, x, z, 1)) | |
Dz <- det(cbind(q, x, y, 1)) | |
c <- det(cbind(q, x, y, z)) | |
r <- 0.5*sqrt(Dx*Dx + Dy*Dy + Dz*Dz - 4*a*c) / abs(a) # ou distance(center,p1) | |
list(center = 0.5*c(Dx, Dy, Dz)/a, radius=r) | |
} | |
# pretty rgl spheres #### | |
prettySpheres3d <- function(centers, radii, depth = 4, ...) { | |
sphere <- subdivision3d(icosahedron3d(), depth=depth) | |
sphere$vb[4, ] <- apply(sphere$vb[1:3, ], 2, function(x) sqrt(sum(x*x))) | |
sphere$normals <- sphere$vb | |
if(!is.matrix(centers)) { | |
centers <- t(centers) | |
} | |
if(length(radii) == 1){ | |
radii <- rep(radii, nrow(centers)) | |
} | |
for(i in 1:length(radii)) { | |
shade3d( | |
translate3d( | |
scale3d(sphere, radii[i], radii[i], radii[i]), | |
centers[i, 1], centers[i, 2], centers[i, 3]), ...) | |
} | |
return(invisible()) | |
} | |
# torus passing by three points #### | |
plane3pts <- function(p1 ,p2, p3) { # plane passing by points p1, p2, p3 | |
xcoef = (p1[2]-p2[2])*(p2[3]-p3[3])-(p1[3]-p2[3])*(p2[2]-p3[2]); | |
ycoef = (p1[3]-p2[3])*(p2[1]-p3[1])-(p1[1]-p2[1])*(p2[3]-p3[3]); | |
zcoef = (p1[1]-p2[1])*(p2[2]-p3[2])-(p1[2]-p2[2])*(p2[1]-p3[1]); | |
offset = p1[1]*xcoef + p1[2]*ycoef + p1[3]*zcoef; | |
c(xcoef, ycoef, zcoef, offset) | |
} | |
circleCenterAndRadius <- function(p1, p2, p3) { | |
# center, radius and normal of the circle passing by three points | |
p12 <- (p1+p2)/2 | |
p23 <- (p2+p3)/2 | |
v12 <- p2-p1 | |
v23 <- p3-p2 | |
plane1 <- plane3pts(p1, p2, p3) | |
A <- rbind(plane1[1:3], v12, v23) | |
b <- c(plane1[4], sum(p12*v12), sum(p23*v23)) | |
center <- c(solve(A) %*% b) | |
r <- sqrt(c(crossprod(p1-center))) | |
list(center = center, radius = r, normal = plane1[1:3]) | |
} | |
transfoMatrix <- function(p1, p2, p3){ # transformation matrix | |
crn <- circleCenterAndRadius(p1, p2, p3) | |
center <- crn$center | |
radius <- crn$radius | |
normal <- crn$normal | |
if(normal[1]==0 && normal[2]==0){ | |
m <- rbind(cbind(diag(3), center), c(0, 0, 0, 1)) | |
} else { | |
measure <- sqrt(normal[1]^2 + normal[2]^2 + normal[3]^2) | |
normal <- normal/measure | |
s <- sqrt(normal[1]^2 + normal[2]^2) | |
u <- c(normal[2]/s, -normal[1]/s, 0) | |
v <- geometry::extprod3d(normal, u) | |
m <- rbind(cbind(u, v, normal, center), c(0, 0, 0, 1)) | |
} | |
list(matrix = t(m), radius=radius) | |
} | |
createTorusMesh <- function(R, r, S, s, arc = 2*pi){ | |
vertices <- indices <- NULL | |
for(j in 0:s) { | |
v <- j / s * 2*pi | |
for(i in 0:S) { | |
u <- i / S * arc | |
vertex <- c( | |
(R + r*cos(v)) * cos(u), | |
(R + r*cos(v)) * sin(u), | |
r * sin(v) | |
) | |
vertices <- cbind(vertices, vertex) | |
} | |
} | |
for(j in 1:s) { | |
for(i in 1:S) { | |
a <- (S + 1) * j + i | |
b <- (S + 1) * (j - 1) + i | |
c <- (S + 1) * (j - 1) + i + 1 | |
d <- (S + 1) * j + i + 1 | |
indices <- cbind(indices, c(a, b, d), c(b, c, d)) | |
} | |
} | |
tmesh3d(rbind(vertices, 1), indices) | |
} | |
torusMesh3points <- function(p1, p2, p3, r, S = 64, s= 32, arc = 2*pi) { | |
mr <- transfoMatrix(p1, p2, p3) | |
tmesh0 <- createTorusMesh(mr$radius, r, S, s, arc) | |
transform3d(tmesh0, mr$matrix) | |
} | |
# parametrization of Villarceau circles #### | |
villarceau <- function(mu, a, c, theta, psi, epsilon) { | |
b <- sqrt(a*a-c*c) | |
bb <- b*sqrt(mu*mu-c*c) | |
bb2 <- b*b*(mu*mu-c*c) | |
denb1 <- c*(a*c-mu*c+c*c-a*mu-bb) | |
b1 <- (a*mu*(c-mu)*(a+c)-bb2+c*c+bb*(c*(a-mu+c)-2*a*mu))/denb1 | |
denb2 <- c*(a*c-mu*c-c*c+a*mu+bb) | |
b2 <- (a*mu*(c+mu)*(a-c)+bb2-c*c+bb*(c*(a-mu-c)+2*a*mu))/denb2 | |
omegaT <- (b1+b2)/2 | |
d <- (a-c)*(mu-c)+bb | |
r <- c*c*(mu-c)/((a+c)*(mu-c)+bb)/d | |
R <- c*c*(a-c)/((a-c)*(mu+c)+bb)/d | |
omega2 <- (a*mu + bb)/c | |
sign <- ifelse(epsilon > 0, 1, -1) | |
f1 <- -sqrt(R*R-r*r)*sin(theta) | |
f2 <- sign*(r+R*cos(theta)) | |
x1 <- f1*cos(psi) + f2*sin(psi) + omegaT | |
y1 <- f1*sin(psi) - f2*cos(psi) | |
z1 <- r*sin(theta) | |
den <- (x1-omega2)^2 + y1*y1 + z1*z1 | |
c(omega2 + (x1-omega2)/den, y1/den, z1/den ) | |
} | |
# Villarceau circle as mesh #### | |
vcircle <- function(mu, a, c, r, psi, sign, shift) { | |
p1 <- villarceau(mu, a, c, 0, psi, sign) + shift | |
p2 <- villarceau(mu, a, c, 2, psi, sign) + shift | |
p3 <- villarceau(mu, a, c, 4, psi, sign) + shift | |
torusMesh3points(p1, p2, p3, r) | |
} | |
# Soddy hexlet and its cyclide #### | |
inversion <- function(phi, point, radius, center) { | |
omega <- c(radius/phi, 0, 0) | |
k <- radius^2 * (1/phi^2 - 1) | |
v <- point - omega - center | |
omega + center - k/c(crossprod(v))*v | |
} | |
oneSphere <- function(phi, center, radius, beta) { | |
pt <- center + c(radius*cos(beta)*2/3, radius*sin(beta)*2/3, 0) | |
thRadius <- radius/3 | |
p1 <- pt + c(thRadius, 0, 0) | |
p2 <- pt + c(0, thRadius, 0) | |
p3 <- pt + c(-thRadius, 0, 0) | |
p4 <- pt + c(0, 0, thRadius) | |
q1 <- inversion(phi, p1, radius, center) | |
q2 <- inversion(phi, p2, radius, center) | |
q3 <- inversion(phi, p3, radius, center) | |
q4 <- inversion(phi, p4, radius, center) | |
cs <- circumsphere(q1, q2, q3, q4) | |
list(center = cs$center - c(2*radius/phi, 0, 0), radius = cs$radius) | |
} | |
cyclide <- function(phi, center, radius) { | |
thRadius <- radius/3 | |
p1 <- c(thRadius, 0, 0) | |
p2 <- c(0, thRadius, 0) | |
p3 <- c(-thRadius, 0, 0) | |
p4 <- c(0, 0, thRadius) | |
q1 <- inversion(phi, p1, radius, c(0, 0, 0)) | |
q2 <- inversion(phi, p2, radius, c(0, 0, 0)) | |
q3 <- inversion(phi, p3, radius, c(0, 0, 0)) | |
q4 <- inversion(phi, p4, radius, c(0, 0, 0)) | |
cs <- circumsphere(q1, q2, q3, q4) | |
O2 <- cs$center | |
list(mu = (radius - cs$radius) / 2, | |
a = (radius + cs$radius) / 2, | |
c = -radius/phi + O2[1]/2, | |
shift = center + (O2 - c(2/phi*radius, 0, 0)) / 2) | |
} | |
hexlet <- function(phi, cr, frame = 0, clockwise = TRUE){ | |
shift <- frame * ifelse(clockwise, -pi/90, pi/90) | |
sapply( | |
c(0, pi/3, 2*pi/3,pi, 4*pi/3, 5*pi/3) + shift, | |
function(beta) oneSphere(phi, cr$center, cr$radius, beta) | |
) | |
} | |
# rgl #### | |
phi <- 0.25 | |
library(rgl) | |
hx <- hexlet(phi, list(center = c(0, 0, 0), radius = 1)) | |
open3d(windowRect = c(50, 50, 562, 562)) | |
view3d(0, 0) | |
par3d(zoom = 0.8) | |
centers <- t(apply(hx, 2, `[[`, 1)); radii <- apply(hx, 2, `[[`, 2) | |
prettySpheres3d(centers, radii, color = "black") | |
cycld <- cyclide(phi, c(0, 0, 0), 1) | |
n <- 15 | |
for(i in 1:n) { | |
psi <- i*2*pi/n | |
vmesh <- vcircle(cycld$mu, cycld$a, cycld$c, 0.01, psi, 1, cycld$shift) | |
shade3d(vmesh, color = "red") | |
vmesh <- vcircle(cycld$mu, cycld$a, cycld$c, 0.01, psi, -1, cycld$shift) | |
shade3d(vmesh, color = "red") | |
} | |

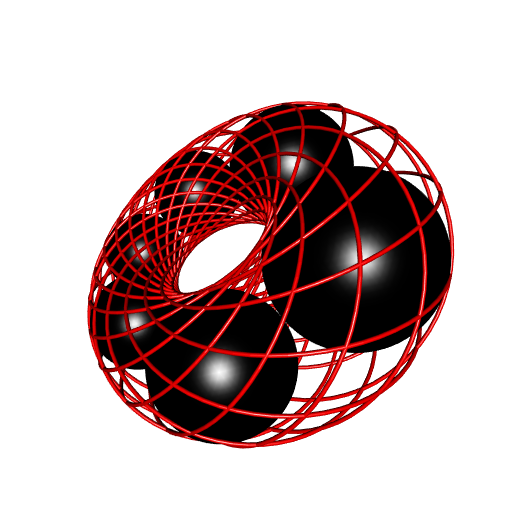

snapshot3d("SoddyHexletWithVillarceauCircle.png", webshot = FALSE) | |

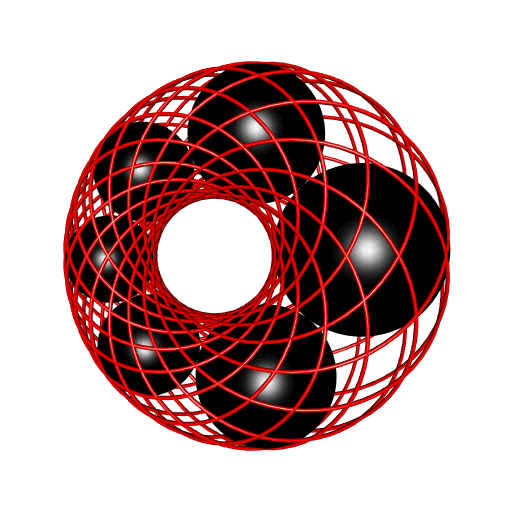

# animation #### | |
library(rgl) | |
open3d(windowRect = c(50, 50, 562, 562)) | |
view3d(0, 0) | |
par3d(zoom = 0.8) | |
phi <- 0.25 | |
cycld <- cyclide(phi, c(0, 0, 0), 1) | |
n <- 15 | |
for(frame in 1:30) { | |
for(i in 1:n) { | |
psi <- i*2*pi/n | |
vmesh <- vcircle(cycld$mu, cycld$a, cycld$c, 0.01, psi, 1, cycld$shift) | |
shade3d(vmesh, color = "red") | |
vmesh <- vcircle(cycld$mu, cycld$a, cycld$c, 0.01, psi, -1, cycld$shift) | |
shade3d(vmesh, color = "red") | |
} | |
hx <- hexlet(phi, list(center = c(0, 0, 0), radius = 1), frame = frame) | |
quads3d(rbind(c(1, 1, -1), | |
c(1, -1, -1), | |
c(-1, -1, -1), | |
c(-1, 1, -1)), | |
color = "white") | |
prettySpheres3d( | |
t(apply(hx, 2, `[[`, 1)), apply(hx, 2, `[[`, 2), color = "black" | |
) | |
snapshot3d(sprintf("SoddyVillarceau%02d.png", frame), webshot = FALSE) | |
clear3d() | |
} | |
command <- | |
"magick convert -dispose previous SoddyVillarceau*.png -loop 0 -delay 5 -alpha on SoddyVillarceau.gif" | |
system(command) | |
pngs <- list.files(pattern = "SoddyVillarceau.*png") | |
file.remove(pngs) |
