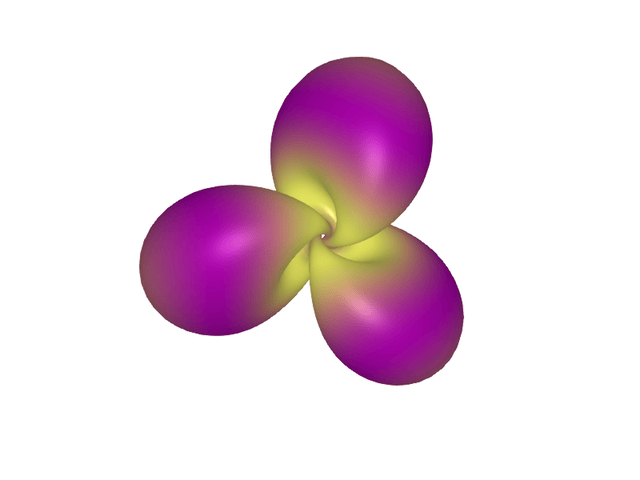

Hopf torus with Julia
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
using Meshes | |
using MeshViz | |
using LinearAlgebra | |
using GLMakie | |
using Makie | |
using ColorSchemes | |
using Printf | |
# parameterization of the Hopf torus | |
function HopfTorus(u, v, nlobes, A) | |
cos_v = cos(v) | |
sin_v = sin(v) | |
B = pi / 2 - (pi / 2 - A) * cos(u * nlobes) | |
C = u + A * sin(2 * u * nlobes) | |
y1 = 1 + cos(B) | |
y23 = sin(B) .* [cos(C), sin(C)] | |
y2 = y23[1] | |
y3 = y23[2] | |
x1 = y3 * cos_v + y2 * sin_v | |
x2 = y2 * cos_v - y3 * sin_v | |
x3 = y1 * sin_v | |
x4 = y1 * cos_v | |
yden = sqrt(2 * y1) | |
[x2 / (yden - x4), x3 / (yden - x4), x1 / (yden - x4)] | |
end | |
# make mesh | |
nu = 300 | |
nv = 200 | |
u_ = LinRange(0, 2*pi, nu+1)[1:nu] | |
v_ = LinRange(0, 2*pi, nv+1)[1:nv] | |
points = [tuple(HopfTorus(u, v, 3, 0.44)...) for u in u_ for v in v_] | |
norms = [norm(pt) for pt in points] | |
scalars = | |
2 * pi * (norms .- minimum(norms)) / (maximum(norms) - minimum(norms)) | |
topo = GridTopology((nv, nu), (true, true)) | |
mesh0 = SimpleMesh(Meshes.Point.(points), topo) | |
mesh = refine(mesh0, TriRefinement()) | |
# colors palette | |
function fpalette(t) | |
u_ = (sin.(scalars .- t) .+ 1) / 2 | |
[get(ColorSchemes.buda, u) for u in u_] | |
end | |
# draw the Hopf torus | |
function drawHT(nplots) | |
t_ = LinRange(0, 2*pi, nplots+1)[1:nplots] | |
for i in 1:nplots | |
fig, ax, _ = viz( # invisible bounding box | |
Meshes.Box(Meshes.Point(-9, -5, -6), Meshes.Point(9, 5, 10)); alpha = 0 | |
) | |
ax.show_axis = false | |
colors = fpalette(t_[i]) | |
viz!(mesh; color = colors) | |
scale!(ax.scene, 1.65, 1.65, 1.65) | |
Makie.rotate!(ax.scene, Makie.Vec3f(-1, 0, 1), -pi/4) | |
png = @sprintf "zzpic%03d.png" i | |
Makie.save(png, fig) | |
end | |
end |
