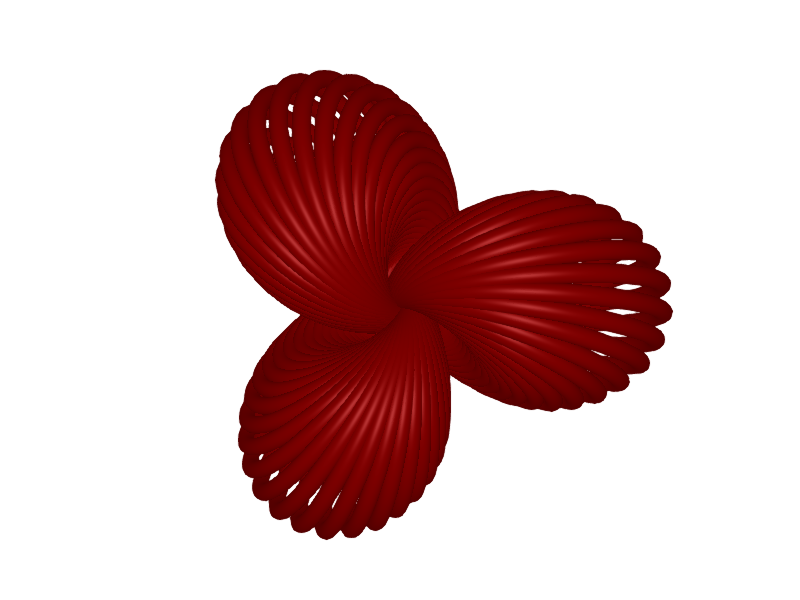

Hopf torus with Julia, circle by circle
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
using Meshes | |
using MeshViz | |
using GLMakie | |
function HopfTorus(u, nlobes, A) | |
t = [0, pi / 2, pi] | |
cos_v = cos.(t) | |
sin_v = sin.(t) | |
B = pi / 2 - (pi / 2 - A) * cos(u * nlobes) | |
C = u + A * sin(2 * u * nlobes) | |
y1 = 1 + cos(B) | |
y23 = sin(B) .* [cos(C), sin(C)] | |
y2 = y23[1] | |
y3 = y23[2] | |
x1 = y3 .* cos_v + y2 .* sin_v | |
x2 = y2 .* cos_v - y3 .* sin_v | |
x3 = y1 .* sin_v | |
x4 = y1 .* cos_v | |
yden = sqrt(2 * y1) | |
m = hcat(x1 ./ (yden .- x4), x3 ./ (yden .- x4), x2 ./ (yden .- x4)) | |
return eachrow(m) | |
end | |
function drawHT(alpha1, alpha2) | |
sphere = Meshes.discretize(Meshes.Sphere((0, 0, 0), 1)) | |
fig, ax, plt = MeshViz.viz( # invisible bounding sphere | |
sphere; alpha = 0 | |
) | |
ax.show_axis = false | |
u_ = LinRange(0, 2 * pi, 210) | |
for i = 1:210 | |
p1, p2, p3 = HopfTorus(u_[i], 3, 0.44) | |
torus = Torus( | |
Meshes.Point(tuple(p1...)), | |
Meshes.Point(tuple(p2...)), | |
Meshes.Point(tuple(p3...)), | |
0.3 | |
) | |
mesh = discretize(torus) | |
MeshViz.viz!(mesh; color = :darkred) | |
end | |
Makie.scale!(ax.scene, 1.65, 1.65, 1.65) | |
Makie.rotate!(fig.scene, Meshes.Vec3f(1, 0, 0), alpha1) | |
Makie.rotate!(ax.scene, Meshes.Vec3f(0, 0, 1), alpha2) | |
Makie.save("HopfTorus_CbyC.png", fig) | |
end |
