Hopf tori with spherical trochoids as profile curves
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
library(rgl) | |
library(cgalMeshes) | |
# Hopf fiber | |
HopfFiber <- function(p, t) { | |
c( | |
p[3L] * cos(t) + p[2L] * sin(t), | |
p[2L] * cos(t) - p[3L] * sin(t), | |
sin(t) * (1 + p[1L]), | |
cos(t) * (1 + p[1L]) | |
) / sqrt(2 * (1 + p[1L])) | |
} | |
# spherical trochoid | |
# https://mathcurve.com/courbes3d/cycloidspheric/trochoidspheric.shtml | |
st <- function(t) { | |
com <- cos(omega) | |
cbind( | |
(a - b*com + d*com*cos(q*t)) * cos(t) + d * sin(t)*sin(q*t), | |
(a - b*com + d*com*cos(q*t)) * sin(t) - d * cos(t)*sin(q*t), | |
sin(omega) * (b - d*cos(q*t)) | |
) | |
} | |
# Hopf parameterization | |
f <- Vectorize(function(t, u){ | |
com <- cos(omega) | |
R <- sqrt(a^2 + (b-d)^2 + 2*a*(d-b)*com) | |
p3 <- (a - b*com + d*com*cos(q*t)) * cos(t) + d * sin(t)*sin(q*t) | |
p2 <- (a - b*com + d*com*cos(q*t)) * sin(t) - d * cos(t)*sin(q*t) | |
p1 <- sin(omega) * (b - d*cos(q*t)) | |
x <- HopfFiber(c(p1, p2, p3)/R, u) | |
x[1L:3L] / (1 - x[4L]) | |
}) | |
# parameters of the spherical trochoid | |
omega <- acos(2.5/3) | |
q <- 3 | |
b <- 5 | |
a <- q * b | |
d_ <- b - seq(0, 10, length.out = 40L) | |
# Hopf mesh - frames | |
open3d(windowRect = 50 + c(0, 0, 512, 512)) | |
bg3d(rgb(54, 57, 64, maxColorValue = 255)) | |
view3d(0, 0, zoom = 0.85) | |
for(i in seq_along(d_)) { | |
d <- d_[i] | |
mesh <- parametricMesh( | |
f, c(0, 2*pi), c(0, 2*pi), periodic = c(TRUE, TRUE), | |
nu = 300L, nv = 300L | |
) | |
mesh <- addNormals(mesh, angleWeighted = FALSE) | |
shade3d(mesh, color = "firebrick4") | |
snapshot3d(sprintf("zzpic%03d.png", i), webshot = FALSE) | |
clear3d() | |
} | |
# mount animation | |
library(gifski) | |
pngs <- Sys.glob("zzpic*.png") | |
gifski( | |
png_files = c(pngs, rev(pngs)), | |

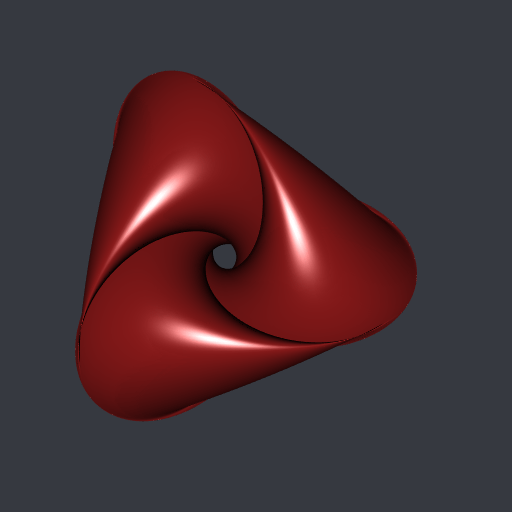

gif_file = "HopfTori-sphericalTrochoidProfile.gif", | |
width = 512, height = 512, | |
delay = 1/10 | |
) | |
file.remove(pngs) |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
library(rgl) | |
library(cgalMeshes) | |
library(trekcolors) | |
# Hopf fiber | |
HopfFiber <- function(p, t) { | |
c( | |
p[3L] * cos(t) + p[2L] * sin(t), | |
p[2L] * cos(t) - p[3L] * sin(t), | |
sin(t) * (1 + p[1L]), | |
cos(t) * (1 + p[1L]) | |
) / sqrt(2 * (1 + p[1L])) | |
} | |
# spherical trochoid | |
# https://mathcurve.com/courbes3d/cycloidspheric/trochoidspheric.shtml | |
st <- function(t) { | |
com <- cos(omega) | |
cbind( | |
(a - b*com + d*com*cos(q*t)) * cos(t) + d * sin(t)*sin(q*t), | |
(a - b*com + d*com*cos(q*t)) * sin(t) - d * cos(t)*sin(q*t), | |
sin(omega) * (b - d*cos(q*t)) | |
) | |
} | |
# coloring function | |
framp <- colorRampPalette( | |
rev(trek_pal("klingon")), bias = 4, interpolate = "spline") | |
cols <- framp(50) | |
fpalette <- colorRamp( | |
c(cols, rev(cols)), | |
bias = 1, interpolate = "spline" | |
) | |
fcolor <- Vectorize(function(t, u) { | |
RGB <- fpalette(t/(2*pi)) | |
rgb(RGB[, 1L], RGB[, 2L], RGB[, 3L], maxColorValue = 255) | |
}) | |
# Hopf parameterization | |
f <- Vectorize(function(t, u){ | |
com <- cos(omega) | |
R <- sqrt(a^2 + (b-d)^2 + 2*a*(d-b)*com) | |
p3 <- (a - b*com + d*com*cos(q*t)) * cos(t) + d * sin(t)*sin(q*t) | |
p2 <- (a - b*com + d*com*cos(q*t)) * sin(t) - d * cos(t)*sin(q*t) | |
p1 <- sin(omega) * (b - d*cos(q*t)) | |
x <- HopfFiber(c(p1, p2, p3)/R, u) | |
x[1L:3L] / (1 - x[4L]) | |
}) | |
# parameters of the spherical trochoid | |
omega <- acos(2.5/3) | |
q <- 3 | |
b <- 5 | |
a <- q * b | |
d_ <- b - seq(0, 10, length.out = 40L) | |
# Hopf mesh - frames | |
open3d(windowRect = 50 + c(0, 0, 512, 512)) | |
bg3d(rgb(54, 57, 64, maxColorValue = 255)) | |
view3d(0, 0, zoom = 0.8) | |
for(i in seq_along(d_)) { | |
d <- d_[i] | |
mesh <- parametricMesh( | |
f, c(0, 2*pi), c(0, 2*pi), periodic = c(TRUE, TRUE), | |
nu = 300L, nv = 300L, fcolor = fcolor | |
) | |
mesh <- addNormals(mesh, angleWeighted = FALSE) | |
shade3d(mesh) | |
snapshot3d(sprintf("zzpic%03d.png", i), webshot = FALSE) | |
clear3d() | |
} | |
# mount animation | |
library(gifski) | |
pngs <- Sys.glob("zzpic*.png") | |
gifski( | |
png_files = c(pngs, rev(pngs)), | |

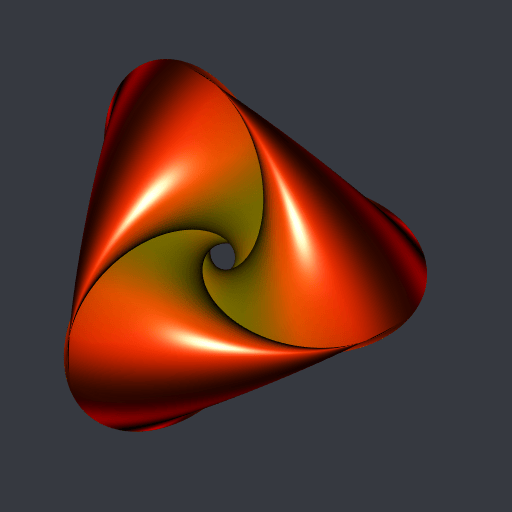

gif_file = "HopfTori-sphericalTrochoidProfile-klingon.gif", | |
width = 512, height = 512, | |
delay = 1/10 | |
) | |
file.remove(pngs) |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
# there's an error in the two other files # | |
library(rgl) | |
library(cgalMeshes) | |
library(trekcolors) | |
# Hopf fiber | |
HopfFiber <- function(p, t) { | |
c( | |
p[3L] * cos(t) + p[2L] * sin(t), | |
p[2L] * cos(t) - p[3L] * sin(t), | |
sin(t) * (1 + p[1L]), | |
cos(t) * (1 + p[1L]) | |
) / sqrt(2 * (1 + p[1L])) | |
} | |
# spherical trochoid | |
# https://mathcurve.com/courbes3d/cycloidspheric/trochoidspheric.shtml | |
st <- function(t) { | |
com <- cos(omega) | |
som <- sin(omega) | |
h <- (b - a*com) / som | |
R <- sqrt(a^2 + h^2 + d^2 - b^2) # radius | |
f <- a - b*com + d*com*cos(q*t) | |
c( | |
f * cos(t) + d * sin(t)*sin(q*t), | |
f * sin(t) - d * cos(t)*sin(q*t), | |
som * (b - d*cos(q*t)) - h | |
) / R | |
} | |
# coloring function | |
framp <- colorRampPalette( | |
rev(trek_pal("klingon")), bias = 0.1, interpolate = "spline") | |
cols <- framp(50) | |
fpalette <- colorRamp( | |
c(cols, rev(cols)), | |
bias = 1, interpolate = "spline" | |
) | |
fcolor <- Vectorize(function(t, u) { | |
RGB <- fpalette(t/(2*pi)) | |
rgb(RGB[, 1L], RGB[, 2L], RGB[, 3L], maxColorValue = 255) | |
}) | |
# Hopf parameterization | |
f <- Vectorize(function(t, u){ | |
p <- st(t) | |
p3 <- p[1L] | |
p2 <- p[2L] | |
p1 <- p[3L] | |
x <- HopfFiber(c(p1, p2, p3), u) | |
x[1L:3L] / (1 - x[4L]) | |
}) | |
# parameters of the spherical trochoid | |
omega <- acos(0.5/3) | |
q <- 3 | |
b <- 5 | |
a <- q * b | |
d_ <- b - seq(-5, 5, length.out = 40L) | |
# Hopf mesh - frames | |
open3d(windowRect = 50 + c(0, 0, 512, 512)) | |
bg3d(rgb(54, 57, 64, maxColorValue = 255)) | |
view3d(0, 0, zoom = 0.7) | |
for(i in seq_along(d_)) { | |
d <- d_[i] | |
mesh <- parametricMesh( | |
f, c(0, 2*pi), c(0, 2*pi), periodic = c(TRUE, TRUE), | |
nu = 350L, nv = 300L, fcolor = fcolor | |
) | |
mesh <- addNormals(mesh, angleWeighted = FALSE) | |
shade3d(mesh) | |
snapshot3d(sprintf("zzpic%03d.png", i), webshot = FALSE) | |
clear3d() | |
} | |
# mount animation | |
library(gifski) | |
pngs <- Sys.glob("zzpic*.png") | |
gifski( | |
png_files = c(pngs, rev(pngs)), | |

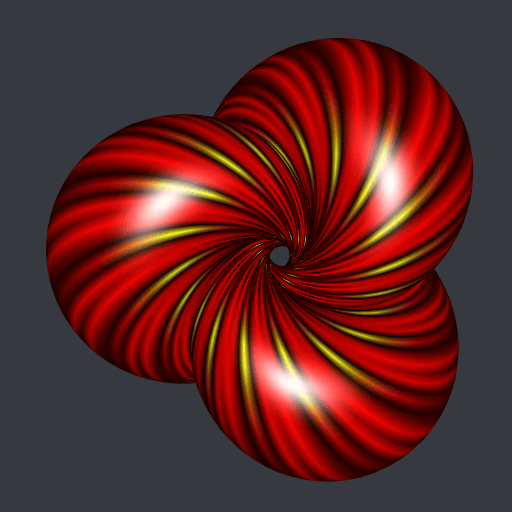

gif_file = "HopfTori-sphericalTrochoidProfile-KlingonColors.gif", | |
width = 512, height = 512, | |
delay = 1/10 | |
) | |
file.remove(pngs) |
