Steiner chain with Julia
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
using Meshes | |
using MeshViz | |
using GLMakie | |
using LinearAlgebra | |
using Makie | |
using Printf | |
# image of circle (center, radius) by the inversion | |
# with center c and power k | |
function iotaCircle(c, k, center, radius) | |
r = sqrt(abs(k)) | |
z1 = sign(k) * (center-c)/r | |
D1 = (radius/r)^2 - dot(z1, z1) | |
z2 = -z1/D1 | |
R2 = sqrt(dot(z2, z2) + 1/D1) | |
return (center = r*z2 + c, radius = r*R2) | |
end | |
# n: vector, the numbers of spheres at each step | |
# -1 < phi < 1, phi != 0 | |
function steiner(n, phi, shift = 0, Center = [0, 0], radius = 2) | |
depth = length(n) | |
invphi = 1/phi | |
I = [radius*invphi, 0] + Center | |
k = radius*radius * (1 - invphi*invphi) | |
m = n[1] | |
if depth > 1 | |
popfirst!(n) | |
end | |
sine = sin(pi/m) | |
Coef = 1 / (1 + sine) | |
O1x = 2*radius*invphi | |
CRadius = Coef*radius | |
CSide = CRadius*sine | |
for i in 1:m | |
beta = (i + shift)*2*pi/m | |
pti = [CRadius*cos(beta), CRadius*sin(beta)] + Center | |
cc = iotaCircle(I, k, pti, CSide) | |
center = cc.center - [O1x, 0] | |
r = cc.radius | |
if depth == 1 | |
push!( | |
spheres, | |
discretize(Meshes.Sphere(Meshes.Point(center[1], center[2], 0), r)) | |
) | |
end | |
if depth > 1 | |
steiner(n, phi, -shift, center, r) | |
end | |
end | |
end | |
# get the spheres | |
function getSpheres(shift) | |
global spheres = Vector{SimpleMesh}(undef, 0) | |
steiner([4, 3], 0.2, shift) | |
spheres | |
end | |

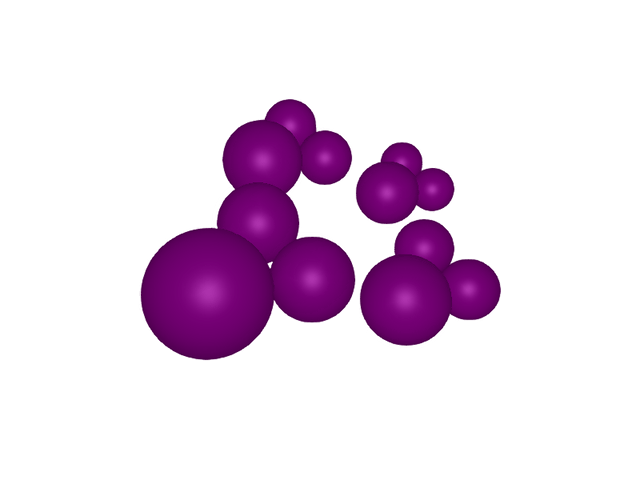

# draw the Steiner chain | |
function drawSC(nplots) | |
shifts = LinRange(0, 1, nplots+1)[1:nplots] | |
for i in 1:nplots | |
spheres = getSpheres(shifts[i]) | |
fig, ax, _ = viz( # invisible bounding box | |
Meshes.Box(Meshes.Point(-2, -2, -0.5), Meshes.Point(2, 2, 0.5)); | |
alpha = 0 | |
) | |
ax.show_axis = false | |
viz!(reduce(merge, spheres); color = :purple) | |
scale!(ax.scene, 1.65, 1.65, 1.65) | |
Makie.rotate!(ax.scene, Makie.Vec3f(-1, 0, 0), pi/9) | |
png = @sprintf "zzpic%03d.png" i | |
Makie.save(png, fig) | |
end | |
end |
Author
stla
commented
Oct 12, 2023
