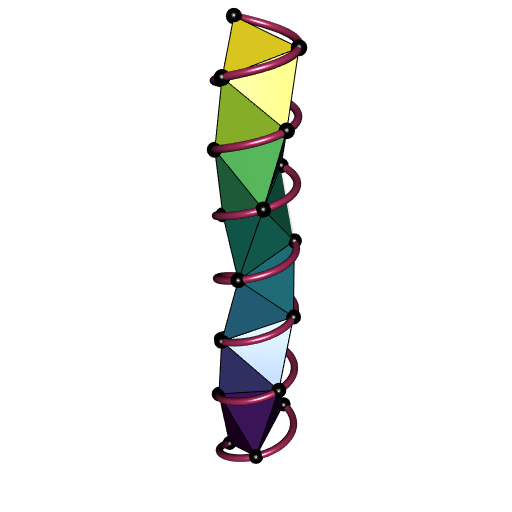

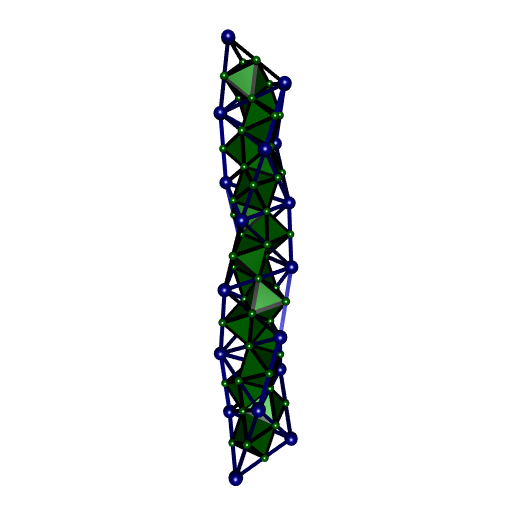

Boerdijk-Coxeter helix (tetrahelix)
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
library(rgl) | |
# tetrahedra vertices | |
r <- 3*sqrt(3)/10 | |
theta <- acos(-2/3) | |
h <- 1/sqrt(10) | |
n <- 20 | |
i <- 1:n | |
p <- cbind(r*cos(i*theta), r*sin(i*theta), i*h) | |
# the octahedron within a tetrahedron, given the tetrahedron vertices | |
# this function returns a mesh | |
octaFromTetra <- function(vs) { | |
p1 <- (vs[, 1] + vs[, 2]) / 2 | |
p2 <- (vs[, 1] + vs[, 3]) / 2 | |
p3 <- (vs[, 1] + vs[, 4]) / 2 | |
p4 <- (vs[, 2] + vs[, 3]) / 2 | |
p5 <- (vs[, 2] + vs[, 4]) / 2 | |
p6 <- (vs[, 3] + vs[, 4]) / 2 | |
P <- rbind(p1, p2, p3, p4, p5, p6) | |
faces <- cbind( | |
c(1L, 2L, 3L), | |
c(1L, 2L, 4L), | |
c(1L, 3L, 5L), | |
c(1L, 4L, 5L), | |
c(6L, 2L, 3L), | |
c(6L, 2L, 4L), | |
c(6L, 3L, 5L), | |
c(6L, 4L, 5L) | |
) | |
tmesh3d( | |
vertices = t(P), | |
indices = faces | |
) | |
} | |
# take the tetrahedron faces | |
th0 <- tetrahedron3d()$it | |
# tetrahedra vertices - there are n-3 tetrahedra in the helix | |
VS <- lapply(1:(n-3), function(k) { | |
cbind(p[k, ], p[1L+k, ], p[2L+k, ], p[3L+k, ]) | |
}) | |
# tetrahedra meshes | |
tetrahedra <- lapply(1:(n-3), function(k) { | |
tmesh3d( | |
vertices = VS[[k]], | |
indices = th0 | |
) | |
}) | |
# octahedra meshes | |
octahedra <- lapply(1:(n-3), function(k) { | |
octaFromTetra(VS[[k]]) | |
}) | |
# non-duplicated octahedra vertices | |
ovs <- unique(do.call( | |
rbind, | |
lapply(1:(n-3), function(k) { | |
vs <- VS[[k]] | |
p1 <- (vs[, 1] + vs[, 2]) / 2 | |
p2 <- (vs[, 1] + vs[, 3]) / 2 | |
p3 <- (vs[, 1] + vs[, 4]) / 2 | |
p4 <- (vs[, 2] + vs[, 3]) / 2 | |
p5 <- (vs[, 2] + vs[, 4]) / 2 | |
p6 <- (vs[, 3] + vs[, 4]) / 2 | |
rbind(p1, p2, p3, p4, p5, p6) | |
}) | |
)) | |
# plot | |
open3d(windowRect = 50 + c(0, 0, 512, 512)) | |
view3d(0, 90) | |
invisible(lapply(1:(n-3), function(k) { | |
wire3d(tetrahedra[[k]], color = "navy", lwd = 4) | |
shade3d(octahedra[[k]], color = "darkgreen", polygon_offset = 1) | |
wire3d(octahedra[[k]], color = "black", lwd = 4) | |
invisible() | |
})) | |
spheres3d(p, radius = 0.1, color = "navy") | |
spheres3d(ovs, radius = 0.06, color = "darkgreen") | |
# animation #### | |
movie3d( | |
spin3d(axis = c(0, 0, 1), rpm = 60), | |
duration = 1, fps = 60, | |
movie = "zzpic", dir = ".", | |
convert = FALSE, webshot = FALSE, | |
startTime = 1/60 | |
) | |
library(gifski) | |
gifski( | |
Sys.glob("zzpic*.png"), | |
"Octahelix.gif", | |
width = 512, height = 512, | |
delay = 1/10 | |
) | |
file.remove(Sys.glob("zzpic*.png")) |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
library(rgl) | |
# tetrahedra vertices | |
r <- 3*sqrt(3)/10 | |
theta <- acos(-2/3) | |
h <- 1/sqrt(10) | |
n <- 20 | |
i <- 1:n | |
p <- cbind(r*cos(i*theta), r*sin(i*theta), i*h) | |
# we will also plot the circular helix | |
ii <- seq(1, n, length.out = 600L) | |
helix <- cbind(r*cos(ii*theta), r*sin(ii*theta), ii*h) | |
tube <- addNormals(cylinder3d( | |
helix, radius = 0.05, sides = 30, closed = TRUE | |
)) | |
# take the tetrahedron faces | |
th0 <- tetrahedron3d()$it | |
# there are n-3 tetrahedra in the helix | |
tetrahedra <- lapply(1:(n-3), function(k) { | |
vs <- cbind(p[k, ], p[1+k, ], p[2+k, ], p[3+k, ]) | |
tmesh3d( | |
vertices = vs, | |
indices = th0 | |
) | |
}) | |
# plot | |
open3d(windowRect = 50 + c(0, 0, 512, 512)) | |
colors <- viridisLite::viridis(n-3) | |
invisible(lapply(1:(n-3), function(k) { | |
shade3d(tetrahedra[[k]], color = colors[k], polygon_offset = 1) | |
wire3d(tetrahedra[[k]]) | |
invisible() | |
})) | |
shade3d(tube, color = "maroon") | |
spheres3d(p, radius = 0.1, color = "black") | |
# animation #### | |
movie3d( | |
spin3d(axis = c(0, 0, 1), rpm = 60), | |
duration = 1, fps = 60, | |
movie = "zzpic", dir = ".", | |
convert = FALSE, webshot = FALSE, | |
startTime = 1/60 | |
) | |
library(gifski) | |
gifski( | |
Sys.glob("zzpic*.png"), | |
"BoerdijkCoxeterTetrahelix.gif", | |
width = 512, height = 512, | |
delay = 1/10 | |
) | |
file.remove(Sys.glob("zzpic*.png")) |
