OnlineStats.jl - Exponentially Weighted Moving Average with a Window
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
cd(@__DIR__) | |
using OnlineStats | |
using Dates | |
using Plots | |
gr() | |
function test() | |
data = Plots.fakedata(250,2) .+ [2 1] | |
n,m= size(data) | |
ewmas = zeros(0,2) | |
labels = ["dogs","cats","ewma(dogs)","ewma(cats)"] | |
linetypes = [:scatter :scatter :path :path] | |
colors = [:red :blue :darkblue :darkred] | |
ewma = [ | |
Mean(weight = ExponentialWeight(.01)), | |
Mean(weight = ExponentialWeight(.01)) | |
] | |
anim = @animate for i=1:n | |
ys = @view data[1:i,:] | |
ewmas = vcat(ewmas, [value(fit!(ewma[j], ys[i,j])) for j in 1:m]') | |
plot(hcat(ys,ewmas), | |
line=(linetypes,:auto,2,colors), | |
labels=labels, | |
title="Exponentially Weighted Moving Average") | |
end every 1 | |
gif(anim, "../data/anim/continually.gif") | |
end | |
test() |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
cd(@__DIR__) | |
using OnlineStats | |
using Dates | |
using Plots | |
gr() | |
function test(data, window=10) | |
n,m= size(data) | |
ewmas = zeros(0,2) | |
labels = ["dogs","cats","ewma(dogs,w=$window)","ewma(cats,w=$window)"] | |
linetypes = [:scatter :scatter :path :path] | |
colors = [:red :blue :darkblue :darkred] | |
anim = @animate for i=1:n | |
ys = @view data[max(1,i-window+1):i,:] | |
@show i, size(ys) | |
ewmas = vcat(ewmas, [value(fit!(Mean(weight = ExponentialWeight(.01)), ys[:,j])) for j in 1:m]') | |
is = @view data[1:i,:] | |
plot(hcat(is,ewmas), | |
line=(linetypes,:auto,2,colors), | |
labels=labels, | |
title="Exponentially Weighted Moving Average (window=$window)", | |
size=(600,400)) | |
end every 1 | |

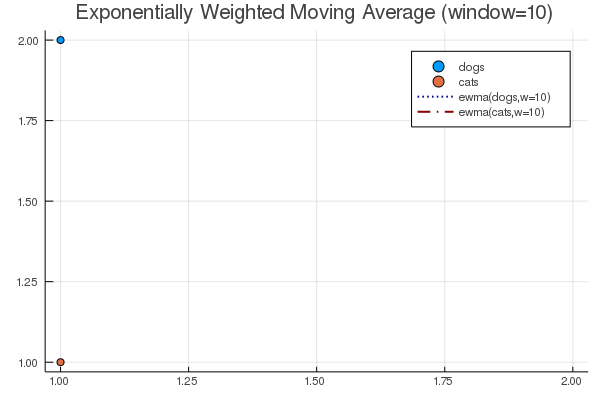

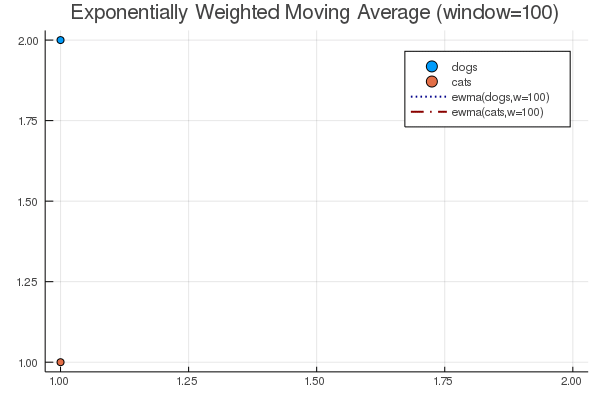

gif(anim, "../data/anim/window_$window.gif") | |
end | |
data = Plots.fakedata(250,2) .+ [2 1] | |
test(data, 10) | |
test(data, 25) | |
test(data, 50) | |
test(data, 75) | |
test(data, 100) |
