# The following Python code is implemented by Professor Terje Haukaas at | |
# the University of British Columbia in Vancouver, Canada. It is made | |
# freely available online at terje.civil.ubc.ca together with notes, | |
# examples, and additional Python code. Please be cautious when using | |
# this code; it may contain bugs and comes without warranty of any form. | |
# Please see the Programming note for how to get started, and notice | |
# that you must copy certain functions into the file terjesfunctions.py | |
# Also notice that for this particular code you need the file | |
# ElCentroGroundMotion.txt, which is posted nearby. | |
# ------------------------------------------------------------------------ | |
import numpy as np | |
import matplotlib.pyplot as plt | |
import terjesfunctions as fcns | |
# ------------------------------------------------------------------------ | |
# INPUT [N, m, s, kg] | |
# ------------------------------------------------------------------------ | |
# Constants | |
E = 2.0e+11 | |
I = 8.09e-5 | |
A = 0.0091 | |
M = 400.0 | |
storeyHeight = 4.0 | |
bayWidth = 6.0 | |
# Nodes (x, y) | |
nodes = np.array([(0.0, 0.0), | |
(bayWidth, 0.0), | |
(2.0*bayWidth, 0.0), | |
(0.0, storeyHeight), | |
(bayWidth, storeyHeight), | |
(2.0*bayWidth, storeyHeight), | |
(0.0, 2.0*storeyHeight), | |
(bayWidth, 2.0*storeyHeight), | |
(2.0*bayWidth, 2.0*storeyHeight)]) | |
# Frame elements (node1, node2, E, I, A) | |
frameElements = np.array([(1, 4, E, I, A), | |
(2, 5, E, I, A), | |
(3, 6, E, I, A), | |
(4, 5, E, I, A), | |
(5, 6, E, I, A), | |
(4, 7, E, I, A), | |
(5, 8, E, I, A), | |
(6, 9, E, I, A), | |
(7, 8, E, I, A), | |
(8, 9, E, I, A)]) | |
# Mass (node, value, dof) | |
mass = np.array([(4, M, 1), | |
(5, M, 1), | |
(6, M, 1), | |
(7, M, 1), | |
(8, M, 1), | |
(9, M, 1)]) | |
# Boundary conditions (node, 0=free, 1=fixed) | |
constraints = np.array([(1, 1, 1, 1), | |
(2, 1, 1, 1), | |
(3, 1, 1, 1)]) | |
# ------------------------------------------------------------------------ | |
# ASSEMBLE THE STIFFNESS MATRIX Ka | |
# ------------------------------------------------------------------------ | |
# Number of DOFs | |
numDOFsPerNodeInStructure = 3 | |
numNodes = nodes.shape[0] | |
totalNumDOFs = numDOFsPerNodeInStructure * numNodes | |
# Count elements | |
numFrameElements = frameElements.shape[0] | |
# Initialize the big stiffness matrix | |
Ka = np.zeros((totalNumDOFs, totalNumDOFs)) | |
# Assemble frame elements | |
KlStorageFrame = [] | |
TlgStorageFrame = [] | |
for i in range(numFrameElements): | |
# Information about element | |
E = frameElements[i, 2] | |
I = frameElements[i, 3] | |
A = frameElements[i, 4] | |
# Information about nodes | |
node1 = int(frameElements[i, 0]) | |
node2 = int(frameElements[i, 1]) | |
nodeList = np.array([node1, node2]) | |
nodalcoords = np.array([nodes[node1-1, 0], nodes[node1-1, 1], nodes[node2-1, 0], nodes[node2-1, 1]]) | |
# Element length and orientation | |
delta_x = nodalcoords[2] - nodalcoords[0] | |
delta_y = nodalcoords[3] - nodalcoords[1] | |
L = np.sqrt(delta_x ** 2 + delta_y ** 2) | |
# Get Kl and Tlg | |
nu = 0 | |
beta = 0 | |
[Kl, Kgeometric, Tlg] = fcns.getFrameStiffness2D(E, nu, I, A, beta, L, delta_x, delta_y, 0) | |
KlStorageFrame.append(Kl) | |
TlgStorageFrame.append(Tlg) | |
# Calculate Kg = Tlg^T * Kl * Tlg | |
Kg = (np.transpose(Tlg).dot(Kl)).dot(Tlg) | |
# Assemble | |
numDOFsPerNodeInElement = 3 | |
Ka = fcns.assembleStiffnessMatrix(Ka, Kg, nodeList, numDOFsPerNodeInElement, numDOFsPerNodeInStructure) | |
# ------------------------------------------------------------------------ | |
# ASSEMBLE MASS MATRIX | |
# ------------------------------------------------------------------------ | |
# Add the mass to DOF 1 and 2 of the node, not the rotational DOF | |
Ma = np.zeros((totalNumDOFs, totalNumDOFs)) | |
numMasses = mass.shape[0] | |
for i in range(numMasses): | |
dof = int((mass[i, 0]-1)*numDOFsPerNodeInStructure + mass[i, 2] - 1) | |
Ma[dof, dof] = mass[i, 1] | |
# ------------------------------------------------------------------------ | |
# INTRODUCE BOUNDARY CONDITIONS & LOCK ZERO-STIFFNESS DOFs | |
# ------------------------------------------------------------------------ | |
# DOFs locked by input | |
dofStatus = np.zeros(totalNumDOFs) | |
nfix = constraints.shape[0] | |
for k in range(nfix): | |
fixedNode = int(constraints[k, 0]) | |
for m in range(numDOFsPerNodeInStructure): | |
if constraints[k, m + 1] == 1: | |
dofStatus[(fixedNode - 1) * numDOFsPerNodeInStructure + m] = 1 | |
# DOFs without stiffness | |
for i in range(totalNumDOFs): | |
if Ka[i, i] == 0: | |
dofStatus[i] = 1 | |
numFreeDOFs = int(totalNumDOFs - np.sum(dofStatus)) | |
Kf = np.zeros((numFreeDOFs, numFreeDOFs)) | |
Mf = np.zeros((numFreeDOFs, numFreeDOFs)) | |
iota = np.zeros(numFreeDOFs) | |
iCounter = 0 | |
jCounter = 0 | |
for i in range(totalNumDOFs): | |
if dofStatus[i] == 0: | |
jCounter = 0 | |
for j in range(i + 1): | |
if dofStatus[j] == 0: | |
Kf[iCounter, jCounter] = Ka[i, j] | |
Kf[jCounter, iCounter] = Ka[i, j] | |
jCounter += 1 | |
Mf[iCounter, iCounter] = Ma[i, i] | |
iota[iCounter] = Ma[i, i] | |
iCounter += 1 | |
# ------------------------------------------------------------------------ | |
# EIGENVALUE ANALYSIS | |
# ------------------------------------------------------------------------ | |
# Here we need scipy, to solve the *generalized* eigenvalue problem [K-omega^2*M]{u} = 0 | |
import scipy | |
# Determine eigenvalues, which are gamma = omega^2 | |
allEigenvalues = scipy.linalg.eigvals(Kf, Mf) | |
# Sort them | |
sortedEigenvalues = np.sort(allEigenvalues) | |
# Check them | |
eigenvalues = [] | |
for i in range(len(sortedEigenvalues)): | |
if sortedEigenvalues[i].real == np.inf: | |
# Remove infinite eigenvalues (zero mass DOFs) | |
pass | |
else: | |
eigenvalues.append(sortedEigenvalues[i].real) | |
# Calculate corresponding frequencies and periods | |
numEigenvalues = len(eigenvalues) | |
naturalFrequencies = [] | |
naturalPeriods = [] | |
print('\n'"Found the following", numEigenvalues, "eigenvalues:"'\n') | |
for i in range(numEigenvalues): | |
frequency = np.sqrt(eigenvalues[i]) | |
naturalFrequencies.append(frequency) | |
period = 2*np.pi/frequency | |
naturalPeriods.append(period) | |
print(" Frequency: %.2frad, Period: %.3fsec" % (frequency, period)) | |
# ------------------------------------------------------------------------ | |
# SET RAYLEIGH DAMPING MATRIX | |
# ------------------------------------------------------------------------ | |
# Set target damping ratio | |
targetDampingRatio = 0.05 | |
# Enforce that damping on the first two modes | |
omega1 = naturalFrequencies[0] | |
omega2 = naturalFrequencies[1] | |
# Calculate alpha and beta in C = alpha*M + beta*K | |
factor = 2 * targetDampingRatio / (omega1 + omega2) | |
alpha = omega1 * omega2 * factor | |
beta = factor | |
# Create the damping matrix | |
Cf = np.multiply(Mf, alpha) + np.multiply(Kf, beta) | |
# Calculate the damping ratio at the different periods | |
dampingRatios = [] | |
for i in range(numEigenvalues): | |
dampingRatios.append(alpha / (2 * naturalFrequencies[i]) + beta * naturalFrequencies[i] / 2) | |
# Plot those damping ratios | |
plt.ion() | |
fig = plt.figure(1) | |
plt.title("Damping Ratio at Different Natural Periods") | |
plt.plot(naturalPeriods, dampingRatios, 'ks-', label='Actual damping') | |
plt.plot([naturalPeriods[0], naturalPeriods[-1]], [targetDampingRatio, targetDampingRatio], 'rs-', label='Target damping') | |
plt.legend() | |
plt.xlabel("Period [sec]") | |
plt.ylabel("Damping Ratio") | |
print('\n'"Press any key to continue...") | |
plt.waitforbuttonpress() | |
# ------------------------------------------------------------------------ | |
# READ GROUND MOTION [Unit of g] | |
# ------------------------------------------------------------------------ | |
# Load the El Centro ground motion record | |
groundAcceleration = [] | |
f = open("ElCentroGroundMotion.txt", "r") | |
lines = f.readlines() | |
for oneline in lines: | |
splitline = oneline.split() | |
for j in range(len(splitline)): | |
value = 9.81 * float(splitline[j]) | |
groundAcceleration.append(value) | |
# Output | |
print('\n'"Max ground acceleration in units of g:", np.max(np.abs(groundAcceleration)) / 9.81) | |
# Create time axis | |
numTimePoints = len(groundAcceleration) | |
delta_t = 0.02 | |
t = np.linspace(0, delta_t*numTimePoints, numTimePoints) | |
# Plot the ground motion | |
plt.ion() | |
fig = plt.figure(2) | |
plt.title("El Centro Ground Motion") | |
plt.plot(t, groundAcceleration, 'k-') | |
plt.xlabel("Time [sec]") | |
plt.ylabel("Ground Acceleration [m/s^2]") | |
print('\n'"Press any key to continue...") | |
plt.waitforbuttonpress() | |
# ------------------------------------------------------------------------ | |
# INITIALIZE PLOT | |
# ------------------------------------------------------------------------ | |
# Initial declarations | |
Pplus1 = np.zeros(numFreeDOFs) | |
displacement = np.zeros(numFreeDOFs) | |
velocity = np.zeros(numFreeDOFs) | |
acceleration = np.zeros(numFreeDOFs) | |
# Initialize plot | |
plt.ion() | |
fig = plt.figure(3) | |
plt.autoscale(True) | |
# Find outer plot limits | |
xmin = 0.0 | |
xmax = 0.0 | |
ymin = 0.0 | |
ymax = 0.0 | |
for i in range(numNodes): | |
if nodes[i, 0] < xmin: | |
xmin = nodes[i, 0] | |
elif nodes[i, 0] > xmax: | |
xmax = nodes[i, 0] | |
elif nodes[i, 1] < ymin: | |
ymin = nodes[i, 1] | |
elif nodes[i, 1] > ymax: | |
ymax = nodes[i, 1] | |
xmin = xmin - (xmax - xmin) * 0.3 | |
ymin = ymin - (ymax - ymin) * 0.3 | |
xmax = xmax + (xmax - xmin) * 0.3 | |
ymax = ymax + (ymax - ymin) * 0.3 | |
# Make the plotting area square | |
xrange = xmax - xmin | |
yrange = ymax - ymin | |
if xrange > yrange: | |
ymin -= 0.5 * (xrange - yrange) | |
ymax += 0.5 * (xrange - yrange) | |
else: | |
xmin -= 0.5 * (yrange - xrange) | |
xmax += 0.5 * (yrange - xrange) | |
# ------------------------------------------------------------------------ | |
# MDOF NEWMARK ALGORITHM | |
# ------------------------------------------------------------------------ | |
# Newmark parameters (0.167<beta<0.25) (gamma=0.5) | |
newmarkBeta = 0.25 | |
newmarkGamma = 0.5 | |
# Newmark constants | |
a1 = 1.0 / (newmarkBeta * delta_t**2) | |
a2 = -1.0 / (newmarkBeta * delta_t**2) | |
a3 = -1.0 / (newmarkBeta * delta_t) | |
a4 = (1.0 - 1.0 / (2.0 * newmarkBeta)) | |
a5 = newmarkGamma / (newmarkBeta * delta_t) | |
a6 = -newmarkGamma / (newmarkBeta * delta_t) | |
a7 = (1.0 - newmarkGamma / newmarkBeta) | |
a8 = delta_t * (1.0 - newmarkGamma / (2.0 * newmarkBeta)) | |
# Track max displacement | |
uMax = 0 | |
# Start the loop | |
for step in range(numTimePoints): | |
# Keep track of time | |
time = step * delta_t | |
# Set the external force vector | |
Pplus1 = np.multiply(iota, groundAcceleration[step]) | |
# Establish the system of equations using the Newmark constants | |
newDispFactor = np.multiply(a1, Mf) + np.multiply(a5, Cf) | |
accelFactor = np.multiply(a4, Mf) + np.multiply(a8, Cf) | |
velocFactor = np.multiply(a3, Mf) + np.multiply(a7, Cf) | |
dispFactor = np.multiply(a2, Mf) + np.multiply(a6, Cf) | |
Kefficient = newDispFactor + Kf | |
Fplus1 = Pplus1 - accelFactor.dot(acceleration) - velocFactor.dot(velocity) - dispFactor.dot(displacement) | |
# Solve the system of equilibrium equations | |
uPlus1 = np.linalg.solve(Kefficient, Fplus1) | |
# Maximum displacement | |
uaMax = np.max(np.abs(uPlus1)) | |
if uaMax > uMax: | |
uMax = uaMax | |
# Determine increment in displacement | |
delu = uPlus1 - displacement | |
# Determine acceleration at time step i+1 | |
accelerationPlus1 = np.multiply(a1, delu) + np.multiply(a3, velocity) + np.multiply(a4, acceleration) | |
# Determine velocity at time step i+1 | |
velocityPlus1 = np.multiply(a5, delu) + np.multiply(a7, velocity) + np.multiply(a8, acceleration) | |
# Set response values at time step i equal to response at time step i+1 | |
displacement = uPlus1 | |
velocity = velocityPlus1 | |
acceleration = accelerationPlus1 | |
# Get ua by adding zeros to the array | |
ua = np.zeros(totalNumDOFs) | |
iCounter = 0 | |
for i in range(totalNumDOFs): | |
if dofStatus[i] == 0: | |
ua[i] = displacement[iCounter] | |
iCounter += 1 | |
# Clear previous lines from plot | |
plt.cla() | |
# Set scale factor | |
scale_factor = 500 | |
# Get coordinates of displaced nodes | |
xcoord = np.zeros(2) | |
ycoord = np.zeros(2) | |
for i in range(numFrameElements): | |
node1 = int(frameElements[i, 0]) | |
node2 = int(frameElements[i, 1]) | |
xcoord[0] = nodes[node1 - 1, 0] + ua[(node1 - 1) * numDOFsPerNodeInStructure + 0] * scale_factor | |
ycoord[0] = nodes[node1 - 1, 1] + ua[(node1 - 1) * numDOFsPerNodeInStructure + 1] * scale_factor | |
xcoord[1] = nodes[node2 - 1, 0] + ua[(node2 - 1) * numDOFsPerNodeInStructure + 0] * scale_factor | |
ycoord[1] = nodes[node2 - 1, 1] + ua[(node2 - 1) * numDOFsPerNodeInStructure + 1] * scale_factor | |
# Plot each line segment | |
plt.plot(xcoord, ycoord, 'ks-') | |
# Polish and hold plot | |
plt.title("MDOF Dynamics (Time: %.1f sec, Max displacement: %.4f mm)" % (time, 1000*uMax)) | |
plt.axis([xmin, xmax, ymin, ymax]) | |
plt.pause(0.0001) | |
# Hold the plot a few seconds at the very end | |
print('\n'"Press any key to continue...") | |
plt.waitforbuttonpress() |
Dear Professor Haukaas
Thank you very much for your code!
I'm facing a problem when I try to run the code.
The third figure doesn't plot a displaced shape of the frame and also glitches a long time while plotting.

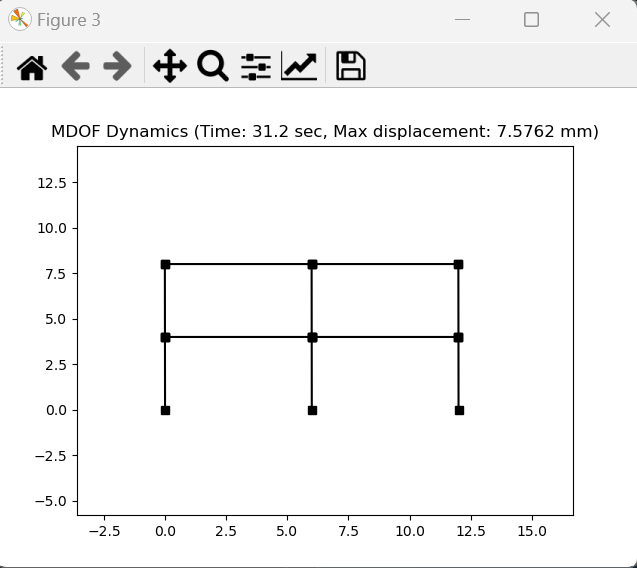

The title also prints a total duration of the ground motion instead of the corresponding time of maximum displacement (as in your screenshot).
Can you suggest where can be a mistake?
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Hello, thank you for this code, i want to help me please.
NameError: name 'fcns' is not defined
How can i fix it @terjehaukaas
