    Notes on setting up a Kubernetes cluster on CoreOS (stable) with DigitalOcean's platform.

Partially stolen from this guide by kevashcraft

Spin up VMs


Spin up 4 VMs with CoreOS Stable. One will be the master, the other 3 will be workers
Tag them with k8s:master and k8s:worker respectively, along with a tag for the cluster
Droplets can be created via your DO control panel, or by using doctl. Just change the CLUSTER_NAME, CLUSTER_DOMAIN, and SSHKEY_ID values below to match your own, then save the file to cluster_create.sh, chmod +x cluster_create.sh, then run it ./cluster_create.sh. If you don't already have doctl setup, it will probably be easier to just do this from the DO control panel if you only need to do a one-time setup for development.

#!/bin/bash

# Set your cluster info
export CLUSTER_NAME=my-kube-cluster
export CLUSTER_DOMAIN=example.com  # Cluster domain can be publically registered, or a private domain
export REGION=nyc1                 # List available regions with `doctl compute region list`
export DROPSIZE=s-2vcpu-2gb        # List available sizes with `doctl compute size list`
export SSHKEY_ID=user@example.com  # List your keys with `doctl compute ssh-key list`

# Create tags
doctl compute tag create k8s:master
doctl compute tag create k8s:worker
doctl compute tag create k8s-${CLUSER_NAME}

doctl compute droplet create ${CLUSTER_NAME}-master.${CLUSTER_DOMAIN} --region ${REGION} --image coreos-stable --size ${DROPSIZE} --tag-names k8s-${CLUSTER_NAME},k8s:master --ssh-keys "${SSHKEY_ID}" --enable-private-networking --enable-ipv6
for i in $(seq 3); do
    doctl compute droplet create ${CLUSTER_NAME}-worker${i}.${CLUSTER_DOMAIN} --region ${REGION} --image coreos-stable --size ${DROPSIZE} --tag-names k8s-${CLUSTER_NAME},k8s:worker --ssh-keys "${SSHKEY_ID}" --enable-private-networking --enable-ipv6
done

doctl compute droplet list


Setup DNS

Kubernetes initial setup


Create node_setup.sh

#!/bin/bash
CNI_VERSION="v0.6.0"
RELEASE="v1.12.2"  # get latest from https://dl.k8s.io/release/stable.txt

# Docker
systemctl enable docker
systemctl start docker

# CNI Plugin
mkdir -p /opt/cni/bin
curl -L "https://github.com/containernetworking/plugins/releases/download/${CNI_VERSION}/cni-plugins-amd64-${CNI_VERSION}.tgz" | tar -C /opt/cni/bin -xz

# Kubernetes
mkdir -p /opt/bin
cd /opt/bin
curl -L --remote-name-all https://storage.googleapis.com/kubernetes-release/release/${RELEASE}/bin/linux/amd64/{kubeadm,kubelet,kubectl}
chmod +x /opt/bin/*

curl -sSL "https://raw.githubusercontent.com/kubernetes/kubernetes/${RELEASE}/build/debs/kubelet.service" | sed "s:/usr/bin:/opt/bin:g" > /etc/systemd/system/kubelet.service
mkdir -p /etc/systemd/system/kubelet.service.d
curl -sSL "https://raw.githubusercontent.com/kubernetes/kubernetes/${RELEASE}/build/debs/10-kubeadm.conf" | sed "s:/usr/bin:/opt/bin:g" > /etc/systemd/system/kubelet.service.d/10-kubeadm.conf

systemctl daemon-reload
systemctl enable kubelet
systemctl start kubelet


Make it executable: chmod +x node_setup.sh

Master Setup


Copy the setup script to master node with scp node_setup.sh core@k8s-master: (your SSH key will be associated with the core user)
SSH into k8s-master and sudo su - to root
Run the node setup and then initialize Kubernetes with kubeadm

~core/node_setup.sh
export priv_ip=$(ip -f inet -o addr show eth1|cut -d\  -f 7 | cut -d/ -f 1 | head -n 1)
kubeadm init --apiserver-advertise-address=$priv_ip --pod-network-cidr=192.168.0.0/16```


Copy the provided kubeadm init line for use with the workers
Setup local kubectl:

export KUBECONFIG=/etc/kubernetes/admin.conf
echo 'export KUBECONFIG=/etc/kubernetes/admin.conf' >> ~/.bash_profile

Worker Setup


Copy the setup script to master node with scp node_setup.sh core@k8s-master: (your SSH key will be associated with the core user)
SSH into k8s-master and sudo su - to root
Run the node setup and then initialize Kubernetes with kubeadm

~core/node_setup.sh
kubeadm init ...<paste the kubeadm command provided by the master node>...

Local kubectl Setup


Install kubectl, if required: https://kubernetes.io/docs/tasks/tools/install-kubectl/
Cat and copy from the master node: cat /etc/kubernetes/admin.conf
On your local machine or admin machine: mkdir -p ~/.kube
vim ~/.kube/config and paste the contents. Make sure to edit the server: line so that it points to your master node's hostname or public IP address, then save the file
kubectl get nodes to view a list of all nodes and test that kubectl is working

Install CNI (Calico)


CNI addons info: https://kubernetes.io/docs/setup/independent/create-cluster-kubeadm/#pod-network
Install Calico:

 kubectl apply -f https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/rbac-kdd.yaml
 kubectl apply -f https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubernetes-datastore/calico-networking/1.7/calico.yaml


Once Calico finishes provisioning, all nodes and pods should go into Ready status. If not, then use kubectl describe to figure out what went wrong.

Install Helm


Install notes: https://github.com/helm/helm/blob/master/docs/install.md#from-script
Run on local admin machine:

curl https://raw.githubusercontent.com/kubernetes/helm/master/scripts/get | bash


Add
Once installed, initialize Helm, which will set it up locally, and also create a Tiller pod on your cluster. This will also add the required RBAC permissions so that Tiller can actually do stuff:

helm init
kubectl create serviceaccount --namespace kube-system tiller
kubectl create clusterrolebinding tiller-cluster-rule --clusterrole=cluster-admin --serviceaccount=kube-system:tiller
kubectl patch deploy --namespace kube-system tiller-deploy --patch '{"spec": {"template": {"spec": {"serviceAccount": "tiller"} } } }'


Use kubectl get po --all-namespaces to check when the Tiller pod goes into Ready status, then use helm version to make sure it's working

Install ingress-nginx


More information can be found at the ingress-nginx deploy docs
Deploy with the following:

kubectl create -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/mandatory.yaml
kubectl create -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/baremetal/service-nodeport.yaml
kubectl patch deployment nginx-ingress-controller -n ingress-nginx --patch '{"spec": {"template": {"spec": {"hostNetwork": true} } } }'


Once provisioned, use kubectl get svc --all-namespaces to check the assigned ports
Create a new Load Balancer on DO


Install cert-manager


More information can be found at the cert-manager docs
Using Helm:

helm install --name cert-manager --namespace kube-system stable/cert-manager

Install Letsencrypt issuer


Create letsencrypt.yaml, replacing the email address with your own. For testing, replace letsencrypt-prod with letsencrypt-staging to get around rate limits.

apiVersion: certmanager.k8s.io/v1alpha1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    # The ACME server URL
    server: https://acme-v02.api.letsencrypt.org/directory
    # Email address used for ACME registration
    email: admin@example.com
    # Name of a secret used to store the ACME account private key
    privateKeySecretRef:
      name: letsencrypt-prod
    # Enable HTTP01 validations
    http01: {}


Apply the configuration: kubectl apply -f letsencrypt.yaml
Check the cert-manager documentation for information on how to use this functionality
Issuing/using wildcard certs

Using existing and traditional CA-issued certs


Import the key and certificate into a secret. Example for a secret called ycnrg-wildcard for my *.ycnrg.org certificate from Comodo. If you will be using this certificate to proxy kubernetes-dashboard (which is part of the kube-system namespace by default), you can create the secret in that namespace as well. Currently, ingress-nginx will not allow referencing secrets from other namespaces.

kubectl create secret tls ycnrg-wildcard --key keys/wildcard_ycnrg-org.key --cert certs/wildcard_ycnrg-org_chained.pem
kubectl -n kube-system create secret tls ycnrg-wildcard --key keys/wildcard_ycnrg-org.key --cert certs/wildcard_ycnrg-org_chained.pem


Alternatively, create the resource via a YAML definition. This requires extracting just the base64 portion of the x509 key and certificate files and concatenating it onto a single line, minus the ---BEGIN and ---END lines. Use for i in $(head -n-1 my_certificate.crt | tail -n+2); do echo -en "$i"; done ; echo "" to produce the necessary string.

apiVersion: v1
kind: Secret
metadata:
  name: ycnrg-wildcard
  namespace: default
type: kubernetes.io/tls
data:
  tls.crt: xxxxxx
  tls.key: xxxxxx

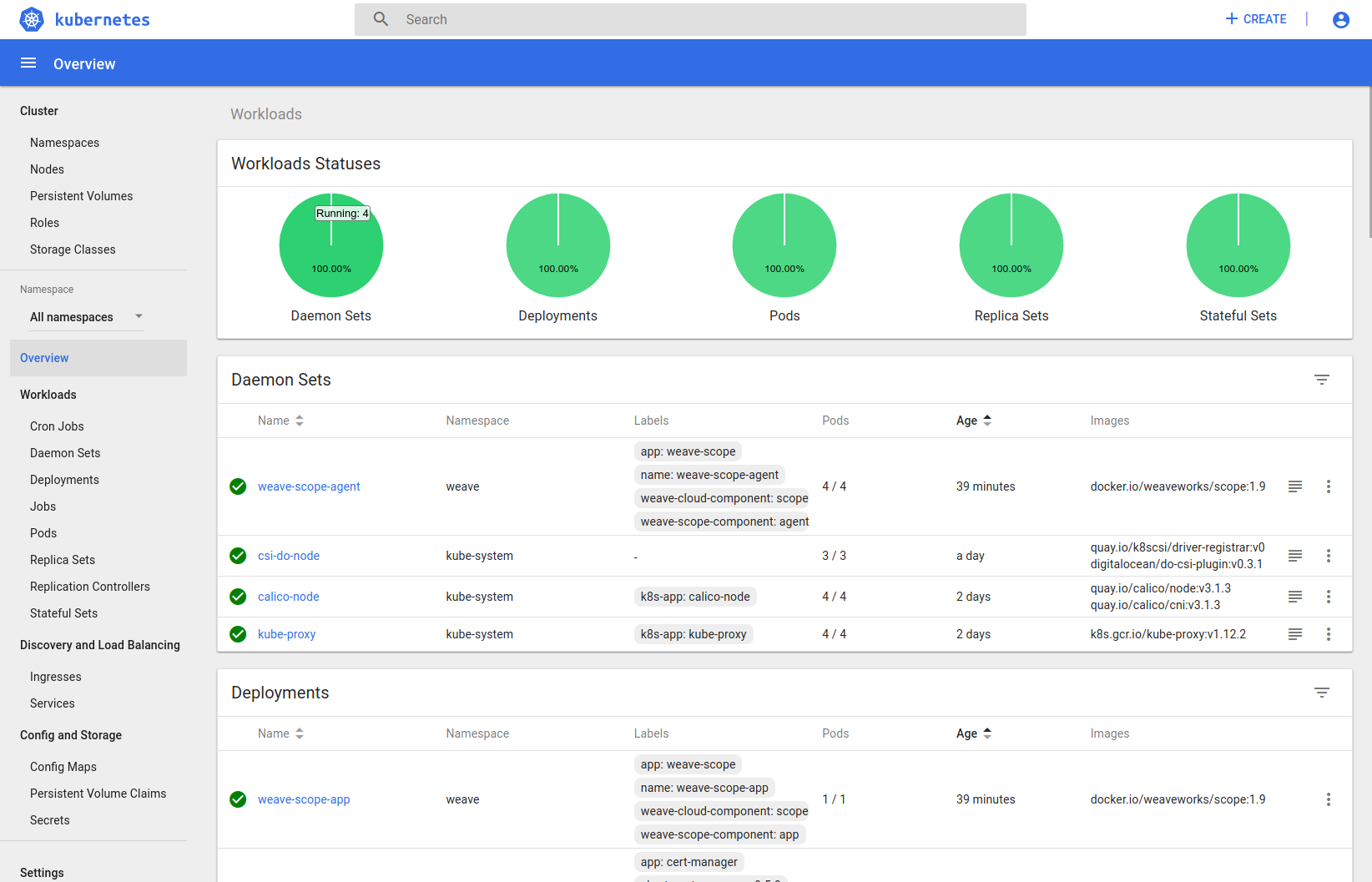

Setup Kubernetes Dashboard


Install with:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/master/src/deploy/recommended/kubernetes-dashboard.yaml


Next, create an Ingress resource. Add the following to ingress-kubedash.yaml, making sure to update the host and tls.secretName values to match your own:

---
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: kubernetes-dashboard
  namespace: kube-system
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
    nginx.ingress.kubernetes.io/secure-backends: "true"
spec:
  rules:
    - host: load-balancer.example.com
      http:
        paths:
          - path: /dashboard
            backend:
              serviceName: kubernetes-dashboard
              servicePort: 443
  tls:
    - secretName: my-certificate


Check the Kubernetes Dashboard documentation on generating a user and token for logging in

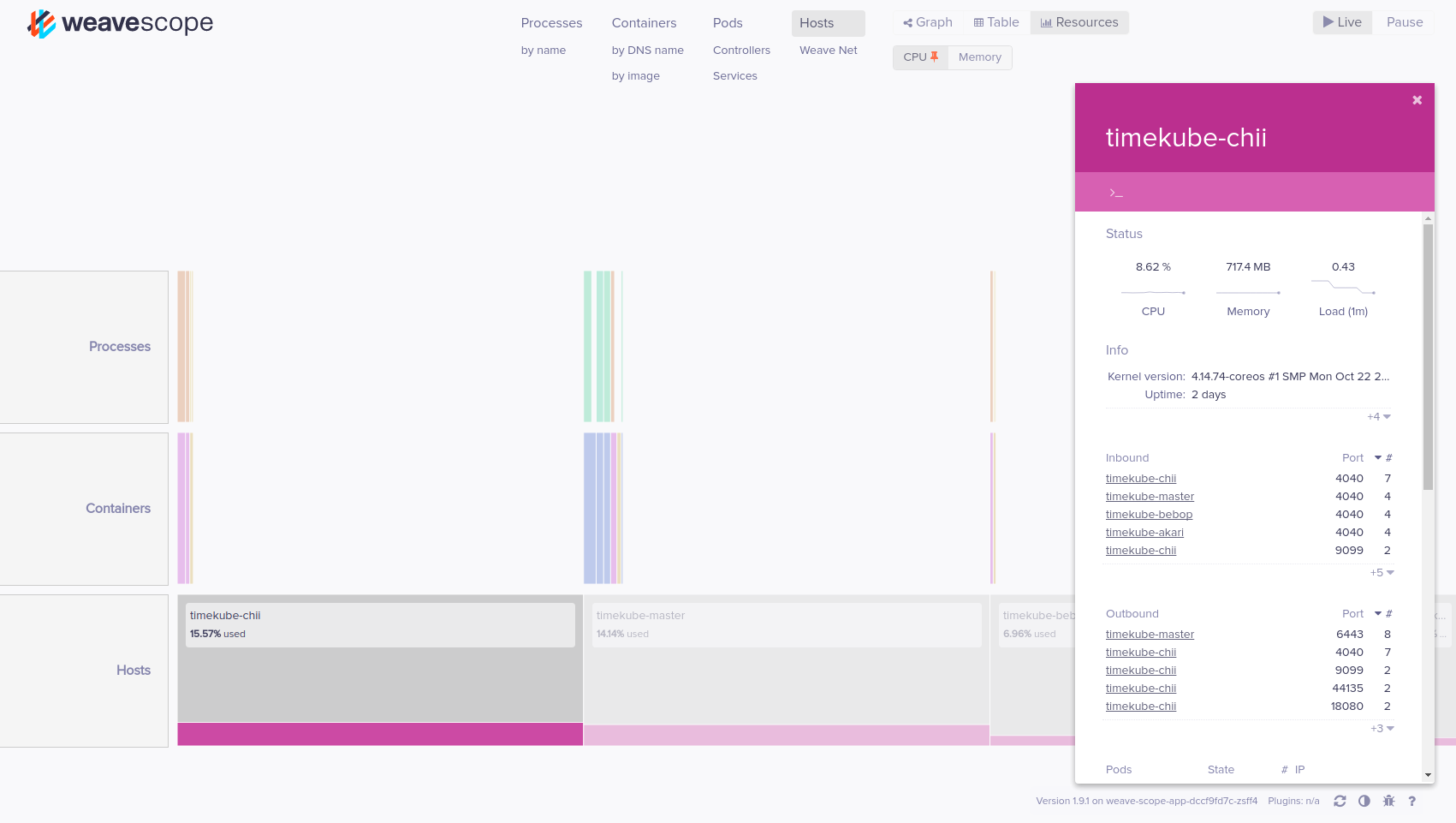

Setup WeaveScope


Install with:

kubectl apply -f "https://cloud.weave.works/k8s/scope.yaml?k8s-version=$(kubectl version | base64 | tr -d '\n')"


Generate a secret to contain htpasswd data. This can contain one or more users. Note that currently ingress-nginx does NOT support bcrypt, so MD5 hashes must be used. This will create a file called auth with an entry for USER-- you will be prompted to enter a password.

htpasswd -c auth USER


To add additional users:

htpasswd auth USERTWO


Create the secret:

kubectl -n weave create secret generic basic-auth --from-file=auth


Next, create the Ingress resource to expose Weave via ingress-nginx. As before, be sure to update the host and tls sections appropriately. ingress-weave.yaml:

---
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: weave
  namespace: weave
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
    nginx.ingress.kubernetes.io/auth-type: basic
    nginx.ingress.kubernetes.io/auth-secret: basic-auth
    nginx.ingress.kubernetes.io/auth-realm: 'weave'
spec:
  rules:
    - host: load-balancer.example.com
      http:
        paths:
          - path: /weave
            backend:
              serviceName: weave-scope-app
              servicePort: 80
  tls:
    - secretName: my-certificate


And create with kubectl: kubectl create -f ingress-weave.yaml


Setup DigitalOcean CSI Plugin


Generate a new API key from DO control panel with read/write access
Create a new YAML file do_secret.yaml containing the key:

---
apiVersion: v1
kind: Secret
metadata:
  name: digitalocean
  namespace: kube-system
stringData:
  access-token: "YOUR_ACCESS_TOKEN"


Then add it with kubectl create -f do_secret.yaml
Next, install the latest release of csi-digitalocean:

kubectl apply -f https://raw.githubusercontent.com/digitalocean/csi-digitalocean/master/deploy/kubernetes/releases/csi-digitalocean-v0.3.1.yaml


Test it out by creating a new PVC. First create the manifest pv_test.yaml:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: csi-pvc
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
  storageClassName: do-block-storage


Then create it with kubectl create -f pv_test.yaml
Check kubectl get pv to see it in the list, and confirm a new volume has been added to your DO control panel
Use kubectl delete PVC_NAME to delete the volume, which will also remove it from your DO control panel and stop billing
