Python script to extract Disco Elysium passive checks, updated for the Final Cut update

ShowSkillChecks.py

import json
import csv
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker

'''
Difficulty checks are coded in the following format:

[3]
0 Field data
 1 string title = "DifficultyPass"
 1 string value = "2"
 0 int type = 1
 1 string typeString = "CustomFieldType_Number"
[4]
0 Field data
 1 string title = "Actor"
 1 string value = "386"
 0 int type = 5
 1 string typeString = "CustomFieldType_Actor"
[5]

The value under the "DifficultyPass" sets the difficulty of the check
The value below "Actor" sets the skill which is checked, in this case "Suggestion" (see ACTOR_DICT)

'''

#mapping of actor codes to in-game skills, note that there are 5 different perception checks!
#('normal', smell, hearing, taste, sight)
ACTOR_DICT = {
    389: 'Conceptualization',
    390: 'Logic',
    391: 'Encyclopedia',
    392: 'Rhetoric',
    393: 'Drama',
    394: 'Visual Calculus',
    395: 'Empathy',
    396: 'Inland Empire',
    397: 'Volition',
    398: 'Authority',
    399: 'Suggestion',
    400: 'Esprit de Corps',
    401: 'Endurance',
    402: 'Physical Instrument',
    403: 'Shivers',
    404: 'Pain Threshold',
    405: 'Electro-Chemistry',
    406: 'Half Light',
    407: 'Hand-Eye Coordination',
    408: 'Reaction Speed',
    409: 'Savoir Faire',
    410: 'Interfacing',
    411: 'Composure',
    412: 'Perception',
    413: 'Perception',
    414: 'Perception',
    415: 'Perception',
    416: 'Perception',
}

#map of DifficultyPass values to in-game difficulty
DIFF_MAP = {
    0: 6,
    1: 8,
    2: 10,
    3: 12,
    4: 14,
    5: 16,
    6: 18,
    7: 20,
    8: 7,
    9: 9,
    10: 11,
    11: 13,
    12: 15,
    13: 17,
    14: 19
}

#in-game skill order
DISPLAY_ORDER = [
'Logic',
'Encyclopedia',
'Rhetoric',
'Drama',
'Conceptualization',
'Visual Calculus',
'Volition',
'Inland Empire',
'Empathy',
'Authority',
'Esprit de Corps',
'Suggestion',
'Endurance',
'Pain Threshold',
'Physical Instrument',
'Electro-Chemistry',
'Shivers',
'Half Light',
'Hand-Eye Coordination',
'Perception',
'Reaction Speed',
'Savoir Faire',
'Interfacing',
'Composure'
]

#highest check value is 14
HIGH_CHECK = 15

#-------------------------------------------#
#    extract check counts from game code    #
#-------------------------------------------#

#check count arrays
passive_checks = {k: [0] * HIGH_CHECK for k in ACTOR_DICT.values()}
antipassive_checks = {k: [0] * HIGH_CHECK for k in ACTOR_DICT.values()}


# Open and read in dialogue JSON data (I extracted it using AssetStudio by Perfare)
with open("Disco Elysium.json", encoding="utf-8") as disco_data_json:
    disco_data = json.load(disco_data_json)

# Go through each conversation.
for conversation in disco_data["conversations"]:
    # Go through each piece of dialogue within a conversation.
    for dialogue in conversation["dialogueEntries"]:

        # Construct a dictionary of this dialogue block with the dialogue's speaker
        # and, if it has them, difficulty and antipassiveness.
        # (We do this as dialogue entries are weirdly formatted and difficult to
        # manipulate otherwise).
        dialogue_field_dict = {}
        dialogue_field_dict["Antipassive"] = False
        for dialogue_field in dialogue["fields"]:
            if dialogue_field["title"] == "Antipassive":
                dialogue_field_dict["Antipassive"] = True
            elif dialogue_field["title"] == "Actor":
                dialogue_field_dict["Actor"] = int(dialogue_field["value"])
            elif dialogue_field["title"] == "DifficultyPass":
                dialogue_field_dict["DifficultyPass"] = int(dialogue_field["value"])

        # If this dialogue block is a skill check, add it to the count(s).
        if "DifficultyPass" in dialogue_field_dict:
            if dialogue_field_dict["Antipassive"]:
                antipassive_checks[ACTOR_DICT[dialogue_field_dict["Actor"]]][dialogue_field_dict["DifficultyPass"]] += 1
            else:
                passive_checks[ACTOR_DICT[dialogue_field_dict["Actor"]]][dialogue_field_dict["DifficultyPass"]] += 1

#--------------------#
#Write result tables #
#--------------------#

# Write a table of tallied difficulty checks for both passives and antipassives for each skill.
for tup in [('Passive Checks', passive_checks), ('Antipassive Checks', antipassive_checks)]:
    # The table will have the skill's name and sum of checks as first two columns.
    header = ["Skill", "Total"] + list(range(HIGH_CHECK))
    data = []
    title = tup[0]
    checks = tup[1]

    for skill in DISPLAY_ORDER:
        # The +2 is for the skill name and sum of checks.
        skill_checks = [0] * (HIGH_CHECK + 2)
        skill_checks[0] = skill
        skill_checks[1] = sum(checks[skill])

        for i, value in enumerate(checks[skill]):
            skill_checks[DIFF_MAP[i] - 6 + 2] = value

        data.append(skill_checks)

    # Write to file.
    with open(title + ".csv", 'w', newline='') as file:
        writer = csv.writer(file)
        writer.writerow(header)
        writer.writerows(data)

#--------------------#

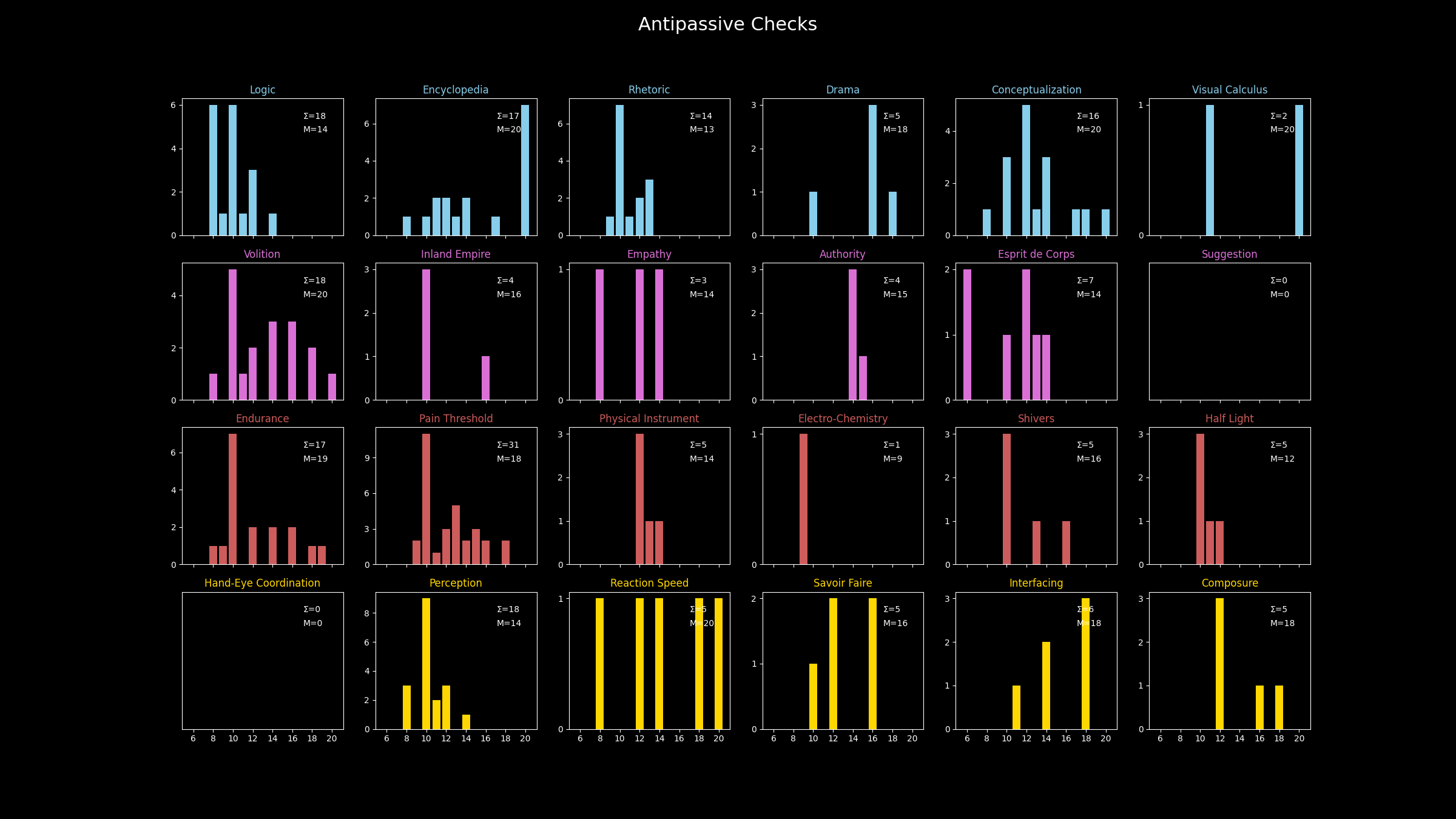

#    Plot results    #
#--------------------#

#skill grid dimensions
X = 6
Y = 4

#chart colours
ROW_COLOURS = ['skyblue', 'orchid', 'indianred', 'gold']
BG_COLOUR = 'black'
SPINE_COLOUR = 'white'

for tup in [('Passive Checks', passive_checks), ('Antipassive Checks', antipassive_checks)]:
    #unpack tuple
    title = tup[0]
    checks = tup[1]

    #setup all Y*X subplopts
    fig, ax = plt.subplots(nrows=Y, ncols=X, sharex=True)
    ax[0,0].set_xticks(list(range(6,20+1,2)))

    #set figure title, size and, background colour
    fig.suptitle(title, color=SPINE_COLOUR, fontsize=22)
    fig.set_size_inches(24, 13.5)
    fig.set_facecolor('black')

    #go through all skills
    for y in range(0,Y):
        for x in range(0, X):
            #skill being drawn
            skill = DISPLAY_ORDER[x + X*y]

            #calculate total number of skill checks and find highest skill check
            count = sum(checks[skill])
            max_skill = max(map(lambda dc: DIFF_MAP[dc], [ j for (i,j) in zip(checks[skill], range(15)) if i > 0 ]), default=0)

            #style chart
            col = ROW_COLOURS[y]
            ax[y, x].set_title(DISPLAY_ORDER[X*y+x], color=col)
            ax[y, x].set_facecolor(BG_COLOUR)
            for spine in ax[y,x].spines.values():
                spine.set_color(SPINE_COLOUR)
            ax[y, x].tick_params(colors=SPINE_COLOUR)
            #allow max of 5 y ticks and only use integer values
            ax[y, x].yaxis.set_major_locator(ticker.MaxNLocator(nbins=5, integer=True))
            #remove y ticks if there is no data
            if count == 0:
                ax[y,x].tick_params(axis='y',which='both', left=False, labelleft=False)
##            else:
##                ax[y,x].set_yscale('log')

            #draw bar chart
            ax[y, x].bar(list(map(lambda d: DIFF_MAP[d], range(0,15))), checks[skill], color=col)

            #add stat data
            ax[y, x].text(0.75, 0.85, f'Σ={count}', color=SPINE_COLOUR, transform = ax[y, x].transAxes)
            ax[y, x].text(0.75, 0.75, f'M={max_skill}', color=SPINE_COLOUR, transform = ax[y, x].transAxes)

    #save figures with max window size
    mng = plt.get_current_fig_manager()
    mng.window.state('zoomed')
    fig.savefig(title + ".png", facecolor=fig.get_facecolor(), transparent=False)

plt.show()

Outputs:

Passive Checks.csv

Skill	Total	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14
Logic	793	54	1	120	32	459	38	59	9	17	0	4	0	0	0	0
Encyclopedia	413	7	1	41	10	251	28	42	5	19	2	6	0	1	0	0
Rhetoric	778	11	1	86	14	551	22	64	11	11	1	5	0	1	0	0
Drama	383	7	0	35	22	234	21	44	2	14	1	3	0	0	0	0
Conceptualization	500	5	1	27	2	290	23	97	10	28	4	7	0	5	0	1
Visual Calculus	186	6	0	29	3	105	15	18	1	4	0	5	0	0	0	0
Volition	439	10	0	65	7	249	25	53	7	16	1	6	0	0	0	0
Inland Empire	651	30	0	93	10	391	27	62	13	18	5	2	0	0	0	0
Empathy	895	5	1	92	10	613	39	79	12	27	2	14	0	1	0	0
Authority	407	10	0	38	6	266	30	47	5	2	1	2	0	0	0	0
Esprit de Corps	483	34	0	50	14	295	14	44	14	12	2	4	0	0	0	0
Suggestion	386	7	0	42	12	250	26	35	2	9	0	3	0	0	0	0
Endurance	232	9	0	18	3	135	25	31	5	3	0	1	0	2	0	0
Pain Threshold	197	2	1	26	3	116	11	32	1	5	0	0	0	0	0	0
Physical Instrument	283	16	0	23	3	146	23	49	10	7	1	2	2	1	0	0
Electro-Chemistry	421	7	0	40	18	253	24	46	8	17	2	5	0	1	0	0
Shivers	314	2	0	53	4	177	12	30	9	13	1	12	1	0	0	0
Half Light	499	3	0	40	11	302	27	64	10	24	5	10	3	0	0	0
Hand-Eye Coordination	114	2	1	10	6	62	11	15	3	2	1	1	0	0	0	0
Perception	510	25	1	80	9	288	21	54	3	14	0	10	1	3	0	1
Reaction Speed	409	16	0	103	20	218	8	25	9	5	1	4	0	0	0	0
Savoir Faire	201	20	0	29	4	113	10	17	2	5	0	1	0	0	0	0
Interfacing	281	11	0	51	6	163	15	23	7	5	0	0	0	0	0	0
Composure	358	5	0	39	8	230	24	34	5	8	0	3	0	2	0	0

Antipassive Checks.csv

Skill	Total	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14
Logic	18	0	0	6	1	6	1	3	0	1	0	0	0	0	0	0
Encyclopedia	17	0	0	1	0	1	2	2	1	2	0	0	1	0	0	7
Rhetoric	14	0	0	0	1	7	1	2	3	0	0	0	0	0	0	0
Drama	5	0	0	0	0	1	0	0	0	0	0	3	0	1	0	0
Conceptualization	16	0	0	1	0	3	0	5	1	3	0	0	1	1	0	1
Visual Calculus	2	0	0	0	0	0	1	0	0	0	0	0	0	0	0	1
Volition	18	0	0	1	0	5	1	2	0	3	0	3	0	2	0	1
Inland Empire	4	0	0	0	0	3	0	0	0	0	0	1	0	0	0	0
Empathy	3	0	0	1	0	0	0	1	0	1	0	0	0	0	0	0
Authority	4	0	0	0	0	0	0	0	0	3	1	0	0	0	0	0
Esprit de Corps	7	2	0	0	0	1	0	2	1	1	0	0	0	0	0	0
Suggestion	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Endurance	17	0	0	1	1	7	0	2	0	2	0	2	0	1	1	0
Pain Threshold	31	0	0	0	2	11	1	3	5	2	3	2	0	2	0	0
Physical Instrument	5	0	0	0	0	0	0	3	1	1	0	0	0	0	0	0
Electro-Chemistry	1	0	0	0	1	0	0	0	0	0	0	0	0	0	0	0
Shivers	5	0	0	0	0	3	0	0	1	0	0	1	0	0	0	0
Half Light	5	0	0	0	0	3	1	1	0	0	0	0	0	0	0	0
Hand-Eye Coordination	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Perception	18	0	0	3	0	9	2	3	0	1	0	0	0	0	0	0
Reaction Speed	5	0	0	1	0	0	0	1	0	1	0	0	0	1	0	1
Savoir Faire	5	0	0	0	0	1	0	2	0	0	0	2	0	0	0	0
Interfacing	6	0	0	0	0	0	1	0	0	2	0	0	0	3	0	0
Composure	5	0	0	0	0	0	0	3	0	0	0	1	0	1	0	0
