Simulation to visualize event loop

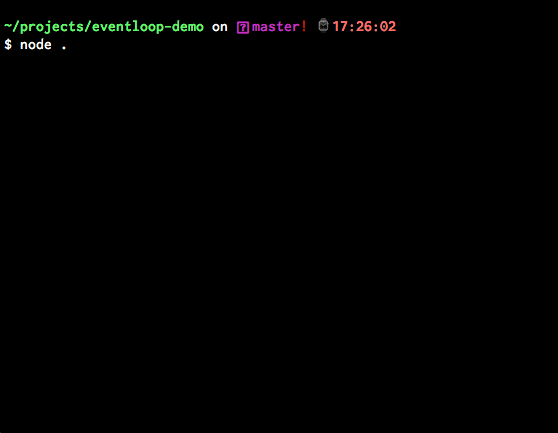

Gif of the script running

Purpose

This is a little in-terminal ⚠️simulation⚠️ of blocking I/O + threads vs. non-blocking I/O + event loop. The purpose is to illustrate the different execution times visually.

Please remember it's a simulation and take it with a grain of salt. 😄

Install

  1. clone this gist: git clone https://gist.github.com/Sequoia/94d192908e05f7674423 eventloop-simulation
  2. cd eventloop-simulation
  3. npm i

Usage

  1. node .
  2. Control+C to quit

One possible way to talk thru this would be to comment out all but the first run function & just do blocking, then uncomment the second and run again, ditto the third.

License

CC-BY-NC-SA-4.0. If you'd like more of this or other work, drop me a line!

var async = require('async');
var columns = require('columns').create();
var shuffle = require('lodash').shuffle;
var chalk = require('chalk');
//hack to keep process running; enter ^c to quit
process.stdin.resume();
//"tasks" with various completion times (time on CPU)
var tasks = [ 1, 1, 1, 1, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 200, 200,
200, 200, 200, 200, 200, 200, 1000, 1000, 1000, 1000, 1000, 2000, 2000, 2000,
2000, 2000, 2000, 5000, 5000 ];
tasks = shuffle(tasks);
//functions to run different types of SIMULATIONS
var runBlocking = makeColumn('eachSeries', 'Blocking, 1 thread', 'red', tasks);
var numThreads = 5;
var runThreaded = makeColumn('eachLimit', 'Blocking, '+numThreads+' threads', 'blue', tasks, numThreads);
var runEventLoop= makeColumn('each', 'EventLoop (async i/o)', 'green', tasks);
//kick off the tasks, 3 ways
//start by just running the first then uncomment each next one
runBlocking();
runThreaded();
runEventLoop();
function makeColumn(asyncMethod, label, color, tasks, additionalAsyncArgs){
//return "run" function
return function run(){
var column = columns.addColumn(label);
var startTime = Date.now();
//build args for async
var args = [tasks];
if(additionalAsyncArgs){
args = args.concat(additionalAsyncArgs);
}
args = args.concat(function eachFn(ms, next){
setTimeout(function(){
column.write(chalk[color]('Completed task: ' + ms + 'ms\n'));
next();
}, ms);
});
args = args.concat(function finishedFn(){
var endTime = Date.now() - startTime;
column.write(chalk.bold.underline[color]('ALL DONE IN ' + endTime + 'ms')+'\n');
});
async[asyncMethod].apply(async, args);
};
}
{
"name": "eventloop-illustration",
"version": "1.0.0",
"description": "",
"main": "index.js",
"scripts": {
"test": "echo \"Error: no test specified\" && exit 1"
},
"keywords": [],
"author": "Sequoia McDowell <sequoia.mcdowell@gmail.com> (http://sequoia.makes.software/)",
"license": "CC-BY-NC-SA-4.0",
"dependencies": {
"async": "^1.5.2",
"chalk": "^1.1.1",
"columns": "^0.8.0",
"lodash": "^3.10.1"
}
}
