FRITZ!Box-Anrufliste auf Dashboard anzeigen

README.md

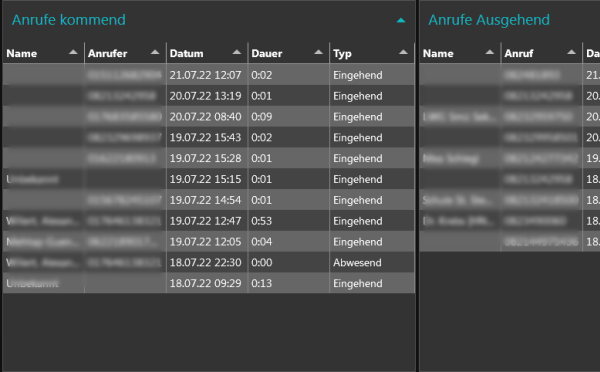

Shows incoming and outgoing calls from the FritzBox in the Dashboard.

---

For other languages then german change the node "Verbindungen".

---

Homepage

flow.json

[
    {
        "id": "9ca2ca58325ca842",
        "type": "fritzbox-calllist",
        "z": "0c5534b2855111cb",
        "device": "f03426b3.54d268",
        "name": "",
        "action": "GetCallList",
        "listurl": "NewCallListURL",
        "max": "20",
        "maxdays": "10",
        "x": 390,
        "y": 820,
        "wires": [
            [
                "dfbc37090ac77f56"
            ]
        ]
    },
    {
        "id": "d3771e7c558b8f99",
        "type": "fritzbox-callmonitor",
        "z": "0c5534b2855111cb",
        "device": "f03426b3.54d268",
        "name": "",
        "topic": "",
        "x": 180,
        "y": 820,
        "wires": [
            [
                "9ca2ca58325ca842"
            ]
        ]
    },
    {
        "id": "f9d070aee8dcb620",
        "type": "ui_table",
        "z": "0c5534b2855111cb",
        "group": "f69b06d2836bc7f4",
        "name": "Anrufe",
        "order": 1,
        "width": 10,
        "height": 8,
        "columns": [],
        "outputs": 0,
        "x": 990,
        "y": 800,
        "wires": []
    },
    {
        "id": "dfbc37090ac77f56",
        "type": "change",
        "z": "0c5534b2855111cb",
        "name": "",
        "rules": [
            {
                "t": "move",
                "p": "payload.Call",
                "pt": "msg",
                "to": "payload",
                "tot": "msg"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 610,
        "y": 820,
        "wires": [
            [
                "2e4129c637fc5b69"
            ]
        ]
    },
    {
        "id": "2e4129c637fc5b69",
        "type": "function",
        "z": "0c5534b2855111cb",
        "name": "Verbindungen",
        "func": "let incomming = []\nlet outgoing = []\n\nlet type = [\"\",\n            \"Eingehend\",\n            \"Abwesend\",\n            \"Ausgehend\",\"\",\"\",\"\",\"\",\"\",\"\",\n            \"Blockiert\"]\nlet pay\n\nfor (var i in msg.payload) {\n    \n    pay = msg.payload[i];\n    \n    if (pay.Type == \"1\" ||\n        pay.Type == \"2\" ||\n        pay.Type == \"10\") {\n            \n        let call = {\n            \"Name\": pay.Name,\n            \"Anrufer\": pay.Caller,\n            \"Datum\": pay.Date,\n            \"Dauer\": pay.Duration,\n            \"Typ\" : type[pay.Type]\n        }\n        \n        incomming.push( call )\n        \n    } else if (pay.Type == \"3\") {\n        let call = {\n            \"Name\": pay.Name,\n            \"Anruf\": pay.Called,\n            \"Datum\": pay.Date,\n            \"Dauer\": pay.Duration\n        }\n        \n        outgoing.push( call )\n    }\n}\n\nvar msg1 = { payload: incomming };\nvar msg2 = { payload: outgoing };\n\nreturn [msg1, msg2];\n",
        "outputs": 2,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 820,
        "y": 820,
        "wires": [
            [
                "f9d070aee8dcb620"
            ],
            [
                "5ba4f05fb792473e"
            ]
        ]
    },
    {
        "id": "5ba4f05fb792473e",
        "type": "ui_table",
        "z": "0c5534b2855111cb",
        "group": "7a0423889f8c5ec7",
        "name": "Anrufe",
        "order": 1,
        "width": "8",
        "height": 8,
        "columns": [],
        "outputs": 0,
        "x": 990,
        "y": 840,
        "wires": []
    },
    {
        "id": "f03426b3.54d268",
        "type": "fritzbox-config",
        "name": "",
        "host": "",
        "port": "49000",
        "ssl": false,
        "user": ""
    },
    {
        "id": "f69b06d2836bc7f4",
        "type": "ui_group",
        "name": "Anrufe kommend",
        "tab": "ff9d0d0e.3c2878",
        "order": 2,
        "disp": true,
        "width": "10",
        "collapse": true,
        "className": ""
    },
    {
        "id": "7a0423889f8c5ec7",
        "type": "ui_group",
        "name": "Anrufe Ausgehend",
        "tab": "ff9d0d0e.3c2878",
        "order": 3,
        "disp": true,
        "width": "8",
        "collapse": false,
        "className": ""
    },
    {
        "id": "ff9d0d0e.3c2878",
        "type": "ui_tab",
        "name": "Ereignisse",
        "icon": "dashboard",
        "order": 8,
        "disabled": false,
        "hidden": false
    }
]
