== Northwind Graph | |
=== Introduction | |
Recently, I was asked to pitch a method for providing recommendations. Luckily, armed with the knowledge obtained from talks from Max De Marzi and [Mark Needham](https://skillsmatter.com/skillscasts/7298-modelling-a-recommendation-engine-a-worked-example) at a recent Neo4j London Meetups, I knew this could be easily achieved with Neo4j. | |
The key issue with recommendation engines comes from the data. Luckily, Neo4j comes bundled with the Northwind Graph Example. The Northwind database is an infamous dataset containing purchase history that has been used to teach relational databases for years and was a great place to start. You can import the Northwind database into a graph by following the ["Import Data into Neo4j"](http://neo4j.com/developer/guide-importing-data-and-etl/) post on Neo4j or type the following into Neo4j's browser at `http://localhost:7474/` | |
:play northwind graph | |
Firstly, let's load in the data: | |
[source,cypher] | |
---- | |
// Add indexes | |
CREATE INDEX ON :Product(productID); | |
CREATE INDEX ON :Product(productName); | |
CREATE INDEX ON :Category(categoryID); | |
CREATE INDEX ON :Employee(employeeID); | |
CREATE INDEX ON :Supplier(supplierID); | |
CREATE INDEX ON :Customer(customerID); | |
CREATE INDEX ON :Customer(customerName); | |
---- | |
[source,cypher] | |
---- | |
CREATE CONSTRAINT ON (o:Order) ASSERT o.orderID IS UNIQUE; | |
---- | |
[source,cypher] | |
---- | |
// Create customers | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/customers.csv" AS row | |
CREATE (:Customer {companyName: row.companyName, customerID: row.customerID, fax: row.fax, phone: row.phone}); | |
---- | |
[source,cypher] | |
---- | |
// Create products | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/products.csv" AS row | |
CREATE (:Product {productName: row.productName, productID: row.productID, unitPrice: toFloat(row.UnitPrice)}); | |
---- | |
[source,cypher] | |
---- | |
// Create suppliers | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/suppliers.csv" AS row | |
CREATE (:Supplier {companyName: row.companyName, supplierID: row.supplierID}); | |
---- | |
[source,cypher] | |
---- | |
// Create employees | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/employees.csv" AS row | |
CREATE (:Employee {employeeID:row.employeeID, firstName: row.firstName, lastName: row.lastName, title: row.title}); | |
---- | |
[source,cypher] | |
---- | |
// Create categories | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/categories.csv" AS row | |
CREATE (:Category {categoryID: row.categoryID, categoryName: row.categoryName, description: row.description}); | |
---- | |
[source,cypher] | |
---- | |
// Create Orders | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/orders.csv" AS row | |
MERGE (order:Order {orderID: row.orderID}) ON CREATE SET order.shipName = row.shipName; | |
---- | |
[source,cypher] | |
---- | |
// Relate orders to products | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/order-details.csv" AS row | |
MATCH (order:Order {orderID: row.orderID}) | |
MATCH (product:Product {productID: row.productID}) | |
MERGE (order)-[pu:PRODUCT]->(product) | |
ON CREATE SET pu.unitPrice = toFloat(row.unitPrice), pu.quantity = toFloat(row.quantity); | |
---- | |
[source,cypher] | |
---- | |
// Relate Orders to Employees | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/orders.csv" AS row | |
MATCH (order:Order {orderID: row.orderID}) | |
MATCH (employee:Employee {employeeID: row.employeeID}) | |
MERGE (employee)-[:SOLD]->(order); | |
---- | |
[source,cypher] | |
---- | |
// Relate customers to orders | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/orders.csv" AS row | |
MATCH (order:Order {orderID: row.orderID}) | |
MATCH (customer:Customer {customerID: row.customerID}) | |
MERGE (customer)-[:PURCHASED]->(order); | |
---- | |
[source,cypher] | |
---- | |
// Relate Products to suppliers | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/products.csv" AS row | |
MATCH (product:Product {productID: row.productID}) | |
MATCH (supplier:Supplier {supplierID: row.supplierID}) | |
MERGE (supplier)-[:SUPPLIES]->(product); | |
---- | |
[source,cypher] | |
---- | |
// Relate Products to Categories | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/products.csv" AS row | |
MATCH (product:Product {productID: row.productID}) | |
MATCH (category:Category {categoryID: row.categoryID}) | |
MERGE (product)-[:PART_OF]->(category); | |
---- | |
[source,cypher] | |
---- | |
// Relate employees to managers | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/employees.csv" AS row | |
MATCH (employee:Employee {employeeID: row.employeeID}) | |
MATCH (manager:Employee {employeeID: row.reportsTo}) | |
MERGE (employee)-[:REPORTS_TO]->(manager); | |
---- | |
[source,cypher] | |
---- | |
// Add unit price | |
USING PERIODIC COMMIT 100 | |
LOAD CSV WITH HEADERS FROM "https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/data/order-details.csv" AS row | |
MATCH (product:Product {productID: row.productID}) | |
MERGE (order)-[pu:PRODUCT]->(product) | |
ON CREATE SET pu.unitPrice = toFloat(row.unitPrice), pu.quantity = toFloat(row.quantity); | |
---- | |
Now we've got some data, let's start to explore the dataset. | |
### Dataset | |
image::http://dev.assets.neo4j.com.s3.amazonaws.com/wp-content/uploads/Northwind_diagram.jpg[] | |
The Northwind Graph provides us with a rich dataset, but primarily we're interested in Customers and their Orders. In a Graph, the data is modelled like so: | |
image::https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/product-model.png[] | |
### Popular Products | |
To find the most popular products in the dataset, we can follow the path from `:Customer` to `:Product` | |
[source,cypher] | |
---- | |
match (c:Customer)-[:PURCHASED]->(o:Order)-[:PRODUCT]->(p:Product) | |
return c.companyName, p.productName, count(o) as orders | |
order by orders desc | |
limit 5 | |
---- | |
// table | |
### Content Based Recommendations | |
The simplest recommendation we can make for a Customer is a content based recommendation. Based on their previous purchases, can we recommend them anything that they haven't already bought? For every product our customer has purchased, let's see what other customers have also purchased. Each `:Product` is related to a `:Category` so we can use this to further narrow down the list of products to recommend. | |
[source,cypher] | |
---- | |
match (c:Customer)-[:PURCHASED]->(o:Order)-[:PRODUCT]->(p:Product) | |
<-[:PRODUCT]-(o2:Order)-[:PRODUCT]->(p2:Product)-[:PART_OF]->(:Category)<-[:PART_OF]-(p) | |
WHERE c.customerID = 'ANTON' and NOT( (c)-[:PURCHASED]->(:Order)-[:PRODUCT]->(p2) ) | |
return c.companyName, p.productName as has_purchased, p2.productName as has_also_purchased, count(DISTINCT o2) as occurrences | |
order by occurrences desc | |
limit 5 | |
---- | |
// table | |
Pretty standard so far. | |
### Collaborative Filtering | |
Collaborative Filtering is a technique used by recommendation engines to recommend content based on the feedback from other Customers. To do this, we can use the k-NN (k-nearest neighbors) Algorithm. k-N works by grouping items into classifications based on their similarity to eachother. In our case, this could be ratings between two Customers for a Product. To give a real world example, this is how sites like Netflix make recommendations based on the ratings given to shows you've already watched. | |
The first thing we need to do to make this model work is create some "ratings relationships". For now, let's create a score somewhere between 0 and 1 for each product based on the number of times a customer has purchased a product. | |
[source,cypher] | |
---- | |
MATCH (c:Customer)-[:PURCHASED]->(o:Order)-[:PRODUCT]->(p:Product) | |
WITH c, count(p) as total | |
MATCH (c)-[:PURCHASED]->(o:Order)-[:PRODUCT]->(p:Product) | |
WITH c, total,p, count(o)*1.0 as orders | |
MERGE (c)-[rated:RATED]->(p) | |
ON CREATE SET rated.rating = orders/total | |
ON MATCH SET rated.rating = orders/total | |
RETURN c.companyName, p.productName, orders, total, rated.rating | |
---- | |
// table | |
Now our model should look something like this: | |
image::https://raw.githubusercontent.com/adam-cowley/northwind-neo4j/master/ratings.png[] | |
[source,cypher] | |
---- | |
MATCH (me:Customer)-[r:RATED]->(p:Product) | |
WHERE me.customerID = 'ANTON' RETURN p.productName, r.rating limit 10 | |
---- | |
// table | |
Now we can use these ratings to compare the preferences of two Customers. | |
[source,cypher] | |
---- | |
// See Customer's Similar Ratings to Others | |
match (c1:Customer {customerID:'ANTON'})-[r1:RATED]->(p:Product)<-[r2:RATED]-(c2:Customer) | |
return c1.customerID, c2.customerID, p.productName, r1.rating, r2.rating, | |
CASE WHEN r1.rating-r2.rating < 0 THEN -(r1.rating-r2.rating) ELSE r1.rating-r2.rating END as difference | |
order by difference ASC | |
limit 15 | |
---- | |
// table | |
Now, we can create a similarity score between two Customers using Cosine Similarity (Hat tip to Nicole White for the original Cypher query...) | |
[source,cypher] | |
---- | |
MATCH (c1:Customer)-[r1:RATED]->(p:Product)<-[r2:RATED]-(c2:Customer) | |
WITH | |
SUM(r1.rating*r2.rating) as dot_product, | |
SQRT( REDUCE(x=0.0, a IN COLLECT(r1.rating) | x + a^2) ) as r1_length, | |
SQRT( REDUCE(y=0.0, b IN COLLECT(r2.rating) | y + b^2) ) as r2_length, | |
c1,c2 | |
MERGE (c1)-[s:SIMILARITY]-(c2) | |
SET s.similarity = dot_product / (r1_length * r2_length) | |
---- | |
[source,cypher] | |
---- | |
match (me:Customer)-[r:SIMILARITY]->(them) | |
where me.customerID='ANTON' | |
return me.companyName, them.companyName, r.similarity | |
order by r.similarity desc limit 10 | |
---- | |
// table | |
Great, let's now make a recommendation based on these similarity scores. | |
[source,cypher] | |
---- | |
WITH 1 as neighbours | |
MATCH (me:Customer)-[:SIMILARITY]->(c:Customer)-[r:RATED]->(p:Product) | |
WHERE me.customerID = 'ANTON' and NOT ( (me)-[:RATED|PRODUCT|ORDER*1..2]->(p:Product) ) | |
WITH p, COLLECT(r.rating)[0..neighbours] as ratings, collect(c.companyName)[0..neighbours] as customers | |
WITH p, customers, REDUCE(s=0,i in ratings | s+i) / size(ratings) as recommendation | |
ORDER BY recommendation DESC | |
RETURN p.productName, customers, recommendation LIMIT 10 | |
---- | |
//table | |
There you have it! Quick and simple recommendations using Neo4j. |
Love this idea and example! Got everything to run ok except for the last cypher query:
WITH 1 as neighbours
MATCH (me:Customer)-[:SIMILARITY]->(c:Customer)-[r:RATED]->(p:Product)
WHERE me.customerID = 'ANTON' and NOT ( (me)-[:RATED|PRODUCT|ORDER*1..2]->(p:Product) )
WITH p, COLLECT(r.rating)[0..neighbours] as ratings, collect(c.companyName)[0..neighbours] as customers
WITH p, customers, REDUCE(s=0,i in ratings | s+i) / LENGTH(ratings) as recommendation
ORDER BY recommendation DESC
RETURN p.productName, customers, recommendation LIMIT 10

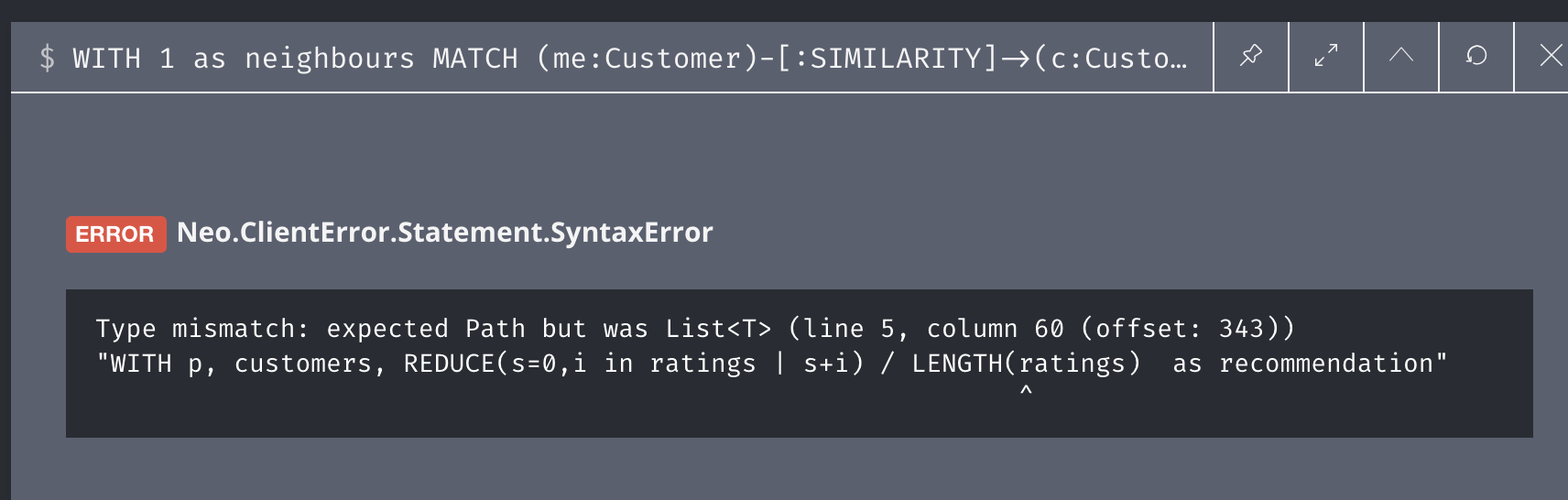

I keep getting an error message like this:
Type mismatch: expected Path but was List (line 5, column 60 (offset: 343))
"WITH p, customers, REDUCE(s=0,i in ratings | s+i) / LENGTH(ratings) as recommendation"
^
any ideas?
Strange, it looks like something has changed in version 4.0. You could try replacing the length function with size - I think that is what it is complaining about.
WITH p, customers, REDUCE(s=0,i in ratings | s+i) / size(ratings) as recommendation
It's been so long that I almost forgot that this gist existed! I've edited the gist to use size instead
Please reduce your dataset size to something manageable and enjoyable from an educational PoV. You can still link to the larger dataset e.g. in a second gist file.
Also your Content Based Recommendations is broken b/c it only uses two dashes
--
at the end.The link to the SVG picture is broken too, as github doesn't seem to serve it with the correct mime-types.
