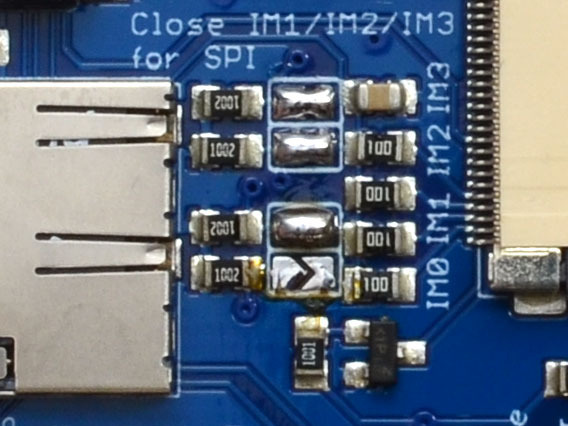

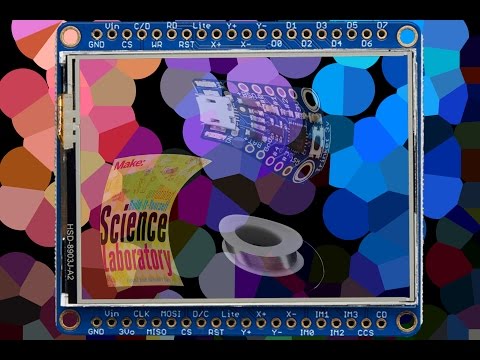

Solder across Adafruit 2.4" TFT Breakout IM1/IM2/IM3 jumpers:
-
Solder the two (2) JST SH 6 Wire Assemblies to the Adafruit 2.4" TFT Breakout with:
JST Pin TFT Pin 1-1 GND 1-2 Vin 1-3 MOSI 1-4 MISO 1-5 CLK 1-6 CS 2-3 D/C 2-4 RST -

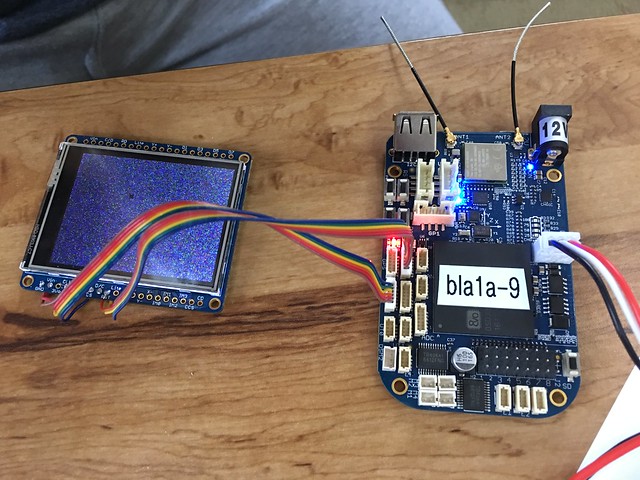

Connect JST-1 to S1.1 connector on BeagleBone Blue.
-
Connect JST-2 to GP0 connector on BeagleBone Blue.
-
Boot BeagleBone Blue using 2016-11-06 or newer image from https://beagleboard.org/latest-images.
-
Run the blue_adafruit24_setup.sh script below to create /dev/fb0.
-
See any of the many tutorials on using a raw framebuffer (/dev/fb0) in Linux. As an example, I did 'cat /dev/random > /dev/fb0':
Last active
March 18, 2023 03:57
-
-
Save jadonk/0e4a190fc01dc5723d1f183737af1d83 to your computer and use it in GitHub Desktop.
Adafruit 2.4" LCD on BeagleBone Blue
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| #!/bin/sh | |
| hexdump -C /sys/bus/i2c/devices/0-0050/0-00500/nvmem | head -2 | |
| rmmod --force fb_ili9341 | |
| rmmod --force fbtft | |
| rmmod --force fbtft_device | |
| dmesg | tail | |
| ls /dev/spi* | |
| perl /opt/scripts/device/bone/show-pins.pl -v | grep -E 'V14|U16|A13|B13|D12|C12|H18' | |
| echo 49 > /sys/class/gpio/unexport # RESET - V14 - GP0_PIN4 | |
| echo 57 > /sys/class/gpio/unexport # D/C - U16 - GP0_PIN3 | |
| #echo 113 > /sys/class/gpio/unexport # CS - C12 | |
| echo 29 > /sys/class/gpio/unexport # CS - H18 | |
| echo gpio > /sys/devices/platform/ocp/ocp\:P9_23_pinmux/state # RESET - V14 - GP0_4 | |
| echo gpio > /sys/devices/platform/ocp/ocp\:U16_pinmux/state # D/C - U16 - GP0_3 | |
| echo spi > /sys/devices/platform/ocp/ocp\:P9_31_pinmux/state # SCLK - A13 - S1.1_5 | |
| echo spi > /sys/devices/platform/ocp/ocp\:P9_29_pinmux/state # MISO - B13 - S1.1_4 | |
| echo spi > /sys/devices/platform/ocp/ocp\:P9_30_pinmux/state # MOSI - D12 - S1.1_3 | |
| #echo spi > /sys/devices/platform/ocp/ocp\:P9_28_pinmux/state # CS - C12 - S1.1_6 | |
| echo spi > /sys/devices/platform/ocp/ocp\:H18_pinmux/state # CS - H18 - S1.1_6 | |
| sleep 2 | |
| modprobe fbtft_device name=adafruit28 busnum=1 rotate=90 gpios=reset:49,dc:57 | |
| perl /opt/scripts/device/bone/show-pins.pl -v | grep -E 'V14|U16|A13|B13|D12|C12|H18' | |
| dmesg | tail | |
| ls /dev/spi* | |
| #cat /dev/random > /dev/fb0 |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| [ 0.000000] Booting Linux on physical CPU 0x0 | |
| [ 0.000000] Initializing cgroup subsys cpuset | |
| [ 0.000000] Initializing cgroup subsys cpu | |
| [ 0.000000] Initializing cgroup subsys cpuacct | |
| [ 0.000000] Linux version 4.4.30-ti-r65 (root@a2-imx6q-wandboard-2gb) (gcc version 4.9.2 (Debian 4.9.2-10) ) #1 SMP Tue Nov 8 17:28:39 UTC 2016 | |
| [ 0.000000] CPU: ARMv7 Processor [413fc082] revision 2 (ARMv7), cr=10c5387d | |
| [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache | |
| [ 0.000000] Machine model: TI AM335x BeagleBone Blue | |
| [ 0.000000] cma: Reserved 48 MiB at 0x9c800000 | |
| [ 0.000000] Memory policy: Data cache writeback | |
| [ 0.000000] On node 0 totalpages: 130560 | |
| [ 0.000000] free_area_init_node: node 0, pgdat c105b2c0, node_mem_map df961000 | |
| [ 0.000000] Normal zone: 1152 pages used for memmap | |
| [ 0.000000] Normal zone: 0 pages reserved | |
| [ 0.000000] Normal zone: 130560 pages, LIFO batch:31 | |
| [ 0.000000] CPU: All CPU(s) started in SVC mode. | |
| [ 0.000000] AM335X ES2.1 (sgx neon ) | |
| [ 0.000000] PERCPU: Embedded 13 pages/cpu @df8e5000 s24320 r8192 d20736 u53248 | |
| [ 0.000000] pcpu-alloc: s24320 r8192 d20736 u53248 alloc=13*4096 | |
| [ 0.000000] pcpu-alloc: [0] 0 | |
| [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 129408 | |
| [ 0.000000] Kernel command line: console=ttyO0,115200n8 root=UUID=db8803d2-cfa1-43c1-a032-4ef121e66f76 ro rootfstype=ext4 rootwait coherent_pool=1M | |
| [ 0.000000] PID hash table entries: 2048 (order: 1, 8192 bytes) | |
| [ 0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes) | |
| [ 0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes) | |
| [ 0.000000] Memory: 444460K/522240K available (11361K kernel code, 917K rwdata, 3796K rodata, 744K init, 907K bss, 28628K reserved, 49152K cma-reserved, 0K highmem) | |
| [ 0.000000] Virtual kernel memory layout: | |
| vector : 0xffff0000 - 0xffff1000 ( 4 kB) | |
| fixmap : 0xffc00000 - 0xfff00000 (3072 kB) | |
| vmalloc : 0xe0800000 - 0xff800000 ( 496 MB) | |
| lowmem : 0xc0000000 - 0xe0000000 ( 512 MB) | |
| pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB) | |
| modules : 0xbf000000 - 0xbfe00000 ( 14 MB) | |
| .text : 0xc0008000 - 0xc0ed58e8 (15159 kB) | |
| .init : 0xc0ed6000 - 0xc0f90000 ( 744 kB) | |
| .data : 0xc0f90000 - 0xc1075528 ( 918 kB) | |
| .bss : 0xc1078000 - 0xc115afa8 ( 908 kB) | |
| [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1 | |
| [ 0.000000] Hierarchical RCU implementation. | |
| [ 0.000000] Build-time adjustment of leaf fanout to 32. | |
| [ 0.000000] RCU restricting CPUs from NR_CPUS=2 to nr_cpu_ids=1. | |
| [ 0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=32, nr_cpu_ids=1 | |
| [ 0.000000] NR_IRQS:16 nr_irqs:16 16 | |
| [ 0.000000] IRQ: Found an INTC at 0xfa200000 (revision 5.0) with 128 interrupts | |
| [ 0.000000] OMAP clockevent source: timer2 at 24000000 Hz | |
| [ 0.000022] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 89478484971ns | |
| [ 0.000050] clocksource: timer1: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns | |
| [ 0.000063] OMAP clocksource: timer1 at 24000000 Hz | |
| [ 0.002768] clocksource_probe: no matching clocksources found | |
| [ 0.003088] Console: colour dummy device 80x30 | |
| [ 0.003121] WARNING: Your 'console=ttyO0' has been replaced by 'ttyS0' | |
| [ 0.003129] This ensures that you still see kernel messages. Please | |
| [ 0.003135] update your kernel commandline. | |
| [ 0.003157] Calibrating delay loop... 995.32 BogoMIPS (lpj=1990656) | |
| [ 0.020819] pid_max: default: 32768 minimum: 301 | |
| [ 0.020969] Security Framework initialized | |
| [ 0.020982] Yama: becoming mindful. | |
| [ 0.021019] AppArmor: AppArmor disabled by boot time parameter | |
| [ 0.021186] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes) | |
| [ 0.021199] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes) | |
| [ 0.022053] Initializing cgroup subsys io | |
| [ 0.022087] Initializing cgroup subsys memory | |
| [ 0.022134] Initializing cgroup subsys devices | |
| [ 0.022151] Initializing cgroup subsys freezer | |
| [ 0.022167] Initializing cgroup subsys net_cls | |
| [ 0.022182] Initializing cgroup subsys perf_event | |
| [ 0.022196] Initializing cgroup subsys net_prio | |
| [ 0.022221] Initializing cgroup subsys pids | |
| [ 0.022283] CPU: Testing write buffer coherency: ok | |
| [ 0.022345] ftrace: allocating 34628 entries in 102 pages | |
| [ 0.120213] CPU0: thread -1, cpu 0, socket -1, mpidr 0 | |
| [ 0.120348] Setting up static identity map for 0x80008280 - 0x800082d8 | |
| [ 0.124479] Brought up 1 CPUs | |
| [ 0.124505] SMP: Total of 1 processors activated (995.32 BogoMIPS). | |
| [ 0.124514] CPU: All CPU(s) started in SVC mode. | |
| [ 0.126246] devtmpfs: initialized | |
| [ 0.167164] VFP support v0.3: implementor 41 architecture 3 part 30 variant c rev 3 | |
| [ 0.223465] omap_hwmod: debugss: _wait_target_disable failed | |
| [ 0.277439] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns | |
| [ 0.281501] xor: measuring software checksum speed | |
| [ 0.320796] arm4regs : 1219.000 MB/sec | |
| [ 0.360790] 8regs : 1091.000 MB/sec | |
| [ 0.400791] 32regs : 1089.000 MB/sec | |
| [ 0.440790] neon : 1730.000 MB/sec | |
| [ 0.440799] xor: using function: neon (1730.000 MB/sec) | |
| [ 0.440920] pinctrl core: initialized pinctrl subsystem | |
| [ 0.443719] NET: Registered protocol family 16 | |
| [ 0.447370] DMA: preallocated 1024 KiB pool for atomic coherent allocations | |
| [ 0.449498] cpuidle: using governor ladder | |
| [ 0.449525] cpuidle: using governor menu | |
| [ 0.455247] OMAP GPIO hardware version 0.1 | |
| [ 0.457869] GPIO line 106 (LS_BUF_EN) hogged as output/high | |
| [ 0.474394] No ATAGs? | |
| [ 0.474432] hw-breakpoint: debug architecture 0x4 unsupported. | |
| [ 0.475950] omap4_sram_init:Unable to allocate sram needed to handle errata I688 | |
| [ 0.475975] omap4_sram_init:Unable to get sram pool needed to handle errata I688 | |
| [ 0.553045] raid6: int32x1 gen() 230 MB/s | |
| [ 0.620876] raid6: int32x1 xor() 176 MB/s | |
| [ 0.688938] raid6: int32x2 gen() 304 MB/s | |
| [ 0.756796] raid6: int32x2 xor() 199 MB/s | |
| [ 0.824921] raid6: int32x4 gen() 284 MB/s | |
| [ 0.892916] raid6: int32x4 xor() 199 MB/s | |
| [ 0.960916] raid6: int32x8 gen() 282 MB/s | |
| [ 1.028903] raid6: int32x8 xor() 186 MB/s | |
| [ 1.096830] raid6: neonx1 gen() 1465 MB/s | |
| [ 1.164821] raid6: neonx1 xor() 847 MB/s | |
| [ 1.232796] raid6: neonx2 gen() 1886 MB/s | |
| [ 1.300811] raid6: neonx2 xor() 1172 MB/s | |
| [ 1.368814] raid6: neonx4 gen() 1929 MB/s | |
| [ 1.436807] raid6: neonx4 xor() 1205 MB/s | |
| [ 1.504832] raid6: neonx8 gen() 1188 MB/s | |
| [ 1.572825] raid6: neonx8 xor() 844 MB/s | |
| [ 1.572833] raid6: using algorithm neonx4 gen() 1929 MB/s | |
| [ 1.572840] raid6: .... xor() 1205 MB/s, rmw enabled | |
| [ 1.572846] raid6: using intx1 recovery algorithm | |
| [ 1.582521] edma 49000000.edma: TI EDMA DMA engine driver | |
| [ 1.591336] SCSI subsystem initialized | |
| [ 1.591806] libata version 3.00 loaded. | |
| [ 1.592151] usbcore: registered new interface driver usbfs | |
| [ 1.592221] usbcore: registered new interface driver hub | |
| [ 1.592330] usbcore: registered new device driver usb | |
| [ 1.593207] omap_i2c 44e0b000.i2c: could not find pctldev for node /ocp/l4_wkup@44c00000/scm@210000/pinmux@800/pinmux_i2c0_pins, deferring probe | |
| [ 1.594057] omap_i2c 4802a000.i2c: bus 1 rev0.11 at 400 kHz | |
| [ 1.594723] omap_i2c 4819c000.i2c: bus 2 rev0.11 at 400 kHz | |
| [ 1.594975] media: Linux media interface: v0.10 | |
| [ 1.595055] Linux video capture interface: v2.00 | |
| [ 1.595162] pps_core: LinuxPPS API ver. 1 registered | |
| [ 1.595170] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> | |
| [ 1.595198] PTP clock support registered | |
| [ 1.596083] omap-mailbox 480c8000.mailbox: omap mailbox rev 0x400 | |
| [ 1.597599] NetLabel: Initializing | |
| [ 1.597617] NetLabel: domain hash size = 128 | |
| [ 1.597623] NetLabel: protocols = UNLABELED CIPSOv4 | |
| [ 1.597687] NetLabel: unlabeled traffic allowed by default | |
| [ 1.598079] clocksource: Switched to clocksource timer1 | |
| [ 1.710478] NET: Registered protocol family 2 | |
| [ 1.711350] TCP established hash table entries: 4096 (order: 2, 16384 bytes) | |
| [ 1.711399] TCP bind hash table entries: 4096 (order: 3, 32768 bytes) | |
| [ 1.711460] TCP: Hash tables configured (established 4096 bind 4096) | |
| [ 1.711542] UDP hash table entries: 256 (order: 1, 8192 bytes) | |
| [ 1.711563] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes) | |
| [ 1.711900] NET: Registered protocol family 1 | |
| [ 1.712499] RPC: Registered named UNIX socket transport module. | |
| [ 1.712514] RPC: Registered udp transport module. | |
| [ 1.712520] RPC: Registered tcp transport module. | |
| [ 1.712526] RPC: Registered tcp NFSv4.1 backchannel transport module. | |
| [ 1.713257] Unpacking initramfs... | |
| [ 2.094933] Freeing initrd memory: 5112K (cfb02000 - d0000000) | |
| [ 2.095568] hw perfevents: enabled with armv7_cortex_a8 PMU driver, 5 counters available | |
| [ 2.098823] futex hash table entries: 256 (order: 2, 16384 bytes) | |
| [ 2.098952] audit: initializing netlink subsys (disabled) | |
| [ 2.099039] audit: type=2000 audit(2.036:1): initialized | |
| [ 2.109059] zbud: loaded | |
| [ 2.109795] VFS: Disk quotas dquot_6.6.0 | |
| [ 2.110147] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes) | |
| [ 2.112948] NFS: Registering the id_resolver key type | |
| [ 2.113029] Key type id_resolver registered | |
| [ 2.113037] Key type id_legacy registered | |
| [ 2.113066] nfs4filelayout_init: NFSv4 File Layout Driver Registering... | |
| [ 2.113458] fuse init (API version 7.23) | |
| [ 2.114150] SGI XFS with ACLs, security attributes, realtime, no debug enabled | |
| [ 2.122693] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 249) | |
| [ 2.122978] io scheduler noop registered | |
| [ 2.122996] io scheduler deadline registered | |
| [ 2.123066] io scheduler cfq registered (default) | |
| [ 2.124738] pinctrl-single 44e10800.pinmux: 142 pins at pa f9e10800 size 568 | |
| [ 2.129852] wkup_m3_ipc 44e11324.wkup_m3_ipc: could not get rproc handle | |
| [ 2.131935] Serial: 8250/16550 driver, 6 ports, IRQ sharing disabled | |
| [ 2.135393] 44e09000.serial: ttyS0 at MMIO 0x44e09000 (irq = 158, base_baud = 3000000) is a 8250 | |
| [ 3.025023] console [ttyS0] enabled | |
| [ 3.029506] 48022000.serial: ttyS1 at MMIO 0x48022000 (irq = 159, base_baud = 3000000) is a 8250 | |
| [ 3.039291] 48024000.serial: ttyS2 at MMIO 0x48024000 (irq = 160, base_baud = 3000000) is a 8250 | |
| [ 3.049094] 481a6000.serial: ttyS3 at MMIO 0x481a6000 (irq = 161, base_baud = 3000000) is a 8250 | |
| [ 3.058863] 481a8000.serial: ttyS4 at MMIO 0x481a8000 (irq = 162, base_baud = 3000000) is a 8250 | |
| [ 3.068579] 481aa000.serial: ttyS5 at MMIO 0x481aa000 (irq = 163, base_baud = 3000000) is a 8250 | |
| [ 3.079435] [drm] Initialized drm 1.1.0 20060810 | |
| [ 3.095568] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver | |
| [ 3.102245] ehci-platform: EHCI generic platform driver | |
| [ 3.107793] ehci-omap: OMAP-EHCI Host Controller driver | |
| [ 3.113628] usbcore: registered new interface driver usb-storage | |
| [ 3.122646] 47401300.usb-phy supply vcc not found, using dummy regulator | |
| [ 3.132115] musb-hdrc: ConfigData=0xde (UTMI-8, dyn FIFOs, bulk combine, bulk split, HB-ISO Rx, HB-ISO Tx, SoftConn) | |
| [ 3.132135] musb-hdrc: MHDRC RTL version 2.0 | |
| [ 3.132144] musb-hdrc: setup fifo_mode 4 | |
| [ 3.132164] musb-hdrc: 28/31 max ep, 16384/16384 memory | |
| [ 3.134466] 47401b00.usb-phy supply vcc not found, using dummy regulator | |
| [ 3.143765] musb-hdrc: ConfigData=0xde (UTMI-8, dyn FIFOs, bulk combine, bulk split, HB-ISO Rx, HB-ISO Tx, SoftConn) | |
| [ 3.143786] musb-hdrc: MHDRC RTL version 2.0 | |
| [ 3.143795] musb-hdrc: setup fifo_mode 4 | |
| [ 3.143811] musb-hdrc: 28/31 max ep, 16384/16384 memory | |
| [ 3.143964] musb-hdrc musb-hdrc.1.auto: MUSB HDRC host driver | |
| [ 3.149843] musb-hdrc musb-hdrc.1.auto: new USB bus registered, assigned bus number 1 | |
| [ 3.158083] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002 | |
| [ 3.164929] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 | |
| [ 3.172201] usb usb1: Product: MUSB HDRC host driver | |
| [ 3.177201] usb usb1: Manufacturer: Linux 4.4.30-ti-r65 musb-hcd | |
| [ 3.183249] usb usb1: SerialNumber: musb-hdrc.1.auto | |
| [ 3.189244] hub 1-0:1.0: USB hub found | |
| [ 3.193199] hub 1-0:1.0: 1 port detected | |
| [ 3.207164] mousedev: PS/2 mouse device common for all mice | |
| [ 3.215916] omap_rtc 44e3e000.rtc: rtc core: registered 44e3e000.rtc as rtc0 | |
| [ 3.224214] i2c /dev entries driver | |
| [ 3.230202] omap_wdt: OMAP Watchdog Timer Rev 0x01: initial timeout 60 sec | |
| [ 3.237695] cpuidle: enable-method property 'ti,am3352' found operations | |
| [ 3.245433] omap_hsmmc 48060000.mmc: Got CD GPIO | |
| [ 3.356853] mmc1: MAN_BKOPS_EN bit is not set | |
| [ 3.368837] mmc1: new high speed MMC card at address 0001 | |
| [ 3.375318] mmcblk1: mmc1:0001 S10004 3.56 GiB | |
| [ 3.380410] mmcblk1boot0: mmc1:0001 S10004 partition 1 4.00 MiB | |
| [ 3.386852] mmcblk1boot1: mmc1:0001 S10004 partition 2 4.00 MiB | |
| [ 3.394313] mmcblk1: p1 | |
| [ 3.424211] hidraw: raw HID events driver (C) Jiri Kosina | |
| [ 3.431782] usbcore: registered new interface driver usbhid | |
| [ 3.437450] usbhid: USB HID core driver | |
| [ 3.443755] ashmem: initialized | |
| [ 3.446991] omap_hsmmc 47810000.mmc: card claims to support voltages below defined range | |
| [ 3.456248] remoteproc0: wkup_m3 is available | |
| [ 3.460804] remoteproc0: Note: remoteproc is still under development and considered experimental. | |
| [ 3.469824] remoteproc0: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed. | |
| [ 3.484690] NET: Registered protocol family 10 | |
| [ 3.490931] mip6: Mobile IPv6 | |
| [ 3.494016] NET: Registered protocol family 17 | |
| [ 3.498808] Key type dns_resolver registered | |
| [ 3.503198] mpls_gso: MPLS GSO support | |
| [ 3.507270] omap_voltage_late_init: Voltage driver support not added | |
| [ 3.515327] PM: Cannot get wkup_m3_ipc handle | |
| [ 3.519916] ThumbEE CPU extension supported. | |
| [ 3.524318] Registering SWP/SWPB emulation handler | |
| [ 3.530405] registered taskstats version 1 | |
| [ 3.535717] mmc2: queuing unknown CIS tuple 0x91 (3 bytes) | |
| [ 3.541462] zswap: loaded using pool lzo/zbud | |
| [ 3.546939] mmc2: new high speed SDIO card at address 0001 | |
| [ 3.556364] Btrfs loaded | |
| [ 3.585491] Key type encrypted registered | |
| [ 3.593317] input: tps65217_pwr_but as /devices/platform/ocp/44e0b000.i2c/i2c-0/0-0024/input/input0 | |
| [ 3.628350] tps65217 0-0024: TPS65217 ID 0xe version 1.2 | |
| [ 3.634529] at24 0-0050: 32768 byte 24c256 EEPROM, writable, 1 bytes/write | |
| [ 3.641545] omap_i2c 44e0b000.i2c: bus 0 rev0.11 at 400 kHz | |
| [ 3.648500] remoteproc0: powering up wkup_m3 | |
| [ 3.653581] remoteproc0: Booting fw image am335x-pm-firmware.elf, size 217148 | |
| [ 3.662500] PM: bootloader does not support rtc-only! | |
| [ 3.668098] wkup_m3_ipc 44e11324.wkup_m3_ipc: CM3 Firmware Version = 0x192 | |
| [ 3.675095] remoteproc0: remote processor wkup_m3 is now up | |
| [ 3.683151] omap_rtc 44e3e000.rtc: setting system clock to 2000-01-01 00:00:00 UTC (946684800) | |
| [ 3.693970] of_cfs_init | |
| [ 3.696668] of_cfs_init: OK | |
| [ 3.706738] PM: Hibernation image not present or could not be loaded. | |
| [ 3.708451] Freeing unused kernel memory: 744K (c0ed6000 - c0f90000) | |
| [ 3.948215] random: systemd-udevd: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 3.971187] random: systemd-udevd: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 3.981295] random: udevadm: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 3.991259] random: udevadm: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 4.000856] random: systemd-udevd: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 4.010975] random: udevadm: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 4.026516] random: udevadm: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 4.036678] random: udevadm: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 4.046862] random: udevadm: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 4.056909] random: udevadm: uninitialized urandom read (16 bytes read, 29 bits of entropy available) | |
| [ 6.300704] ti-pruss 4a300000.pruss: creating PRU cores and other child platform devices | |
| [ 6.416884] irq: no irq domain found for /ocp/pruss@4a300000/intc@4a320000 ! | |
| [ 6.480533] irq: no irq domain found for /ocp/pruss@4a300000/intc@4a320000 ! | |
| [ 6.617141] remoteproc1: 4a334000.pru0 is available | |
| [ 6.622314] remoteproc1: Note: remoteproc is still under development and considered experimental. | |
| [ 6.631343] remoteproc1: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed. | |
| [ 6.885421] remoteproc1: Direct firmware load for am335x-pru0-fw failed with error -2 | |
| [ 6.893550] remoteproc1: failed to load am335x-pru0-fw | |
| [ 6.898983] pru-rproc 4a334000.pru0: booting the PRU core manually | |
| [ 6.951285] remoteproc1: powering up 4a334000.pru0 | |
| [ 7.007458] remoteproc1: Direct firmware load for am335x-pru0-fw failed with error -2 | |
| [ 7.015570] remoteproc1: request_firmware failed: -2 | |
| [ 7.020681] pru-rproc 4a334000.pru0: rproc_boot failed | |
| [ 7.169052] remoteproc1: releasing 4a334000.pru0 | |
| [ 7.217821] pru-rproc: probe of 4a334000.pru0 failed with error -2 | |
| [ 7.281753] remoteproc1: 4a338000.pru1 is available | |
| [ 7.286910] remoteproc1: Note: remoteproc is still under development and considered experimental. | |
| [ 7.295940] remoteproc1: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed. | |
| [ 7.497131] remoteproc1: Direct firmware load for am335x-pru1-fw failed with error -2 | |
| [ 7.505249] remoteproc1: failed to load am335x-pru1-fw | |
| [ 7.510672] pru-rproc 4a338000.pru1: booting the PRU core manually | |
| [ 7.570312] remoteproc1: powering up 4a338000.pru1 | |
| [ 7.614657] remoteproc1: Direct firmware load for am335x-pru1-fw failed with error -2 | |
| [ 7.622732] remoteproc1: request_firmware failed: -2 | |
| [ 7.627839] pru-rproc 4a338000.pru1: rproc_boot failed | |
| [ 7.684321] remoteproc1: releasing 4a338000.pru1 | |
| [ 7.689425] pru-rproc: probe of 4a338000.pru1 failed with error -2 | |
| [ 8.863999] EXT4-fs (mmcblk1p1): mounted filesystem with ordered data mode. Opts: (null) | |
| [ 9.253856] systemd[1]: System time before build time, advancing clock. | |
| [ 9.309587] systemd[1]: Failed to insert module 'kdbus': Function not implemented | |
| [ 9.348348] systemd[1]: systemd 230 running in system mode. (+PAM +AUDIT +SELINUX +IMA +APPARMOR +SMACK +SYSVINIT +UTMP +LIBCRYPTSETUP +GCRYPT +GNUTLS +ACL +XZ -LZ4 +SECCOMP +BLKID +ELFUTILS +KMOD +IDN) | |
| [ 9.367344] systemd[1]: Detected architecture arm. | |
| [ 9.392577] systemd[1]: Set hostname to <bla1a-9>. | |
| [ 9.953076] systemd[1]: Started Dispatch Password Requests to Console Directory Watch. | |
| [ 9.975089] systemd[1]: Listening on Journal Socket (/dev/log). | |
| [ 9.994741] systemd[1]: Reached target Swap. | |
| [ 10.006802] systemd[1]: Reached target Encrypted Volumes. | |
| [ 10.019179] systemd[1]: Listening on udev Control Socket. | |
| [ 10.032361] systemd[1]: Set up automount Arbitrary Executable File Formats File System Automount Point. | |
| [ 10.055653] systemd[1]: Created slice User and Session Slice. | |
| [ 10.071014] systemd[1]: Listening on fsck to fsckd communication Socket. | |
| [ 10.091051] systemd[1]: Listening on Syslog Socket. | |
| [ 10.103076] systemd[1]: Listening on udev Kernel Socket. | |
| [ 10.115083] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe. | |
| [ 10.135139] systemd[1]: Listening on Journal Socket. | |
| [ 10.147671] systemd[1]: Listening on Journal Audit Socket. | |
| [ 10.167134] systemd[1]: Started Forward Password Requests to Wall Directory Watch. | |
| [ 10.186721] systemd[1]: Reached target Paths. | |
| [ 10.198833] systemd[1]: Reached target Remote File Systems (Pre). | |
| [ 10.218737] systemd[1]: Reached target Remote File Systems. | |
| [ 10.231592] systemd[1]: Created slice System Slice. | |
| [ 10.247760] systemd[1]: Starting Create list of required static device nodes for the current kernel... | |
| [ 10.294786] systemd[1]: Mounting /sys/kernel/debug... | |
| [ 10.362910] systemd[1]: Starting Journal Service... | |
| [ 10.401584] systemd[1]: Created slice system-serial\x2dgetty.slice. | |
| [ 10.444351] systemd[1]: Mounting POSIX Message Queue File System... | |
| [ 10.542708] systemd[1]: Starting Remount Root and Kernel File Systems... | |
| [ 10.595537] systemd[1]: Created slice system-getty.slice. | |
| [ 10.663367] systemd[1]: Starting Load Kernel Modules... | |
| [ 10.698761] systemd[1]: Reached target Slices. | |
| [ 10.729085] EXT4-fs (mmcblk1p1): re-mounted. Opts: errors=remount-ro | |
| [ 10.781459] eqep 48300180.eqep: ver. 1.0 | |
| [ 10.795662] systemd[1]: Mounted POSIX Message Queue File System. | |
| [ 10.818422] eqep 48300180.eqep: unable to select pin group | |
| [ 10.835379] eqep 48302180.eqep: ver. 1.0 | |
| [ 10.840104] systemd[1]: Mounted /sys/kernel/debug. | |
| [ 10.847115] eqep 48302180.eqep: unable to select pin group | |
| [ 10.853860] eqep 48304180.eqep: ver. 1.0 | |
| [ 10.865328] systemd[1]: Started Journal Service. | |
| [ 10.870382] eqep 48304180.eqep: unable to select pin group | |
| [ 11.558819] systemd-journald[566]: Received request to flush runtime journal from PID 1 | |
| [ 11.895246] random: nonblocking pool is initialized | |
| [ 16.331359] remoteproc1: 4a334000.pru0 is available | |
| [ 16.336502] remoteproc1: Note: remoteproc is still under development and considered experimental. | |
| [ 16.345567] remoteproc1: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed. | |
| [ 16.688684] pru-rproc 4a334000.pru0: booting the PRU core manually | |
| [ 16.751956] remoteproc1: powering up 4a334000.pru0 | |
| [ 16.813343] remoteproc1: Booting fw image am335x-pru0-fw, size 36296 | |
| [ 16.820045] remoteproc1: remote processor 4a334000.pru0 is now up | |
| [ 16.826356] pru-rproc 4a334000.pru0: PRU rproc node /ocp/pruss@4a300000/pru0@4a334000 probed successfully | |
| [ 17.050595] remoteproc2: 4a338000.pru1 is available | |
| [ 17.055706] remoteproc2: Note: remoteproc is still under development and considered experimental. | |
| [ 17.064776] remoteproc2: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed. | |
| [ 17.279784] pru-rproc 4a338000.pru1: booting the PRU core manually | |
| [ 17.354397] remoteproc2: powering up 4a338000.pru1 | |
| [ 17.409926] remoteproc2: Booting fw image am335x-pru1-fw, size 35364 | |
| [ 17.416648] remoteproc2: remote processor 4a338000.pru1 is now up | |
| [ 17.422982] pru-rproc 4a338000.pru1: PRU rproc node /ocp/pruss@4a300000/pru1@4a338000 probed successfully | |
| [ 18.640649] using random self ethernet address | |
| [ 18.645273] using random host ethernet address | |
| [ 18.677904] using host ethernet address: 1c:ba:8c:a2:ed:6a | |
| [ 18.757584] Mass Storage Function, version: 2009/09/11 | |
| [ 18.774369] LUN: removable file: (no medium) | |
| [ 18.802577] LUN: removable read only file: /var/cache/doc-beaglebone-getting-started/beaglebone-getting-started-2016-11-07.img | |
| [ 18.814140] Number of LUNs=1 | |
| [ 18.880702] usb0: HOST MAC 1c:ba:8c:a2:ed:6a | |
| [ 18.911316] usb0: MAC aa:37:f6:d0:2a:9b | |
| [ 18.945138] g_multi gadget: Multifunction Composite Gadget | |
| [ 18.950830] g_multi gadget: g_multi ready | |
| [ 20.466792] IPv6: ADDRCONF(NETDEV_UP): usb0: link is not ready | |
| [ 34.192259] omap_rng 48310000.rng: OMAP Random Number Generator ver. 20 | |
| [ 36.205187] omap-sham 53100000.sham: hw accel on OMAP rev 4.3 | |
| [ 36.482021] omap-aes 53500000.aes: OMAP AES hw accel rev: 3.2 | |
| [ 36.654861] [drm] Initialized pvr 1.14.3699939 20110701 on minor 0 | |
| [ 42.272100] Bluetooth: Core ver 2.21 | |
| [ 42.288481] NET: Registered protocol family 31 | |
| [ 42.293161] Bluetooth: HCI device and connection manager initialized | |
| [ 42.322385] Bluetooth: HCI socket layer initialized | |
| [ 42.343430] Bluetooth: L2CAP socket layer initialized | |
| [ 42.359107] Bluetooth: SCO socket layer initialized | |
| [ 42.393524] Bluetooth: HCI UART driver ver 2.3 | |
| [ 42.398201] Bluetooth: HCI UART protocol H4 registered | |
| [ 42.403465] Bluetooth: HCI UART protocol BCSP registered | |
| [ 42.408823] Bluetooth: HCI UART protocol LL registered | |
| [ 42.414002] Bluetooth: HCI UART protocol ATH3K registered | |
| [ 42.419443] Bluetooth: HCI UART protocol Three-wire (H5) registered | |
| [ 42.505384] Bluetooth: HCI UART protocol BCM registered | |
| [ 42.510810] Bluetooth: HCI UART protocol QCA registered | |
| [ 43.284582] Bluetooth: BNEP (Ethernet Emulation) ver 1.3 | |
| [ 43.290077] Bluetooth: BNEP filters: protocol multicast | |
| [ 43.346347] Bluetooth: BNEP socket layer initialized | |
| [ 44.099428] wlcore: wl18xx HW: 183x or 180x, PG 2.2 (ROM 0x11) | |
| [ 44.187948] wlcore: loaded | |
| [ 44.656211] wlcore: PHY firmware version: Rev 8.2.0.0.236 | |
| [ 44.799909] wlcore: firmware booted (Rev 8.9.0.0.69) | |
| [ 44.843439] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready | |
| [ 45.184639] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this. | |
| [ 45.235433] wlcore: down | |
| [ 45.856184] wlcore: down | |
| [ 45.943780] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready | |
| [ 45.983428] device wlan0 entered promiscuous mode | |
| [ 46.229645] tether: port 1(wlan0) entered forwarding state | |
| [ 46.235417] tether: port 1(wlan0) entered forwarding state | |
| [ 56.451929] ip_tables: (C) 2000-2006 Netfilter Core Team | |
| [ 56.560749] nf_conntrack version 0.5.0 (7804 buckets, 31216 max) | |
| [ 100.054967] hrtimer: interrupt took 122764 ns | |
| [ 837.062125] fbtft: module is from the staging directory, the quality is unknown, you have been warned. | |
| [ 837.105393] fbtft_device: module is from the staging directory, the quality is unknown, you have been warned. | |
| [ 837.148845] spidev spi1.0: spidev spi1.0 24000kHz 8 bits mode=0x00 | |
| [ 837.155279] spidev spi1.1: spidev spi1.1 24000kHz 8 bits mode=0x00 | |
| [ 837.162127] spidev spi1.0: Deleting spi1.0 | |
| [ 837.206423] fbtft_device: GPIOS used by 'adafruit28': | |
| [ 837.211958] fbtft_device: 'reset' = GPIO49 | |
| [ 837.216348] fbtft_device: 'dc' = GPIO57 | |
| [ 837.220413] spidev spi1.1: spidev spi1.1 24000kHz 8 bits mode=0x00 | |
| [ 837.226729] spi spi1.0: fb_ili9341 spi1.0 32000kHz 8 bits mode=0x00 | |
| [ 837.334458] fb_ili9341: module is from the staging directory, the quality is unknown, you have been warned. | |
| [ 837.702613] Console: switching to colour frame buffer device 40x30 | |
| [ 837.715865] graphics fb0: fb_ili9341 frame buffer, 320x240, 150 KiB video memory, 16 KiB DMA buffer memory, fps=20, spi1.0 at 32 MHz |
Hi, I am working on the same project as this. I am completely new to frame buffer. I have done complete setup as well, can see the screen's lighten up with white light. But I don't really know how to proceed. Can you please guide me on this?
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Jason: This was a great help in getting my LCD display to work. Now to get the touch panel working...
--Mark
