Created
November 3, 2017 18:47
-
-
Save peterhellberg/674f32a15a7d2d249e634ce781f333e8 to your computer and use it in GitHub Desktop.

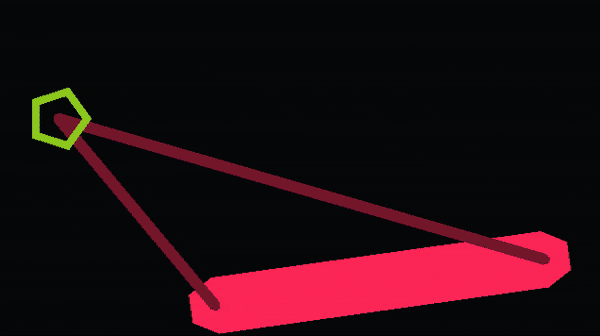

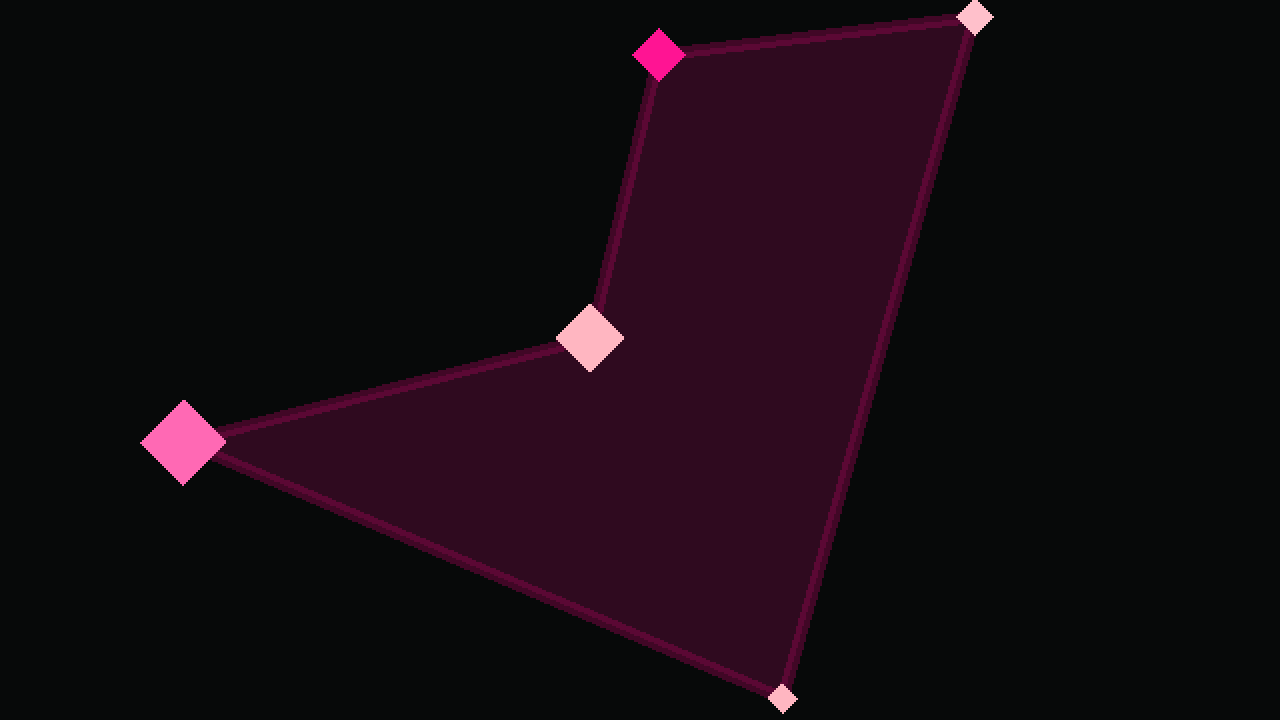

Bouncing balls using the Pixel package
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
package main | |
import ( | |
"image/color" | |
"math/rand" | |
"time" | |
"github.com/faiface/pixel" | |
"github.com/faiface/pixel/imdraw" | |
"github.com/faiface/pixel/pixelgl" | |
) | |
var ( | |
w, h, scale = float64(320), float64(180), float64(6) | |
p = newPalette(PinkColors) | |
bg = color.RGBA{7, 9, 9, 255} | |
lc, pc color.RGBA | |
v = rand.Float64() * scale | |
balls = []*ball{ | |
newRandomBall(4 + v), | |
newRandomBall(6 + v), | |
newRandomBall(10 + v), | |
newRandomBall(14 + v), | |
newRandomBall(18 + v), | |
} | |
) | |
func run() { | |
win, err := pixelgl.NewWindow(pixelgl.WindowConfig{ | |
Bounds: pixel.R(0, 0, w, h), | |
VSync: true, | |
Undecorated: true, | |
}) | |
if err != nil { | |
panic(err) | |
} | |
imd := imdraw.New(nil) | |
imd.Precision = 3 | |
go func() { | |
var step int | |
for range time.Tick(256 * time.Millisecond) { | |
switch imd.Precision { | |
case 3: | |
step = 1 | |
case 9: | |
step = -1 | |
} | |
imd.Precision += step | |
} | |
}() | |
for !win.Closed() { | |
win.SetClosed(win.JustPressed(pixelgl.KeyEscape) || win.JustPressed(pixelgl.KeyQ)) | |
var positions = []pixel.Vec{} | |
for _, ball := range balls { | |
positions = append(positions, ball.pos) | |
} | |
imd.Clear() | |
imd.Color = lc | |
imd.Push(positions...) | |
imd.Push(positions[0]) | |
imd.Line(scale) | |
imd.Color = pc | |
imd.Push(positions...) | |
imd.Polygon(0) | |
for _, ball := range balls { | |
imd.Color = ball.color | |
imd.Push(ball.pos) | |
imd.Circle(ball.radius, 0) | |
} | |
win.Clear(bg) | |
imd.Draw(win) | |
win.Update() | |
} | |
} | |
func main() { | |
rand.Seed(42) | |
go func() { | |
for range time.Tick(16 * time.Millisecond) { | |
for _, ball := range balls { | |
ball.update() | |
} | |
} | |
}() | |
updatePolygonColor(p.next()) | |
pixelgl.Run(run) | |
} | |
func updatePolygonColor(c color.RGBA) { | |
lc = color.RGBA{c.R / 4, c.G / 4, c.B / 4, 192} | |
pc = color.RGBA{c.R / 6, c.G / 6, c.B / 6, 64} | |
} | |
func newRandomBall(radius float64) *ball { | |
pos := pixel.V(w/4+(w/4*3)*rand.Float64(), h/4+(h/4*3)*rand.Float64()) | |
dir := pixel.V((rand.Float64()*2)-1, (rand.Float64()*2)-1).Scaled(32 / radius) | |
return &ball{pos, dir, radius, p.color(), p.clone()} | |
} | |
type ball struct { | |
pos pixel.Vec | |
dir pixel.Vec | |
radius float64 | |
color color.RGBA | |
palette *palette | |
} | |
func (b *ball) update() { | |
b.pos.X += b.dir.X | |
b.pos.Y += b.dir.Y | |
if b.pos.Y <= b.radius || b.pos.Y >= h-b.radius { | |
b.dir.Y *= -1 | |
b.color = b.palette.next() | |
updatePolygonColor(p.next()) | |
} | |
if b.pos.X <= b.radius || b.pos.X >= w-b.radius { | |
b.dir.X *= -1 | |
b.color = b.palette.next() | |
updatePolygonColor(p.next()) | |
} | |
} | |
func newPalette(colors []color.RGBA) *palette { | |
return &palette{colors, len(colors), 0} | |
} | |
type palette struct { | |
colors []color.RGBA | |
size int | |
index int | |
} | |
func (p *palette) clone() *palette { | |
return &palette{p.colors, len(p.colors), p.index} | |
} | |
func (p *palette) next() color.RGBA { | |
p.index++ | |
if p.index+1 >= p.size { | |
p.index = 0 | |
} | |
return p.colors[p.index] | |
} | |
func (p *palette) color() color.RGBA { | |
return p.colors[p.index] | |
} | |
func (p *palette) random() color.RGBA { | |
p.index = rand.Intn(p.size) | |
return p.colors[p.index] | |
} | |
var ( | |
Pink = color.RGBA{255, 192, 203, 255} | |
LightPink = color.RGBA{255, 182, 193, 255} | |
HotPink = color.RGBA{255, 105, 180, 255} | |
DeepPink = color.RGBA{255, 20, 147, 255} | |
PaleVioletRed = color.RGBA{219, 112, 147, 255} | |
MediumVioletRed = color.RGBA{199, 21, 133, 255} | |
) | |
var PinkColors = []color.RGBA{ | |
Pink, | |
LightPink, | |
HotPink, | |
DeepPink, | |
PaleVioletRed, | |
MediumVioletRed, | |
} |
Author
peterhellberg
commented
Nov 3, 2017
•

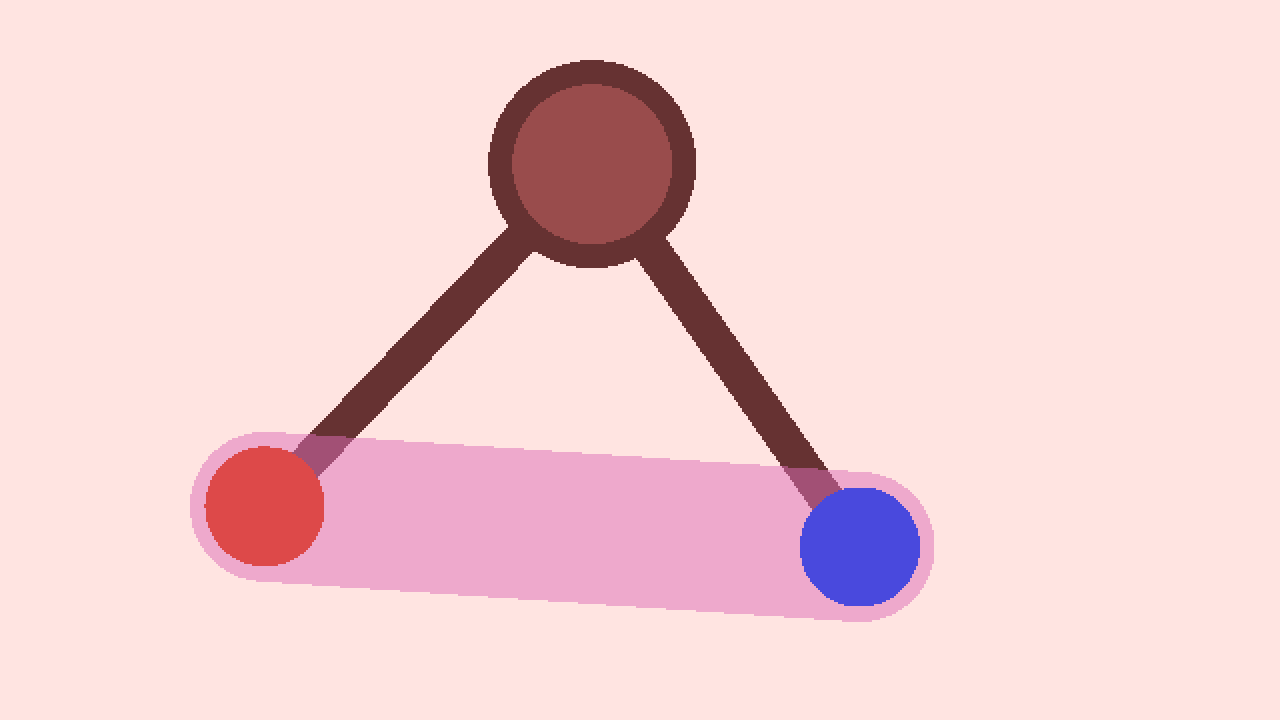

Bouncing with collisions
package main
import (
"image/color"
"image/color/palette"
"math"
"math/rand"
"time"
"github.com/faiface/pixel"
"github.com/faiface/pixel/imdraw"
"github.com/faiface/pixel/pixelgl"
)
var (
w, h, scale = float64(640), float64(360), float64(6)
p, bg = newPalette(palette.Plan9), color.RGBA{255, 228, 225, 255}
balls = []*ball{
newRandomBall(30),
newRandomBall(40),
newRandomBall(30),
}
)
func run() {
win, err := pixelgl.NewWindow(pixelgl.WindowConfig{
Bounds: pixel.R(0, 0, w, h),
VSync: true,
Undecorated: true,
})
if err != nil {
panic(err)
}
win.SetSmooth(true)
imd := imdraw.New(nil)
imd.EndShape = imdraw.RoundEndShape
for !win.Closed() {
win.SetClosed(win.JustPressed(pixelgl.KeyEscape) || win.JustPressed(pixelgl.KeyQ))
c0 := balls[0].color
c1 := balls[1].color
c2 := balls[2].color
lc := color.RGBA{(c1.R / 3) * 2, (c1.G / 3) * 2, (c1.B / 3) * 2, 255}
imd.Clear()
imd.Color = lc
imd.Push(balls[0].pos, balls[1].pos, balls[2].pos)
imd.Line(scale * 3)
imd.Push(balls[1].pos)
imd.Circle(balls[1].radius, scale*4)
imd.Color = color.RGBA{
uint8((int(c0.R) + int(c2.R) + int(c1.R)) / 4),
uint8((int(c0.G) + int(c2.G) + int(c1.G)) / 4),
uint8((int(c0.B) + int(c2.B) + int(c1.B)) / 4),
128,
}
imd.Push(balls[0].pos, balls[2].pos)
imd.Line(balls[0].radius * 2.5)
for _, ball := range []*ball{balls[0], balls[2]} {
imd.Color = ball.color
imd.Push(ball.pos)
imd.Circle(ball.radius, 0)
}
imd.Color = balls[1].color
imd.Push(balls[1].pos)
imd.Circle(balls[1].radius, 0)
win.Clear(bg)
imd.Draw(win)
win.Update()
}
}
func main() {
rand.Seed(4)
go func() {
for range time.Tick(32 * time.Millisecond) {
for _, ball := range balls {
ball.update()
}
}
}()
pixelgl.Run(run)
}
func newRandomBall(radius float64) *ball {
bp := p.clone()
mass := math.Pi * (radius * radius)
return &ball{
pixel.V(w/2, h/2),
pixel.V((rand.Float64()*2)-1, (rand.Float64()*2)-1).Scaled(scale),
mass, radius, bp.random(), bp,
}
}
type ball struct {
pos pixel.Vec
vel pixel.Vec
mass float64
radius float64
color color.RGBA
palette *Palette
}
func (b *ball) update() {
b.pos = b.pos.Add(b.vel)
if b.pos.Y <= b.radius+scale || b.pos.Y >= h-(b.radius+scale) {
b.vel.Y *= -1.0
b.color = b.palette.next()
}
if b.pos.X <= b.radius+scale || b.pos.X >= w-(b.radius+scale) {
b.vel.X *= -1.0
b.color = b.palette.next()
}
for _, a := range balls {
if a != b {
d := a.pos.Sub(b.pos)
if d.Len() > a.radius+b.radius {
continue
}
pen := d.Unit().Scaled(a.radius + b.radius - d.Len())
a.pos = a.pos.Add(pen.Scaled(b.mass / (a.mass + b.mass)))
b.pos = b.pos.Sub(pen.Scaled(a.mass / (a.mass + b.mass)))
u := d.Unit()
v := 2 * (a.vel.Dot(u) - b.vel.Dot(u)) / (a.mass + b.mass)
a.vel = a.vel.Sub(u.Scaled(v * a.mass))
b.vel = b.vel.Add(u.Scaled(v * b.mass))
a.color = a.palette.next()
b.color = b.palette.next()
}
}
}
func newPalette(cc []color.Color) *Palette {
colors := []color.RGBA{}
for _, v := range cc {
if c, ok := v.(color.RGBA); ok {
colors = append(colors, c)
}
}
return &Palette{colors, len(colors), 0}
}
type Palette struct {
colors []color.RGBA
size int
index int
}
func (p *Palette) clone() *Palette {
return &Palette{p.colors, p.size, p.index}
}
func (p *Palette) next() color.RGBA {
p.index++
if p.index+1 >= p.size {
p.index = 0
}
return p.colors[p.index]
}
func (p *Palette) color() color.RGBA {
return p.colors[p.index]
}
func (p *Palette) random() color.RGBA {
p.index = rand.Intn(p.size)
return p.colors[p.index]
}
